◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#78730) — 86 parça

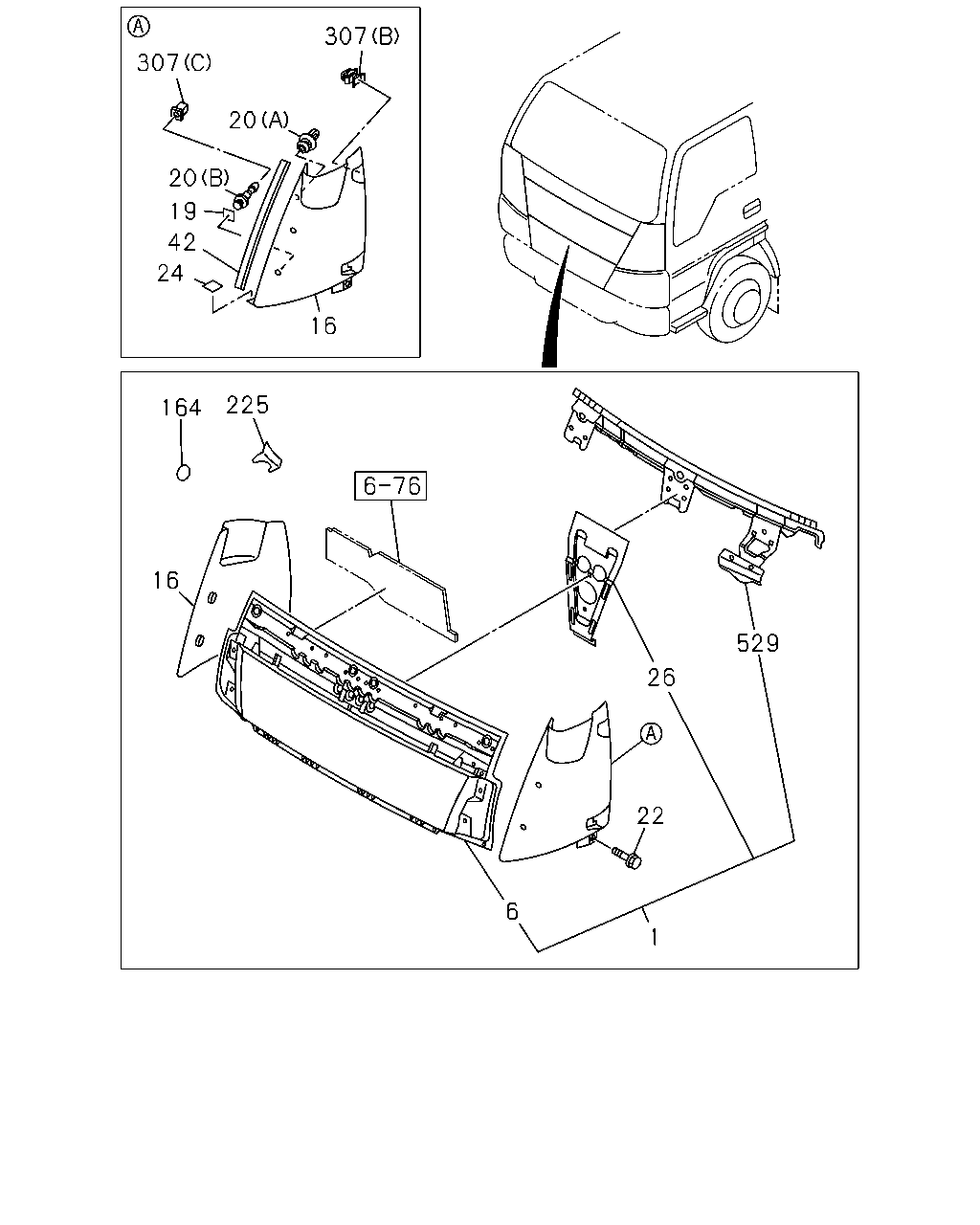

çizim 126748
307 307 20 20 42 19 24 16 225 164 16 26 529 22 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 1011- ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 1011- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-146-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-146-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-167-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-167-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-147-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-147-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-168-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-168-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-148-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-148-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-169-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-169-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-149-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-149-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-170-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-170-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-150-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-150-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-171-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-171-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97582-455-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97582-471-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97582-459-4 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-4 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97582-475-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97422-126-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-126-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97422-127-5 01 1 1011- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-127-5 01 1 1011- ●
19 16.588 SEAL; FRT SIDE PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> 16.069 		8-98015-057-0 02 1 1011- ●
19 16.588 SEAL; FRT SIDE PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> 16.069 		8-98015-057-0 02 1 1011- ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 1011- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) H=11.6 		8-98013-823-0 02 1 1011- ● ●
22 16.588 SCREW; FRT PANEL SIDE
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 1011- ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 1011- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 1011- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 1011- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 1011- ● ●
164 16.125 SEAL; FRT PILLAR
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1011- ● ●
164 16.125 SEAL; FRT PILLAR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1011- ● ●
225 16.069 COVER; SIDE,FRT
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-157-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR EBONY BLACK(508) EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-157-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-178-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR EBONY BLACK(508) EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK 		8-97422-178-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-158-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517) EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-158-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-179-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517) EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97422-179-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-159-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR WHITE(534) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-159-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-180-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR WHITE(534) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97422-180-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-831-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-831-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-840-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-840-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-160-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR WHEATLAND YELLOW(812) EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-160-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-181-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR WHEATLAND YELLOW(812) EXC. KD PREPARATORY PACK VAR.4<7TV> YELLOW 		8-97422-181-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-161-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR SAHARA BEIGE(829) EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-161-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-182-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR SAHARA BEIGE(829) EXC. KD PREPARATORY PACK VAR.4<7TV> BEIGE 		8-97422-182-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-844-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-844-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97422-113-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR TRANS BLUE(999) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97422-113-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97422-114-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR TRANS BLUE(999) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97422-114-4 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-835-5 01 1 1011- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-835-5 01 1 1011- ●
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1011- ● ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1011- ● ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1011- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 1011- ● ●
çizim 191378
525 307
BalonParca AdiParca NoAdetTipApplied Date A B
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1011- ● ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1011- ● ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1011- ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1011- ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
