4-42 — POWER STEERING OIL PUMP (#7873) — 77 parça

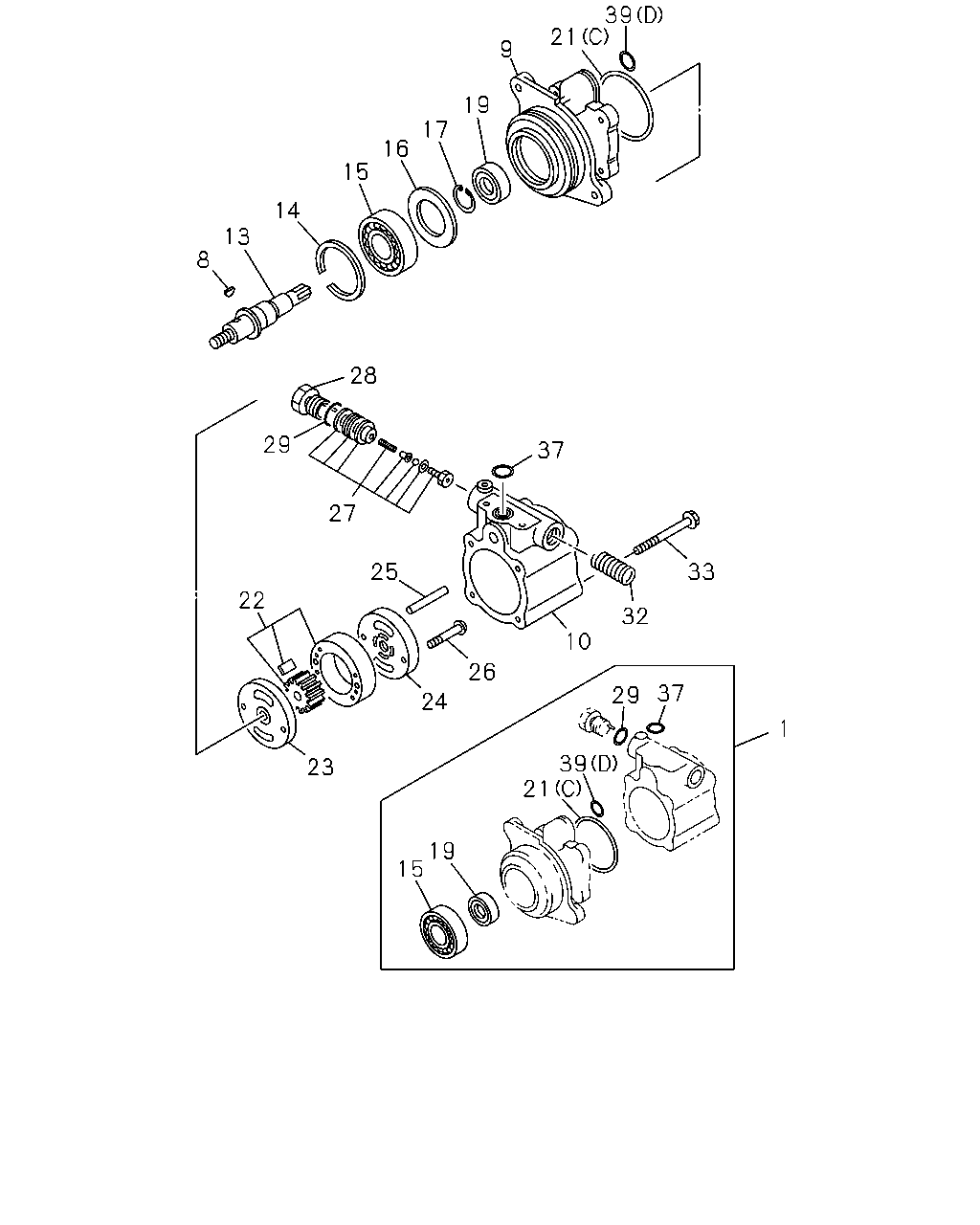

39 21 9 19 17 16 15 14 13 8 28 29 37 27 25 33 22 32 10 26 37 29 24 1 39 21 23 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-539-1	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-538-2	1-85574-073-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-538-2, B = 1-19500-539-1	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-538-2	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-539-1	1-19511-159-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-538-2	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-539-1	1-19511-161-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-538-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-539-1	1-19521-039-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-539-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-539-1	9-19519-078-0	01	1	-
17	RING; RET ASM PART: B = 1-19500-539-1	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-539-1	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-538-2	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-538-2	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-341-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-133-1	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-539-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-538-2	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-538-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-539-1	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: B = 1-19500-539-1	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-347-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: B = 1-19500-539-1	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-538-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-539-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-539-1	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-538-2	1-19519-346-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-538-2	1-33739-070-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-538-2	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-538-2	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-539-1	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-538-2	9-48429-028-0	01	1	-

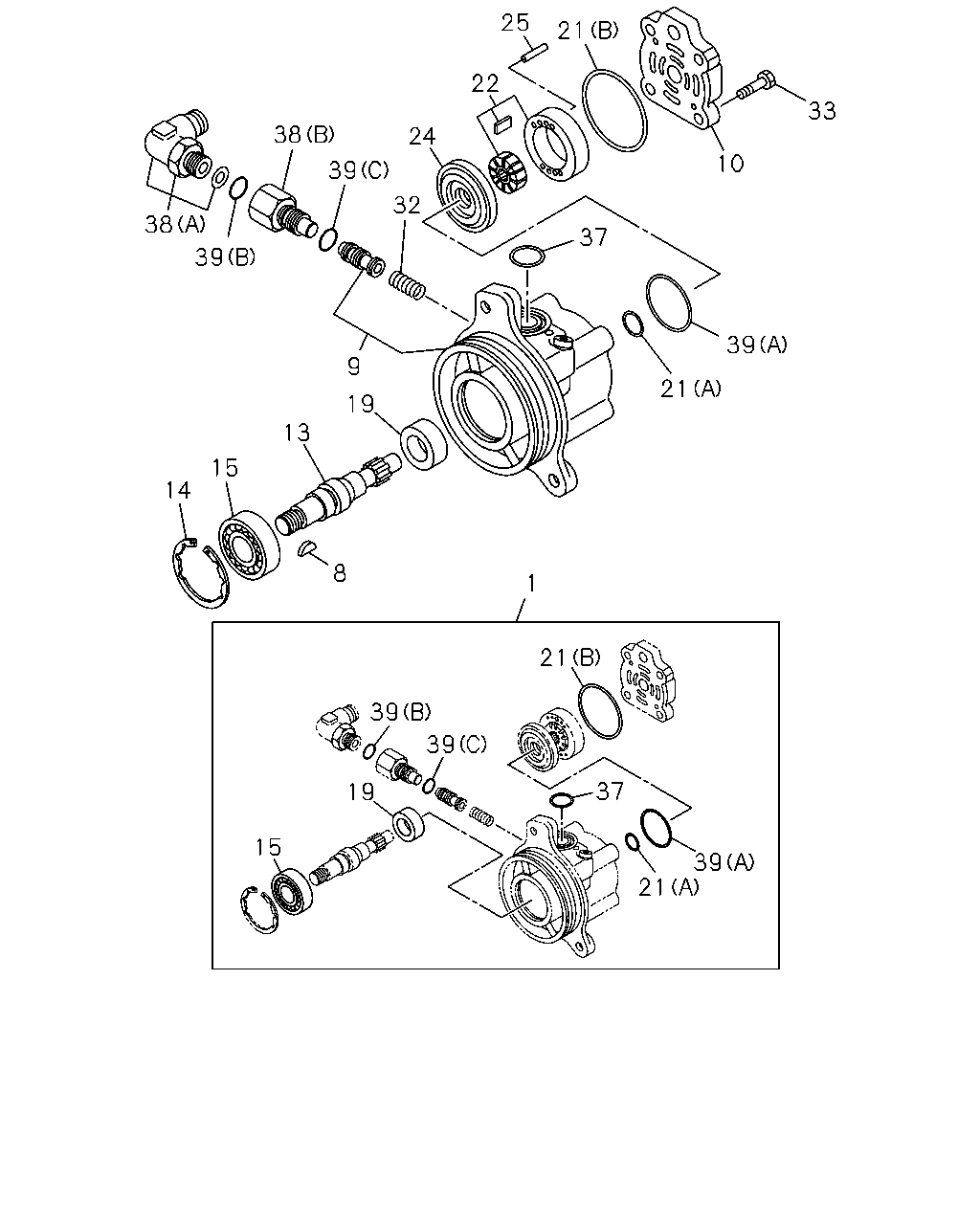

25 21 22 33 38 24 10 39 32 38 37 39 39 9 21 19 13 15 14 8 1 21 39 39 19 37 15 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-539-1	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-538-2	1-85574-073-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-538-2, B = 1-19500-539-1	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-538-2	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-539-1	1-19511-159-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-538-2	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-539-1	1-19511-161-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-538-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-539-1	1-19521-039-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-539-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-539-1	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-538-2	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-538-2	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-538-2	1-19519-341-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-539-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-538-2	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-538-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-539-1	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-538-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-539-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-539-1	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-538-2	1-19519-346-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-539-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-538-2	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-538-2	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-538-2	1-19519-343-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-538-2	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-538-2	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-539-1	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-538-2	9-48429-028-0	01	1	-
