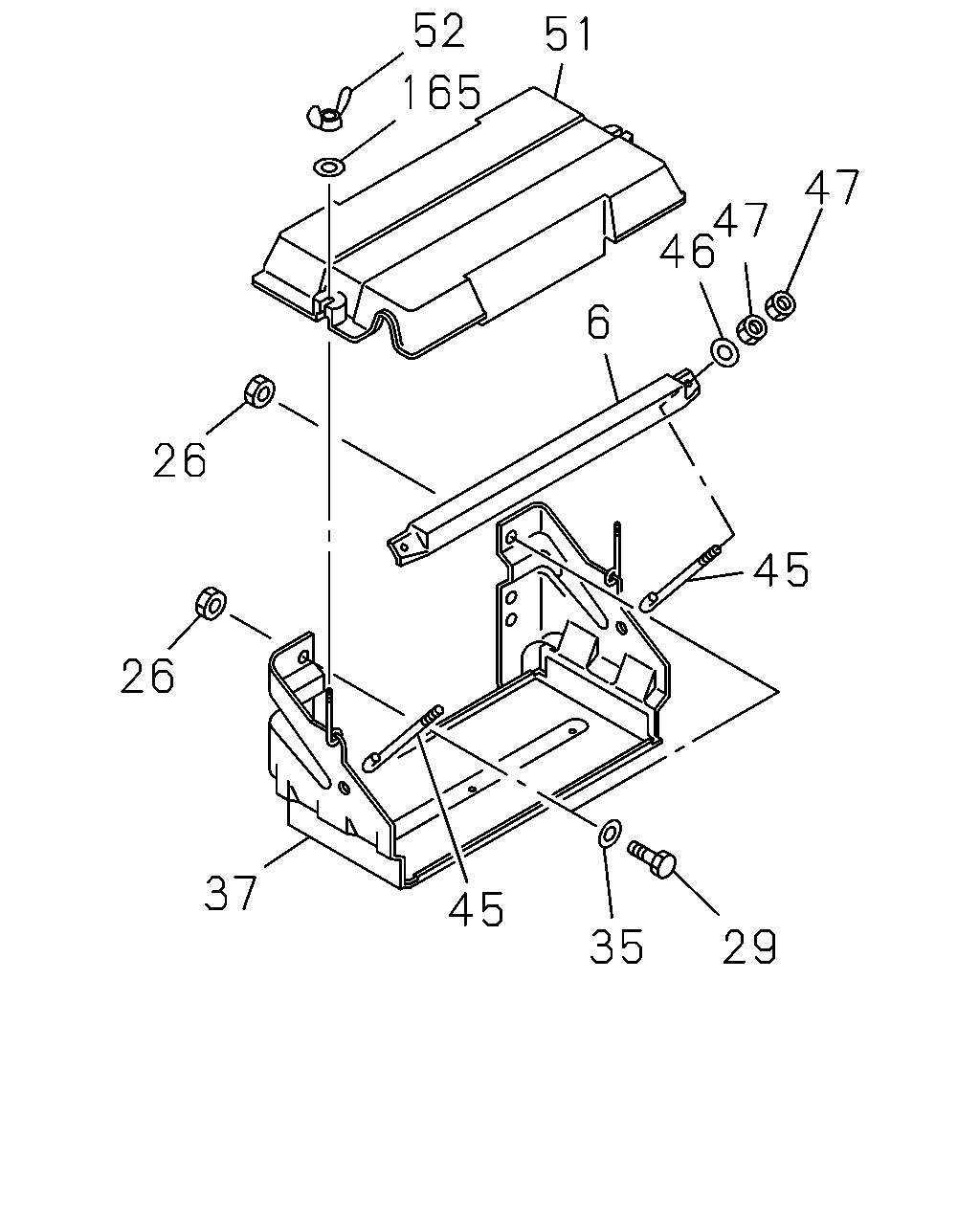

5-20 — BATTERY CARRIER (#78725) — 18 parça

52 51 165 47 47 46 6 26 45 26 37 45 35 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	1011-	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN>	8-94108-314-0	01	1	1011-	●	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	1011-1311	●
26	02.334 NUT; BRKT BATTERY NX200-10<S9C> 04.085 M10 FLANGE	0-91180-210-0	02	1	1312-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1011-1311		●
26	02.334 NUT; BRKT BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-	●
26	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-		●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	1011-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1011-	●	●
37	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	1011-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31R<6DN>	8-97072-544-0	01	1	1011-	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	1011-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1011-	●	●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8	0-91110-508-0	04	1	1011-	●	●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345	9-53612-046-2	01	1	1011-	●	●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN>	8-97313-780-0	01	1	1011-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> M5 WING NUT	0-91118-405-0	02	1	1011-	●	●
165	02.334 WASHER; COVER BATTERY NX200-10<S9C> 02.335 ID=5.3 OD=16	0-91614-705-0	02	1	1011-	●	●
