4-80 — ROAD WHEEL (#78721) — 86 parça

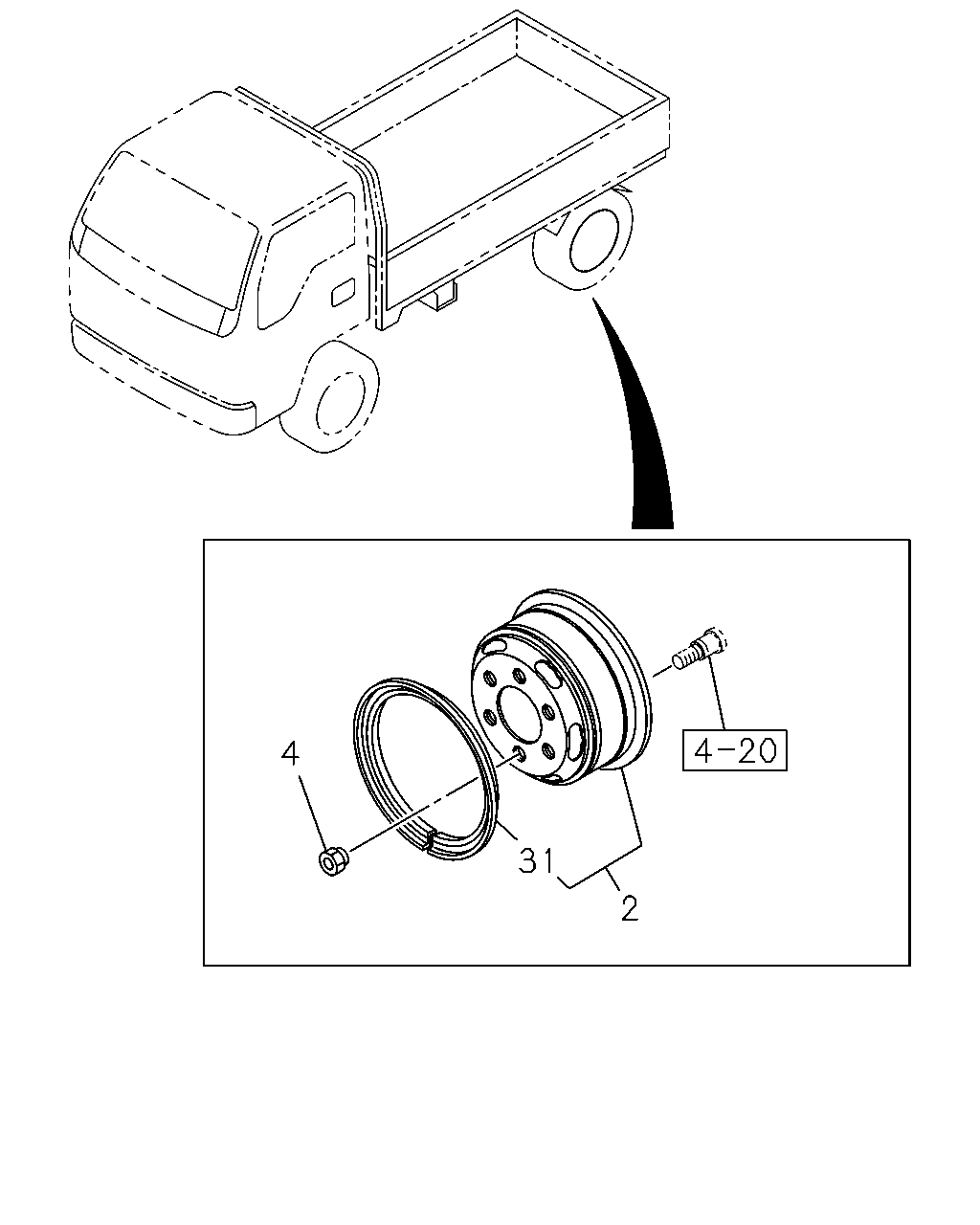

4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1205-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1205-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1011-	●
2	05.803 WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1011-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1011-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1011-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1011-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1011-		●

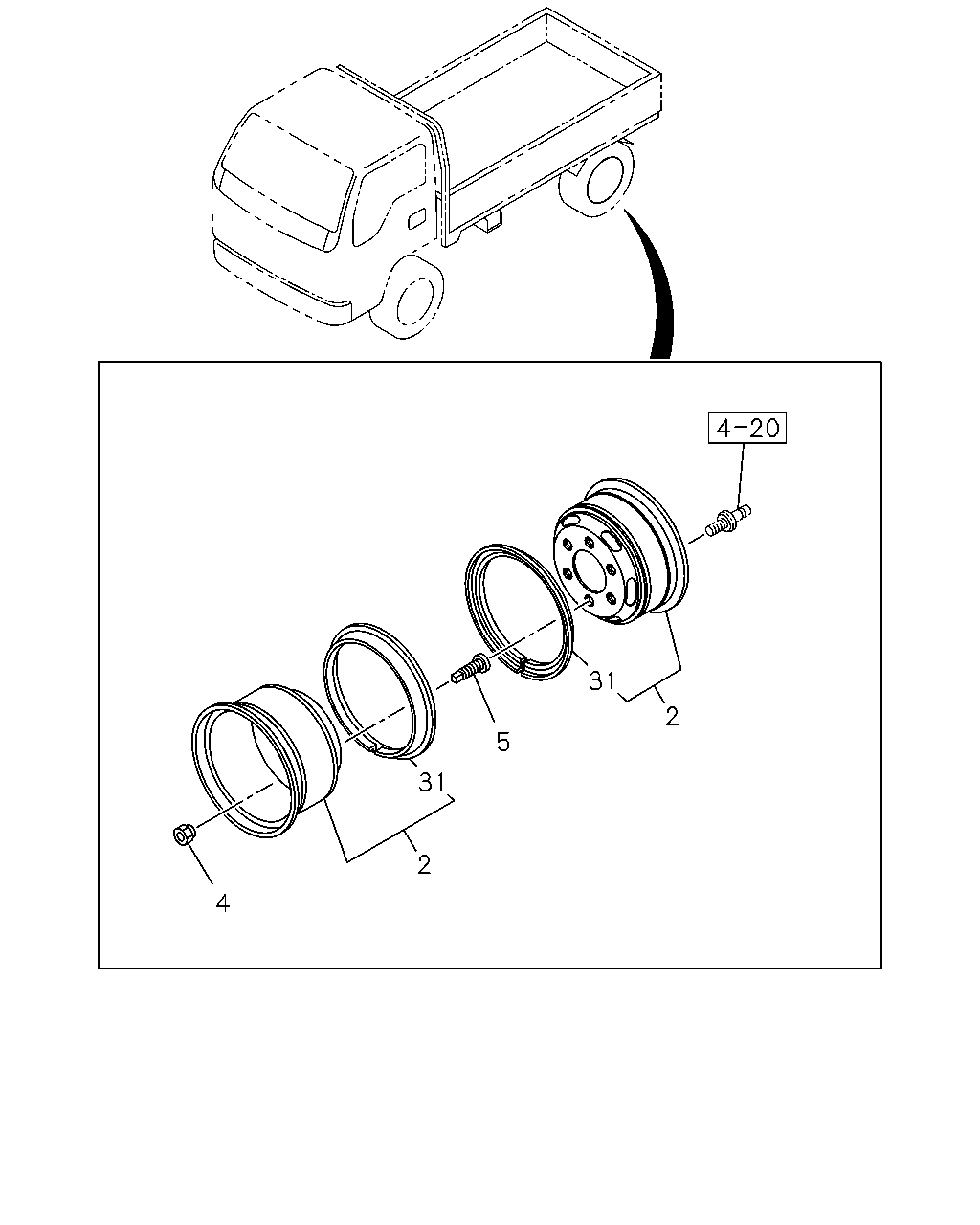

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1205-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1205-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1011-	●
2	05.803 WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1011-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1011-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1011-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1011-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1011-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1011-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1011-		●

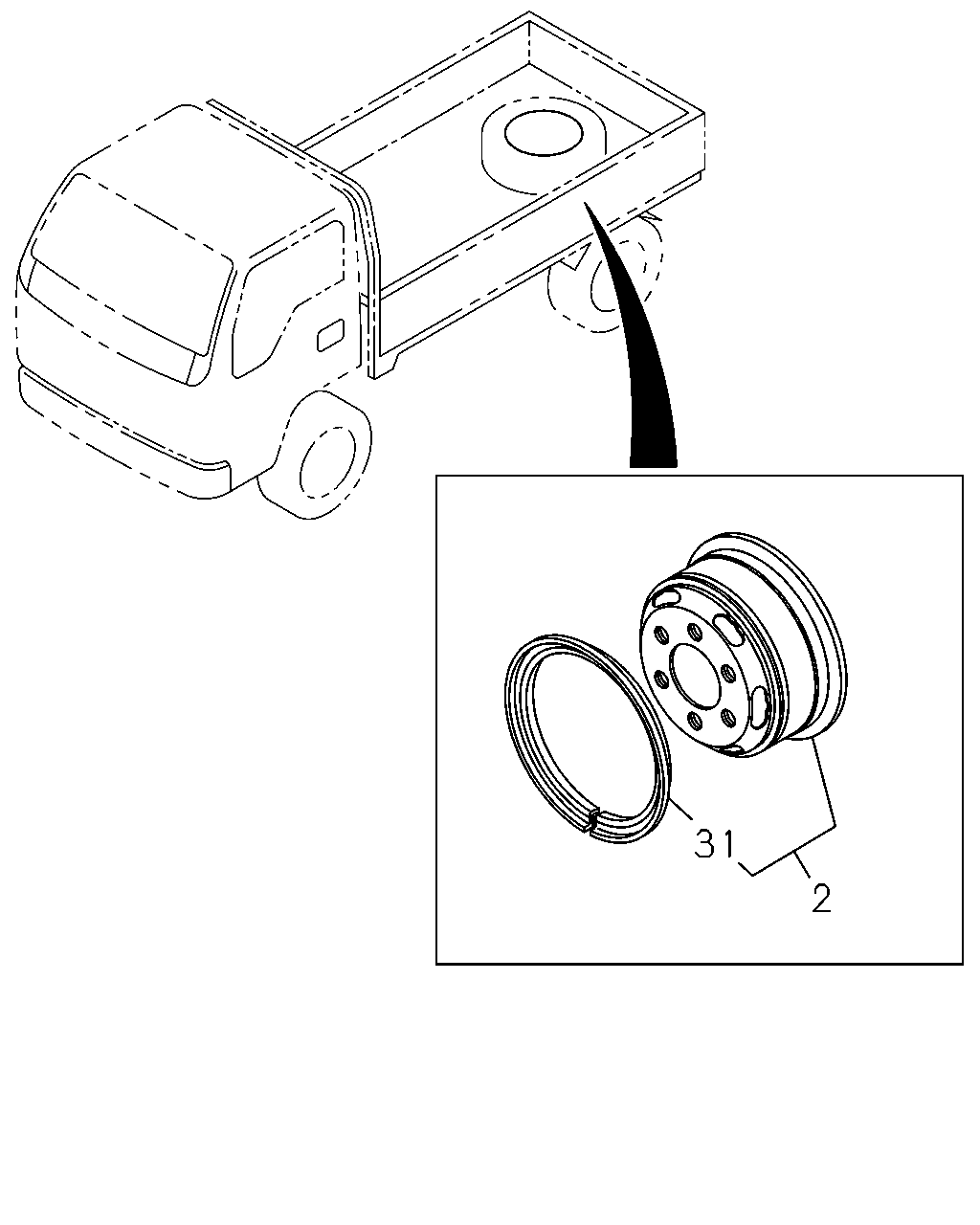

31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1205-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1205-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1011-	●
2	05.803 WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1011-		●

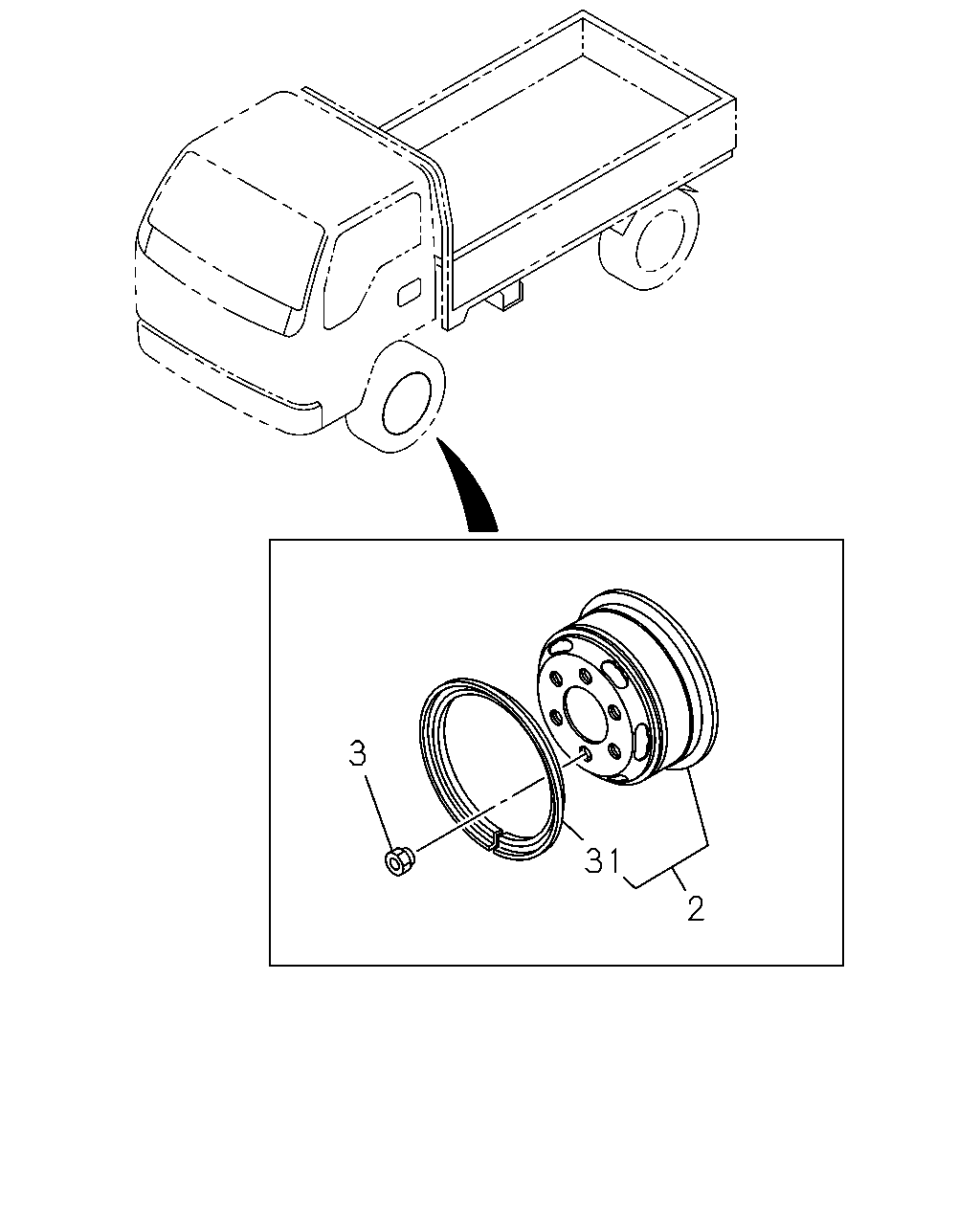

3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1205-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1205-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1011-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1011-	●
2	05.803 WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1011-		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	1011-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	1011-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1011-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1205-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1011-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1011-		●
