4-65 — REAR LEAF SPRING (#78720) — 100 parça

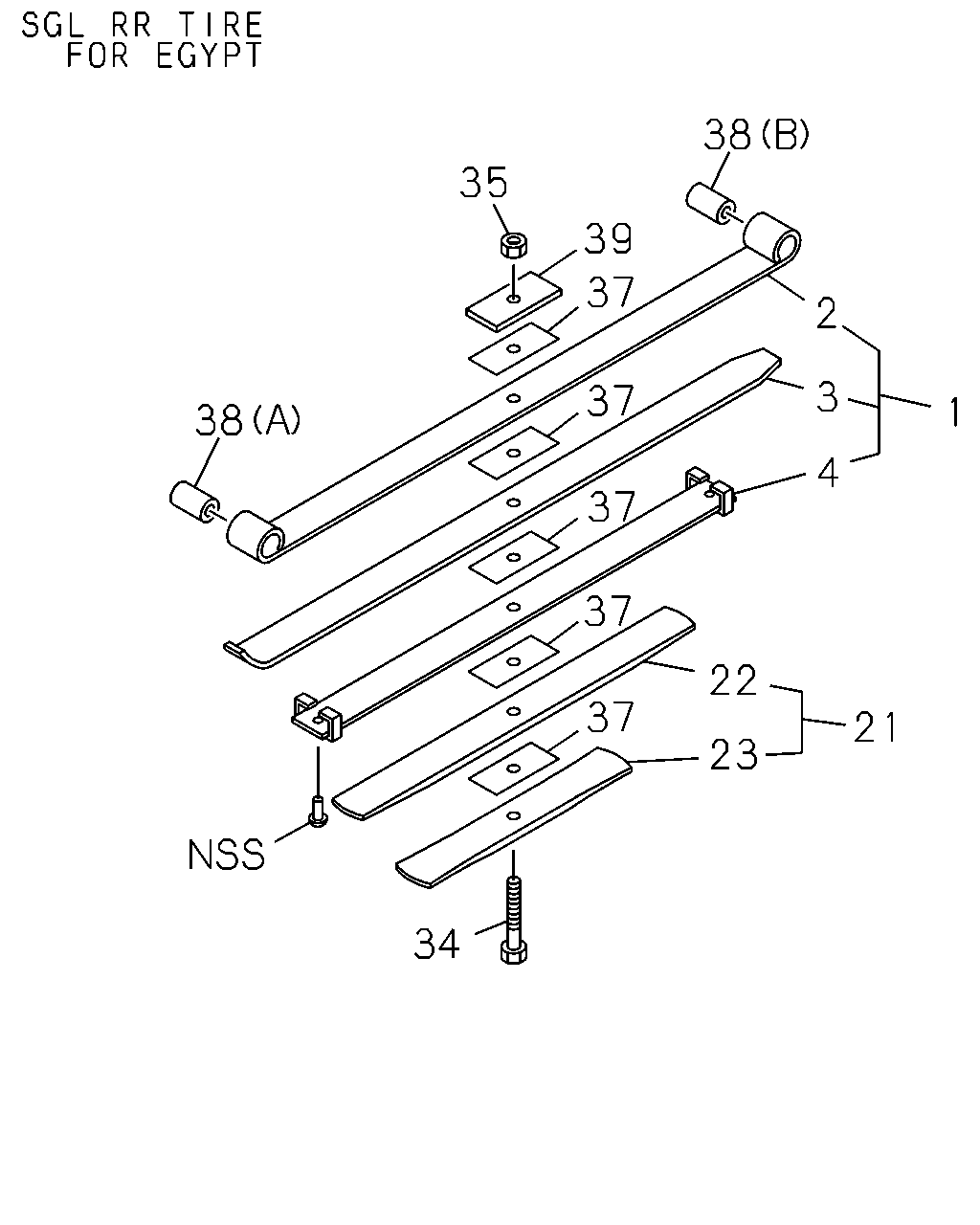

35 38 1 2 3 4 38 39 37 37 21 23 22 37 37 34 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-589-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-434-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-435-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-590-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-436-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-437-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-591-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-438-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-439-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-592-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-593-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-443-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-444-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-594-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-445-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-446-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-595-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-450-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-97693-009-0, 97693009	5-87220-451-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: A = 8-97033-505-1, 97033505	8-94165-306-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR ASM PART: B = 8-97693-008-0, 97693008, C = 8-97693-009-0, 97693009	5-87220-452-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-505-1, 97033505	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97693-008-0, 97693008	5-87220-462-0	05	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-505-1, 97033505	8-94448-734-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: B = 8-97693-008-0, 97693008	5-87220-454-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: C = 8-97693-009-0, 97693009	5-87220-455-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: B = 8-97693-008-0, 97693008	5-87220-456-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: C = 8-97693-009-0, 97693009	5-87220-457-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97033-505-1, 97033505	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-97033-505-1, 97033505	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=85.2 ASM PART: A = 8-97033-505-1, 97033505	8-97034-380-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-458-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-97033-505-1, 97033505	8-94407-146-1	01	1	-

34 38 39 38 2 37 3 37 37 4 37 23 35 37 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-434-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-435-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-590-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-436-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-437-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-591-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-438-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-439-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-592-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-443-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-444-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-594-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-445-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-446-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-595-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-450-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-97693-009-0, 97693009	5-87220-451-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: A = 8-97033-505-1, 97033505	8-94165-306-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR ASM PART: B = 8-97693-008-0, 97693008, C = 8-97693-009-0, 97693009	5-87220-452-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-505-1, 97033505	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97693-008-0, 97693008	5-87220-462-0	05	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-505-1, 97033505	8-94448-734-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: B = 8-97693-008-0, 97693008	5-87220-454-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: C = 8-97693-009-0, 97693009	5-87220-455-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: B = 8-97693-008-0, 97693008	5-87220-456-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: C = 8-97693-009-0, 97693009	5-87220-457-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97033-505-1, 97033505	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-97033-505-1, 97033505	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=85.2 ASM PART: A = 8-97033-505-1, 97033505	8-97034-380-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-458-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-97033-505-1, 97033505	8-94407-146-1	01	1	-

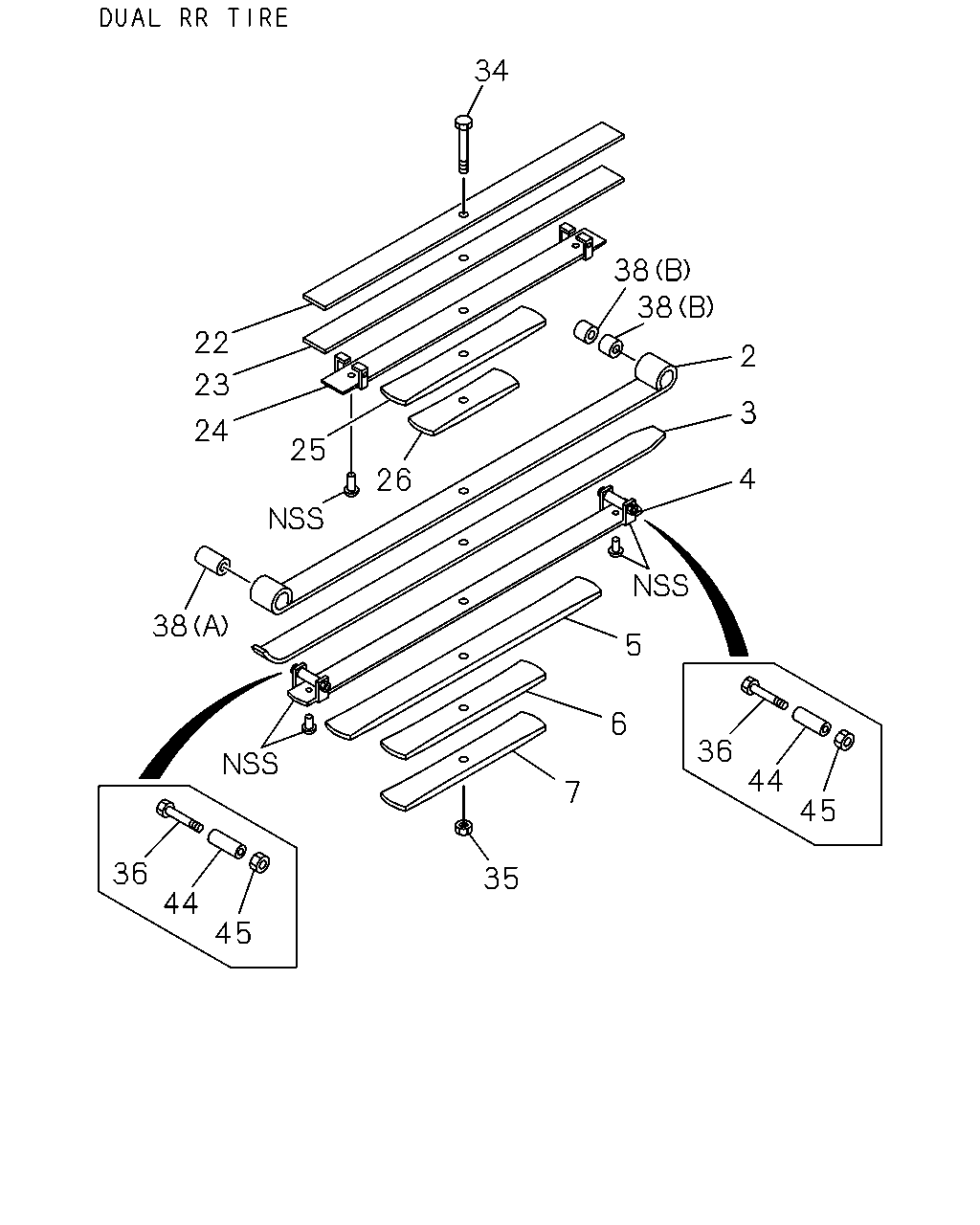

34 38 2 3 4 22 24 23 26 25 38 5 6 7 35 45 44 36 36 44 45 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-434-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-435-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-590-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-436-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-437-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-591-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-438-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-439-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-505-1, 97033505	8-97085-592-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-440-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-441-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-442-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-443-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-444-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-594-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97693-008-0, 97693008	5-87220-445-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-446-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-505-1, 97033505	8-97085-595-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-447-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-448-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: C = 8-97693-009-0, 97693009	5-87220-449-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97693-008-0, 97693008	5-87220-450-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-97693-009-0, 97693009	5-87220-451-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: A = 8-97033-505-1, 97033505	8-94165-306-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR ASM PART: B = 8-97693-008-0, 97693008, C = 8-97693-009-0, 97693009	5-87220-452-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-505-1, 97033505	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-97693-009-0, 97693009	5-87220-459-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: B = 8-97693-008-0, 97693008	5-87220-454-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: C = 8-97693-009-0, 97693009	5-87220-455-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: B = 8-97693-008-0, 97693008	5-87220-456-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: C = 8-97693-009-0, 97693009	5-87220-457-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97033-505-1, 97033505	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-97033-505-1, 97033505	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=85.2 ASM PART: A = 8-97033-505-1, 97033505	8-97034-380-0	01	1	-
44	07.506 PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-461-0	02	1	-
45	07.529 NUT; CLIP,LEAF SPR,RR MAIN ASM PART: C = 8-97693-009-0, 97693009	5-87220-460-0	02	1	-
