4-31 — STEERING COLUMN AND SHAFT (#78710) — 102 parça

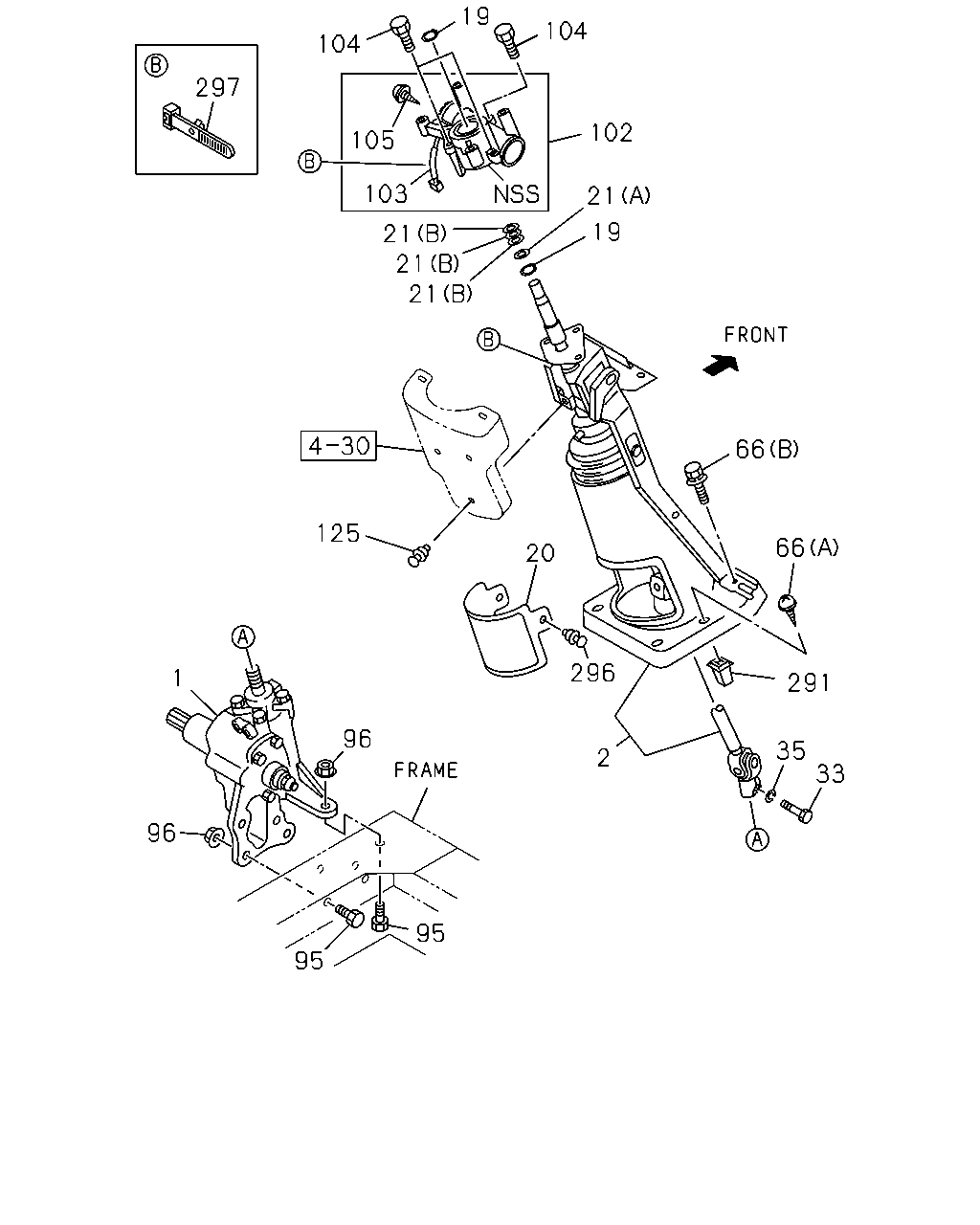

19 104 104 297 102 105 103 21 19 21 21 21 66 125 66 20 296 1 291 96 35 33 2 96 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97356-105-8	01	1	1011-1308	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-98251-947-0	01	1	1309-	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97693-010-0	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-059-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	1011-	●	●
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	1011-	●	●
20	06.525 COVER; STRG SHAFT EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> 06.518 BLACK	8-97291-634-1	01	1	1011-	●	●
20	06.525 COVER; STRG SHAFT TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.518 BLACK	8-97291-634-1	01	1	1011-	●	●
20	06.525 COVER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.518 BLACK	8-97291-634-1	01	1	1011-	●	●
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT (A) ID=19	8-94146-919-0	01	1	1011-	●	●
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT (B)	8-94174-865-0	03	1	1011-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	1011-	●	●
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (C)	8-97076-831-0	01	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1112	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN (A) M5X18 TAPPING	0-72180-518-0	06	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	1011-1112	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	1011-	●	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	05	1	1011-	●	●
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	1011-	●	●
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	1011-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	03	1	1011-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	1011-	●	●
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	1011-	●	●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	1011-	●	●
296	06.525 CLIP; COVER EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	1011-	●	●
296	06.525 CLIP; COVER TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	1011-	●	●
296	06.525 CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	1011-	●	●
296	06.525 CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	1011-	●	●
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	1011-	●	●

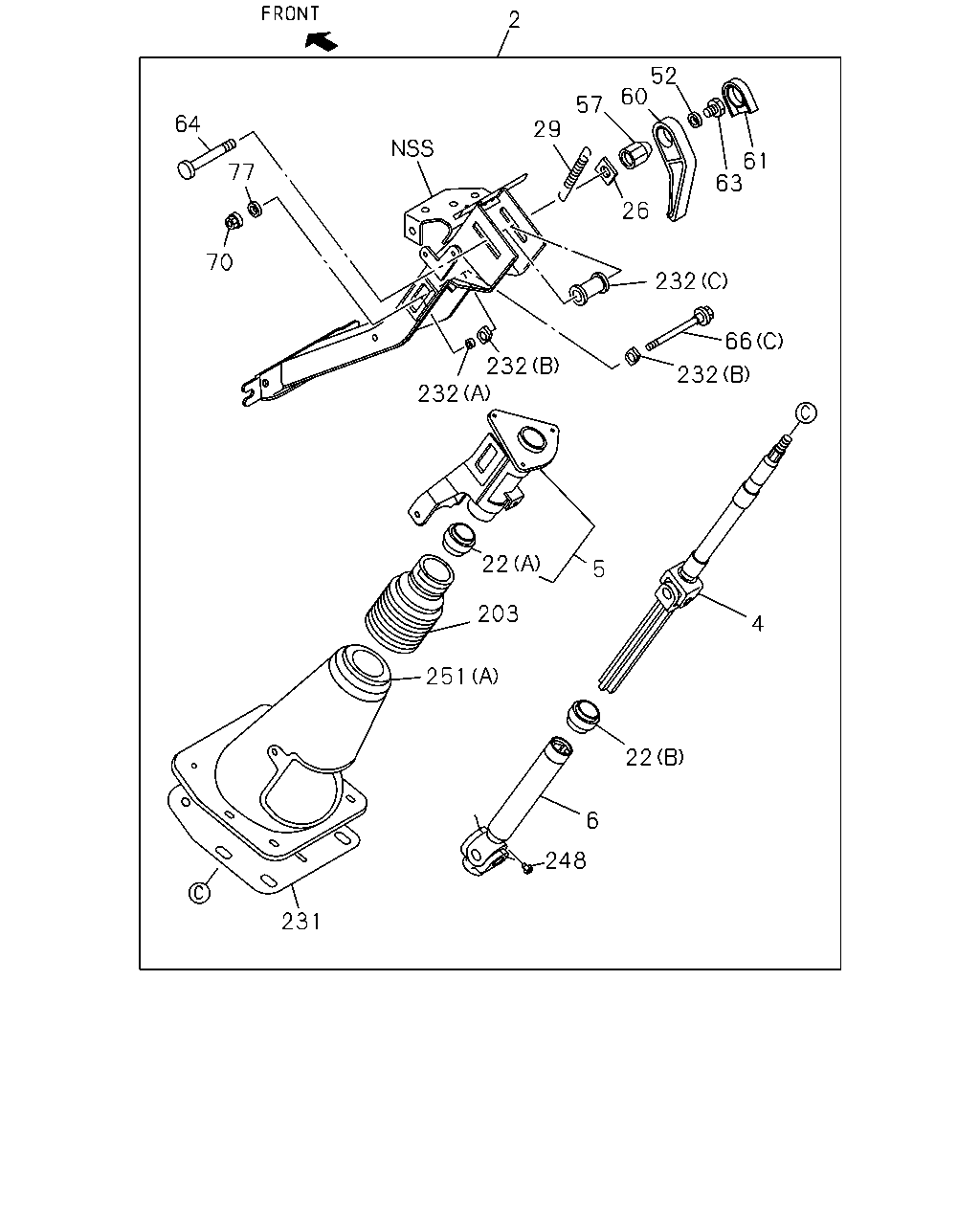

248 22 4 22 203 251 231 232 232 232 232 26 63 61 52 60 57 29 2 64 70 77 5 6 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-059-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	1011-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-634-0	01	1	1011-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97378-634-0	01	1	1011-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	1011-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	1011-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-632-0	01	1	1011-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97378-632-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A)	8-97076-821-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97076-821-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B)	8-97378-617-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (B)	8-97378-617-0	01	1	1011-	●	●
26	06.514 PLATE; ADJ TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-989-0	01	1	1011-	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-811-0	01	1	1011-	●	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-813-0	01	1	1011-	●	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-988-0	01	1	1011-	●	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-830-0	01	1	1011-	●	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-814-0	01	1	1011-	●	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-986-0	01	1	1011-	●	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-987-0	01	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (C)	8-97076-831-0	01	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1112	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN (A) M5X18 TAPPING	0-72180-518-0	06	1	1011-	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	1011-1112	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-807-0	01	1	1011-	●	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-804-0	01	1	1011-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.518	8-97076-822-0	01	1	1011-	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518	8-97076-822-0	01	1	1011-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-808-1	01	1	1011-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97076-808-1	01	1	1011-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B)	8-97076-805-0	02	1	1011-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A)	8-97076-806-0	01	1	1011-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (C)	8-97148-277-0	01	1	1011-	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-984-0	01	1	1011-	●	●
248	06.518 SCREW; YOKE EXC. TILT STEERING<N33>	8-97222-984-0	01	1	1011-	●	●
251	06.518 COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97398-450-1	01	1	1011-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.578 (A) BLACK	8-97159-168-2	01	1	1011-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> 06.578 (A) BLACK	8-97159-168-2	01	1	1011-	●	●

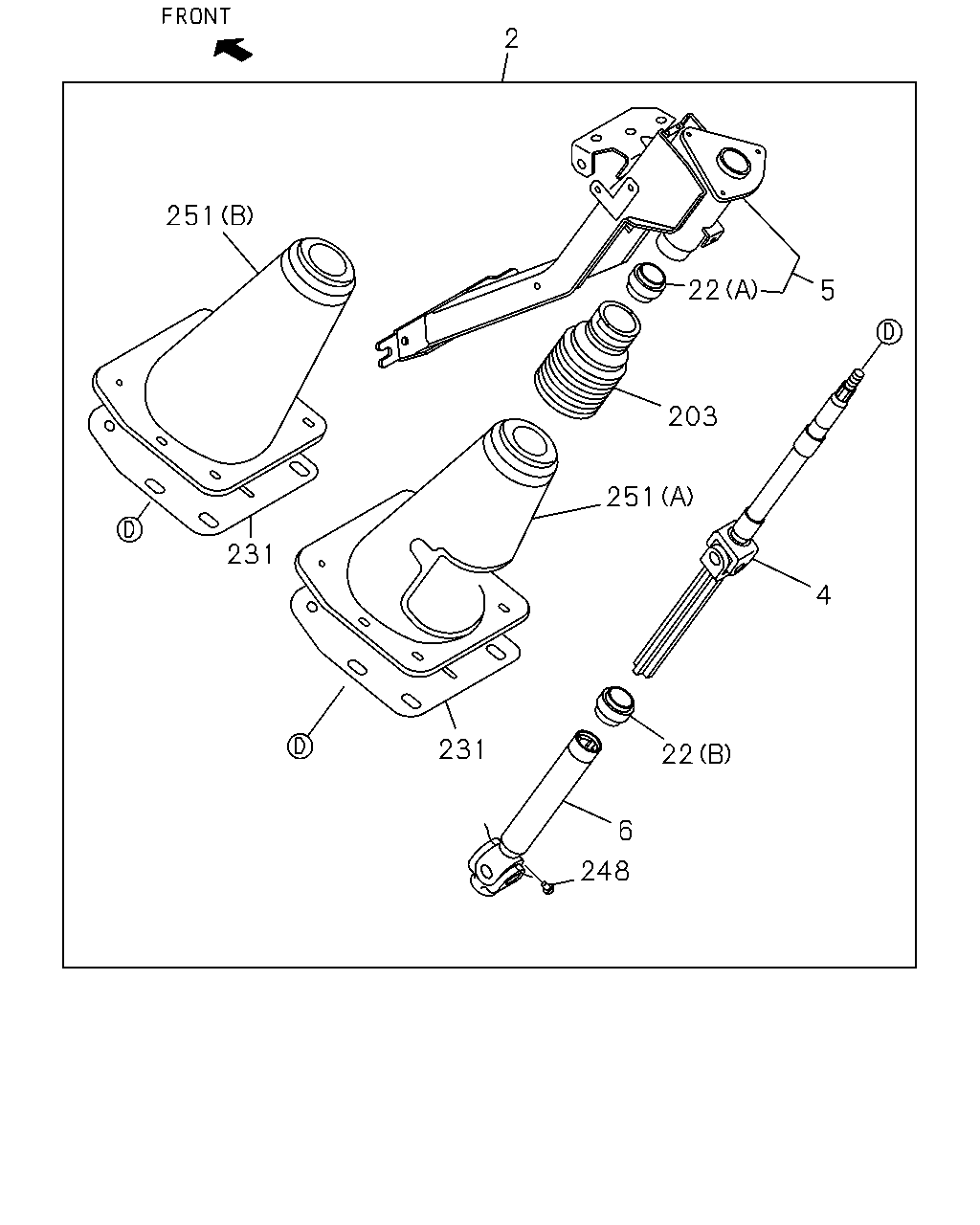

2 22 5 203 251 4 22 6 248 231 231 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-059-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1011-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	1011-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-634-0	01	1	1011-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97378-634-0	01	1	1011-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	1011-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	1011-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-632-0	01	1	1011-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97378-632-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A)	8-97076-821-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97076-821-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B)	8-97378-617-0	01	1	1011-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (B)	8-97378-617-0	01	1	1011-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.518	8-97076-822-0	01	1	1011-	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518	8-97076-822-0	01	1	1011-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97076-808-1	01	1	1011-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97076-808-1	01	1	1011-	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97222-984-0	01	1	1011-	●	●
248	06.518 SCREW; YOKE EXC. TILT STEERING<N33>	8-97222-984-0	01	1	1011-	●	●
251	06.518 COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97398-450-1	01	1	1011-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 06.578 (A) BLACK	8-97159-168-2	01	1	1011-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> 06.578 (A) BLACK	8-97159-168-2	01	1	1011-	●	●
