◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#7871) — 27 parça

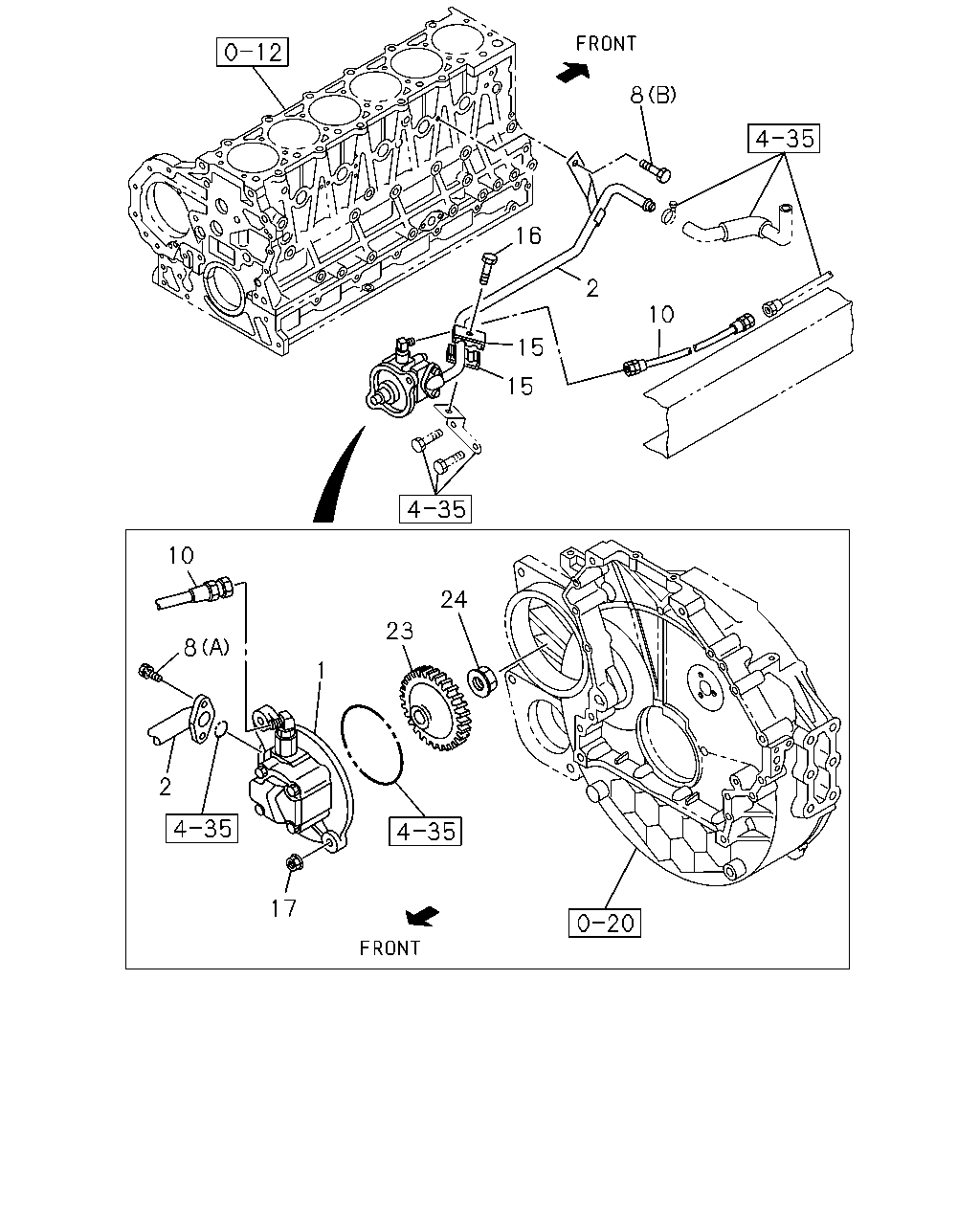

çizim 26635
8 16 2 10 15 15 10 24 23 8 1 2 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-539-1 01 1 0302- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-2 01 1 9905- ● ●
2 PIPE ASM; OIL,SUCTION 8-97600-394-2 01 1 0302- ●
2 PIPE ASM; OIL,SUCTION 8-97600-395-2 01 1 9905- ● ●
8 BOLT; OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0301 ● ●
8 BOLT; OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0302-0512 ● ● ●
8 BOLT; OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
8 BOLT; OIL PIPE
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9905-0301 ● ●
8 BOLT; OIL PIPE
(A) M8X30 FLANGE 		0-28080-830-0 02 1 0302-0512 ● ● ●
8 BOLT; OIL PIPE
(A) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-293-0 01 1 0306- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 9905-0301 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0302-0305 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0306- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 9905-0301 ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 0302- ● ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28080-645-0 01 1 9905-0301 ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28080-645-0 01 1 0302-0512 ● ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28050-645-0 01 1 0601- ● ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9905-0301 ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 0302-0602 ● ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-0 01 1 9905-0301 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0302- ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9905-0301 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 0302-0602 ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
