4-25 — REAR FINAL DRIVE (#78708) — 99 parça

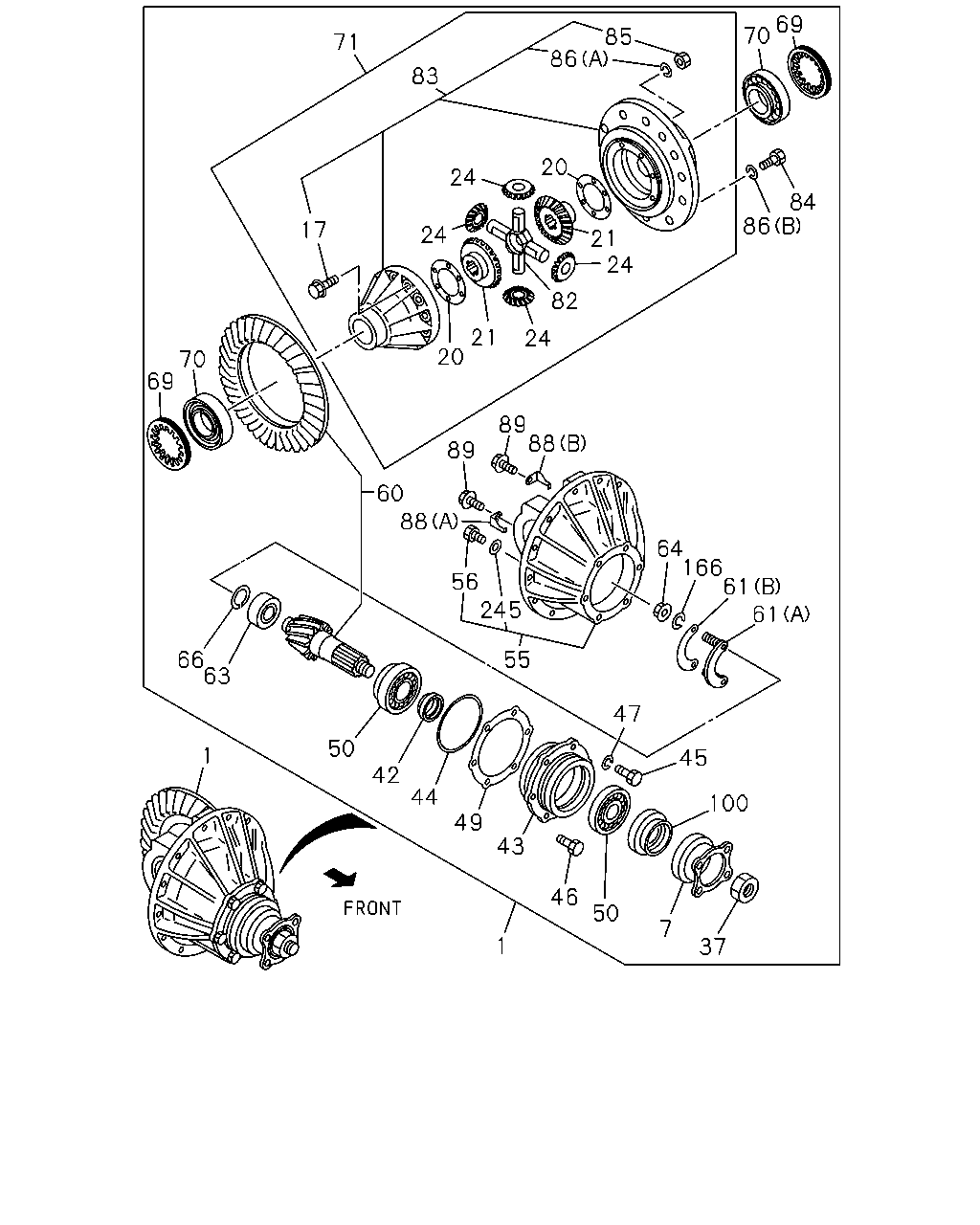

71 85 70 69 84 86 20 83 86 24 24 21 24 82 24 21 20 17 70 69 60 89 89 88 88 56 245 55 64 166 61 61 47 45 100 66 63 50 42 44 49 43 46 50 7 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR	5-87220-170-0	01	1	1011-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1011-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1011-		●
7	05.545 FLANGE; FINAL	5-87220-183-0	01	1	1011-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1011-		●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-208-0	08	1	1011-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1011-		●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-213-0	02	1	1011-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1011-		●
21	05.528 GEAR; SIDE,DIFF	5-87220-218-0	02	1	1011-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1011-		●
24	05.526 GEAR; PINION,DIFF	5-87220-215-0	04	1	1011-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1011-		●
37	05.595 NUT; DRIVING PINION	5-87220-179-0	01	1	1011-	●
37	05.595 NUT; DRIVING PINION	5-87220-242-0	01	1	1011-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-188-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1011-		●
43	05.453 CAGE; FINAL PINION	5-87220-238-0	01	1	1011-		●
44	05.476 GASKET; PINION CAGE	5-87220-236-0	01	1	1011-		●
45	05.453 BOLT; FINAL PINION CAGE	5-87220-239-0	01	1	1011-		●
46	05.453 BOLT	5-87220-243-0	05	1	1011-		●
47	05.453 WASHER; LK	5-87220-221-0	01	1	1011-		●
49	05.458 SHIM; FINAL PINION CAGE	5-87220-237-0	AR	1	1011-		●
50	05.447 BEARING; FINAL PINION	5-87220-234-0	02	1	1011-		●
55	05.505 CARRIER; DIFF	5-87220-194-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1011-		●
56	05.506 BOLT; BRG CAP	5-87220-219-0	02	1	1011-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR	5-87220-201-0	01	1	1011-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1011-		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	5-87220-229-0	02	1	1011-		●
61	05.476 RETAINER; PILOT BRG,PINION (A)	5-87220-231-0	01	1	1011-		●
63	05.447 BEARING; PINION PILOT	5-87220-233-0	01	1	1011-		●
64	05.476 NUT; RET	5-87220-225-0	02	1	1011-		●
66	05.476 RING; SNAP,PILOT BRG	5-87220-232-0	01	1	1011-		●
69	05.506 NUT; ADJ,DIFF CAGE	5-87220-193-0	02	1	1011-		●
70	05.536 BEARING; DIFF CAGE 1 SET=2 PIECE	5-87220-196-0	01	1	1011-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1011-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-204-0	01	1	1011-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1011-		●
82	05.517 SPIDER; DIFF PINION	5-87220-220-0	01	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1011-		●
83	05.510 CAGE ASM; DIFF	5-87220-222-0	01	1	1011-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1011-		●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1011-	●	●
85	05.510 NUT; DIFF CAGE SETTING 06.216	5-87220-063-0	12	1	1011-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING 05.815 (A)	5-87220-021-0	12	1	1011-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING (B)	5-87220-182-0	12	1	1011-		●
88	05.506 PLATE; LK,ADJ NUT (B)	5-87220-216-0	01	1	1011-		●
88	05.506 PLATE; LK,ADJ NUT (A)	5-87220-217-0	01	1	1011-		●
89	05.506 BOLT; LK PLATE	5-87220-214-0	02	1	1011-		●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-184-0	01	1	1011-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1011-		●
166	05.447 WASHER; PILOT BRG	5-87220-227-0	02	1	1011-		●
245	05.506 WASHER; PL,BRG CAP	5-87220-226-0	04	1	1011-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1011-		●

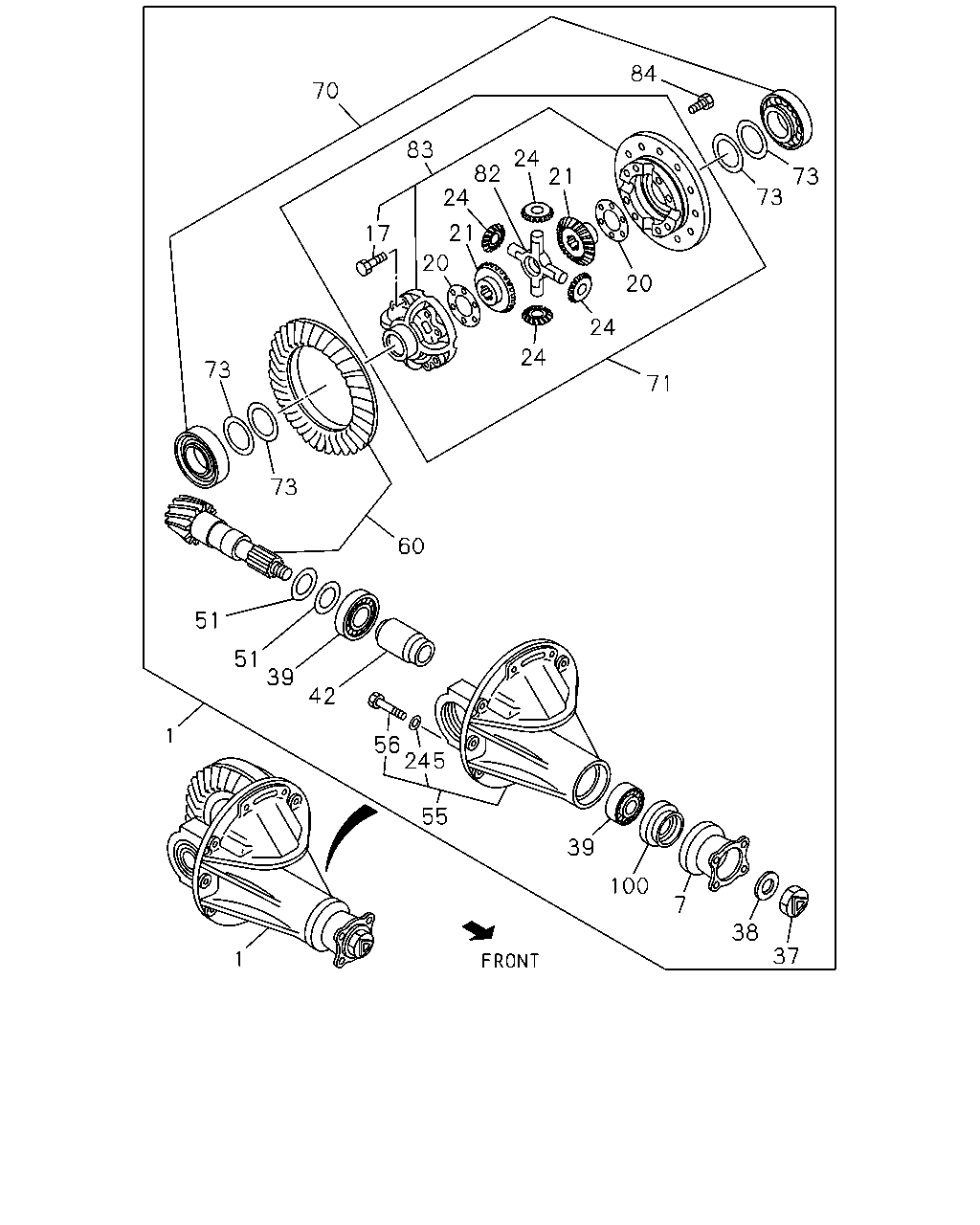

70 83 84 24 24 20 73 73 71 24 21 82 24 20 21 17 73 73 60 51 51 39 42 56 245 55 1 39 100 7 38 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR	5-87220-170-0	01	1	1011-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1011-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1011-		●
7	05.545 FLANGE; FINAL	5-87220-183-0	01	1	1011-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1011-		●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-208-0	08	1	1011-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1011-		●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-213-0	02	1	1011-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1011-		●
21	05.528 GEAR; SIDE,DIFF	5-87220-218-0	02	1	1011-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1011-		●
24	05.526 GEAR; PINION,DIFF	5-87220-215-0	04	1	1011-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1011-		●
37	05.595 NUT; DRIVING PINION	5-87220-179-0	01	1	1011-	●
37	05.595 NUT; DRIVING PINION	5-87220-242-0	01	1	1011-		●
38	05.595 WASHER; PL,DRIVING PINION	5-87220-181-0	01	1	1011-	●
39	05.484 BEARING; FINAL PINION OUTER	5-87220-192-0	01	1	1011-	●
39	05.484 BEARING; FINAL PINION INNER	5-87220-185-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-188-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1011-		●
51	05.586 SHIM; PINION,FINAL DRIVE	5-87220-190-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-194-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1011-		●
56	05.506 BOLT; BRG CAP	5-87220-219-0	02	1	1011-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR	5-87220-201-0	01	1	1011-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1011-		●
70	05.536 BEARING; DIFF CAGE 1 SET=2 PIECE	5-87220-196-0	01	1	1011-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1011-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-204-0	01	1	1011-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1011-		●
73	05.537 SHIM; DIFF SIDE BRG	5-87220-198-0	02	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-220-0	01	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1011-		●
83	05.510 CAGE ASM; DIFF	5-87220-222-0	01	1	1011-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1011-		●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1011-	●	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-184-0	01	1	1011-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1011-		●
245	05.506 WASHER; PL,BRG CAP	5-87220-226-0	04	1	1011-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1011-		●
