◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#78707) — 100 parça

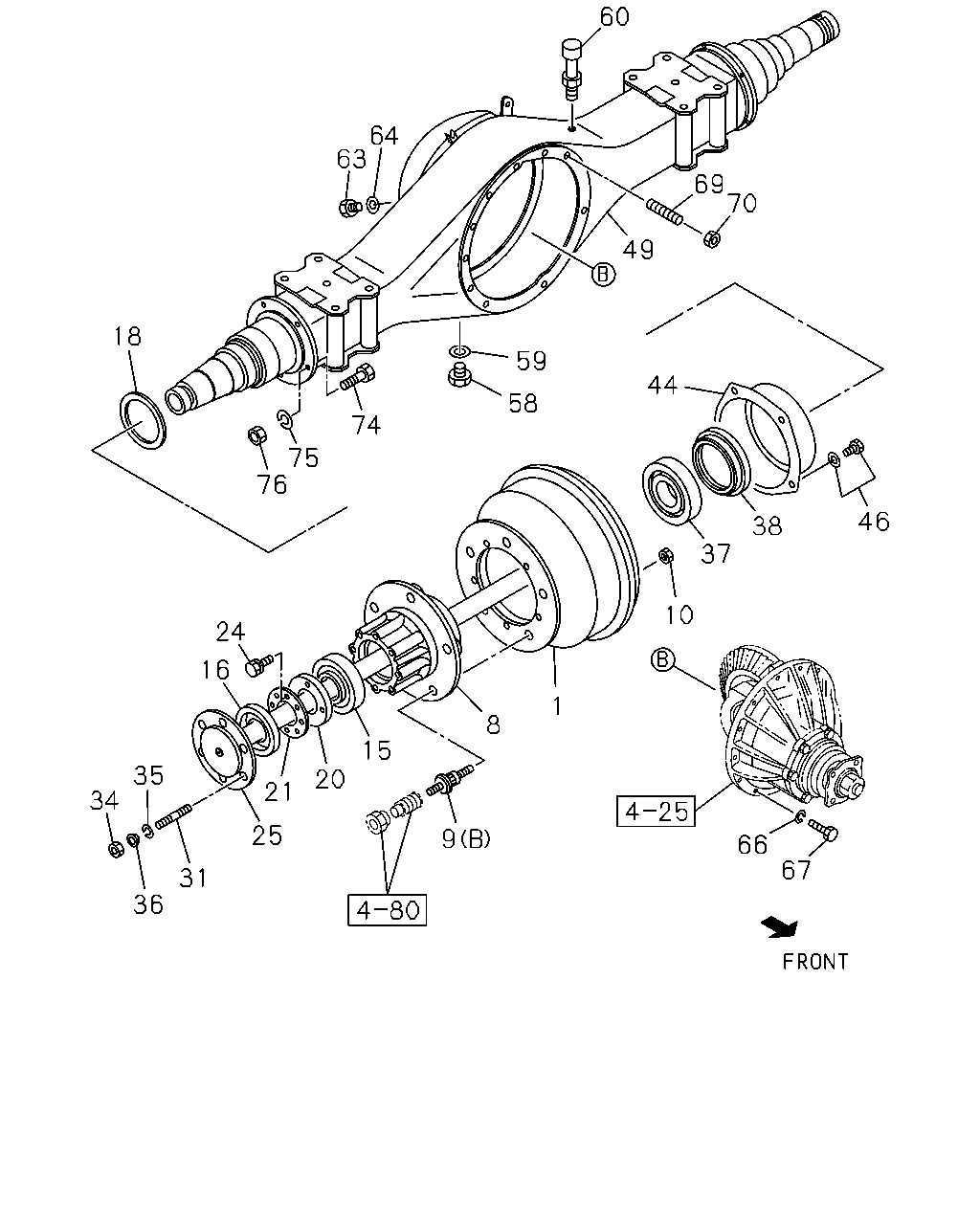

çizim 122999
60 64 63 69 70 49 18 59 44 58 74 75 76 46 38 37 10 24 16 1 8 15 35 20 21 34 25 9 66 67 31 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.809 DRUM; BRK,RR 5-87220-145-0 02 1 1011- ●
1 05.809 DRUM; BRK,RR 5-87220-144-0 02 1 1011- ●
8 05.809 HUB; RR AXLE 5-87220-143-0 02 1 1011- ●
8 05.809 HUB; RR AXLE 5-87220-146-0 02 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) 		5-87220-134-0 06 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) 		5-87220-135-0 06 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) 		5-87220-165-0 05 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) 		5-87220-166-0 05 1 1011- ●
10 05.813 NUT; WHEEL PIN,RR AXLE 5-87220-169-0 10 1 1011- ●
15 05.855 BEARING; HUB OUTER,RR AXLE 5-87220-147-0 02 1 1011- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 5-87220-155-0 02 1 1011- ● ●
18 05.822 RETAINER; RR AXLE
05.387 		5-87220-130-0 02 1 1011- ●
20 05.830 NUT; BRG,RR HUB 5-87220-151-0 02 1 1011- ● ●
21 05.830 WASHER; LK,BRG NUT 5-87220-153-0 02 1 1011- ● ●
24 05.830 BOLT; LK WASHER 5-87220-551-0 04 1 1011- ●
24 05.830 BOLT; LK WASHER 5-87220-150-0 04 1 1011- ●
25 05.420 SHAFT; AXLE,RR 5-87220-158-0 02 1 1011- ●
25 05.420 SHAFT; AXLE,RR 5-87220-157-0 02 1 1011- ●
31 05.422 STUD; AXLE SHAFT TO HUB 5-87220-159-0 12 1 1011- ● ●
34 05.387 NUT; AXLE SHAFT 5-87220-550-0 12 1 1011- ●
34 05.387 NUT; AXLE SHAFT
06.216 		5-87220-063-0 12 1 1011- ●
35 05.830 WASHER; LK,HUB CAP 5-87220-161-0 12 1 1011- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
05.815 		5-87220-021-0 12 1 1011- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE 5-87220-141-0 02 1 1011- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER 5-87220-139-0 02 1 1011- ● ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-131-0 01 1 1011- ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-132-0 01 1 1011- ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-133-0 02 1 1011- ●
46 05.815 BOLT; OIL CATCHER,RR AXLE SHAFT 5-87220-138-0 10 1 1011- ●
49 05.387 CASE; RR AXLE 5-87220-120-0 01 1 1011- ●
49 05.387 CASE; RR AXLE 5-87220-121-0 01 1 1011- ●
58 05.508 PLUG; DRAIN,AXLE CASE 5-87220-124-0 01 1 1011- ● ●
59 05.400 GASKET; DRAIN PLUG 5-87220-122-0 01 1 1011- ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1011- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 5-87220-112-0 01 1 1011- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE 5-87220-114-0 01 1 1011- ● ●
66 05.387 WASHER; LK
06.216 		5-87220-064-0 08 1 1011- ●
66 05.387 WASHER; LK
05.815 		5-87220-021-0 13 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=32 		5-87220-167-0 04 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=38 		5-87220-168-0 07 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=32 		5-87220-167-0 07 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=38 		5-87220-168-0 01 1 1011- ●
69 05.387 STUD; AXLE CASE 5-87220-118-0 02 1 1011- ● ●
70 05.387 NUT; CARRIER
06.216 		5-87220-063-0 02 1 1011- ● ●
74 05.002 BOLT; RR BRK ASM SETTING 5-87220-126-0 12 1 1011- ●
74 05.002 BOLT; RR BRK ASM SETTING 5-87220-127-0 12 1 1011- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
05.815 		5-87220-021-0 12 1 1011- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.216 		5-87220-064-0 12 1 1011- ●
76 05.002 NUT; RR BRK ASM SETTING
05.387 		5-87220-550-0 12 1 1011- ●
76 05.002 NUT; RR BRK ASM SETTING
06.216 		5-87220-063-0 12 1 1011- ●

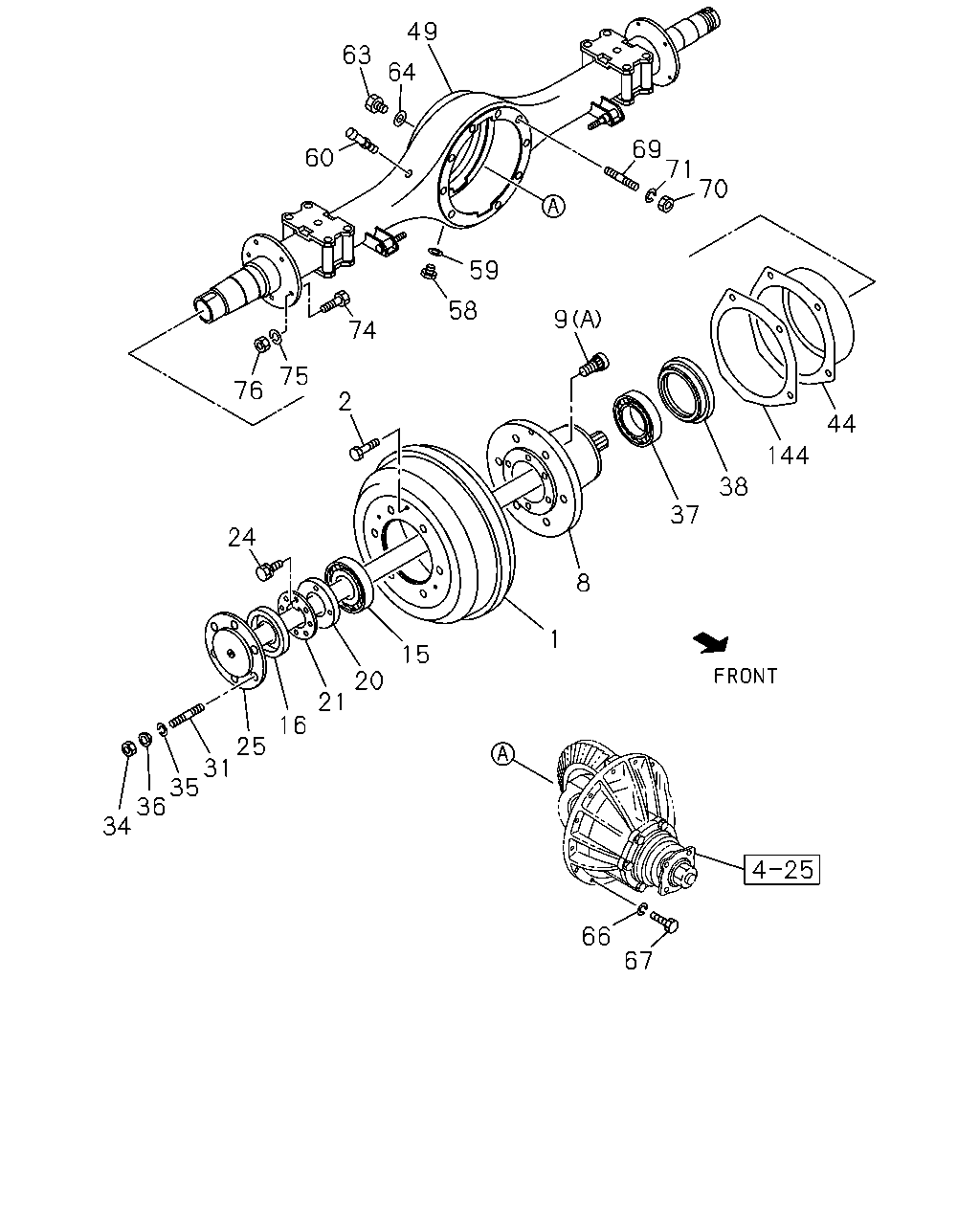

çizim 123195
1 8 37 144 38 44 66 67 20 21 15 16 25 31 35 36 60 63 49 64 2 74 34 24 76 75 9 58 59 69 70 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.809 DRUM; BRK,RR 5-87220-145-0 02 1 1011- ●
1 05.809 DRUM; BRK,RR 5-87220-144-0 02 1 1011- ●
2 05.812 BOLT; BRK DRUM 5-87220-149-0 02 1 1011- ●
8 05.809 HUB; RR AXLE 5-87220-143-0 02 1 1011- ●
8 05.809 HUB; RR AXLE 5-87220-146-0 02 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) 		5-87220-134-0 06 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) 		5-87220-135-0 06 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) 		5-87220-165-0 05 1 1011- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) 		5-87220-166-0 05 1 1011- ●
15 05.855 BEARING; HUB OUTER,RR AXLE 5-87220-147-0 02 1 1011- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 5-87220-155-0 02 1 1011- ● ●
20 05.830 NUT; BRG,RR HUB 5-87220-151-0 02 1 1011- ● ●
21 05.830 WASHER; LK,BRG NUT 5-87220-153-0 02 1 1011- ● ●
24 05.830 BOLT; LK WASHER 5-87220-551-0 04 1 1011- ●
24 05.830 BOLT; LK WASHER 5-87220-150-0 04 1 1011- ●
25 05.420 SHAFT; AXLE,RR 5-87220-158-0 02 1 1011- ●
25 05.420 SHAFT; AXLE,RR 5-87220-157-0 02 1 1011- ●
31 05.422 STUD; AXLE SHAFT TO HUB 5-87220-159-0 12 1 1011- ● ●
34 05.387 NUT; AXLE SHAFT 5-87220-550-0 12 1 1011- ●
34 05.387 NUT; AXLE SHAFT
06.216 		5-87220-063-0 12 1 1011- ●
35 05.830 WASHER; LK,HUB CAP 5-87220-161-0 12 1 1011- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
05.815 		5-87220-021-0 12 1 1011- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE 5-87220-141-0 02 1 1011- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER 5-87220-139-0 02 1 1011- ● ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-131-0 01 1 1011- ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-132-0 01 1 1011- ●
44 05.815 CATCHER; OIL,RR AXLE SHAFT 5-87220-133-0 02 1 1011- ●
49 05.387 CASE; RR AXLE 5-87220-120-0 01 1 1011- ●
49 05.387 CASE; RR AXLE 5-87220-121-0 01 1 1011- ●
58 05.508 PLUG; DRAIN,AXLE CASE 5-87220-124-0 01 1 1011- ● ●
59 05.400 GASKET; DRAIN PLUG 5-87220-122-0 01 1 1011- ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1011- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 5-87220-112-0 01 1 1011- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE 5-87220-114-0 01 1 1011- ● ●
66 05.387 WASHER; LK
06.216 		5-87220-064-0 08 1 1011- ●
66 05.387 WASHER; LK
05.815 		5-87220-021-0 13 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=32 		5-87220-167-0 04 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=38 		5-87220-168-0 07 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=32 		5-87220-167-0 07 1 1011- ●
67 05.387 BOLT; FINAL DRIVE SETTING
L=38 		5-87220-168-0 01 1 1011- ●
69 05.387 STUD; AXLE CASE 5-87220-118-0 02 1 1011- ● ●
70 05.387 NUT; CARRIER
06.216 		5-87220-063-0 02 1 1011- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING 5-87220-549-0 02 1 1011- ●
74 05.002 BOLT; RR BRK ASM SETTING 5-87220-126-0 12 1 1011- ●
74 05.002 BOLT; RR BRK ASM SETTING 5-87220-127-0 12 1 1011- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
05.815 		5-87220-021-0 12 1 1011- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.216 		5-87220-064-0 12 1 1011- ●
76 05.002 NUT; RR BRK ASM SETTING
05.387 		5-87220-550-0 12 1 1011- ●
76 05.002 NUT; RR BRK ASM SETTING
06.216 		5-87220-063-0 12 1 1011- ●
144 05.830 GASKET; OIL CATCHER 5-87220-129-0 02 1 1011- ●
