◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#78706) — 17 parça

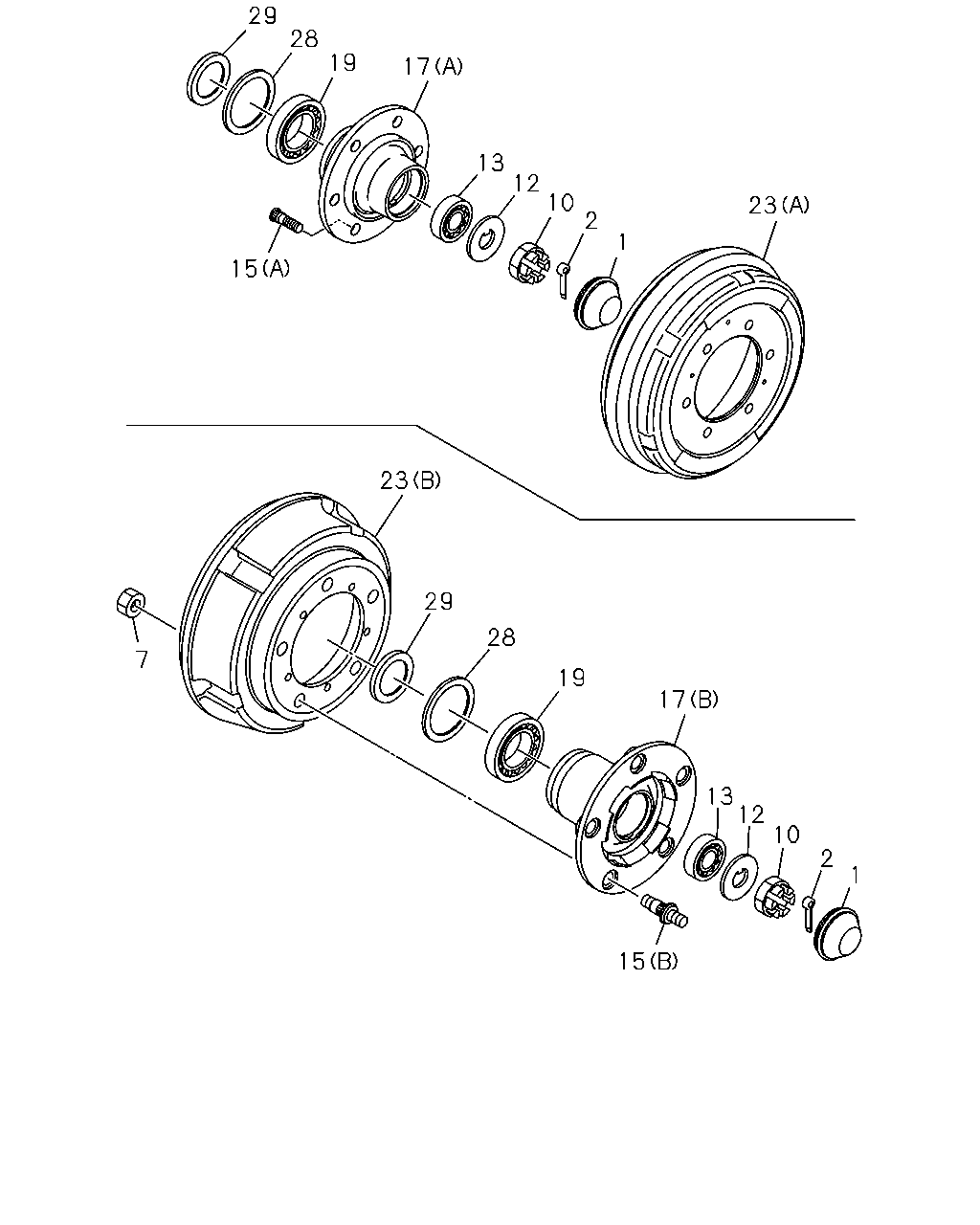

çizim 122587
29 28 19 17 13 12 10 2 23 1 15 23 29 28 7 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.330 CAP; HUB,FRT AXLE 5-87220-079-0 02 1 1202- ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 5-87220-080-0 02 1 1202- ● ●
7 05.812 NUT; FRT HUB 5-87220-081-0 10 1 1202- ● ●
10 05.812 NUT; FRT HUB BRG 5-87220-082-0 02 1 1202- ● ●
12 06.321 WASHER; LK,FRT HUB BRG 5-87220-083-0 02 1 1202- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE 5-87220-084-0 02 1 1202- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-087-0 05 1 1202- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-088-0 05 1 1202- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) 		5-87220-085-0 06 1 1202- ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) 		5-87220-086-0 06 1 1202- ●
17 06.307 HUB; FRT AXLE
(B) 		5-87220-090-0 02 1 1202- ●
17 06.307 HUB; FRT AXLE
(A) 		5-87220-089-0 02 1 1202- ●
19 06.311 BEARING; HUB INNER,FRT AXLE 5-87220-091-0 02 1 1202- ● ●
23 05.809 DRUM; BRK,FRT
(B) 		5-87220-094-0 02 1 1202- ●
23 05.809 DRUM; BRK,FRT
(A) 		5-87220-093-0 02 1 1202- ●
28 06.326 SEAL; OIL,FRT HUB 5-87220-095-0 02 1 1202- ● ●
29 06.326 DISTANCE PIECE; HUB BRKT 5-87220-096-0 02 1 1202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
