4-10 — FRONT AXLE (#78705) — 39 parça

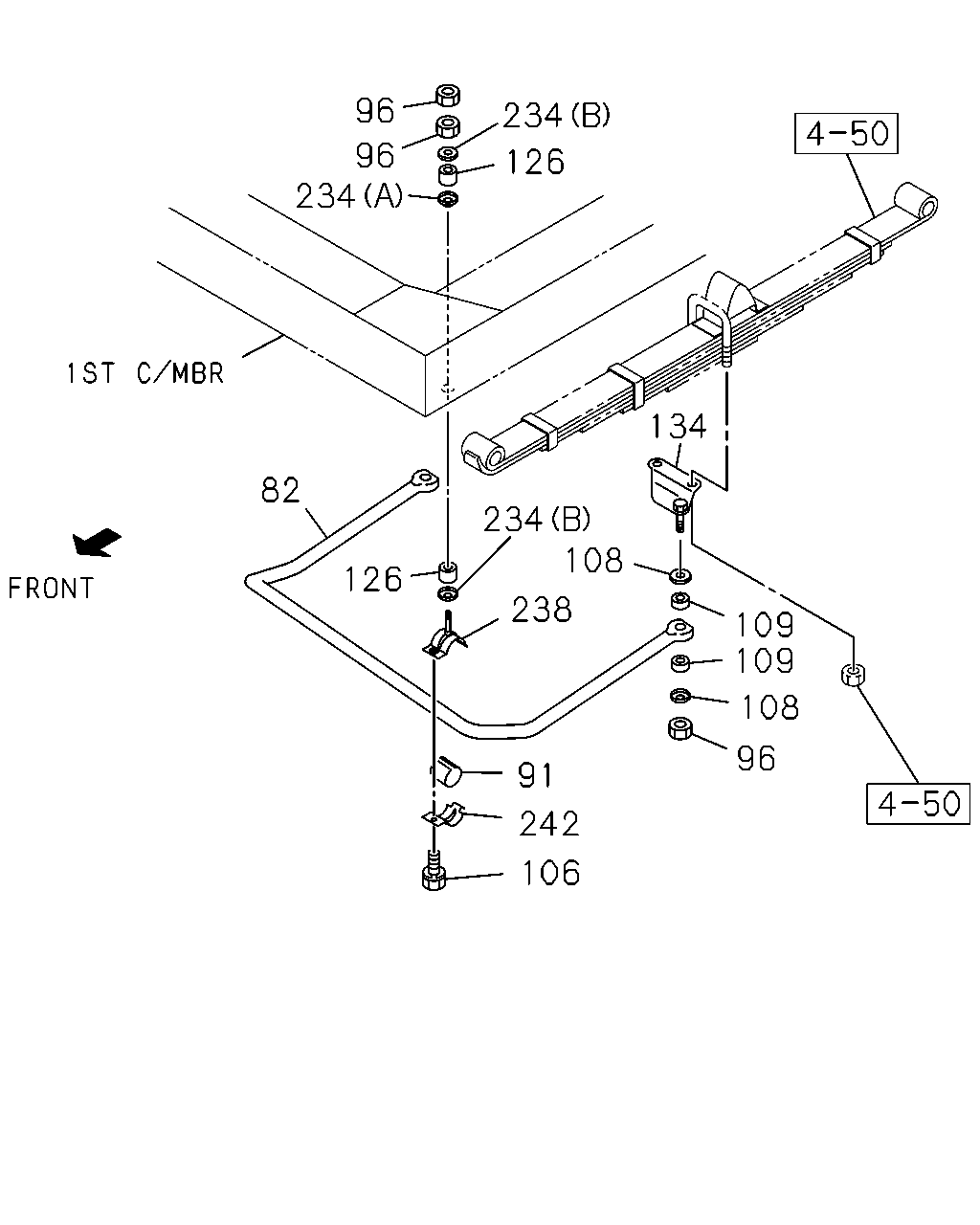

çizim 122581
96 234 96 234 126 134 82 234 108 126 238 109 109 108 96 91 242 106
BalonParca AdiParca NoAdetTipApplied Date A B
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-97170-624-1 01 1 1011- ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-97170-752-0 02 1 1011- ●
96 07.242 NUT; STAB BAR TO CONT ARM
FRONT STABILIZER SHAFT<F59> 03.704 M10 LOCK NUT 		0-91370-010-0 02 1 1011- ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.439 M10X30 W/LK WASHER 		0-50541-030-0 02 1 1011- ●
108 07.242 CAP
FRONT STABILIZER SHAFT<F59> 		8-97170-631-0 04 1 1011- ●
109 07.244 BUFFER; STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-97170-622-0 04 1 1011- ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 07.244 		5-51631-017-0 04 1 1011- ●
134 07.242 BRACKET; STAB TO AXLE
FRONT STABILIZER SHAFT<F59> 		8-97304-055-0 01 1 1011- ●
134 07.242 BRACKET; STAB TO AXLE
FRONT STABILIZER SHAFT<F59> 		8-97304-056-0 01 1 1011- ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (A) ID=15.0 OD=32 		8-97387-669-0 02 1 1011- ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 07.245 (B) 		9-51779-027-0 04 1 1011- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 07.242 		8-97170-751-0 02 1 1011- ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97170-746-0 02 1 1011- ●

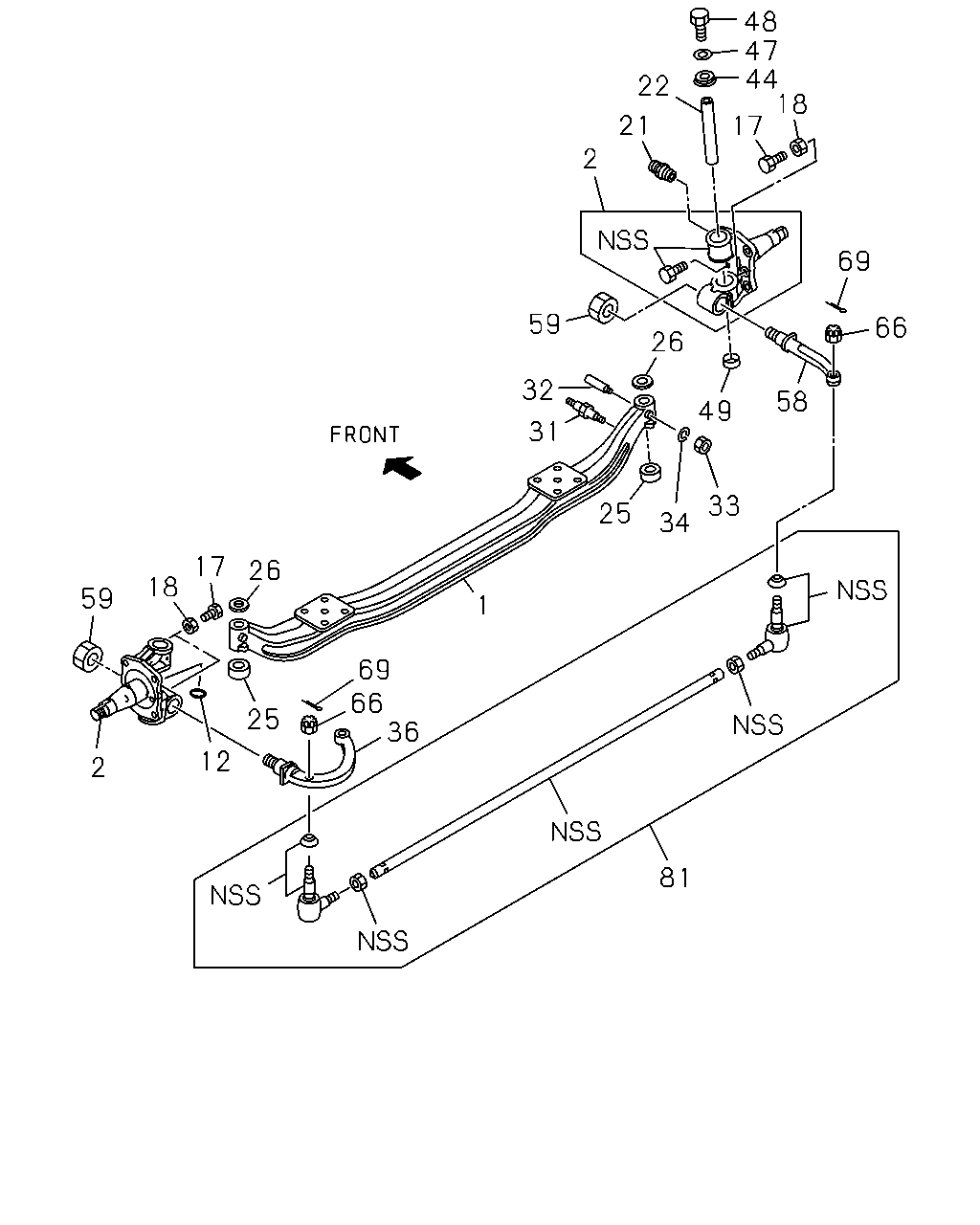

çizim 191365
81 36 66 69 1 25 12 2 59 18 17 26 34 25 31 32 59 33 49 26 58 66 69 18 17 44 47 48 22 21 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.008 AXLE; FRT 5-87220-050-0 01 1 1202- ● ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-051-0 01 1 1202- ● ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-052-0 01 1 1202- ● ●
12 06.021 GASKET; KNUCKLE 5-87220-054-0 02 1 1202- ● ●
17 06.009 BOLT; STOPPER KNUCKLE 5-87220-056-0 03 1 1202- ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE 5-87220-057-0 03 1 1202- ● ●
21 06.166 NIPPLE; GREASE,KING PIN 5-87220-058-0 04 1 1202- ● ●
22 06.203 PIN; KING,FRT AXLE 5-87220-471-0 02 1 1202- ● ●
25 06.210 BEARING; THRUST,KING PIN 5-87220-059-0 01 1 1202- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.5 		5-87220-060-0 AR 1 1202- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.6 		5-87220-531-0 AR 1 1202- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.7 		5-87220-532-0 AR 1 1202- ● ●
31 07.347 PIN; S/ABS,LWR 5-87220-061-0 02 1 1202- ● ●
32 06.216 BOLT; KEY,KING PIN 5-87220-062-0 02 1 1202- ● ●
33 06.216 NUT; KEY BOLT 5-87220-063-0 02 1 1202- ● ●
34 06.216 WASHER; LK,KEY BOLT 5-87220-064-0 02 1 1202- ● ●
36 06.103 ARM; KNUCKLE 5-87220-065-0 01 1 1202- ● ●
44 06.225 COVER; KING PIN 5-87220-066-0 02 1 1202- ● ●
47 06.225 WASHER; PL,COVER,KING PIN 5-87220-067-0 02 1 1202- ● ●
48 06.225 BOLT; COVER 5-87220-068-0 02 1 1202- ● ●
49 06.225 CAP; KNUCKLE 5-87220-069-0 02 1 1202- ● ●
58 06.103 ARM; TIE ROD 5-87220-070-0 01 1 1202- ● ●
59 06.104 NUT; TIE ROD ARM 5-87220-071-0 02 1 1202- ● ●
66 06.234 NUT; TIE ROD END 5-87220-074-0 02 1 1202- ● ●
69 06.255 PIN; SPLIT,TIE ROD END 5-87220-075-0 02 1 1202- ● ●
81 06.230 ROD; TIE 5-87220-078-0 01 1 1202- ● ●
