4-01 — PROPELLER SHAFT (#78704) — 41 parça

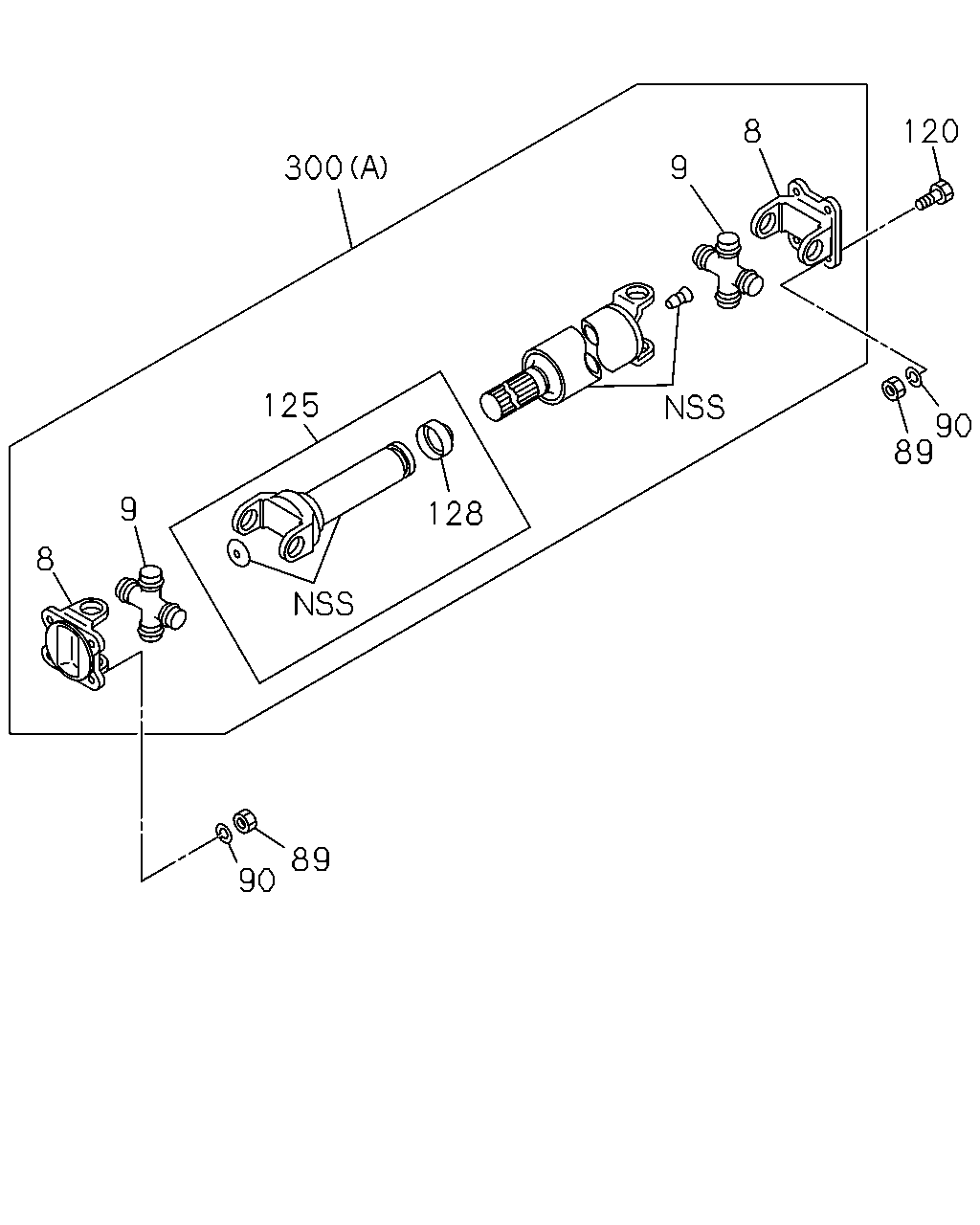

90 89 89 90 120 8 9 128 125 9 8 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT	5-87220-027-0	AR	1	1011-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT	5-87220-027-0	AR	1	1011-		●
9	05.548 JOURNAL ASM; PROP SHAFT	5-87220-028-0	AR	1	1011-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	5-87220-028-0	AR	1	1011-		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1011-	●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	04	1	1011-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1011-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	04	1	1011-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1011-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1011-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT	5-87220-042-0	01	1	1011-	●	●
128	05.586 SEAL; SLEEVE	5-87220-045-0	01	1	1011-	●	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97693-025-0	01	1	1011-	●
300	05.544 SHAFT ASM; PROP,RR (B) L=908	8-97693-026-0	01	1	1011-		●
300	05.544 SHAFT ASM; PROP,RR (C) L=1044	8-97693-027-0	01	1	1011-		●

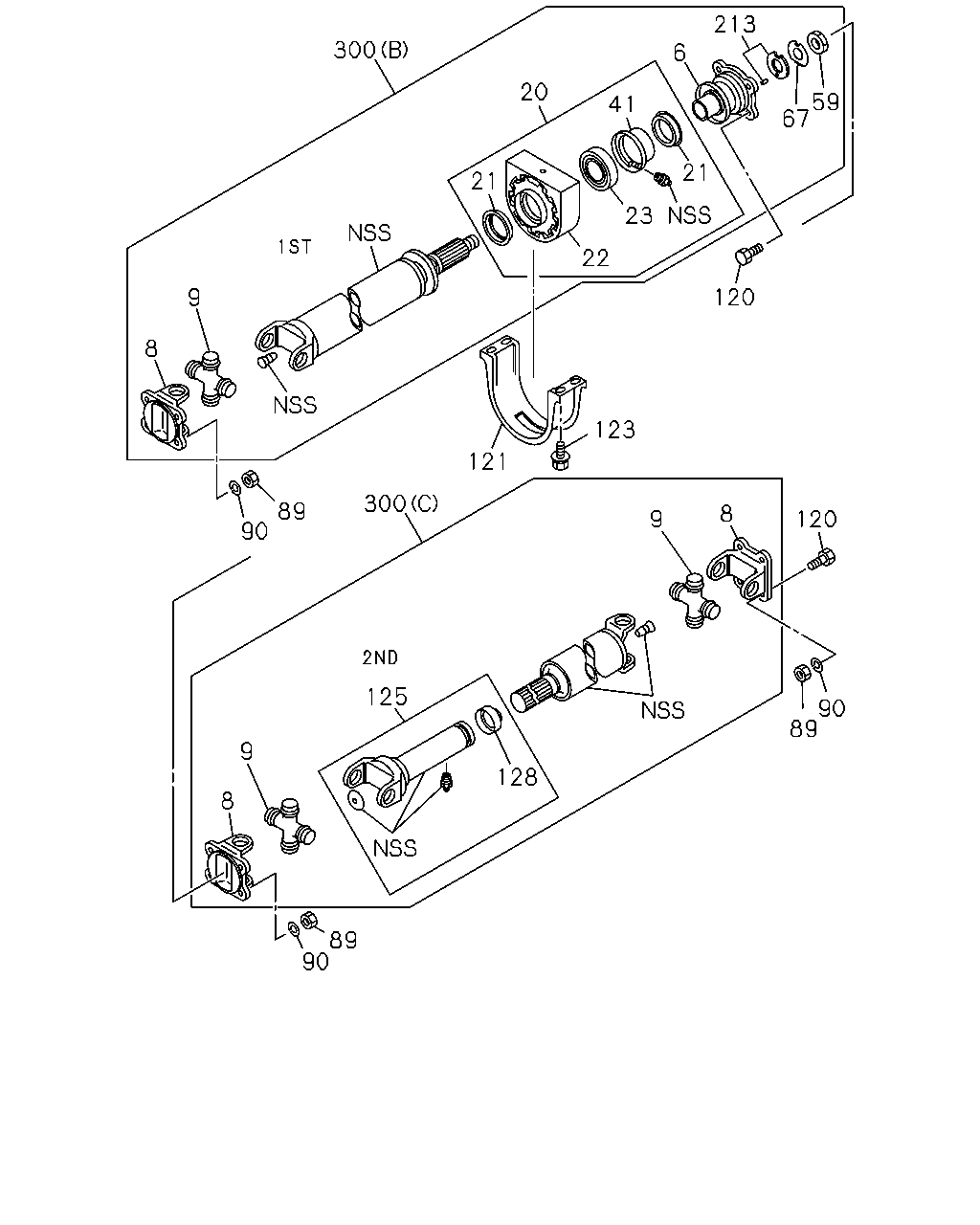

89 90 9 8 125 128 89 90 120 8 9 123 121 300 89 90 120 22 23 21 59 67 213 6 41 20 21 9 8 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	5-87220-026-0	01	1	1011-		●
8	05.544 YOKE; FLANGE,PROP SHAFT	5-87220-027-0	AR	1	1011-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT	5-87220-027-0	AR	1	1011-		●
9	05.548 JOURNAL ASM; PROP SHAFT	5-87220-028-0	AR	1	1011-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	5-87220-028-0	AR	1	1011-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT	5-87220-030-0	01	1	1011-		●
21	05.590 SEAL; OIL,CENTER BRG	5-87220-031-0	02	1	1011-		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-87220-032-0	01	1	1011-		●
23	05.600 BEARING; CENTER,PROP SHAFT	5-87220-033-0	01	1	1011-		●
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-87220-034-0	01	1	1011-		●
59	05.586 NUT; RET TO SUPPORT	5-87220-035-0	01	1	1011-		●
67	05.586 WASHER; PROP SHAFT TO COUPLING D	5-87220-036-0	01	1	1011-		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1011-	●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	04	1	1011-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1011-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	04	1	1011-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1011-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1011-		●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1011-		●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1011-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT	5-87220-042-0	01	1	1011-	●	●
128	05.586 SEAL; SLEEVE	5-87220-045-0	01	1	1011-	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI	5-87220-046-0	01	1	1011-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97693-025-0	01	1	1011-	●
300	05.544 SHAFT ASM; PROP,RR (B) L=908	8-97693-026-0	01	1	1011-		●
300	05.544 SHAFT ASM; PROP,RR (C) L=1044	8-97693-027-0	01	1	1011-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
