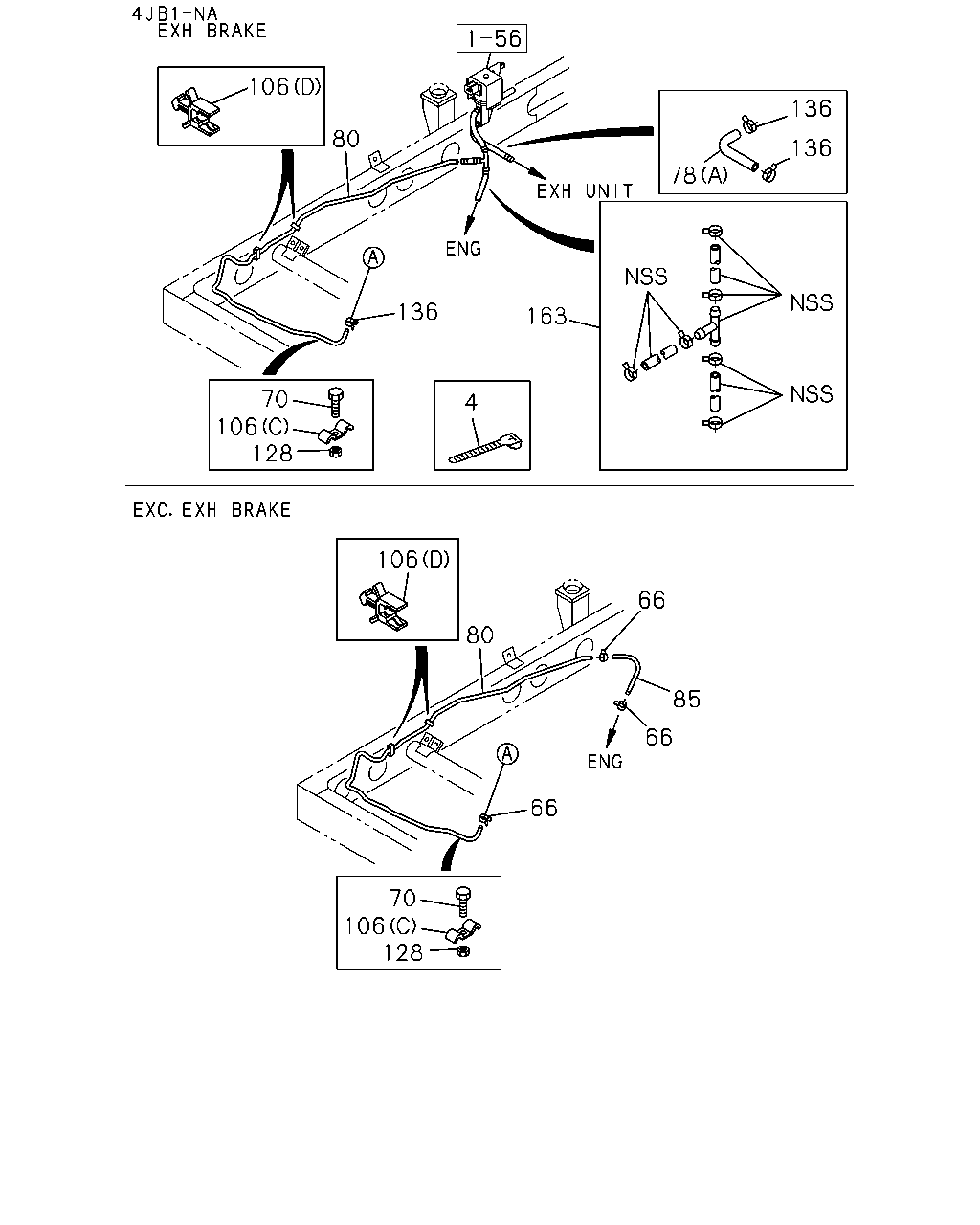

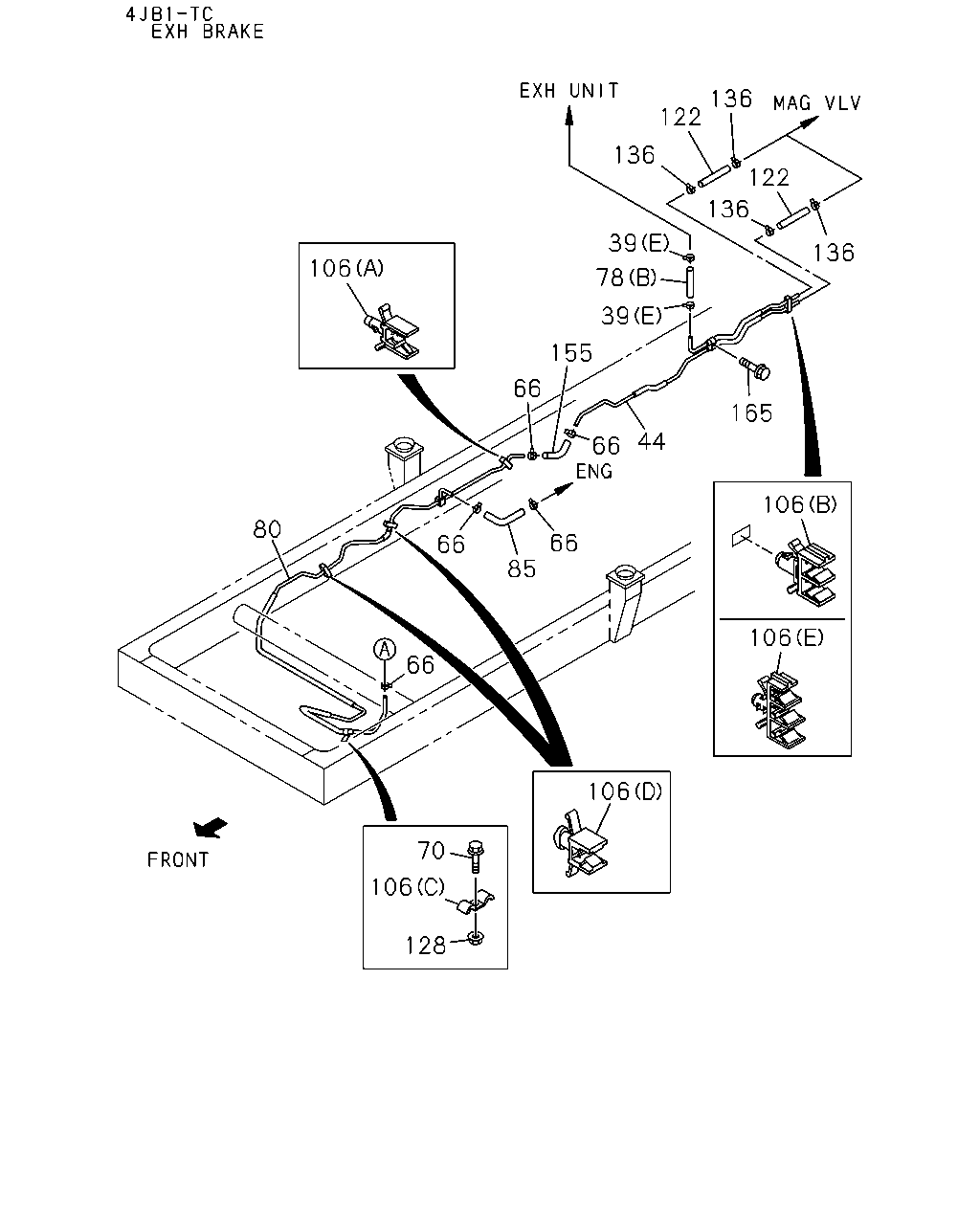

3-60 — BRAKE PIPING; VACUUM (#78703) — 88 parça

106 136 80 136 78 136 163 70 106 128 4 106 66 80 85 66 66 70 106 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.417 CLIP; HOSE,VAC PUMP 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	1011-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 04.686 (C) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 03.485 (D) ID=10 H=36	8-94249-686-1	02	1	1011-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	1011-		●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
163	04.681 JOINT; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97083-158-1	01	1	1011-	●	●

116 12 203 13 12 39 12 39 39 184 165 39 39 39 39 116 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1011-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1011-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97078-785-0	01	1	1011-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97314-597-1	01	1	1011-	●	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	1011-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1011-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1011-	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	1011-	●	●

136 122 136 122 136 136 39 78 39 155 66 44 66 66 85 66 80 66 70 106 128 106 106 106 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1011-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	1011-	●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.685	8-97225-306-1	01	1	1011-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	1011-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 04.686 (C) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 03.485 (D) ID=10 H=36	8-94249-686-1	02	1	1011-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	1011-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	1011-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=110 SERVICED BY L=3000	0-08258-300-0	01	1	1011-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	1011-		●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1011-		●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-	●	●

165 184 200 166 249 166 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-	●	●
166	04.686 NUT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-1012		●
166	04.686 NUT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1101-	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1011-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1011-	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	1011-	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1011-	●	●
249	04.686 BRACKET; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.634	8-97106-474-2	01	1	1011-	●
