◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7870) — 105 parça

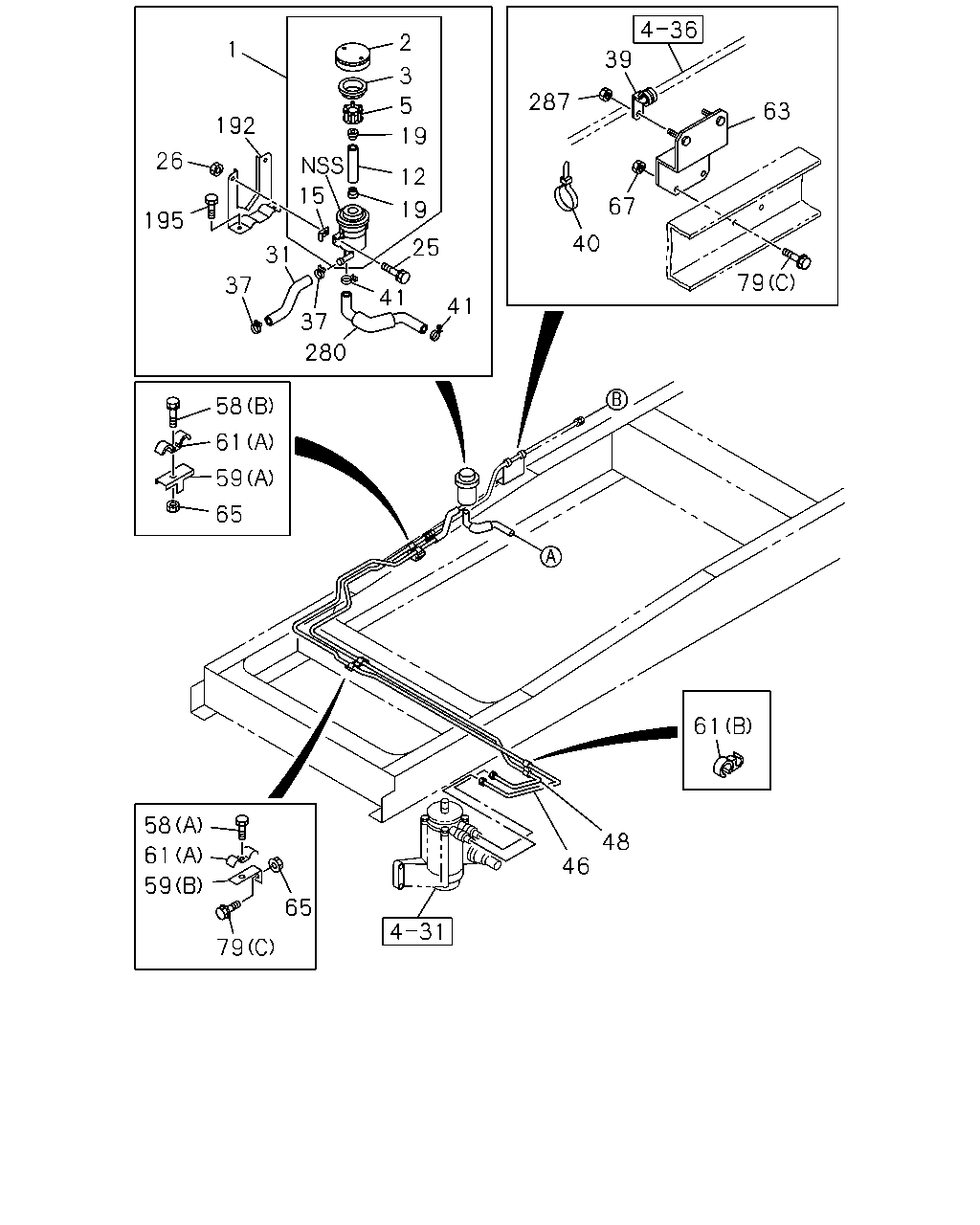

çizim 99305
2 1 39 3 287 5 63 192 19 26 12 15 67 19 195 40 25 31 79 37 41 41 37 280 58 61 59 65 61 58 48 61 46 59 65 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9905-0301 ● ●
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0302-0508 ● ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509- ● ● ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9905-0301 ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0302- ● ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9905-0301 ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0302- ● ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9905-0301 ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0302- ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9905-0301 ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0302- ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9905-0301 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0302-0508 ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9905-0301 ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0302- ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0301 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0302-0512 ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21114-154-0 01 1 9905-0301 ● ●
31 HOSE; P/S OIL TANK,INL 1-21114-154-0 01 1 0302- ● ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9905-0301 ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0302- ● ● ●
39 CLIP; FLEX HOSE
ID=18 H=23 L=28 		1-09700-860-0 02 1 9905-0301 ● ●
39 CLIP; FLEX HOSE
ID=18 H=23 L=28 		1-09700-860-0 02 1 0302- ● ● ●
40 CLIP; BAND
L=250 		1-09707-126-0 01 1 9905-0301 ● ●
40 CLIP; BAND
L=250 		1-09707-126-0 01 1 0302- ● ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9905-0301 ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0302- ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-552-0 01 1 0302-0302 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21117-375-0 01 1 0303- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-375-0 01 1 9905-9910 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-500-0 01 1 9911- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-374-0 01 1 9905-9910 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-499-0 01 1 9911- ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-422-0 01 1 0302-0302 ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21117-374-0 01 1 0303- ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-373-0 01 1 9905-9910 ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-498-0 01 1 9911- ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-372-0 01 1 9905-9910 ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21116-497-0 01 1 9911- ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0301 ● ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
58 BOLT; CLIP
(B) M8X40 FLANGE 		0-28680-840-0 02 1 9905-0302 ● ●
58 BOLT; CLIP
(B) M8X40 FLANGE 		0-28680-840-0 02 1 0303-0512 ● ● ●
58 BOLT; CLIP
(B) M8X40 FLANGE 		0-28650-840-0 02 1 0601- ● ● ●
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47475-427-1 02 1 0302- ●
59 BRACKET; CLIP,OIL PIPE
(B) L=68 		1-47475-525-0 01 1 0302- ●
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47475-427-1 02 1 9905- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=68 		1-47475-525-0 01 1 9905-9910 ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=60 		1-47475-455-0 01 1 9911- ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 9905-0301 ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 0302- ● ● ●
61 CLIP; OIL PIPE
(B) ID=12 & 15 		1-09709-281-1 01 1 9905-0301 ● ●
61 CLIP; OIL PIPE
(B) ID=12 & 15 		1-09709-281-1 01 1 0302- ● ● ●
63 BRACKET; CLIP,P/S 1-47478-449-0 01 1 9905-0008 ● ●
63 BRACKET; CLIP,P/S 1-47479-049-0 01 1 0009-0301 ● ●
63 BRACKET; CLIP,P/S 1-47479-049-1 01 1 0302- ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9905-0301 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0302-0602 ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9905-0301 ● ●
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28181-016-0 01 1 0302-0512 ● ● ●
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0302 ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0303-0512 ● ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28881-420-0 01 1 9905-0301 ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28881-420-0 01 1 0302-0512 ● ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-165-0 01 1 0302-0302 ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0303- ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9905- ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0302-0512 ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9905-0406 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-676-0 01 1 0302- ●
280 HOSE; P/S OIL PUMP,INL 1-21115-676-0 01 1 9905-0006 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-371-0 01 1 0007-0304 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21117-384-0 01 1 0305- ● ●
287 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
287 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●

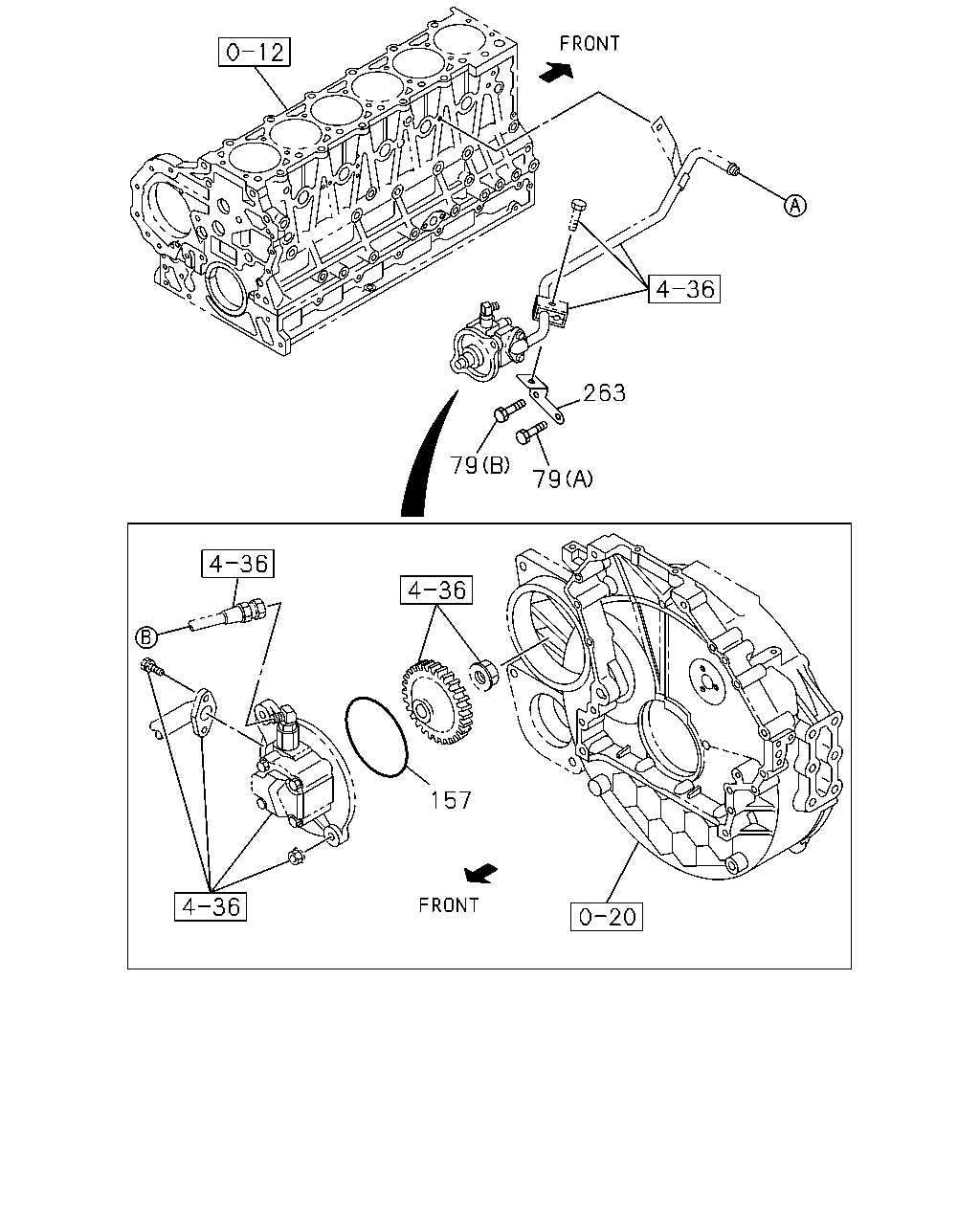

çizim 99313
263 79 79 157
BalonParca AdiParca NoAdetTipApplied Date A B C
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9905-0301 ● ●
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28181-016-0 01 1 0302-0512 ● ● ●
79 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0302 ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0303-0512 ● ● ●
79 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28881-420-0 01 1 9905-0301 ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28881-420-0 01 1 0302-0512 ● ● ●
79 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-247-0 01 1 9905-0301 ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-247-0 01 1 0302- ● ● ●
263 BRACKET; P/S PIPE 8-97600-076-0 01 1 9905-0301 ● ●
263 BRACKET; P/S PIPE 8-97600-076-0 01 1 0302- ● ● ●
