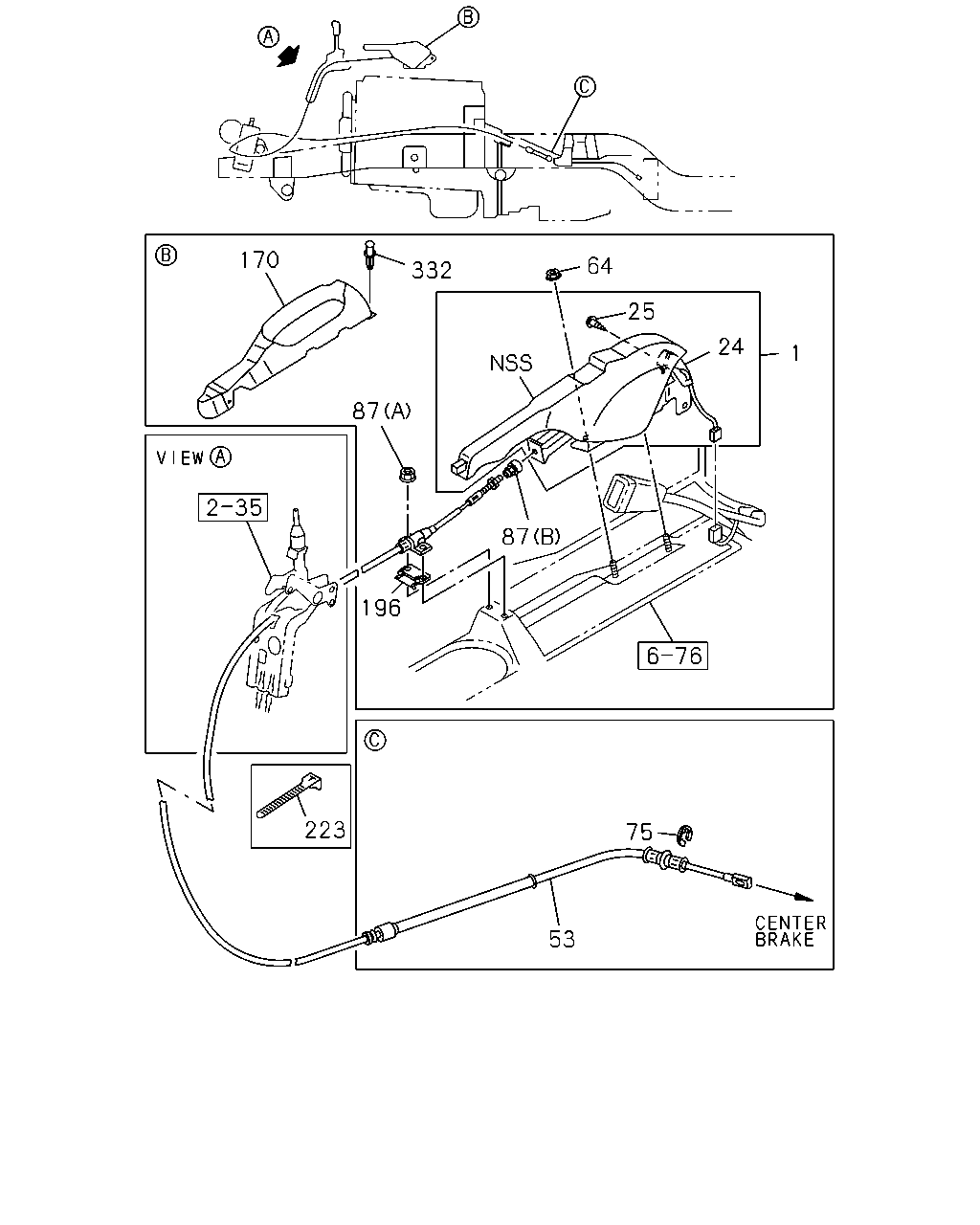

3-11 — PARKING BRAKE CONTROL (#78695) — 22 parça

170 64 332 25 24 1 87 87 196 223 75 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-385-0	01	1	1011-1305	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97427-522-0	01	1	1306-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	1011-1305	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1306-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1011-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-97184-272-0	01	1	1011-	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1011-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1011-	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1011-	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97400-347-1	01	1	1011-	●	●
196	04.784 SPACER; CABLE TO LEVER	8-97095-464-2	01	1	1011-	●	●
223	04.785 CLIP; PARKING BRK CABLE 03.162 L=140	5-09707-031-1	01	1	1011-	●	●
332	04.785 CLIP; COVER 03.602 D6X12.5	8-94146-425-0	01	1	1011-	●	●

237 324 220 86 231 181 324 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	04.785 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
231	04.785 CLIP; BAND,BRK CABLE ID=13 L=50	0-95235-286-0	01	1	1011-	●	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
324	04.785 BRACKET (B)	8-97101-815-2	01	1	1011-	●	●
324	04.785 BRACKET (A)	8-97113-984-1	01	1	1011-	●	●
