2-56 — AUTO TRANS CONTROL LINK (#78690) — 12 parça

çizim 114563

195 202 194 203

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	194	04.047 RETAINER; GROMMET	8-97048-319-1	01	1	1011-	●	●
	195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1011-	●	●
	202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1011-	●	●
	203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	1011-	●	●

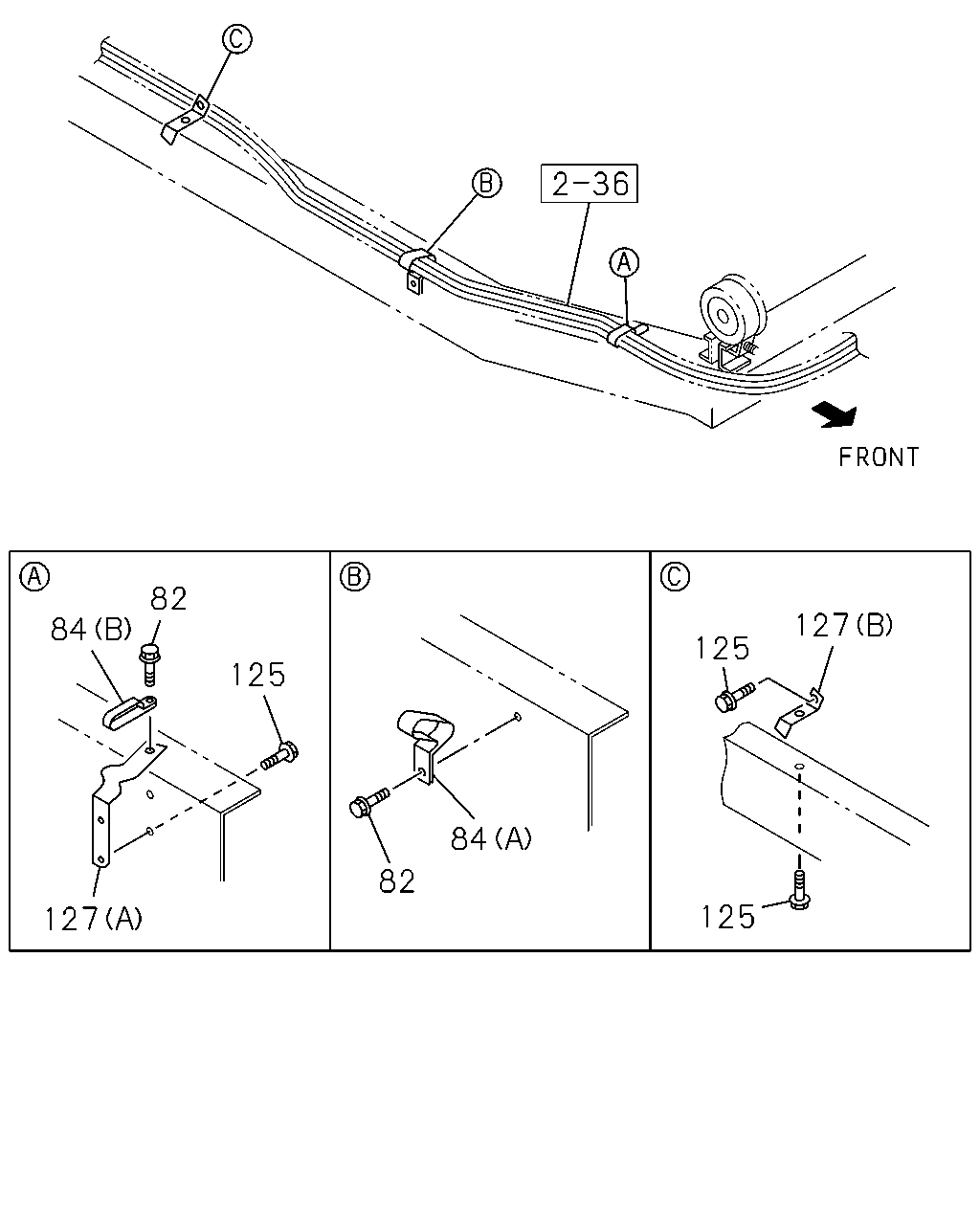

çizim 191359

82 127 84 125 125 84 82 125 127

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	82	04.047 BOLT; A/T CONT CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
	82	04.047 BOLT; A/T CONT CABLE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
	84	04.047 CLIP; A/T CONT CABLE (A)	8-97036-329-2	01	1	1011-	●	●
	84	04.047 CLIP; A/T CONT CABLE (B)	8-97137-589-0	01	1	1011-	●	●
	125	04.047 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1011-	●	●
	125	04.047 BOLT; BRKT EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
	127	04.047 BRACKET; A/T CONT CABLE (A)	8-97101-709-1	01	1	1011-	●	●
	127	04.047 BRACKET; A/T CONT CABLE EXC. POWER STEERING<N40> (B)	8-97103-234-0	01	1	1011-	●	●
