◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#78689) — 67 parça

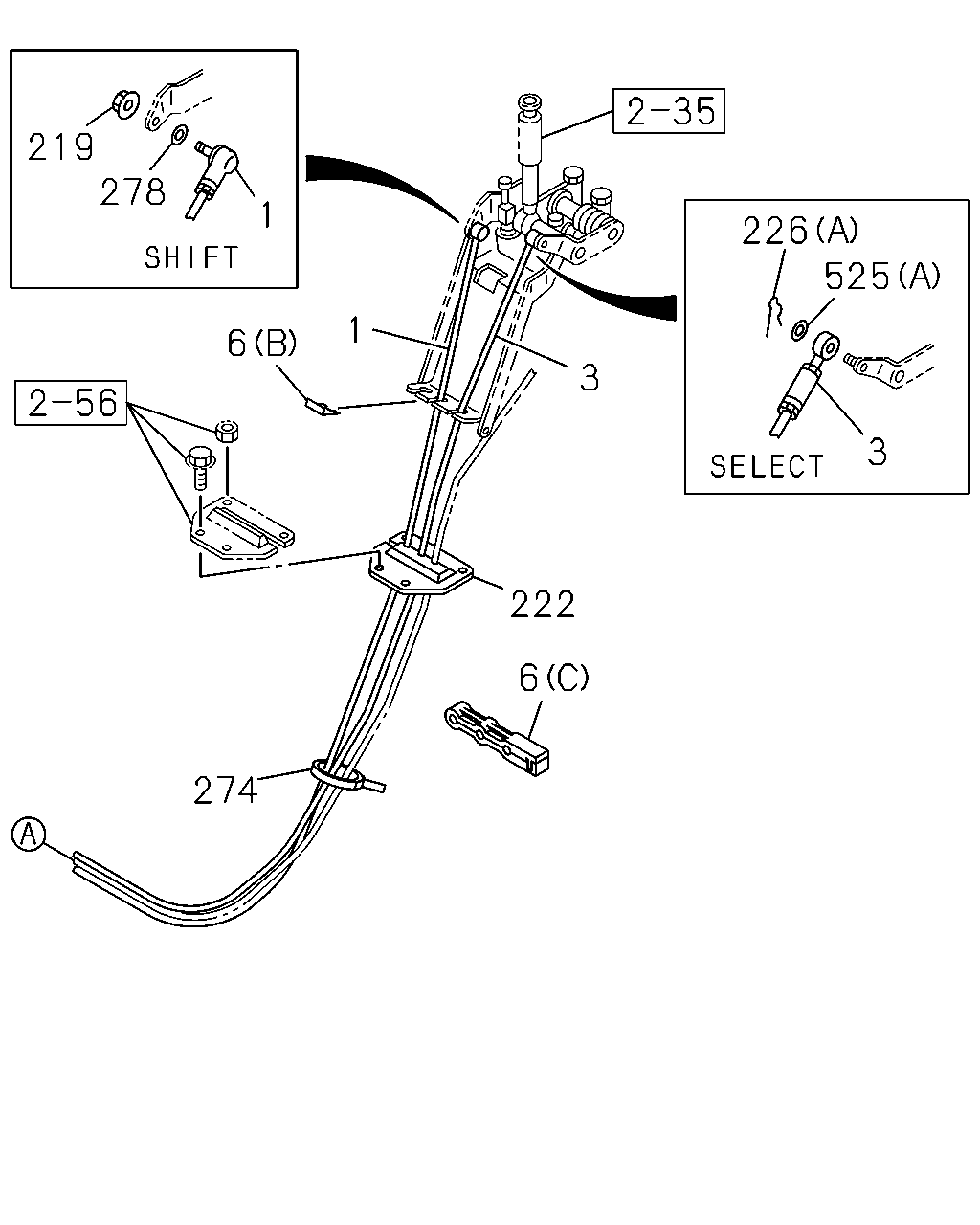

çizim 113926
219 278 1 226 525 1 6 3 3 222 6 274
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-98146-809-0 01 1 1011- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-3 01 1 1011- ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (E) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-332-1 01 1 1011-1211 ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (D) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (C) 		8-97093-491-1 01 1 1011- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1011- ● ●
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 1011- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1011- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1011- ● ●
274 04.008 CLIP; CONT CABLE
03.162 L=140 		5-09707-031-1 01 1 1011- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1011- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1011- ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1011- ● ●

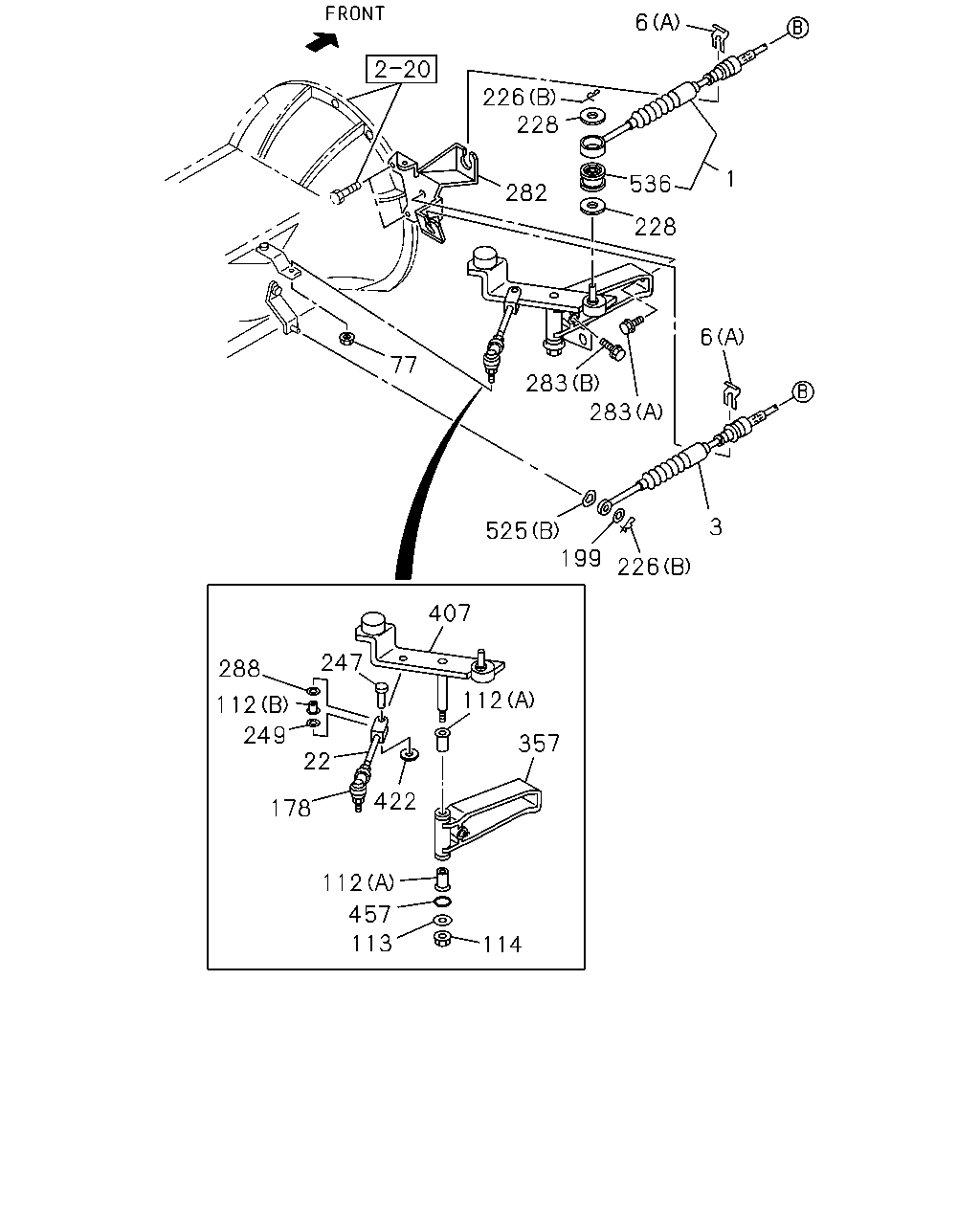

çizim 114171
6 226 228 1 536 282 228 6 77 283 283 3 525 199 226 407 247 288 112 112 249 357 22 422 178 112 457 113 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-98146-809-0 01 1 1011- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-3 01 1 1011- ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (E) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-332-1 01 1 1011-1211 ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (D) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (C) 		8-97093-491-1 01 1 1011- ● ●
22 04.035 ROD; CONT,SHIFT 8-97134-286-1 01 1 1011- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD 8-97358-973-0 01 1 1011- ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 1011- ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 1011- ● ●
113 04.046 WASHER; RELAY LEVER
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1011- ● ●
114 04.037 NUT; RELAY LEVER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1011- ● ●
178 04.040 JOINT; BALL,LINK ROD
04.037 L=45.5 		1-09760-118-1 01 1 1011- ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1011- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1011- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1011- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1011- ● ●
247 04.010 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 1011- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 1011- ● ●
282 04.010 BRACKET; TRANS SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97034-142-1 01 1 1201-1204 ● ●
282 04.010 BRACKET; TRANS SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97034-142-1 01 1 1205-1206 ● ●
282 04.010 BRACKET; TRANS SIDE
EXHAUST BRAKE<NF8> 		8-97034-142-1 01 1 1205-1206 ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 1207-1302 ●
282 04.010 BRACKET; TRANS SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97034-142-1 01 1 1207-1302 ●
282 04.010 BRACKET; TRANS SIDE
EXHAUST BRAKE<NF8> 		8-97034-142-1 01 1 1207-1302 ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 1303- ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 1011-1103 ● ●
282 04.010 BRACKET; TRANS SIDE 8-98187-414-0 01 1 1104-1112 ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98187-414-0 01 1 1201-1204 ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		8-98187-414-0 01 1 1205-1206 ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		8-98187-414-0 01 1 1207-1302 ●
283 04.037 BOLT; RELAY LEVER
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1011- ● ●
283 04.037 BOLT; RELAY LEVER
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1011- ● ●
288 04.047 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 1011- ● ●
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 1011- ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 1011- ● ●
422 04.032 NUT; CONT ROD TO LEVER
04.047 		8-97373-729-0 01 1 1011- ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 1011- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1011- ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1011- ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1011- ● ●
çizim 191352
294 272 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 04.047 CLIP; CABLE
POWER STEERING<N40> (E) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1011- ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-332-1 01 1 1011-1211 ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (D) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (C) 		8-97093-491-1 01 1 1011- ● ●
272 04.047 BOLT; CLIP,CONT CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
294 00.854 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
