2-30 — GEAR SHIFTER AND QUADRANT BOX (#78687) — 23 parça

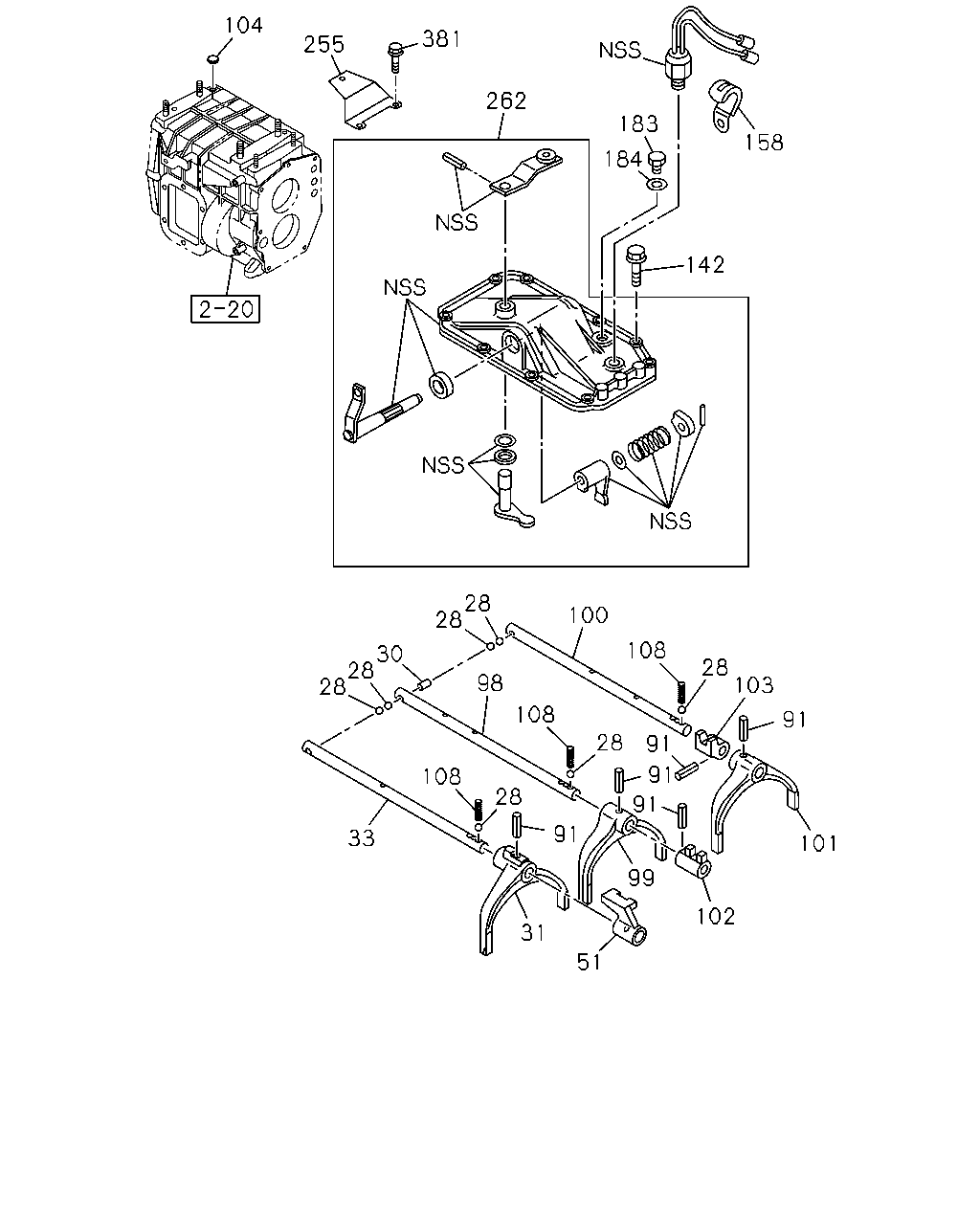

çizim 191354
104 255 381 262 183 184 158 142 28 28 30 28 28 100 108 28 103 91 101 91 28 91 91 99 102 51 31 91 28 108 98 108 33
BalonParca AdiParca NoAdetTipApplied Date A B
28 04.311 BALL; INTER LK 5-87220-295-0 07 1 1011- ● ●
30 04.307 PIN; INTER LK 5-87220-296-0 01 1 1011- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 5-87220-302-0 01 1 1011- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 5-87220-299-0 01 1 1011- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 5-87220-303-0 01 1 1011- ● ●
91 04.302 PIN; SPR,SHIFT ARM 5-87220-301-0 06 1 1011- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 5-87220-297-0 01 1 1011- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 5-87220-304-0 01 1 1011- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 5-87220-294-0 01 1 1011- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 5-87220-306-0 01 1 1011- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 5-87220-305-0 01 1 1011- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 5-87220-307-0 01 1 1011- ● ●
104 04.311 PLUG; PLATE 5-87220-298-0 01 1 1011- ● ●
108 04.311 SPRING; LOCK BALL 5-87220-300-0 03 1 1011- ● ●
142 04.012 BOLT; QUAD BOX
04.317 		5-87220-283-0 08 1 1011- ● ●
158 04.105 CLIP; HARNESS 5-87220-312-0 01 1 1011- ● ●
183 04.105 PLUG; SCREW,OIL FILTER 5-87220-314-0 01 1 1011- ● ●
184 04.105 GASKET; FILLER PLUG 5-87220-281-0 01 1 1011- ● ●
255 04.105 PLATE; DIST,QUAD BOX 5-87220-543-0 01 1 1011- ● ●
262 04.105 BOX ASM; SHIFT CONT 5-87220-535-0 01 1 1011-1205 ● ●
262 04.105 BOX ASM; SHIFT CONT
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		5-87220-535-0 01 1 1206- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXHAUST BRAKE<NF8> 		5-87220-540-0 01 1 1206- ● ●
381 04.105 BOLT 5-87220-544-0 02 1 1011- ● ●
