2-26 — MANUAL TRANSMISSION GEAR (#78686) — 53 parça

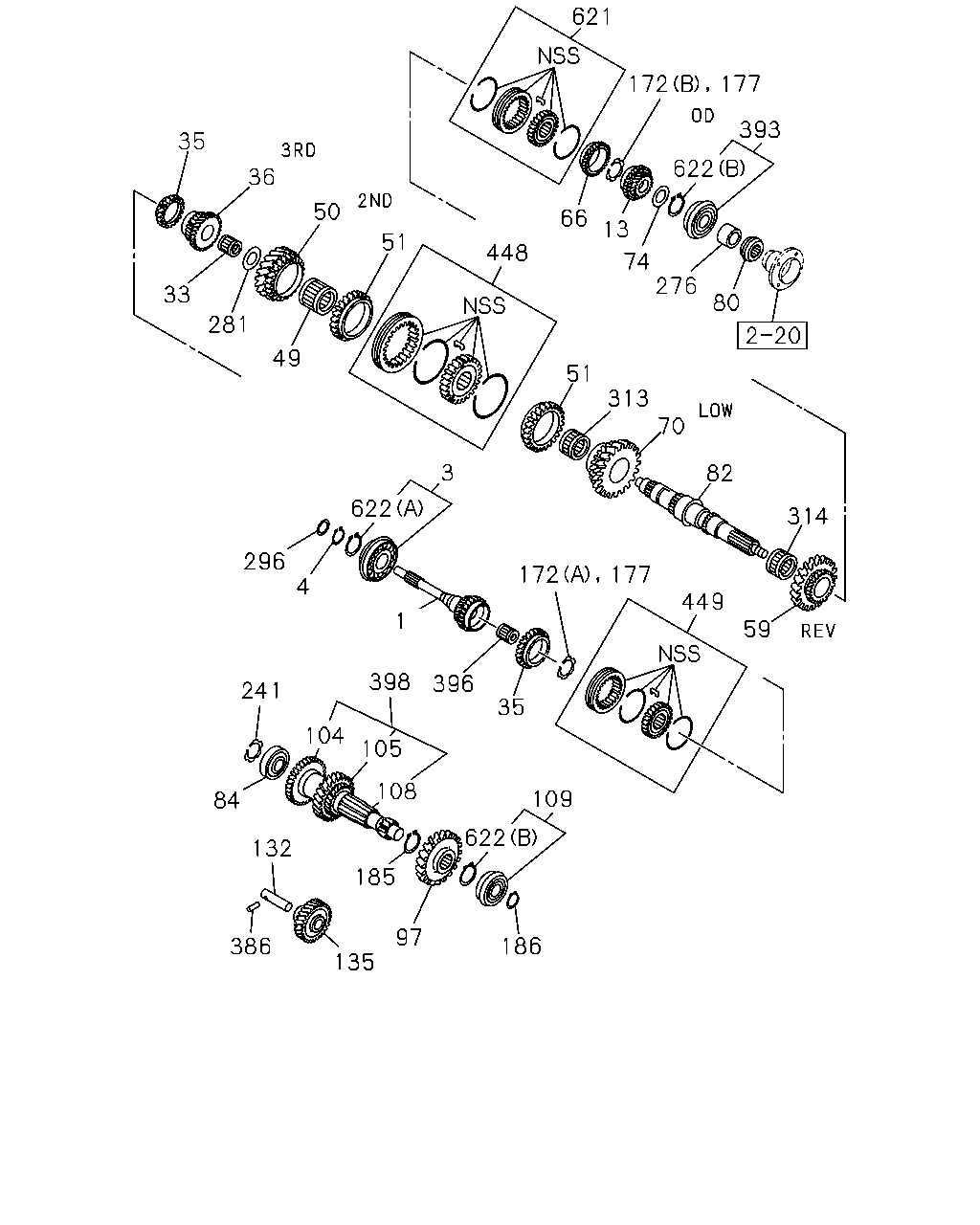

çizim 191355
621 172 177 393 622 66 74 13 276 82 70 80 313 51 448 51 50 36 35 33 49 281 3 622 4 296 1 172 177 449 314 59 35 396 398 241 104 105 108 622 186 109 97 185 132 84 386 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.351 SHAFT; TOP GEAR,TRANS 5-87220-324-0 01 1 1011- ●
1 04.351 SHAFT; TOP GEAR,TRANS 5-87220-325-0 01 1 1011- ●
3 04.403 BEARING; TOP GEAR SHAFT 5-87220-323-0 01 1 1011- ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 5-87220-322-0 01 1 1011- ● ●
13 04.415 GEAR; 5TH,MAINSHAFT 5-87220-352-0 01 1 1011- ●
13 04.415 GEAR; 5TH,MAINSHAFT 5-87220-353-0 01 1 1011- ●
33 04.352 BEARING; NEEDLE,3RD GEAR 5-87220-335-0 01 1 1011- ● ●
35 04.383 RING; BLOCK,4TH & 3RD 5-87220-327-0 02 1 1011- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT 5-87220-333-0 01 1 1011- ●
36 04.415 GEAR; 3RD,MAINSHAFT 5-87220-334-0 01 1 1011- ●
49 04.352 BEARING; NEEDLE,2ND GEAR 5-87220-340-0 01 1 1011- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT 5-87220-338-0 01 1 1011- ●
50 04.395 GEAR; 2ND,MAINSHAFT 5-87220-339-0 01 1 1011- ●
51 04.383 RING; BLOCK,LOW & 2ND 5-87220-341-0 02 1 1011- ● ●
59 04.417 GEAR; REV MAINSHAFT 5-87220-348-0 01 1 1011- ● ●
66 04.383 RING; BLOCK,SYN 5-87220-327-0 01 1 1011- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT 5-87220-346-0 01 1 1011- ● ●
74 04.419 WASHER; THRUST,REV GEAR 5-87220-354-0 01 1 1011- ● ●
80 04.343 GEAR; SPD DRIVE 5-87220-357-0 01 1 1011- ● ●
82 04.403 SHAFT; MAIN,TRANS 5-87220-347-0 01 1 1011- ● ●
84 04.422 BEARING; COUNTER SHAFT,FRT 5-87220-358-0 01 1 1011- ● ●
97 04.415 GEAR; 5TH,COUNTER 5-87220-367-0 01 1 1011- ●
97 04.415 GEAR; 5TH,COUNTER 5-87220-368-0 01 1 1011- ●
104 04.415 GEAR; 4TH,COUNTER 5-87220-361-0 01 1 1011- ●
104 04.415 GEAR; 4TH,COUNTER 5-87220-362-0 01 1 1011- ●
105 04.415 GEAR; 3RD,COUNTER 5-87220-363-0 01 1 1011- ●
105 04.415 GEAR; 3RD,COUNTER 5-87220-364-0 01 1 1011- ●
108 04.428 SHAFT; COUNTER 5-87220-365-0 01 1 1011- ● ●
109 04.422 BEARING; COUNTER SHAFT,RR
04.352 		5-87220-355-0 01 1 1011- ● ●
132 04.433 SHAFT; REV 5-87220-371-0 01 1 1011- ● ●
135 04.430 GEAR; REV IDLER 5-87220-370-0 01 1 1011- ● ●
172 04.412 RING; SNAP,CLU HUB
(A) 		5-87220-541-0 01 1 1011- ● ●
172 04.412 RING; SNAP,CLU HUB
(B) 		5-87220-542-0 01 1 1011- ● ●
177 04.384 RING; SNAP,CLU HUB
T=1.80 		5-87220-384-0 AR 1 1011- ● ●
177 04.384 RING; SNAP,CLU HUB
T=1.95 		5-87220-387-0 AR 1 1011- ● ●
185 04.422 RING; SNAP,CLUSTER GEAR 5-87220-366-0 01 1 1011- ● ●
186 04.422 RING; SNAP,CLUSTER GEAR 5-87220-369-0 01 1 1011- ● ●
241 04.416 RING; SNAP 5-87220-548-0 01 1 1011- ● ●
276 04.419 SPACER; BRG TO DRIVE GEAR 5-87220-356-0 01 1 1011- ● ●
281 04.419 WASHER; THRUST,MAINSHAFT 5-87220-337-0 01 1 1011- ● ●
296 04.406 WASHER; THRUST 5-87220-321-0 01 1 1011- ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR 5-87220-345-0 01 1 1011- ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
04.352 		5-87220-340-0 01 1 1011- ● ●
386 04.435 PIN; REV SHAFT 5-87220-372-0 01 1 1011- ● ●
393 04.352 BEARING; MAINSHAFT END 5-87220-355-0 01 1 1011- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 5-87220-326-0 01 1 1011- ● ●
398 04.421 GEAR; COUNTER 5-87220-359-0 01 1 1011- ●
398 04.421 GEAR; COUNTER 5-87220-360-0 01 1 1011- ●
448 04.380 SYNCHRONIZER ASM; 1ST & 2ND 5-87220-536-0 01 1 1011- ● ●
449 04.380 SYNCHRONIZER ASM; 3RD & 4TH 5-87220-537-0 01 1 1011- ● ●
621 04.380 SYNCHRONIZER ASM; REV & 5TH 5-87220-538-0 01 1 1011- ● ●
622 04.416 RING
(A) 		5-87220-546-0 01 1 1011- ● ●
622 04.416 RING
(B) 		5-87220-547-0 02 1 1011- ● ●
