1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#78677) — 36 parça

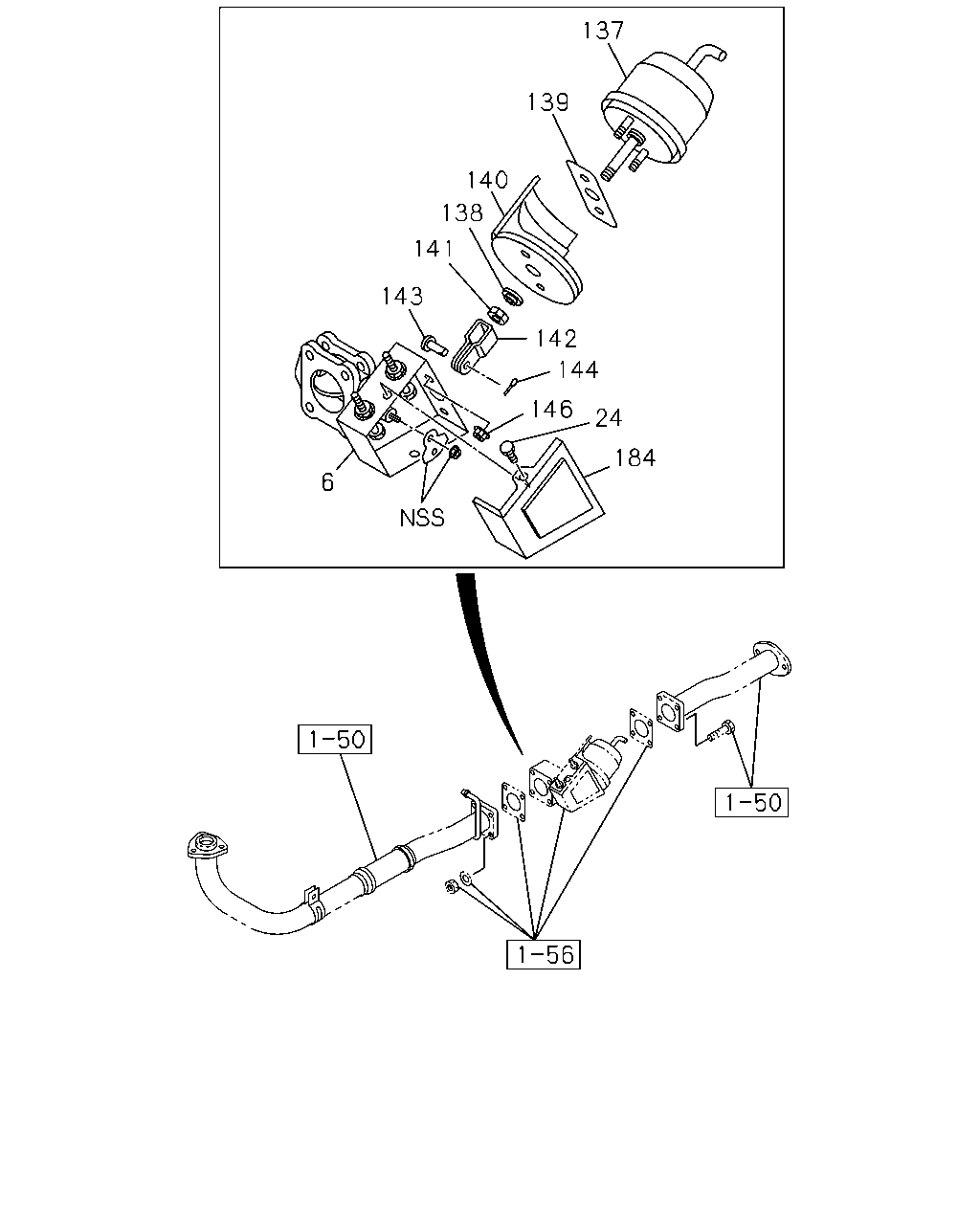

çizim 97433
137 139 140 138 141 143 142 144 146 24 184 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.632 VALVE; EXH BRAKE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97369-945-1 01 1 1011- ● ●
6 03.632 VALVE; EXH BRAKE
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97173-325-0 01 1 1011- ● ●
24 03.634 BOLT; COVER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1011- ● ●
137 03.634 CHAMBER; POWER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 1011- ● ●
137 03.634 CHAMBER; POWER
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-94158-416-0 01 1 1011- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 1011- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		5-22189-004-0 01 1 1011- ● ●
139 03.634 GASKET; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1011- ● ●
140 03.634 INSULATOR; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 1011- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 1011- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 1011- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97177-310-0 01 1 1011- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 1011- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		5-22189-008-0 01 1 1011- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 1011- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440 		8-97010-295-1 01 1 1011- ● ●
146 03.634 NUT; EXH BRK VLV
EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 1011- ● ●
184 03.634 COVER; BRKT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97311-447-1 01 1 1011- ● ●
çizim 191346
74 137 139 140 138 180 141 142 143 144 6 146
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.632 VALVE; EXH BRAKE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97369-945-1 01 1 1011- ● ●
6 03.632 VALVE; EXH BRAKE
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97173-325-0 01 1 1011- ● ●
74 03.634 CONNECTOR; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-94311-454-0 01 1 1011- ● ●
137 03.634 CHAMBER; POWER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 1011- ● ●
137 03.634 CHAMBER; POWER
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-94158-416-0 01 1 1011- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 1011- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		5-22189-004-0 01 1 1011- ● ●
139 03.634 GASKET; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1011- ● ●
140 03.634 INSULATOR; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 1011- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 1011- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 1011- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97177-310-0 01 1 1011- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 1011- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		5-22189-008-0 01 1 1011- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 1011- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440 		8-97010-295-1 01 1 1011- ● ●
146 03.634 NUT; EXH BRK VLV
EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 1011- ● ●
180 03.640 COLLAR; EXH BRK VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440 		8-97018-597-0 02 1 1011- ● ●
