◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

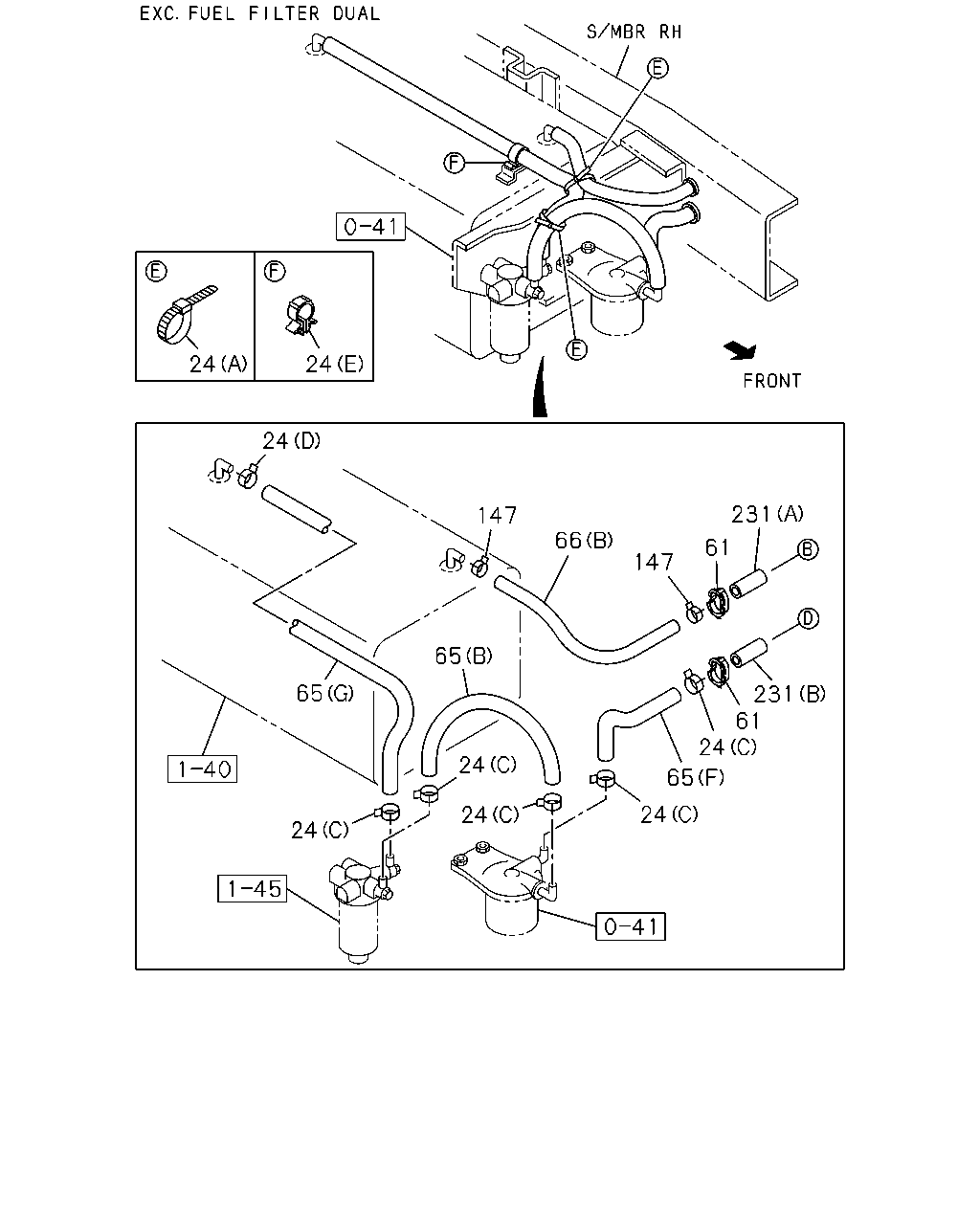

1-41 — FUEL PIPING; CHASSIS (#78674) — 148 parça

24 24 24 65 61 24 231 61 147 231 66 147 65 24 65 24 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (E)	8-97089-536-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (C) ID=16	8-98008-098-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (B) ID=22 L=22	5-83574-045-0	01	1	1011-1201	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1301-		●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1301-		●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (D) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL TANK 75 LITTER<7GX> 03.003 (E) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-97222-766-0	01	1	1011-1201	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1202-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1011-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> (D) L=350	8-97353-528-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1011-1011	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) (G) L=380	8-97353-524-0	01	1	1011-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1012-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1012-1212		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1212	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-		●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1011-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1011-	●	●

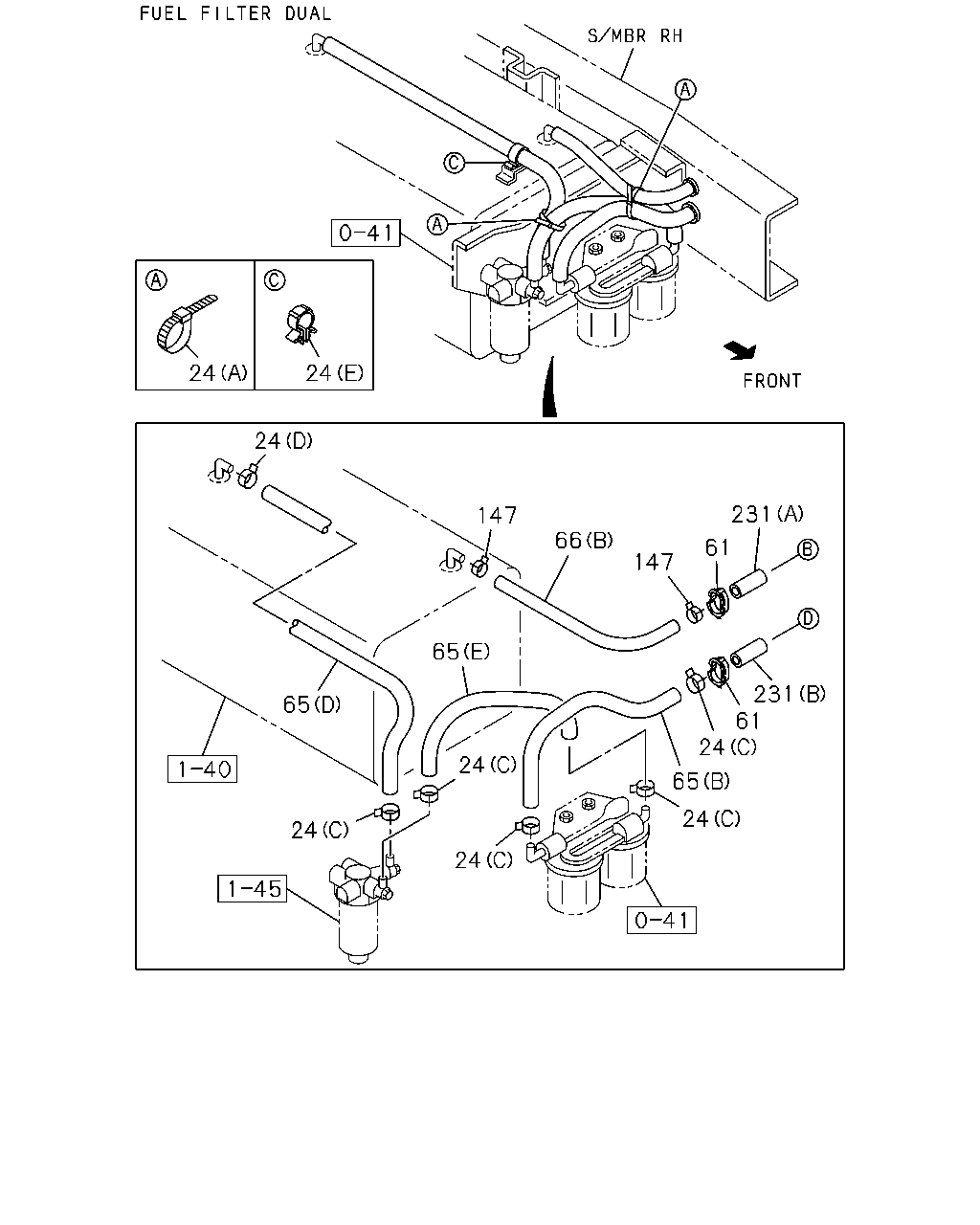

24 231 61 65 24 231 61 147 66 147 65 65 24 24 24 24 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (E)	8-97089-536-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (C) ID=16	8-98008-098-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (B) ID=22 L=22	5-83574-045-0	01	1	1011-1201	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1301-		●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1301-		●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (D) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL TANK 75 LITTER<7GX> 03.003 (E) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-97222-766-0	01	1	1011-1201	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1202-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1011-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> (D) L=350	8-97353-528-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1011-1011	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) (G) L=380	8-97353-524-0	01	1	1011-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1012-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1012-1212		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1212	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-		●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1011-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1011-	●	●

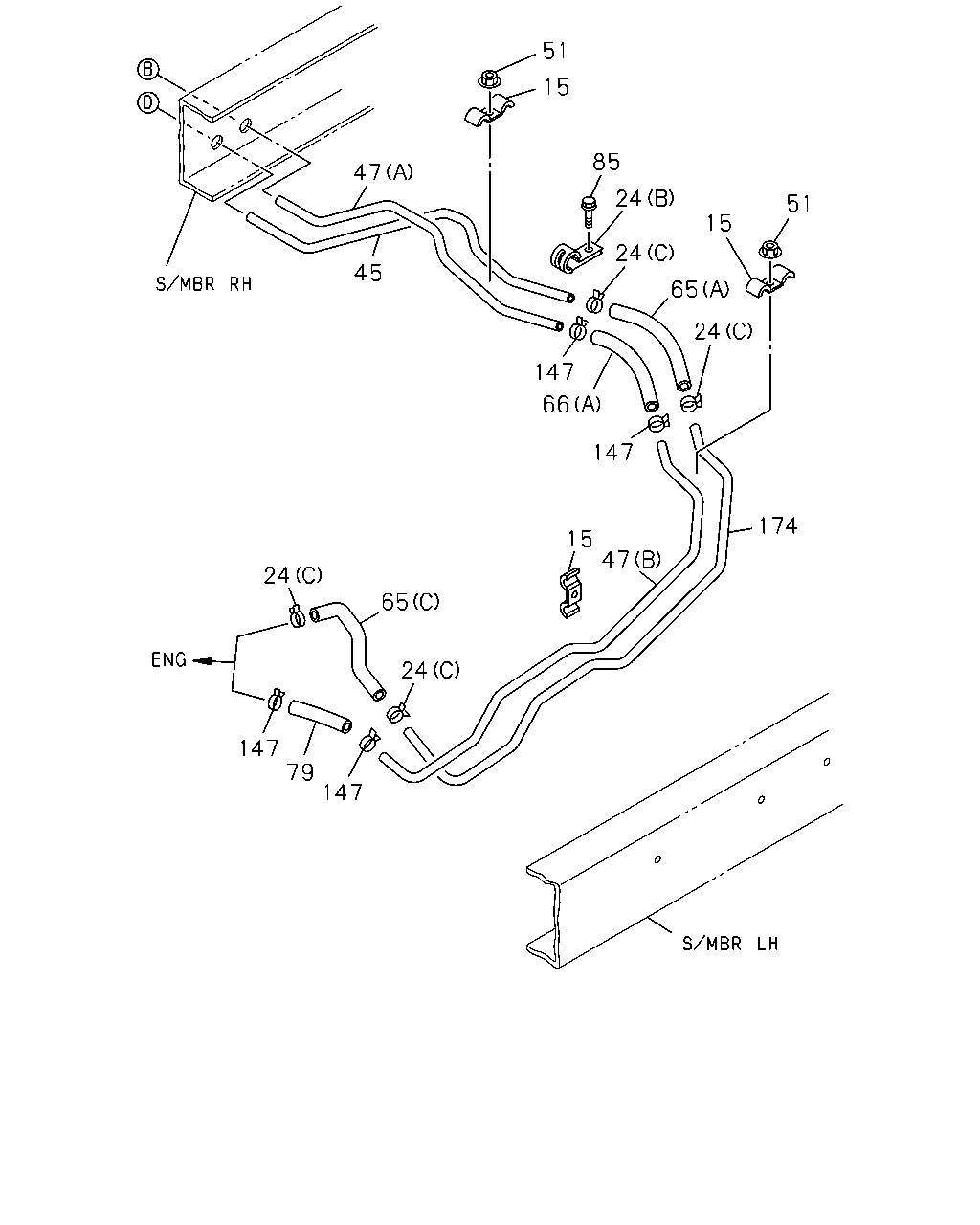

51 15 85 47 24 51 15 24 45 65 24 147 66 147 174 15 47 24 65 24 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 00.785 ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	1011-1410	●	●
15	03.162 CLIP; FUEL PIPE ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (E)	8-97089-536-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (C) ID=16	8-98008-098-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (B) ID=22 L=22	5-83574-045-0	01	1	1011-1201	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	1301-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1301-		●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1011-1212	●	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	1301-	●
24	03.162 CLIP; FUEL HOSE (D) ID=19	8-98150-356-0	01	1	1301-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97075-972-3	01	1	1011-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97070-373-2	01	1	1011-1402		●
45	03.163 PIPE; FUEL,DELIVERY	8-98270-101-0	01	1	1403-		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B)	8-98204-243-0	01	1	1202-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B)	8-98201-157-0	01	1	1202-		●
47	03.163 PIPE; FUEL,RETURN (B)	8-97080-712-5	01	1	1011-1201	●
47	03.163 PIPE; FUEL,RETURN 4JB1-NA ENG(RLF) (B)	8-97080-712-5	01	1	1202-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97090-339-3	01	1	1011-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97088-710-2	01	1	1011-1402		●
47	03.163 PIPE; FUEL,RETURN (A)	8-98270-102-0	01	1	1403-		●
47	03.163 PIPE; FUEL,RETURN (B)	8-97354-091-0	01	1	1011-1201		●
47	03.163 PIPE; FUEL,RETURN 4JB1-NA ENG(RLF) (B)	8-97354-091-0	01	1	1202-		●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (D) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL TANK 75 LITTER<7GX> 03.003 (E) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-97222-766-0	01	1	1011-1201	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1202-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1011-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> (D) L=350	8-97353-528-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1011-1011	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) (G) L=380	8-97353-524-0	01	1	1011-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1012-1212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1012-1212		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (G) L=380	8-97353-524-0	01	1	1301-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (G) L=380	8-97353-524-0	01	1	1301-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1212	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1301-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT)	8-98201-251-0	01	1	1202-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1201	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-	●	●
85	03.162 BOLT; CLIP,FUEL HOSE 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	1011-1201	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-	●	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT)	8-97260-217-0	01	1	1011-1201	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT)	8-98192-830-0	01	1	1202-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-NA ENG(RLF)	8-97090-340-3	01	1	1011-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT)	8-97225-253-0	01	1	1011-1201		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT)	8-98201-156-0	01	1	1202-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-NA ENG(RLF)	8-97091-493-1	01	1	1011-		●
