1-40 — FUEL TANK (#78673) — 211 parça

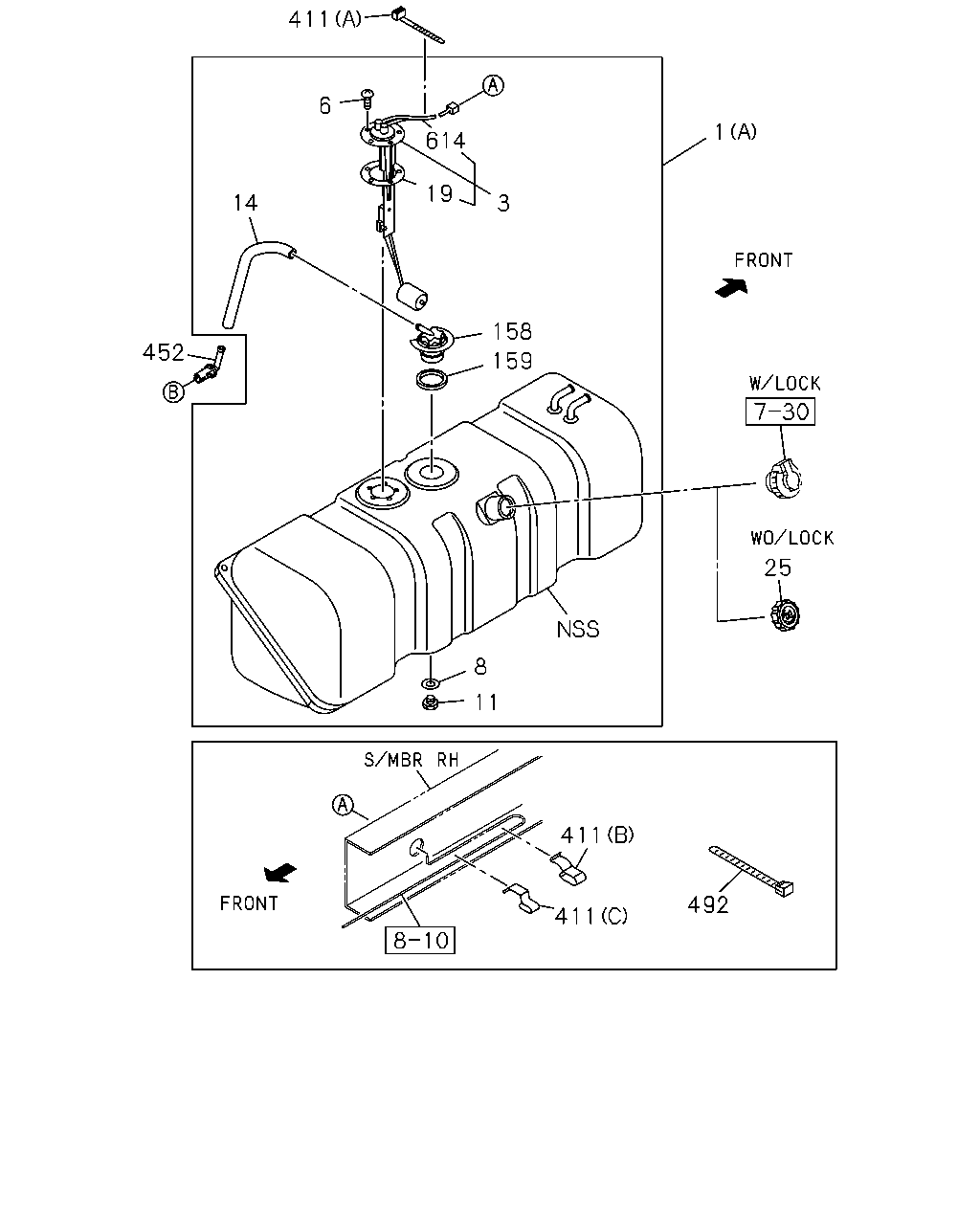

çizim 93093
14 6 411 614 3 19 452 158 8 159 11 1 25 411 492 411
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> (A) 732X375X375 75L 		8-98280-475-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98280-480-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98280-479-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98280-481-0 01 1 1411- ●
1 03.001 TANK; FUEL
FUEL TANK VAR.2<6AT> (B) 753X340X327 75L 		8-97350-987-1 01 1 1301- ●
1 03.001 TANK; FUEL
(A) 732X375X375 75L 		8-97375-633-3 01 1 1011-1205 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-97375-633-4 01 1 1206-1212 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> (A) 732X375X375 75L 		8-97375-633-4 01 1 1301-1410 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 732X375X375 75L 		8-97375-633-4 01 1 1411- ●
1 03.001 TANK; FUEL
(A) 979X380X375 100L 		8-97375-634-4 01 1 1011-1205 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-97375-634-5 01 1 1206-1410 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 979X380X375 100L 		8-97375-634-5 01 1 1411- ●
1 03.001 TANK; FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1206-1212 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1301-1410 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1411- ●
1 03.001 TANK; FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98215-288-1 01 1 1206-1410 ●
1 03.001 TANK; FUEL
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98215-288-1 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-778-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-778-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK VAR.2<6AT> 03.001 		8-94316-190-0 01 1 1301- ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1206-1212 ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 1011-1205 ● ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-006-0 01 1 1206-1212 ● ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-97363-006-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-006-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1011-1212 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK VAR.2<6AT>,FUEL TANK 75 LITTER<7GX> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1301- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK VAR.2<6AT> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1011-1212 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 75 LITTER<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK VAR.2<6AT> 01.453 M14X14 		9-09862-156-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1011-1212 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 75 LITTER<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK VAR.2<6AT> 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1011-1212 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1011- ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1206-1212 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK VAR.2<6AT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK VAR.2<6AT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
PROVISIONAL PACKAGE SPEC<BCC> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 1011-1205 ● ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-616-0 01 1 1206-1212 ● ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-97363-616-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-616-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 1011- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1011-1212 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 75 LITTER<7GX> 		8-97179-645-0 01 1 1301- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1301- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1011-1212 ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 75 LITTER<7GX> 		8-97326-488-0 01 1 1301- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1301- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=4.5 & 9 		8-97371-947-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5 		8-97371-951-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 1206- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 1011-1205 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 02 1 1206- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=9.2 		5-09709-013-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> (B) T=9.2 		5-09709-013-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.525 (C) T=9.2 & 9 		5-09709-025-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=9.2 & 9 		5-09709-025-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
01.240 (B) T=5.5 		5-09709-047-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5 		5-09709-047-0 AR 1 1210- ● ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK VAR.2<6AT> 		8-97062-954-1 01 1 1301- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1011-1212 ● ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 75 LITTER<7GX> 		8-97357-261-0 01 1 1301- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1301- ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250 		5-09707-030-1 01 1 1503- ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 02 1 1011-1502 ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250 		5-09707-030-1 02 1 1503- ● ●
614 03.028 HARNESS; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-98285-440-0 01 1 1411- ●
614 03.028 HARNESS; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> 		8-98285-440-0 01 1 1411- ●
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 1011-1205 ● ●
614 03.028 HARNESS; FUEL
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-614-0 01 1 1206-1212 ● ●
614 03.028 HARNESS; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-97363-614-0 01 1 1301-1410 ●
614 03.028 HARNESS; FUEL
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-614-0 01 1 1301-1410 ●
614 03.028 HARNESS; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-614-0 01 1 1411- ●
614 03.028 HARNESS; FUEL
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-614-0 01 1 1411- ●

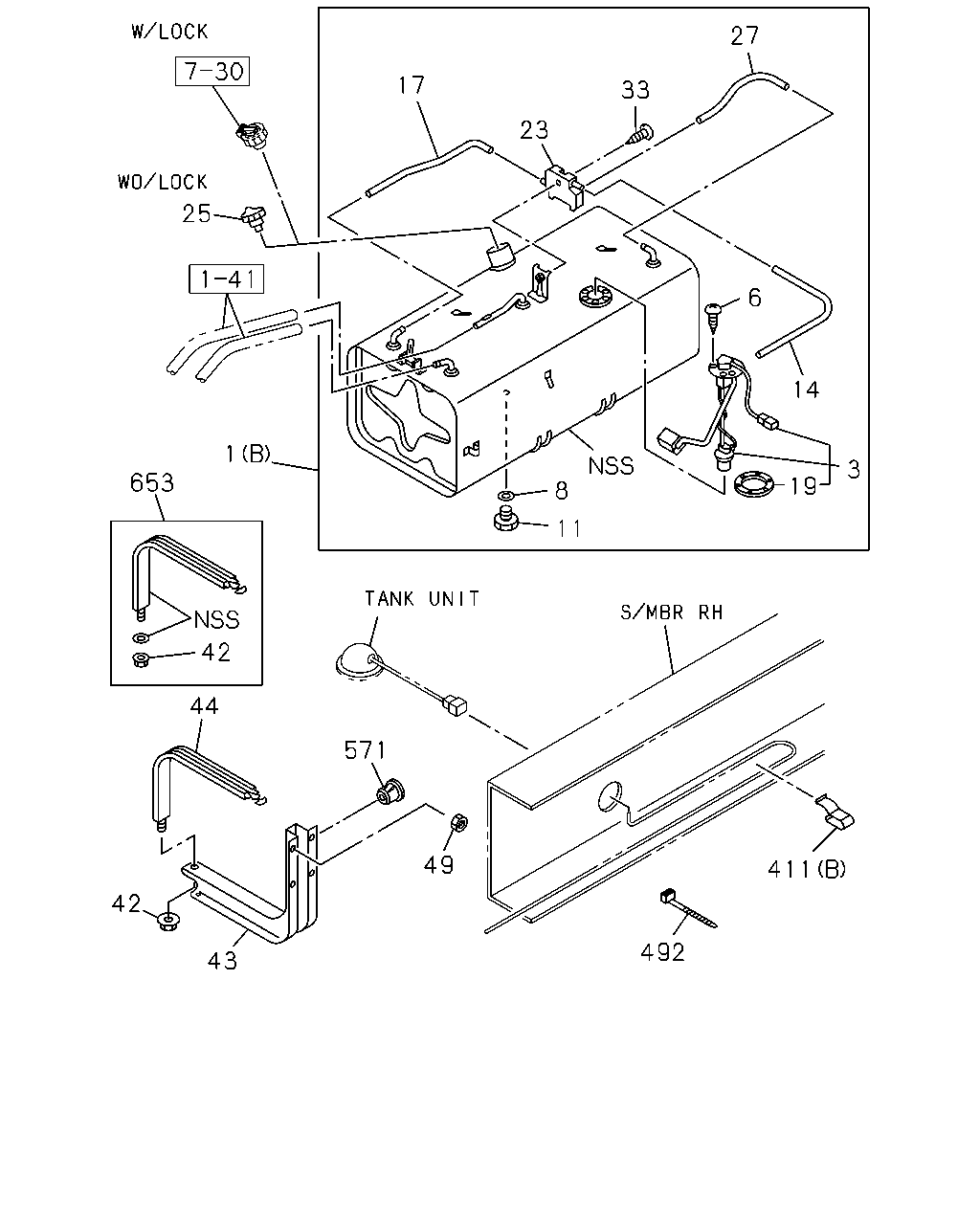

çizim 93303
27 33 23 17 25 1 653 42 44 42 43 571 49 492 411 19 3 14 6 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> (A) 732X375X375 75L 		8-98280-475-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98280-480-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98280-479-0 01 1 1411- ●
1 03.001 TANK; FUEL
PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98280-481-0 01 1 1411- ●
1 03.001 TANK; FUEL
FUEL TANK VAR.2<6AT> (B) 753X340X327 75L 		8-97350-987-1 01 1 1301- ●
1 03.001 TANK; FUEL
(A) 732X375X375 75L 		8-97375-633-3 01 1 1011-1205 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-97375-633-4 01 1 1206-1212 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> (A) 732X375X375 75L 		8-97375-633-4 01 1 1301-1410 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 732X375X375 75L 		8-97375-633-4 01 1 1411- ●
1 03.001 TANK; FUEL
(A) 979X380X375 100L 		8-97375-634-4 01 1 1011-1205 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-97375-634-5 01 1 1206-1410 ●
1 03.001 TANK; FUEL
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 979X380X375 100L 		8-97375-634-5 01 1 1411- ●
1 03.001 TANK; FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1206-1212 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1301-1410 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> (A) 732X375X375 75L 		8-98215-287-1 01 1 1411- ●
1 03.001 TANK; FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98215-288-1 01 1 1206-1410 ●
1 03.001 TANK; FUEL
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> (A) 979X380X375 100L 		8-98215-288-1 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-778-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98278-778-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK VAR.2<6AT> 03.001 		8-94316-190-0 01 1 1301- ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1206-1212 ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98195-752-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 1011-1205 ● ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-006-0 01 1 1206-1212 ● ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-97363-006-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-006-0 01 1 1301-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1011-1212 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK VAR.2<6AT>,FUEL TANK 75 LITTER<7GX> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1301- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK VAR.2<6AT> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1011-1212 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 75 LITTER<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1301- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK VAR.2<6AT> 01.453 M14X14 		9-09862-156-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1011-1212 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 75 LITTER<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1301- ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK VAR.2<6AT> 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1011-1212 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1301- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1011- ●
17 03.163 HOSE; BREATHER
FUEL TANK VAR.2<6AT> L=430 SERVICED BY L=3000 		8-94128-826-0 01 1 1301- ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1206-1212 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK VAR.2<6AT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK VAR.2<6AT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER<7GX> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
PROVISIONAL PACKAGE SPEC<BCC> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 1011-1205 ● ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-616-0 01 1 1206-1212 ● ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> 		8-97363-616-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> 		8-97363-616-0 01 1 1301-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> FUEL TANK 75 LITTER<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
23 03.162 JOINT; BREATHER HOSE
FUEL TANK VAR.2<6AT> 		8-97077-713-1 01 1 1301- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 1011- ● ●
27 03.163 HOSE; BREATHER
FUEL TANK VAR.2<6AT> L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 1301- ●
33 03.162 SCREW; JOINT TO FUEL TANK
FUEL TANK VAR.2<6AT> M6X20 W/LK&PL WASHER 		0-36230-620-0 01 1 1301- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1011- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK VAR.2<6AT> 		8-97035-517-0 02 1 1301- ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 1011-1212 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> FRONT 		8-97035-517-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 1011-1212 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> REAR 		8-97181-220-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 1301- ●
44 03.023 BAND; FUEL TANK
FUEL TANK VAR.2<6AT> 03.022 		8-94438-385-4 02 1 1301- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1011- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=4.5 & 9 		8-97371-947-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5 		8-97371-951-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 1206- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 1011-1205 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 02 1 1206- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=9.2 		5-09709-013-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> (B) T=9.2 		5-09709-013-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.525 (C) T=9.2 & 9 		5-09709-025-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=9.2 & 9 		5-09709-025-0 AR 1 1210- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
01.240 (B) T=5.5 		5-09709-047-0 AR 1 1011-1209 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5 		5-09709-047-0 AR 1 1210- ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250 		5-09707-030-1 01 1 1503- ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 02 1 1011-1502 ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250 		5-09707-030-1 02 1 1503- ● ●
571 03.001 GROMMET
FUEL TANK VAR.2<6AT> 03.028 		8-97096-990-0 01 1 1301- ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 1011-1212 ● ●
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 75 LITTER<7GX> 		5-87411-970-0 02 1 1301- ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 1301- ●
çizim 191343
49 49 43 322 322 43 42 42 44 44 653 42
BalonParca AdiParca NoAdetTipApplied Date A B
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1011- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK VAR.2<6AT> 		8-97035-517-0 02 1 1301- ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 1011-1212 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> FRONT 		8-97035-517-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 1011-1212 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> REAR 		8-97181-220-0 01 1 1301- ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 1301- ●
44 03.023 BAND; FUEL TANK
FUEL TANK VAR.2<6AT> 03.022 		8-94438-385-4 02 1 1301- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1011- ● ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1011- ● ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 1011-1212 ● ●
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 75 LITTER<7GX> 		5-87411-970-0 02 1 1301- ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 1301- ●

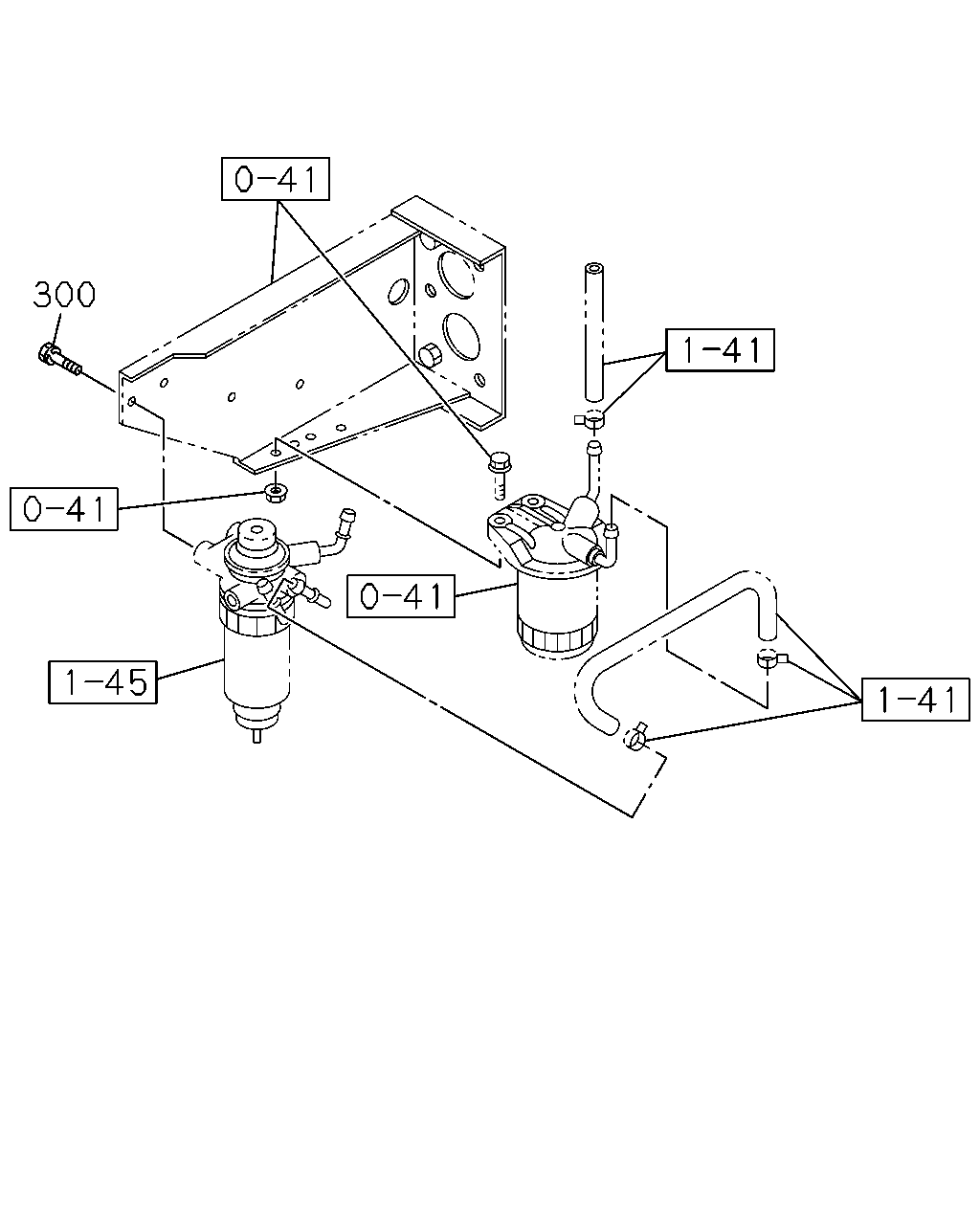

çizim 345282
300
BalonParca AdiParca NoAdetTipApplied Date A B
300 03.162 BOLT; BRKT TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
