◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#7867) — 42 parça

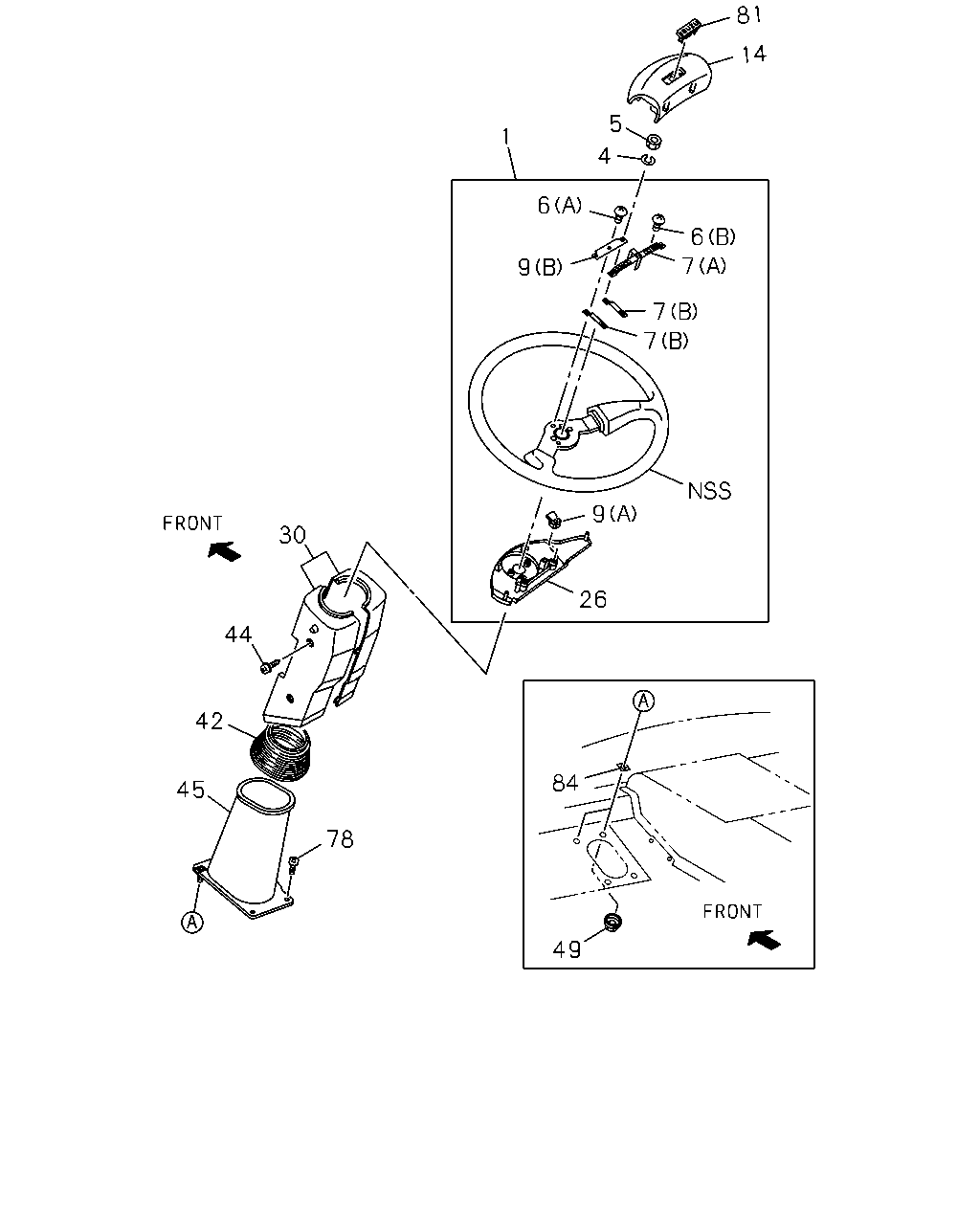

çizim 26862
14 5 1 4 6 6 7 9 7 7 9 30 26 44 42 84 45 78 49 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 WHEEL; STRG 1-44110-162-0 01 1 9905-0301 ● ●
1 WHEEL; STRG 1-44110-162-0 01 1 0302- ● ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9905-0301 ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0302-0603 ● ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9905-0301 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0302-0512 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ● ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9905-0301 ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 0302- ● ● ●
6 SCREW; HORN SPR CONTACT
(A) M5X10 		1-44129-049-0 01 1 9905-0301 ● ●
6 SCREW; HORN SPR CONTACT
(A) M5X10 		1-44129-049-0 01 1 0302- ● ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9905-0301 ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 0302- ● ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-060-0 01 1 9905-0301 ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-060-0 01 1 0302- ● ● ●
9 PLATE; HORN CONTACT
(A) 		1-44129-048-0 02 1 9905-0301 ● ●
9 PLATE; HORN CONTACT
(A) 		1-44129-048-0 02 1 0302- ● ● ●
9 PLATE; HORN CONTACT
(B) 		1-44129-059-0 01 1 9905-0301 ● ●
9 PLATE; HORN CONTACT
(B) 		1-44129-059-0 01 1 0302- ● ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9905-0301 ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 0302- ● ● ●
26 COVER; STRG WHEEL,LWR 1-44129-050-0 01 1 9905-0301 ● ●
26 COVER; STRG WHEEL,LWR 1-44129-050-0 01 1 0302- ● ● ●
30 COWL; STEERING 1-79997-342-3 01 1 9905-0301 ● ●
30 COWL; STEERING 1-79997-342-3 01 1 0302- ● ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 9905-0301 ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0302- ● ● ●
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9905-0301 ● ●
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 0302-0302 ● ● ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303- ● ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9905-0301 ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0302- ● ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9905-0301 ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0302- ● ● ●
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9905-9906 ● ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9907-0301 ● ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0302- ● ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9905-0301 ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 0302- ● ● ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9905-0301 ● ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
