1-10 — RADIATOR (#78668) — 50 parça

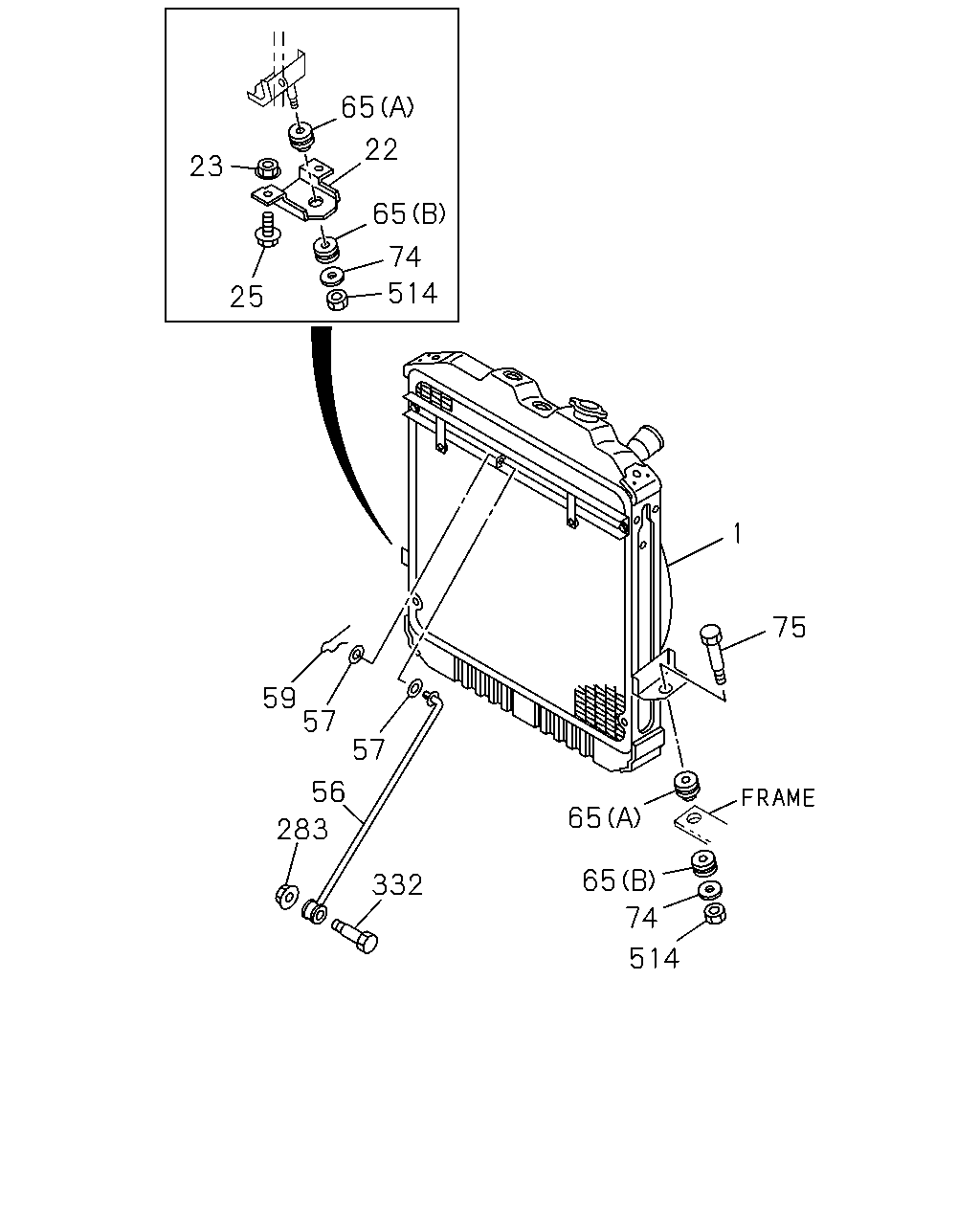

65 22 23 65 74 514 25 1 75 59 57 57 56 65 283 65 332 74 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97221-762-0	01	1	1011-1109	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98203-145-0	01	1	1110-	●	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF)	8-97162-145-1	01	1	1011-	●	●
22	01.270 BRACKET; RAD MTG	8-94257-949-1	01	1	1011-	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	1011-1110	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1011-	●	●
56	01.270 STAY; RAD	8-97350-324-0	01	1	1011-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	1011-	●	●
57	01.271 WASHER; PL,STAY ID=12	8-97011-676-0	01	1	1011-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	1011-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1011-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1011-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=10.5	0-91610-710-0	01	1	1011-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1011-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1011-	●	●
283	01.277 NUT; BRKT 01.271 M8 FLANGE	8-94178-701-0	01	1	1011-	●	●
332	01.276 BOLT; BRKT,RAD STAY 01.271 M8X45	8-94401-350-0	01	1	1011-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●

1 81 2 16 62 70 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97221-762-0	01	1	1011-1109	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98203-145-0	01	1	1110-	●	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF)	8-97162-145-1	01	1	1011-	●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT)	8-97223-685-0	01	1	1110-	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1011-1109	●	●
2	01.277 GUIDE; FAN 4JB1-NA ENG(RLF)	8-97066-011-0	01	1	1110-	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97177-872-0	01	1	1011-1109	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97371-017-0	01	1	1110-	●	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97167-854-0	01	1	1011-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	1011-	●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	1011-1109	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1-NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1110-	●	●
62	01.271 BOLT; STAY 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1011-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	1011-	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	1011-	●	●

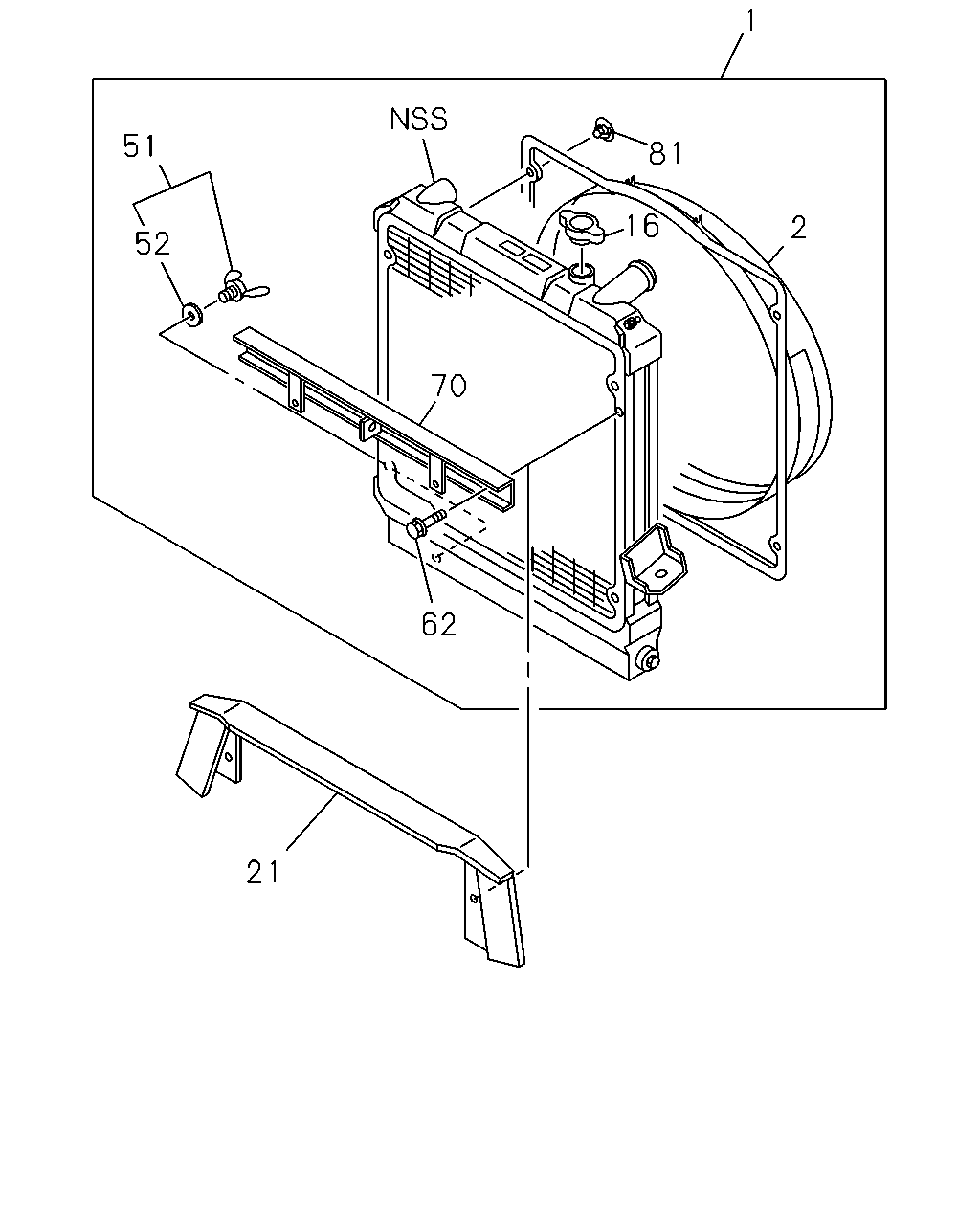

1 51 81 16 2 52 70 62 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97221-762-0	01	1	1011-1109	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98203-145-0	01	1	1110-	●	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF)	8-97162-145-1	01	1	1011-	●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT)	8-97223-685-0	01	1	1110-	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1011-1109	●	●
2	01.277 GUIDE; FAN 4JB1-NA ENG(RLF)	8-97066-011-0	01	1	1110-	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97177-872-0	01	1	1011-1109	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97371-017-0	01	1	1110-	●	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97167-854-0	01	1	1011-	●	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT)	8-97219-806-3	01	1	1011-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	1011-	●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	1011-1109	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1-NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1110-	●	●
62	01.271 BOLT; STAY 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1011-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	1011-	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	1011-	●	●
