Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#78651) — 322 parça

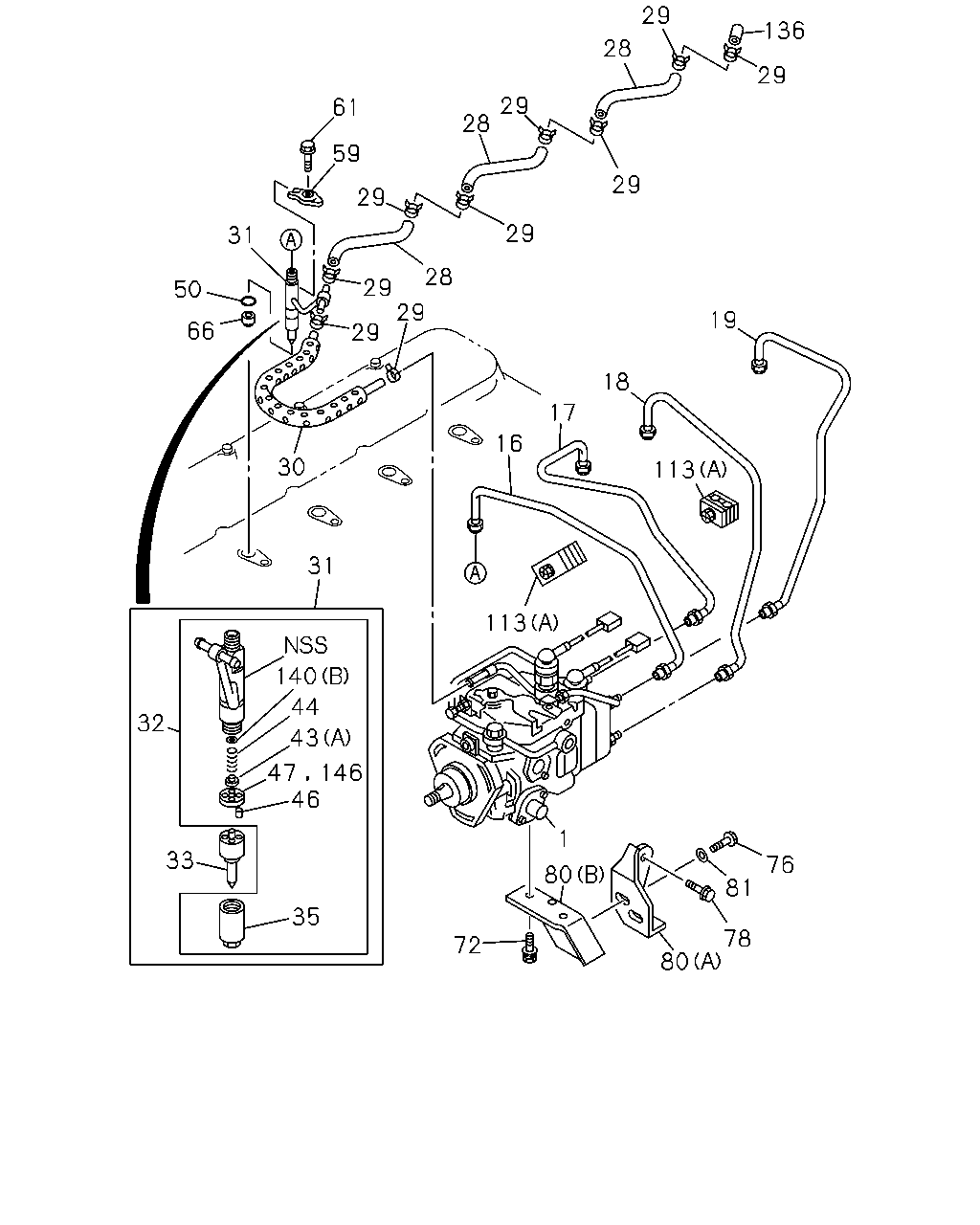

29 136 28 29 29 28 61 59 29 29 29 31 28 29 29 50 19 66 29 18 17 16 30 113 31 113 140 44 32 43 47 146 46 1 33 76 80 81 35 78 72 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1011-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40>, TACHOMETER<U16>	8-97120-179-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40>,TACHOMETER<U16>	8-97120-179-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) TACHOMETER<U16> EXC. POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1011-	●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1011-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1011-	●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1011-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1011-	●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1011-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1011-	●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1011-		●
28	03.163 HOSE; FUEL,NOZZLE TO NOZZLE	8-97912-623-0	03	1	1011-		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1011-	●	●
29	03.162 CLIP; HOSE 01.219 ID=13	8-94238-571-0	07	1	1011-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	1011-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=240	8-97364-774-1	01	1	1011-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	1011-	●
31	03.332 NOZZLE ASM; INJ	8-97122-939-0	04	1	1011-		●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1011-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1011-		●
33	03.332 NOZZLE; INJ	8-97109-671-0	04	1	1011-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1011-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1011-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97361-697-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1011-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1011-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1011-		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	1011-		●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1011-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	1011-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1011-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1011-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1011-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1011-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1011-	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1011-	●	●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1011-	●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1011-	●	●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1011-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1011-	●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1011-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1011-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1011-		●
136	03.162 CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	1011-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1011-	●
146	03.332 SPACER; NOZZLE	8-94174-183-0	04	1	1011-		●

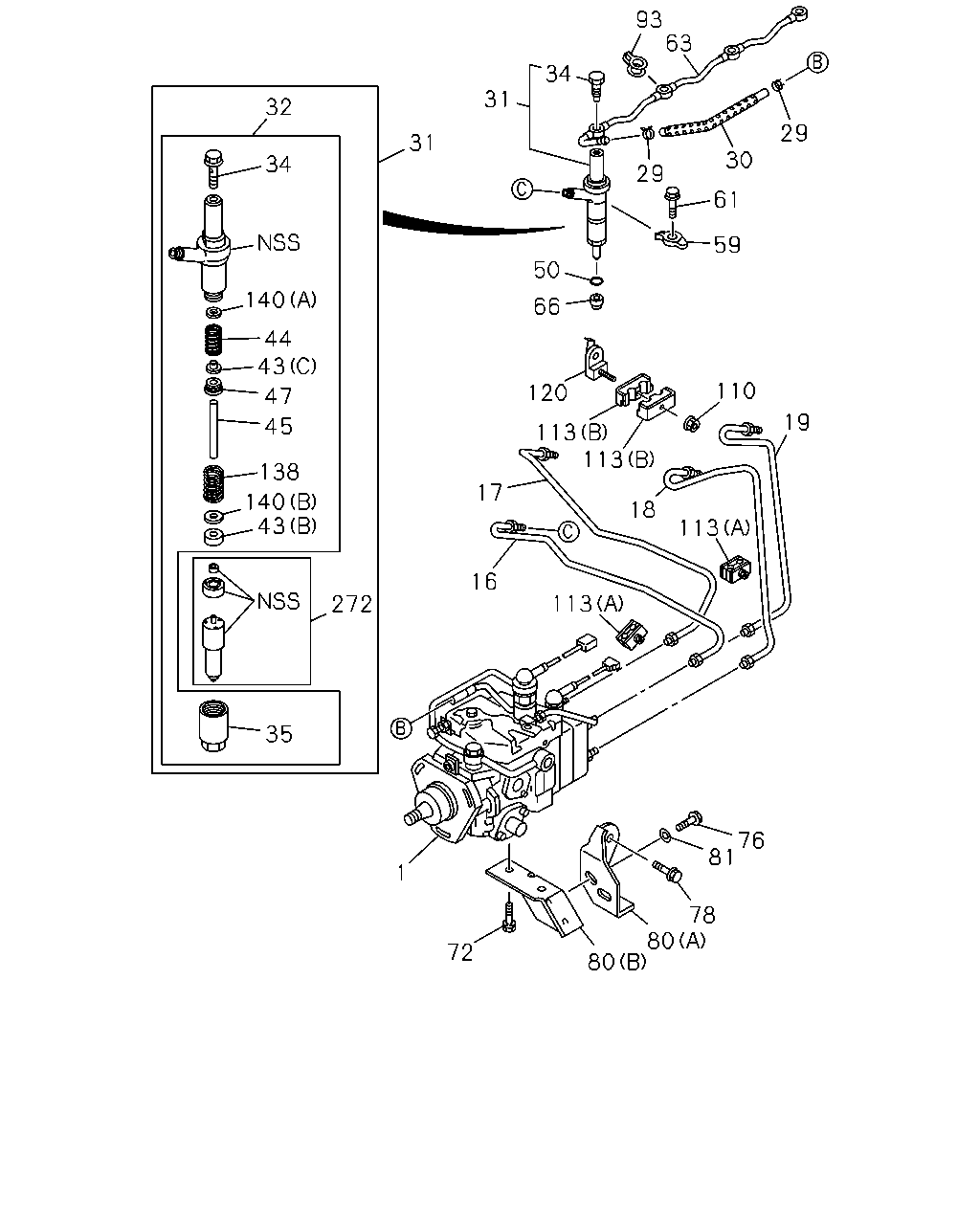

93 63 34 31 32 29 31 30 34 29 61 59 50 140 66 44 43 110 120 47 19 45 113 113 138 17 140 43 18 113 16 272 113 35 76 81 1 78 80 80 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1011-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40>, TACHOMETER<U16>	8-97120-179-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40>,TACHOMETER<U16>	8-97120-179-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3>	8-97120-180-1	01	1	1011-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) TACHOMETER<U16> EXC. POWER STEERING<N40>	8-97120-180-1	01	1	1011-		●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1011-	●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1011-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1011-	●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1011-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1011-	●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1011-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1011-	●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1011-		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1011-	●	●
29	03.162 CLIP; HOSE 01.219 ID=13	8-94238-571-0	07	1	1011-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	1011-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=240	8-97364-774-1	01	1	1011-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	1011-	●
31	03.332 NOZZLE ASM; INJ	8-97122-939-0	04	1	1011-		●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1011-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1011-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1011-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1011-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1011-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97361-697-0	04	1	1011-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1011-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1011-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1011-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1011-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1011-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1011-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	1011-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1011-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1011-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1011-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1011-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	1011-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1011-	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1011-	●	●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1011-	●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1011-	●	●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1011-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1011-	●	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	1011-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1011-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1011-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1011-		●
120	03.330 BRACKET; INJ PIPE	8-98015-024-1	01	1	1011-	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1011-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1011-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1011-	●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	1011-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
