0-36 — TURBOCHARGER SYSTEM (#78649) — 18 parça

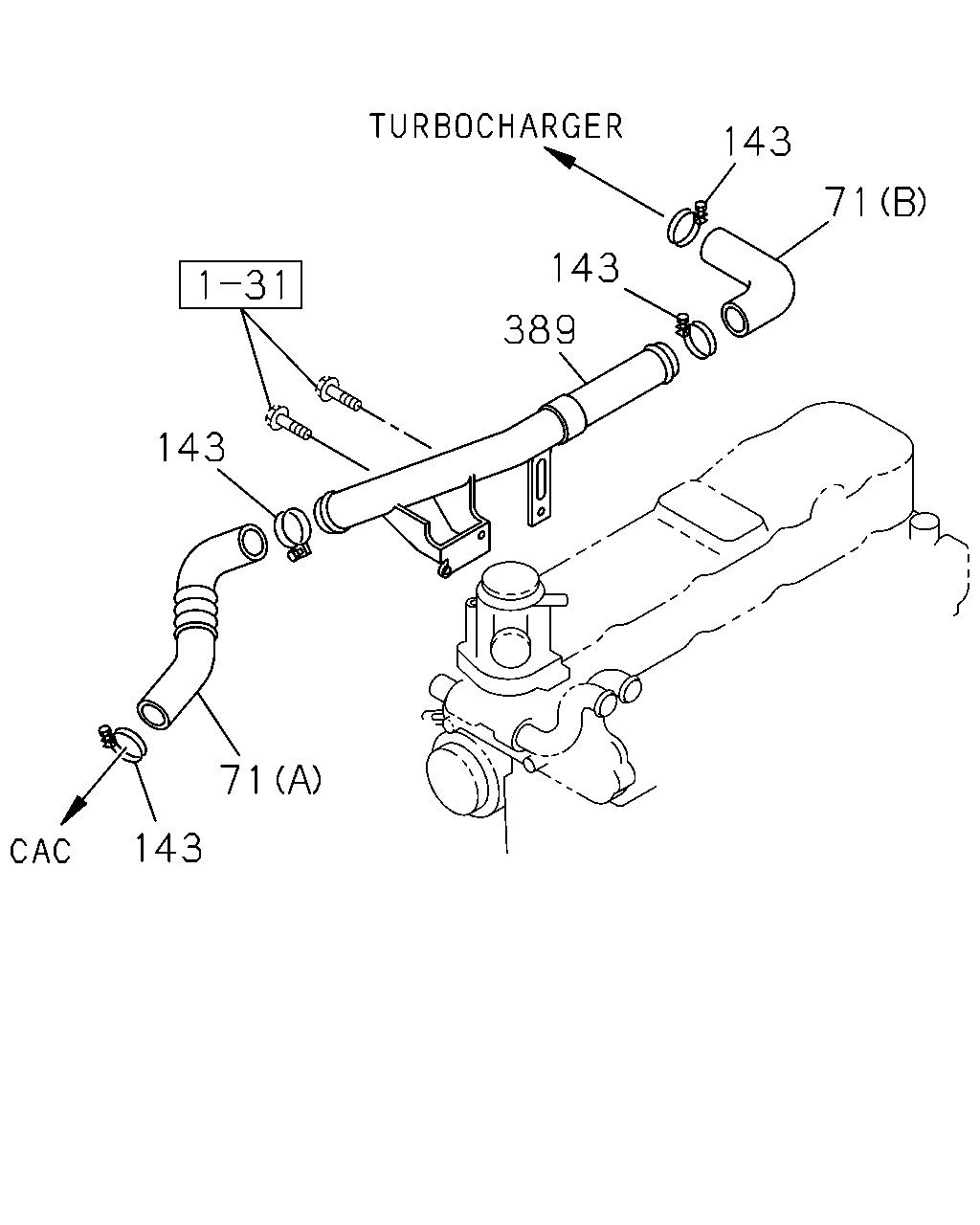

143 71 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-97217-911-3	01	1	1011-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-97221-914-3	01	1	1011-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1011-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1011-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1011-

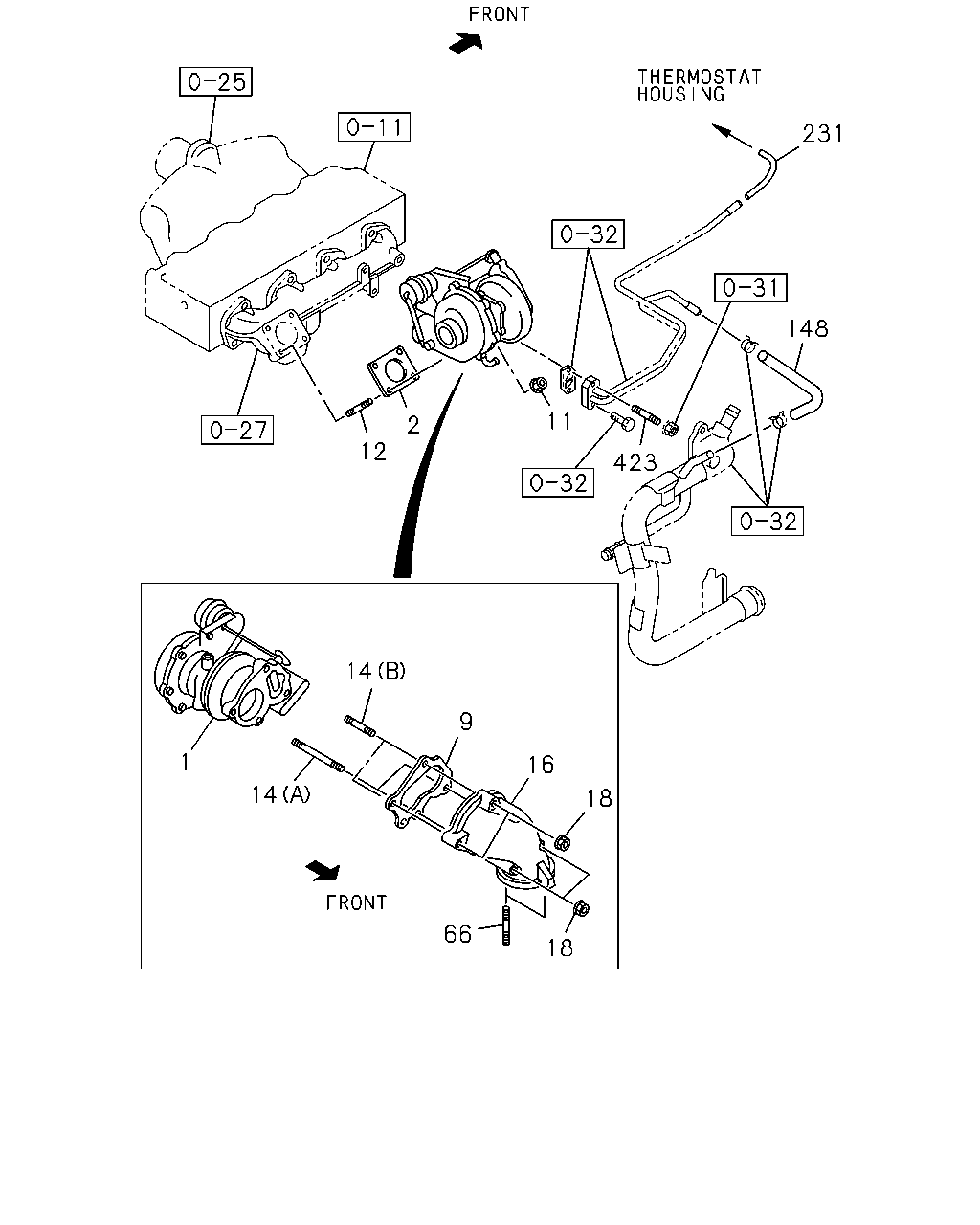

231 148 11 2 12 423 14 9 1 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1011-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	1011-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	1011-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1011-
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1011-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	1011-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	1011-
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1011-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1011-
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1011-
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	1011-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1011-
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1011-
