Isuzu WW
▶
TRUCKS
▶
QKR
▶
51352 - QKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#78647) — 25 parça
Tümü
A - 4JB1-NA ENG
B - 4JB1-TC ENG
◀
[033A] NO.2 (8 parça)

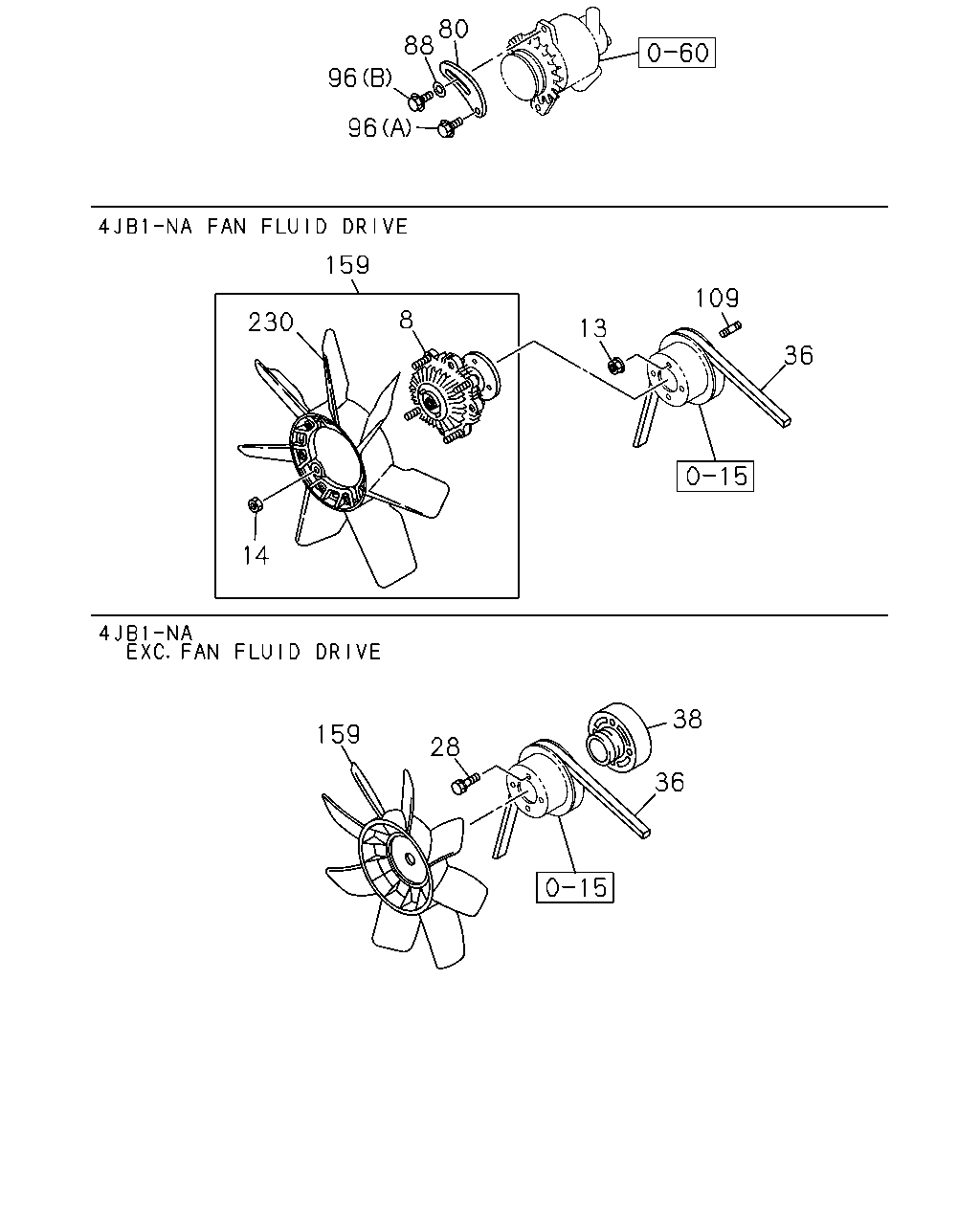

[033A] NO.1 (17 parça)
▶
109
159
36
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE
5-09440-004-0
04
1
1011-
●
13
01.062 NUT; COOLING FAN
07.829 M6 FLANGE
5-09440-004-0
04
1
1011-
●
36
01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI
8-97315-153-0
01
1
1011-
●
●
109
01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27
0-41010-618-0
04
1
1011-
●
109
01.062 STUD; FAN CLU
M6X18 L=27
0-41010-618-0
04
1
1011-
●
159
01.064 BLADE; COOLING FAN
OD=410
8-97129-769-2
01
1
1011-
●
159
01.064 BLADE; COOLING FAN
FAN FLUID DRIVE<KA3> OD=390
8-94239-651-0
01
1
1011-
●
159
01.064 BLADE; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> OD=390
5-13660-285-0
01
1
1011-
●
80
88
96
96
159
109
8
230
13
36
14
38
159
28
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3>
8-94244-409-0
01
1
1011-
●
13
01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE
5-09440-004-0
04
1
1011-
●
13
01.062 NUT; COOLING FAN
07.829 M6 FLANGE
5-09440-004-0
04
1
1011-
●
14
01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> M6 FLANGE
0-91180-106-0
04
1
1011-
●
28
01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER
0-50540-645-0
04
1
1011-
●
36
01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI
8-97315-153-0
01
1
1011-
●
●
38
01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064
9-13642-078-0
01
1
1011-
●
80
02.317 PLATE; ADJ
8-97080-556-2
01
1
1011-
●
●
88
02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22
0-91614-708-0
01
1
1011-
●
●
96
02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE
0-28050-845-0
01
1
1011-
●
●
96
02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER
0-50540-825-0
01
1
1011-
●
●
109
01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27
0-41010-618-0
04
1
1011-
●
109
01.062 STUD; FAN CLU
M6X18 L=27
0-41010-618-0
04
1
1011-
●
159
01.064 BLADE; COOLING FAN
OD=410
8-97129-769-2
01
1
1011-
●
159
01.064 BLADE; COOLING FAN
FAN FLUID DRIVE<KA3> OD=390
8-94239-651-0
01
1
1011-
●
159
01.064 BLADE; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> OD=390
5-13660-285-0
01
1
1011-
●
230
01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064
5-13660-300-0
01
1
1011-
●
