0-32 — WATER PIPING; ENGINE (#78646) — 30 parça

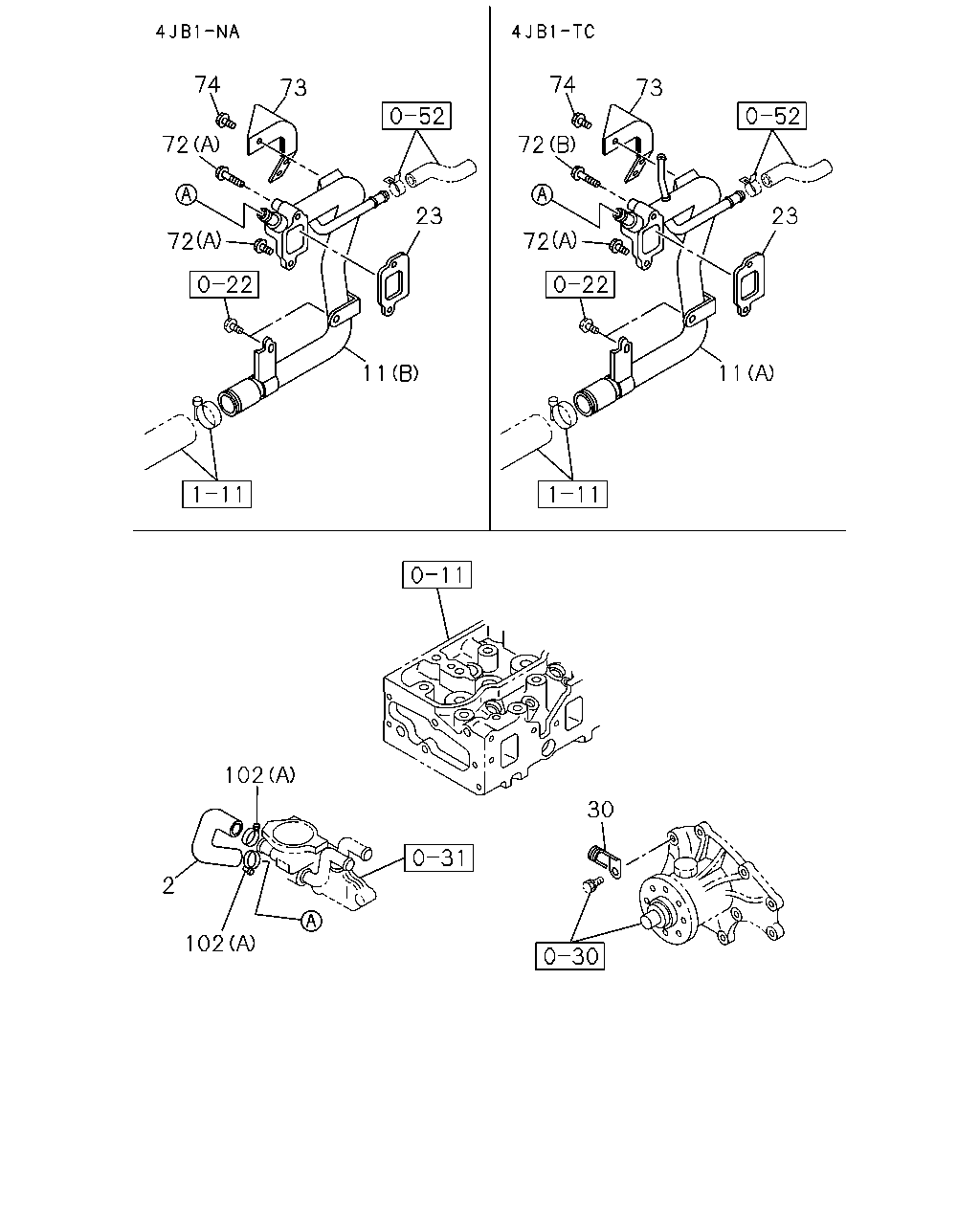

çizim 44628
74 74 73 73 72 72 23 23 72 72 11 11 102 30 2 102
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 1011- ● ●
11 01.097 PIPE; INL,WATER PUMP
(A) 		8-97213-400-2 01 1 1011- ●
11 01.097 PIPE; INL,WATER PUMP
OIL COOLER<KC4> (B) 		8-97063-639-3 01 1 1011-1011 ●
11 01.097 PIPE; INL,WATER PUMP
OIL COOLER<KC4> (B) 		8-97264-243-0 01 1 1012- ●
11 01.097 PIPE; INL,WATER PUMP
EXC. OIL COOLER<KC4> (B) 		8-97070-871-3 01 1 1011- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1011- ● ●
30 01.150 CLIP; HARNESS
ID=12 		8-97367-983-1 01 1 1011- ● ●
72 00.206 BOLT; WATER PIPE
OIL COOLER<KC4> (A) M8X50 W/LK WASHER 		0-50540-850-0 02 1 1012- ●
72 00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1011-1011 ● ●
72 00.206 BOLT; WATER PIPE
EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
72 00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
72 00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 1011-1011 ● ●
72 00.206 BOLT; WATER PIPE
EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 1012- ●
72 00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 1012- ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 1011-1403 ● ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97520-577-0 01 1 1404- ● ●
74 01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER 		0-50640-816-0 03 1 1011- ● ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 1011- ● ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 1011- ●

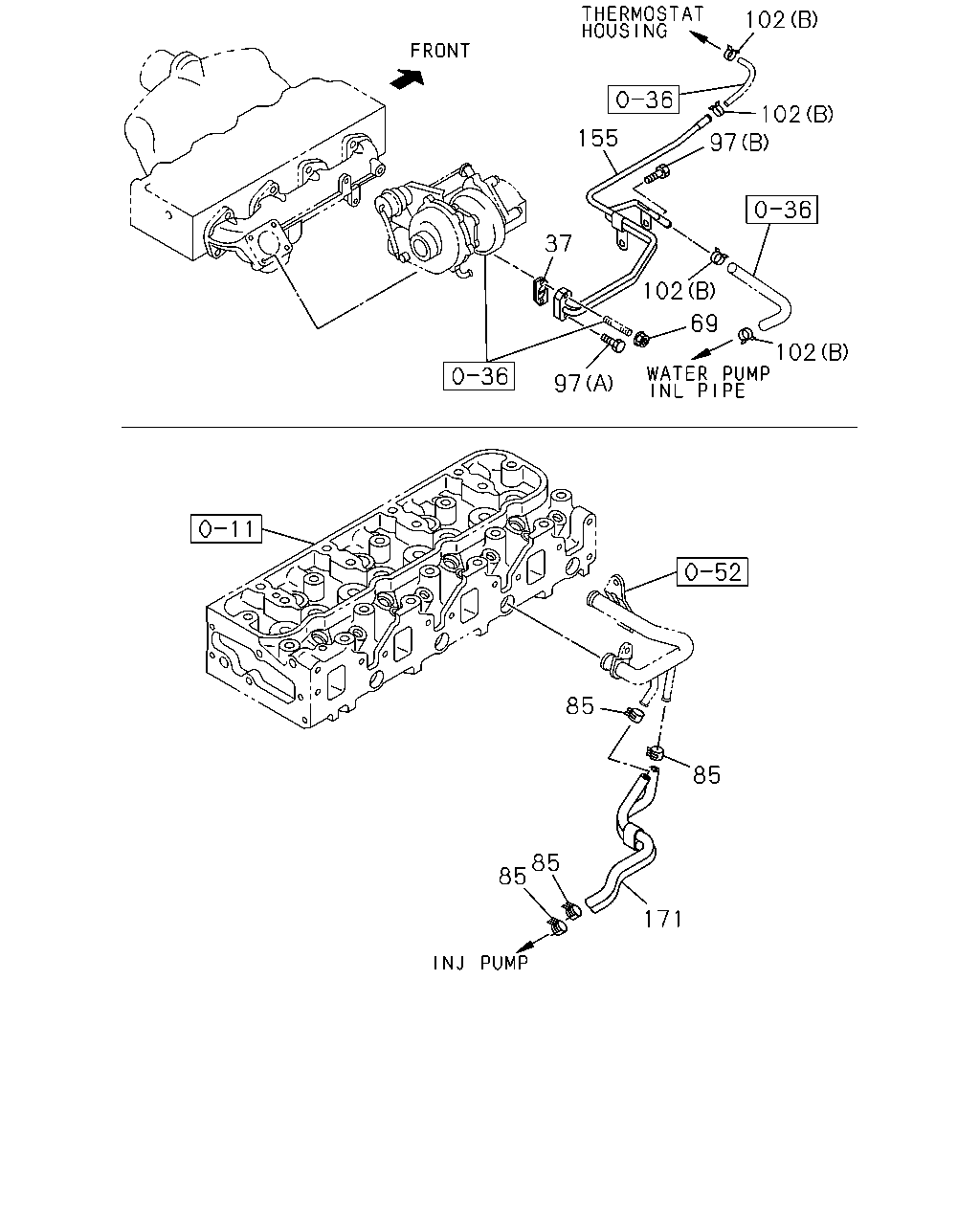

çizim 60506
102 102 97 155 37 102 69 102 97 85 85 85 85 171
BalonParca AdiParca NoAdetTipApplied Date A B
37 01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 		8-94321-135-1 01 1 1011- ●
69 01.153 NUT; WATER PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1011- ●
85 01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8 		8-94367-943-0 04 1 1011- ●
97 04.866 BOLT; WATER PIPE
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1011-1011 ●
97 04.866 BOLT; WATER PIPE
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1011- ●
97 04.866 BOLT; WATER PIPE
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1011- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 1011- ● ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 1011- ●
155 01.153 PIPE ASM; WATER 8-97207-954-0 01 1 1011-1011 ●
155 01.153 PIPE ASM; WATER 8-98169-766-0 01 1 1011- ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97225-605-0 01 1 1011- ●
