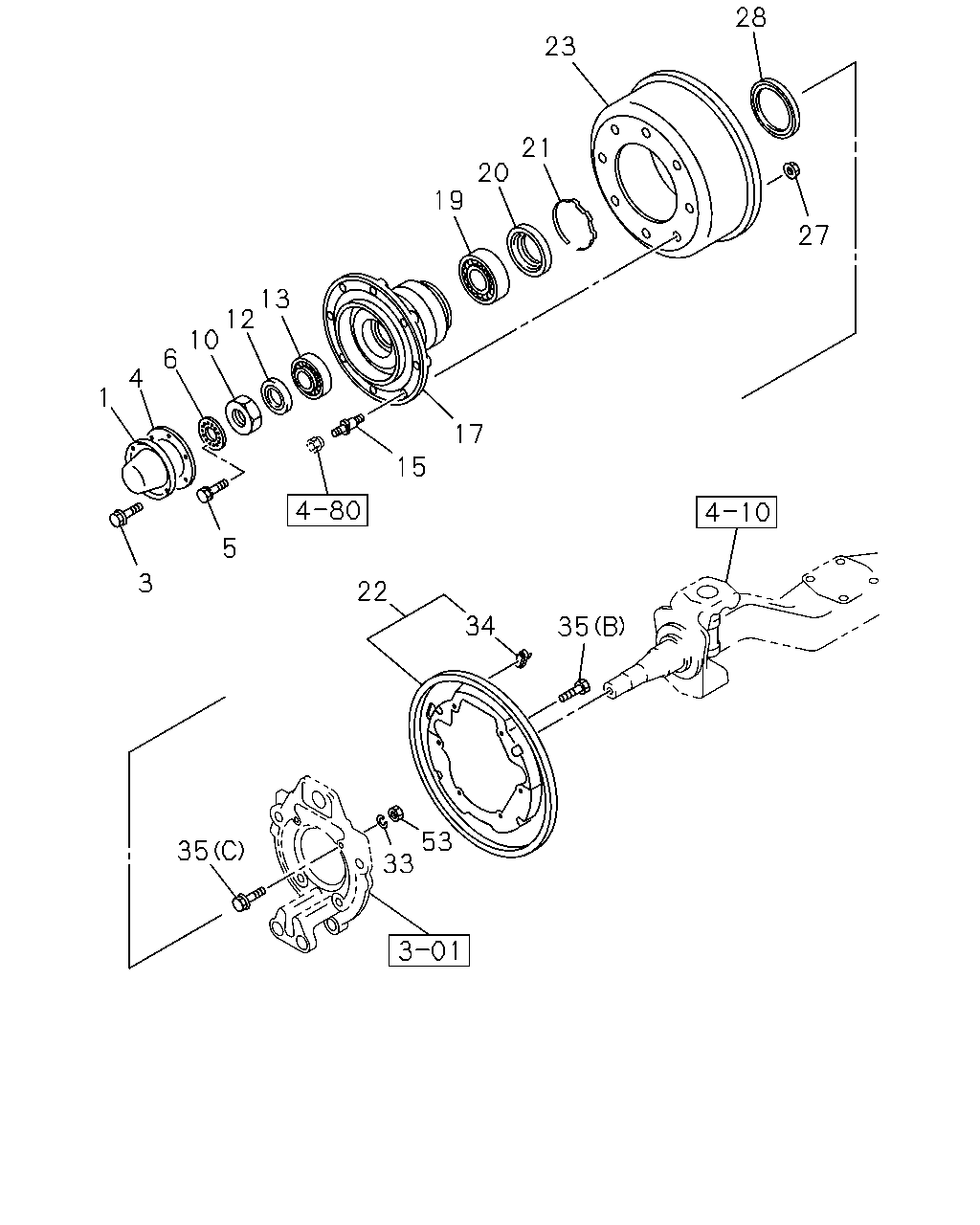

4-11 — FRONT HUB AND DRUM OR ROTOR (#7864) — 178 parça

28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 3 22 34 35 53 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	0302-	●
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9905-0507		●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-		●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	9905-			●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9905-0301			●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0302-0512	●		●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-	●		●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	0302-	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-028-0	02	1	9905-			●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9905-0301		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0302-0512	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0302-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9905-		●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0302-	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9905-		●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0302-	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	0302-	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	9905-			●
13	BEARING; HUB OUTER,FRT AXLE KOYO	9-00093-147-1	02	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	9905-			●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0302-	●
17	HUB; FRT AXLE	1-42312-117-3	02	1	9905-		●
17	HUB; FRT AXLE	1-42312-113-0	02	1	9905-			●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	0302-	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-114-0	02	1	9905-			●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0302-	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0302-	●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9905-		●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	9905-			●
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	0302-	●
23	DRUM; BRK,FRT	1-42315-336-1	02	1	0302-0308	●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-	●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	9905-		●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	9905-			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	9905-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9905-9905			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0301			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0302-	●		●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	0302-	●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9905-		●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	9905-			●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0302-0603	●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0302-	●
35	BOLT; DRUM COVER (C) M16X52	1-09044-001-2	04	1	0302-	●
35	BOLT; DRUM COVER (B) M10X12	1-47159-187-0	12	1	0302-	●
35	BOLT; DRUM COVER (A) M16X50	0-20801-650-0	08	1	9905-0512			●
35	BOLT; DRUM COVER (A) M16X50	0-20851-650-0	08	1	0601-			●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	0302-0512	●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-	●

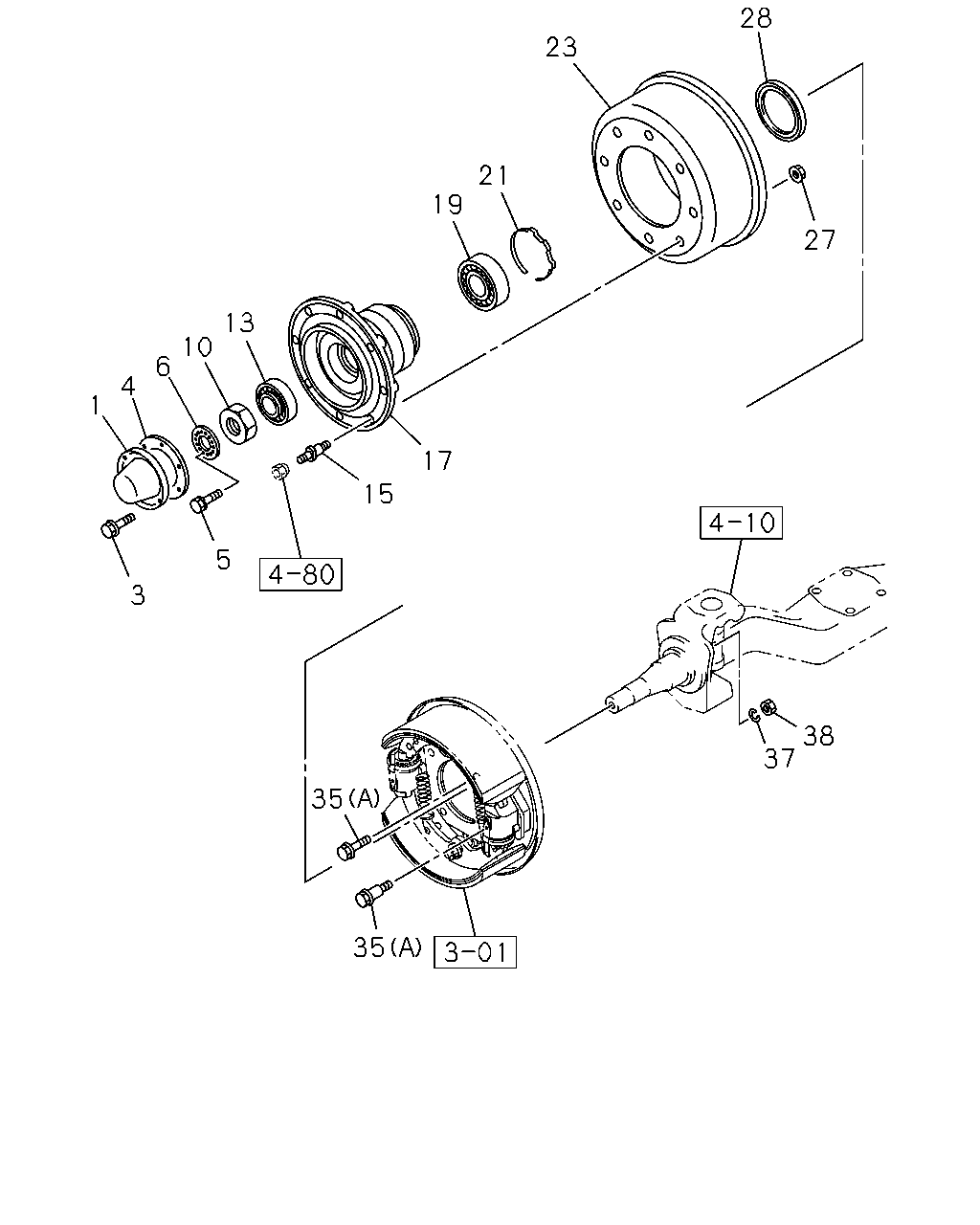

28 23 21 19 27 13 10 6 4 1 17 15 5 3 38 37 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	0302-	●
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9905-0507		●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-		●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	9905-			●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9905-0301			●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0302-0512	●		●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-	●		●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	0302-	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-028-0	02	1	9905-			●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9905-0301		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0302-0512	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0302-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9905-		●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0302-	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9905-		●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	0302-	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	9905-			●
13	BEARING; HUB OUTER,FRT AXLE KOYO	9-00093-147-1	02	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	9905-			●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0302-	●
17	HUB; FRT AXLE	1-42312-117-3	02	1	9905-		●
17	HUB; FRT AXLE	1-42312-113-0	02	1	9905-			●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	0302-	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-114-0	02	1	9905-			●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0302-	●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9905-		●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	9905-			●
23	DRUM; BRK,FRT	1-42315-336-1	02	1	0302-0308	●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-	●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	9905-		●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	9905-			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	9905-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9905-9905			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0301			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0302-	●		●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	0302-	●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9905-		●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	9905-			●
35	BOLT; DRUM COVER (C) M16X52	1-09044-001-2	04	1	0302-	●
35	BOLT; DRUM COVER (B) M10X12	1-47159-187-0	12	1	0302-	●
35	BOLT; DRUM COVER (A) M16X50	0-20801-650-0	08	1	9905-0512			●
35	BOLT; DRUM COVER (A) M16X50	0-20851-650-0	08	1	0601-			●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9905-0603		●
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-		●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	9905-0603			●
37	WASHER; LK,BACK PLATE ID=16.2	0-91510-816-0	08	1	0604-			●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9905-0512		●
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-		●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	9905-0512			●
38	NUT; BACK PLATE M16	0-91110-516-0	08	1	0601-			●

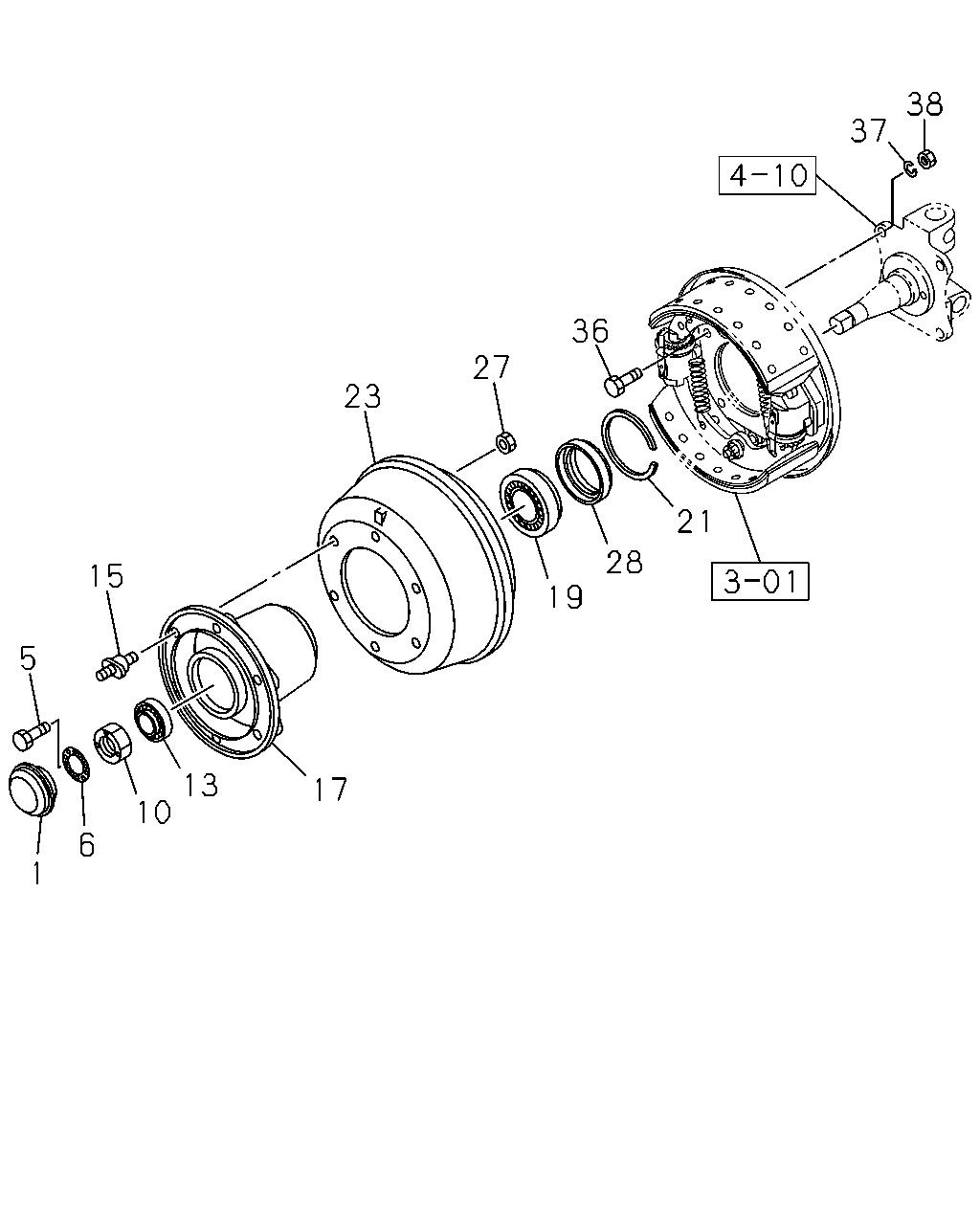

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	0302-	●
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9905-0507		●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-		●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	9905-			●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9905-0301		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0302-0512	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0302-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9905-		●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0302-	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9905-		●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	0302-	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	9905-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	9905-			●
13	BEARING; HUB OUTER,FRT AXLE KOYO	9-00093-147-1	02	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0302-0610	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	9905-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	9905-			●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	9905-			●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0302-	●
17	HUB; FRT AXLE	1-42312-117-3	02	1	9905-		●
17	HUB; FRT AXLE	1-42312-113-0	02	1	9905-			●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	0302-	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	9905-		●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-114-0	02	1	9905-			●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0302-	●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9905-		●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	9905-			●
23	DRUM; BRK,FRT	1-42315-336-1	02	1	0302-0308	●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-	●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	9905-		●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	9905-			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	9905-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9905-9905			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0301			●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0302-	●		●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	0302-	●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9905-		●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	9905-			●
36	BOLT; BACK PLATE M14X45	9-92061-445-0	08	1	9905-		●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9905-0603		●
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-		●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	9905-0603			●
37	WASHER; LK,BACK PLATE ID=16.2	0-91510-816-0	08	1	0604-			●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9905-0512		●
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-		●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	9905-0512			●
38	NUT; BACK PLATE M16	0-91110-516-0	08	1	0601-			●
