Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#78630) — 47 parça

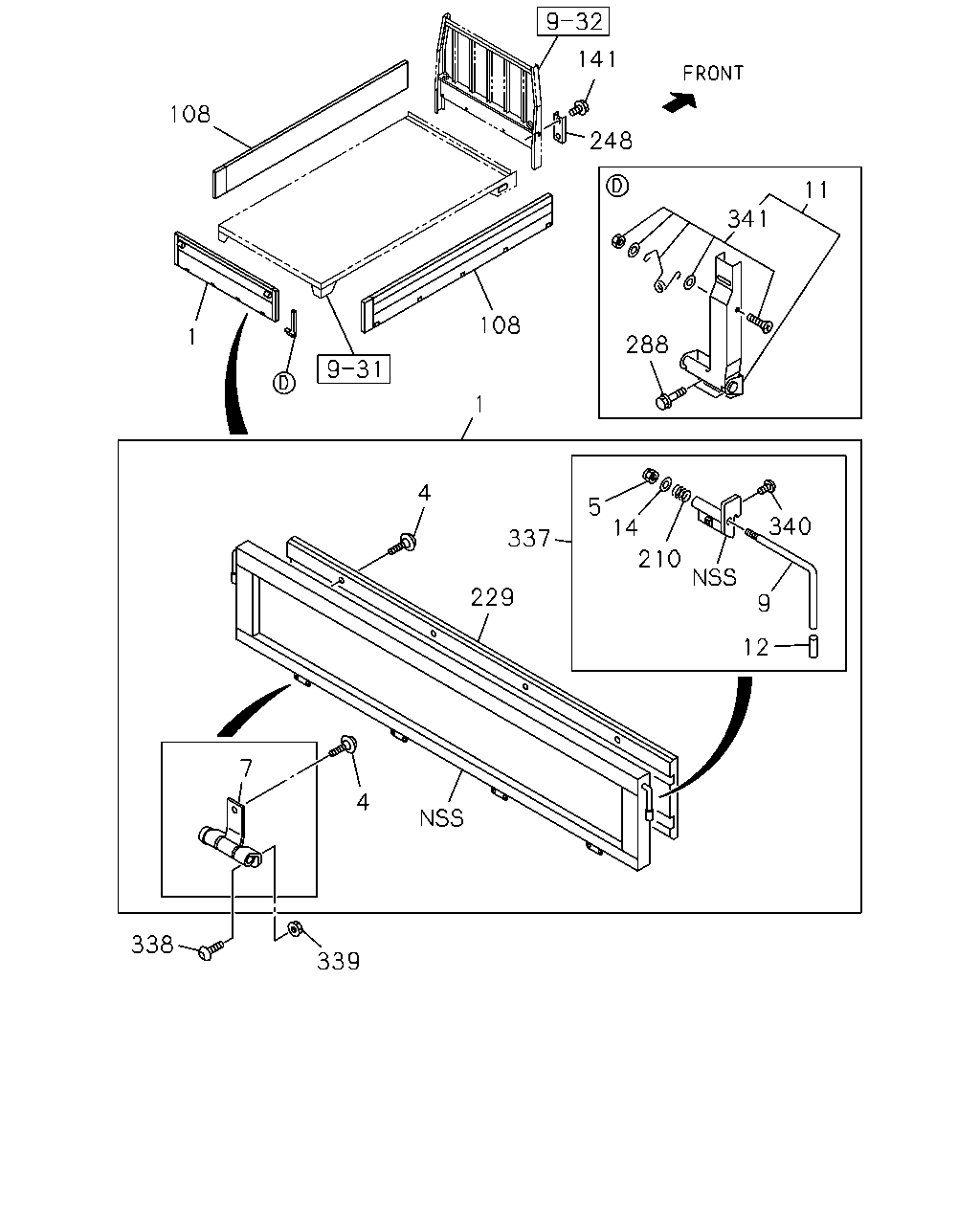

141 108 248 11 341 108 1 288 1 4 5 340 14 337 210 229 9 12 7 4 38 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GATE ASM; RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1112-
4	SCREW; PANEL,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X25 PABCO	8-98045-183-0	08	1	1112-
5	NUT; LATCH HANDLE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M12 PABCO	8-98045-194-0	02	1	1112-
7	HINGE ASM; RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-016-0	04	1	1112-
9	HANDLE; LATCH,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-104-0	02	1	1112-
11	LOCK ASM; VERTICAL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98031-211-0	01	1	1112-
11	LOCK ASM; VERTICAL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98031-212-0	01	1	1112-
12	PIECE; END,RR HANDLE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-208-0	02	1	1112-
14	WASHER; PL,HANDLE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-201-0	02	1	1112-
38	RUBBER; STOPPER,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) H=30 PABCO	8-98045-162-0	02	1	1112-
38	RUBBER; STOPPER,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) H=23 PABCO	8-98045-164-0	02	1	1112-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1112-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1112-
141	BOLT RR BODY FLAT BED<RS6> M8X16 FLANGE	0-28060-816-0	02	1	1112-
210	SPRING; LATCH HANDLE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-213-0	02	1	1112-
229	BOARD; RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-115-2	01	1	1112-
248	PATCH; CARGO RR RR BODY FLAT BED<RS6> PABCO	8-98030-315-0	02	1	1112-
288	BOLT; LOCK ASM,VERTICAL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X20 PABCO	8-98045-181-0	04	1	1112-
337	HANDLE ASM; LATCH,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-149-0	01	1	1112-
337	HANDLE ASM; LATCH,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-150-0	01	1	1112-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8 FLANGE	0-91180-108-0	22	1	1112-
340	SCREW; BRKT,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X17 PABCO	8-98045-185-0	04	1	1112-
341	SPRING KIT; VERTICAL LOCK WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-198-0	01	1	1112-
341	SPRING KIT; VERTICAL LOCK WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-199-0	01	1	1112-

40 40 40 37 36 37 39 37 38 39 39 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	RUBBER; STOPPER,RR GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-163-0	02	1	1112-
37	SCREW WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) M6X30 PABCO	8-98045-188-0	04	1	1112-
37	SCREW WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) M6X25 PABCO	8-98045-191-0	02	1	1112-
38	RUBBER; STOPPER,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) H=30 PABCO	8-98045-162-0	02	1	1112-
38	RUBBER; STOPPER,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) H=23 PABCO	8-98045-164-0	02	1	1112-
39	WASHER; STOPPER RUBBER WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-202-0	06	1	1112-
40	NUT; STOPPER RUBBER WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M6 FLANGE	0-91180-106-0	06	1	1112-

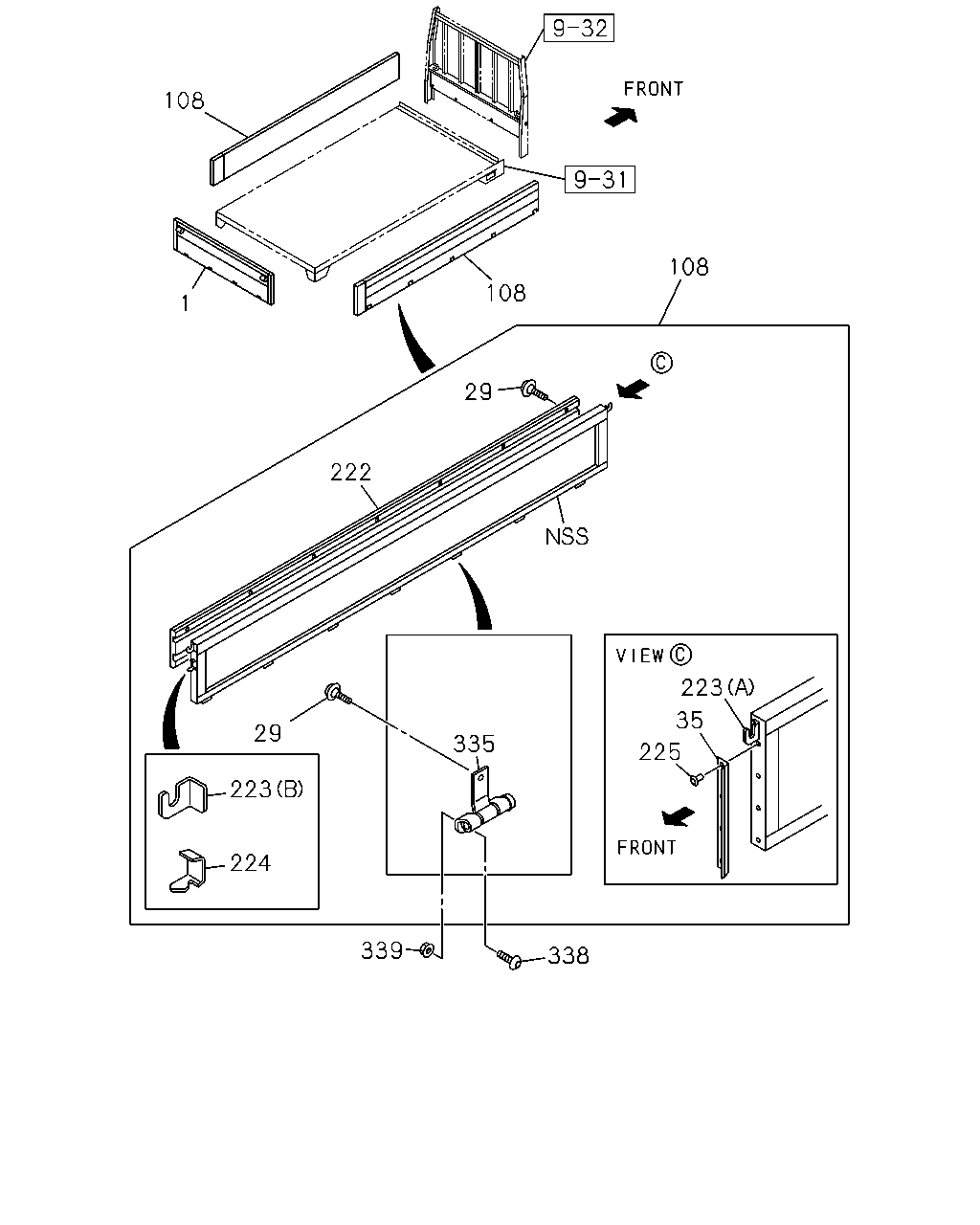

108 108 108 1 29 222 223 35 29 335 225 223 224 339 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GATE ASM; RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1112-
29	SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X25 PABCO	8-98045-183-0	32	1	1112-
35	WEATHERSTRIP; FRT SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-209-0	02	1	1112-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1112-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1112-
222	BOARD; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-238-1	02	1	1112-
223	HOOK; PLATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) PABCO	5-87580-002-0	01	1	1112-
223	HOOK; PLATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) PABCO	5-87580-003-0	01	1	1112-
223	HOOK; PLATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) PABCO	5-87580-004-0	01	1	1112-
223	HOOK; PLATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) PABCO	5-87580-005-0	01	1	1112-
224	HOOK; VERTICAL LOCK WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-007-0	01	1	1112-
224	HOOK; VERTICAL LOCK WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-008-0	01	1	1112-
225	CLIP; WEATHERSTRIP WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-207-0	08	1	1112-
335	HINGE ASM; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-006-0	16	1	1112-
338	SCREW; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X20 PABCO	8-98045-181-0	40	1	1112-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8 FLANGE	0-91180-108-0	22	1	1112-
