9-31 — REAR BODY; FLOOR AND FENDER (#78628) — 74 parça

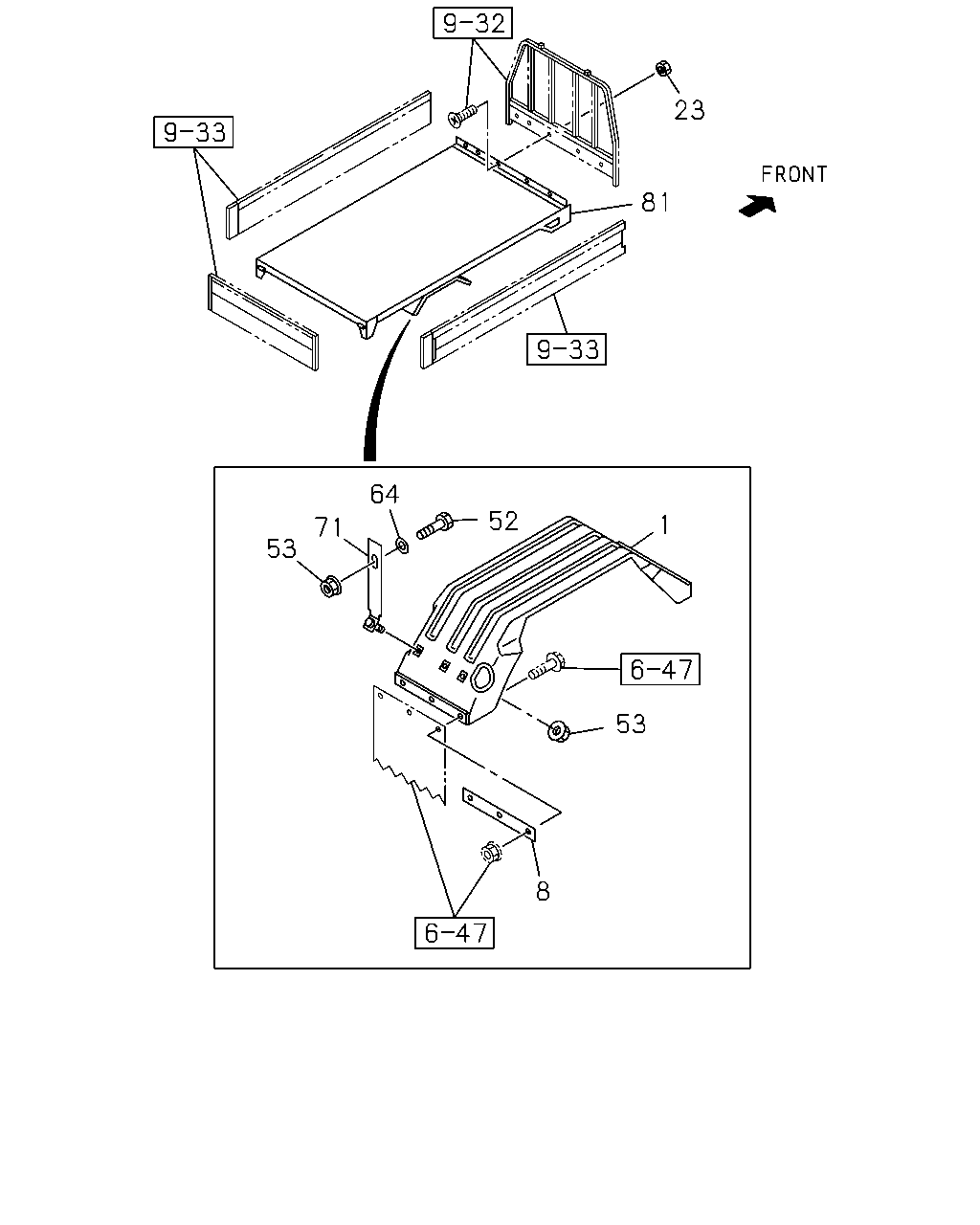

23 81 64 52 1 71 53 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-97162-720-0	02	1	1112-1604
1	FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-98253-302-0	02	1	1605-
8	HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	1112-
23	NUT; ANGLE RR BODY FLAT BED<RS6> M8 LOCK NUT FLANGE	0-91380-008-0	05	1	1112-
52	BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> M8X60 W/LK WASHER	0-50740-860-0	08	1	1112-
53	NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> M8 FLANGE	0-91180-108-0	16	1	1112-
64	WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> ID=8.4 OD=26	0-91614-808-0	08	1	1112-
71	STAY; RR FENDER RR BODY FLAT BED<RS6>	8-97179-830-1	08	1	1112-
81	FLOOR ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98089-976-2	01	1	1112-

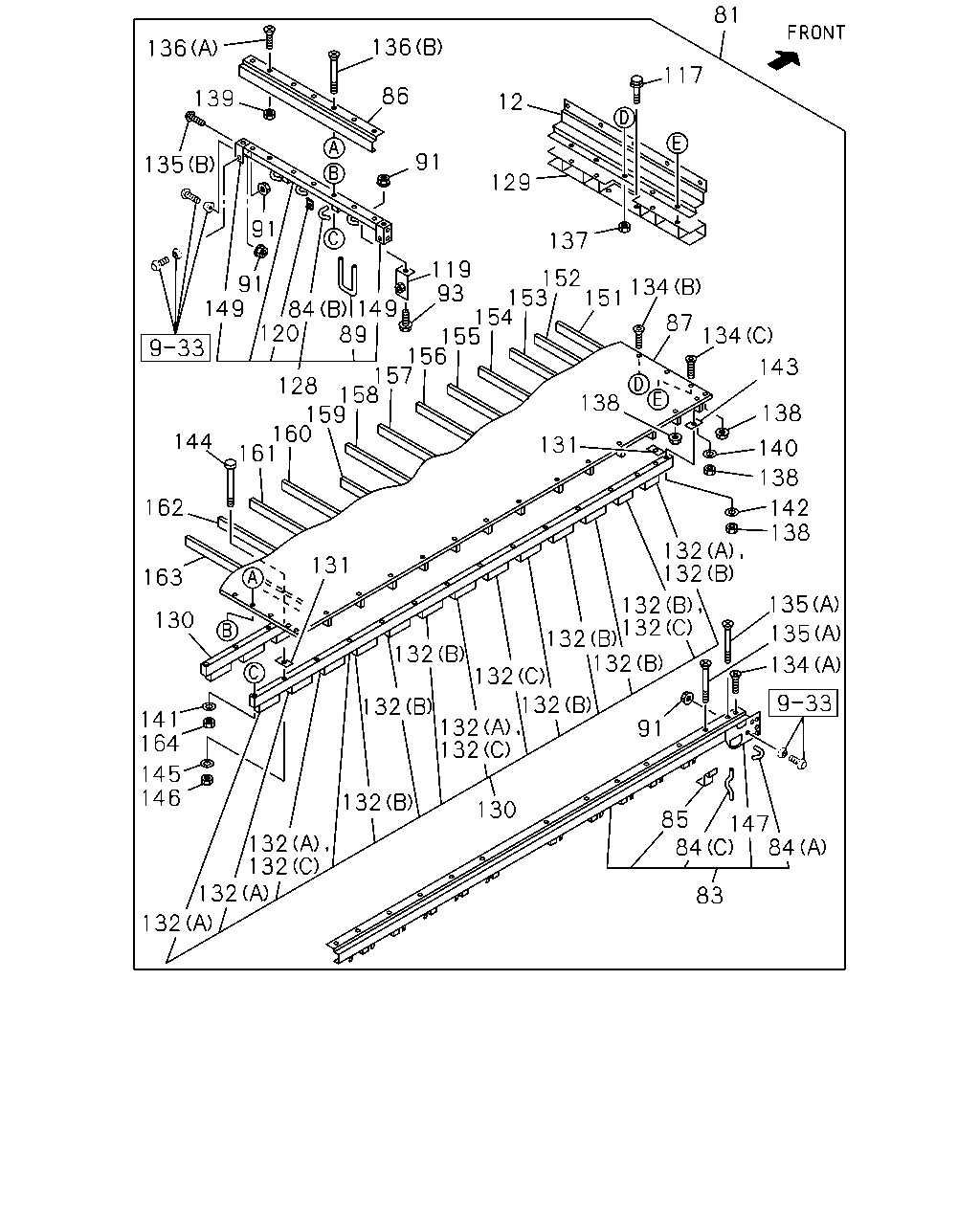

81 136 136 117 86 139 12 91 135 129 91 137 119 93 152 153 151 154 155 156 157 158 159 160 161 91 149 134 120 89 87 134 143 128 138 138 144 131 140 138 162 142 138 132 132 131 163 135 132 132 132 132 130 135 132 134 132 132 132 132 132 141 164 91 145 146 132 130 85 147 84 84 132 132 132 83 132 84 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	ANGLE; SETTING,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-235-0	01	1	1112-
81	FLOOR ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98089-976-2	01	1	1112-
83	FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-231-0	01	1	1112-
83	FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-232-0	01	1	1112-
84	HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (C) PABCO	5-87580-069-0	24	1	1112-
84	HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) PABCO	5-87580-070-0	02	1	1112-
84	HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) PABCO	5-87580-077-0	03	1	1112-
85	BRACKET; SIDE FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-068-0	22	1	1112-
86	FRAME; RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-233-0	01	1	1112-
87	BOARD; FLOOR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-105-0	01	1	1112-
89	STEP; RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-142-0	01	1	1112-
91	NUT; BRKT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M6 FLANGE	0-91180-106-0	06	1	1112-
93	BOLT; BRKT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M6X16 FLANGE	0-28050-616-0	06	1	1112-
117	BOLT; SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M10X30 FLANGE	0-28051-030-0	02	1	1112-
119	BRACKET; COMB LAMP WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-126-0	01	1	1112-
119	BRACKET; COMB LAMP WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-127-0	01	1	1112-
120	BRACKET; NUMBER PLATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-080-0	02	1	1112-
128	BOLSTER; RR END,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-234-0	01	1	1112-
129	SUPPORT; GUARD FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-101-0	02	1	1112-
130	SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-110-1	01	1	1112-1208
130	SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-178-0	01	1	1209-
130	SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-111-1	01	1	1112-1208
130	SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-179-0	01	1	1209-
131	PLATE; BOLSTER,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-103-0	26	1	1112-
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) L=280 PABCO	5-87580-041-0	14	1	1112-1208
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) L=280 PABCO	5-87580-154-0	14	1	1209-
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (C) L=250 PABCO	5-87580-042-0	02	1	1112-1208
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (C) L=250 PABCO	5-87580-155-0	02	1	1209-
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) L=210 PABCO	5-87580-082-0	10	1	1112-1208
132	SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) L=210 PABCO	5-87580-158-0	10	1	1209-
134	SCREW; BOARD,FRT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) M8X32 PABCO	8-98045-186-0	03	1	1112-
134	SCREW; BOARD,FRT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (C) M8X34 PABCO	8-98045-187-0	04	1	1112-
134	SCREW; BOARD,FRT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) M8X30 PABCO	8-98045-189-0	02	1	1112-
135	SCREW; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) M8X124 PABCO	8-98045-173-0	24	1	1112-
135	SCREW; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) M8X20 PABCO	8-98045-181-0	04	1	1112-
136	SCREW; BOARD,RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (B) M10X220 PABCO	8-98045-172-0	02	1	1112-
136	SCREW; BOARD,RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> (A) M8X30 PABCO	8-98045-189-0	07	1	1112-
137	NUT; BOARD,FRT WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8 LOCK NUT FLANGE	0-91380-008-0	07	1	1112-
138	NUT; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8 LOCK NUT FLANGE	0-91380-008-0	24	1	1112-
139	NUT; BOARD,RR WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M10 LOCK NUT FLANGE	0-91380-010-0	02	1	1112-
140	WASHER; PL,BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> ID=8.4 OD=26	0-91614-808-0	04	1	1112-
141	WASHER; PL,RR FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> ID=10.5	0-91610-710-0	02	1	1112-
142	WASHER; PL,SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> ID=10.5 OD=32	0-91614-810-0	02	1	1112-
143	SHIM; SUPPORT,GUARD FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	8-98045-210-0	02	1	1112-
144	BOLT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M10X194 PABCO	5-87580-047-0	26	1	1112-
145	WASHER; PL,BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> ID=10.5	0-91610-710-0	26	1	1112-
146	NUT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M10 LOCK NUT FLANGE	0-91380-010-0	26	1	1112-
147	GUSSET; GUARD FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-066-0	01	1	1112-
147	GUSSET; GUARD FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-067-0	01	1	1112-
149	CONNECTOR; RR CORNER WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-075-1	01	1	1112-
149	CONNECTOR; RR CORNER WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-076-1	01	1	1112-
151	BOLSTER; NO 1,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
152	BOLSTER; NO 2,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-107-0	01	1	1112-
153	BOLSTER; NO 3,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
154	BOLSTER; NO 4,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-107-0	01	1	1112-
155	BOLSTER; NO 5,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
156	BOLSTER; NO 6,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
157	BOLSTER; NO 7,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-107-0	01	1	1112-
158	BOLSTER; NO 8,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-108-0	01	1	1112-
159	BOLSTER; NO 9,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=980 PABCO	5-87580-109-0	01	1	1112-
160	BOLSTER; NO 10,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-108-0	01	1	1112-
161	BOLSTER; NO 11,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
162	BOLSTER; NO 12,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
163	BOLSTER; NO 13,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> L=2055 PABCO	5-87580-106-0	01	1	1112-
164	NUT; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M10 LOCK NUT	0-91370-010-0	02	1	1112-
