Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
9 - Tools
▶
9-30 - REAR BODY ASM AND MOUNTING
▶

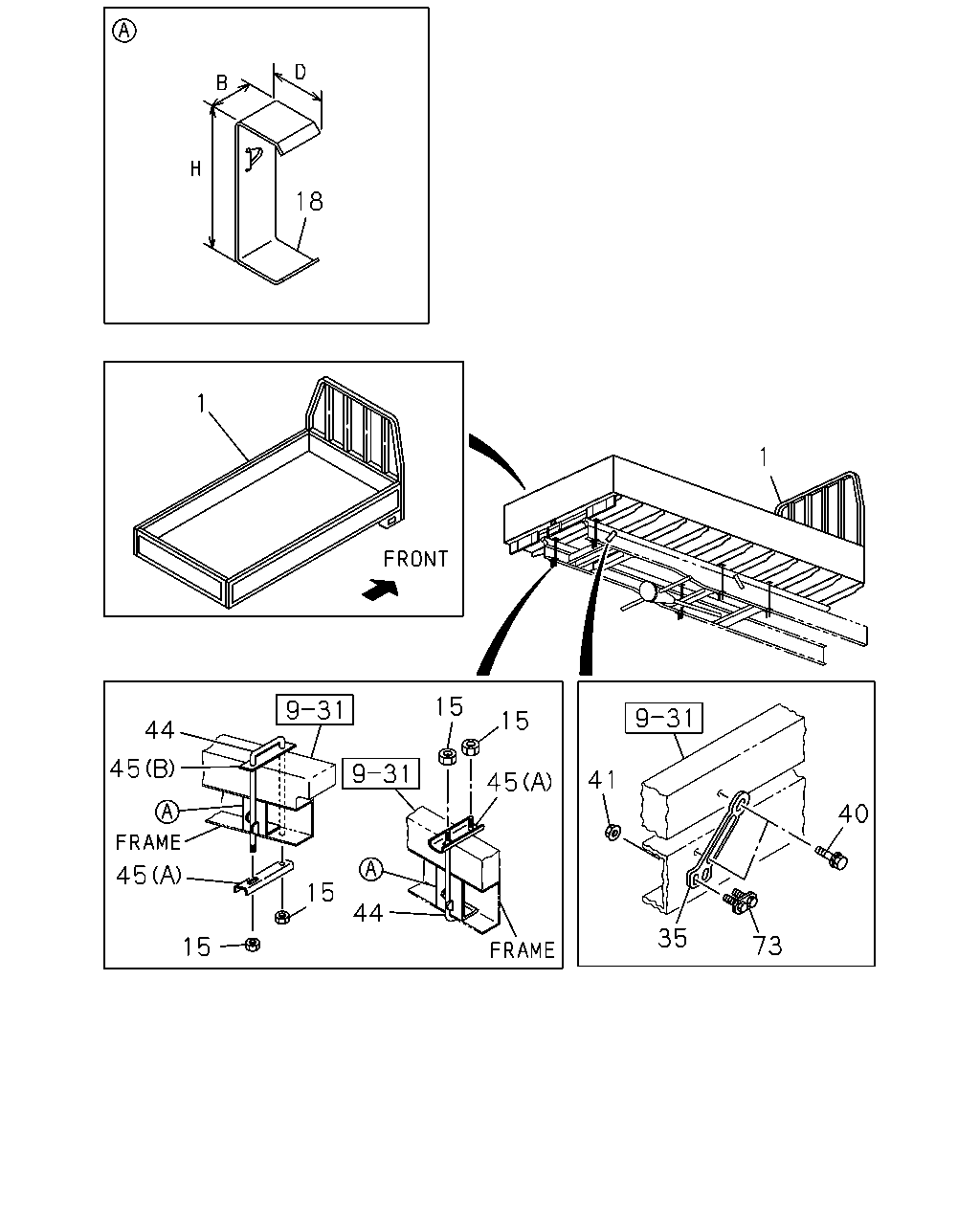

9-30 — REAR BODY ASM AND MOUNTING
(#78627) — 15 parça
18
1
1
15
15
44
45
41
45
40
45
15
44
35
73
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BODY ASM; REAR
WHEEL BASE 3800MM(38W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE
8-97417-342-1
01
1
1112-
1
BODY ASM; REAR
WHEEL BASE 3800MM(38W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED<RS6> LIGHT GRAY
8-97414-658-1
01
1
1112-
1
BODY ASM; REAR
WHEEL BASE 3800MM(38W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> BLUE
8-97414-521-1
01
1
1112-
1
BODY ASM; REAR
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE
8-97414-520-1
01
1
1112-
15
NUT; RR BODY MTG
RR BODY FLAT BED<RS6> M14
9-09130-414-0
12
1
1112-
18
REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> H=204 B=50 D=72
8-97362-217-0
04
1
1112-
18
REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> H=164 B=50 D=72
8-97362-218-0
02
1
1112-
35
STOPPER; RR BODY
RR BODY FLAT BED<RS6>
8-98030-398-2
04
1
1112-
40
BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
8-97189-615-0
04
1
1112-
41
NUT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> M10 FLANGE
0-91180-110-0
08
1
1112-
44
U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=400
1-66900-255-0
04
1
1112-
44
U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=365
1-66900-460-0
02
1
1112-
45
PLATE; U-BOLT
RR BODY FLAT BED<RS6> (B) L=123 B=35
8-98047-139-0
06
1
1112-
45
PLATE; U-BOLT
RR BODY FLAT BED<RS6> (A) L=135 B=50
9-61208-235-0
06
1
1112-
73
PLATE; STUD BOLT
RR BODY FLAT BED<RS6>
8-98047-322-0
04
1
1112-
