9-01 — TOOLS (#78626) — 30 parça

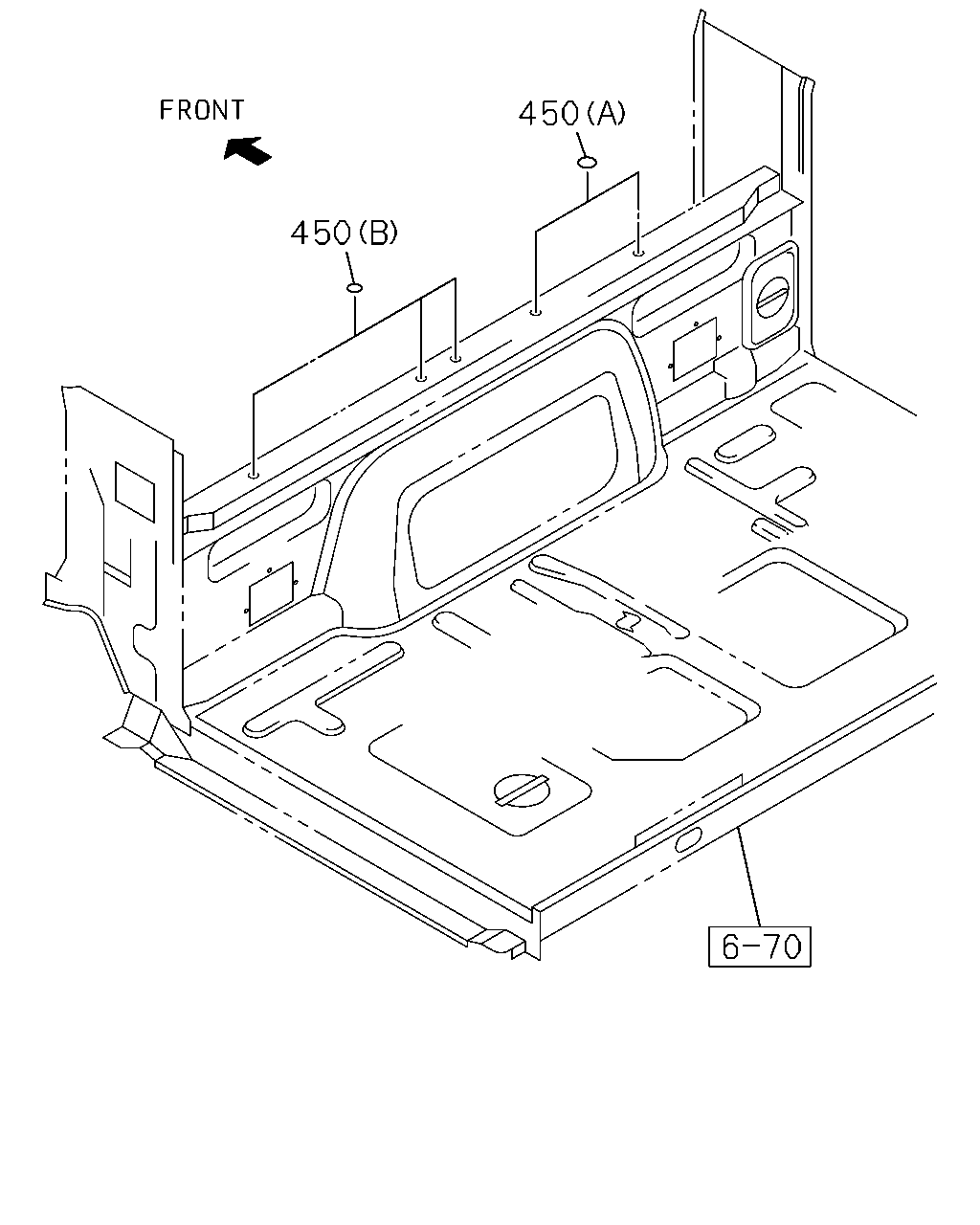

çizim 14428
450 450
BalonParca AdiParca NoAdetTipApplied Date A B
450 SEAL; HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1112- ●
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1112- ●
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1112- ●

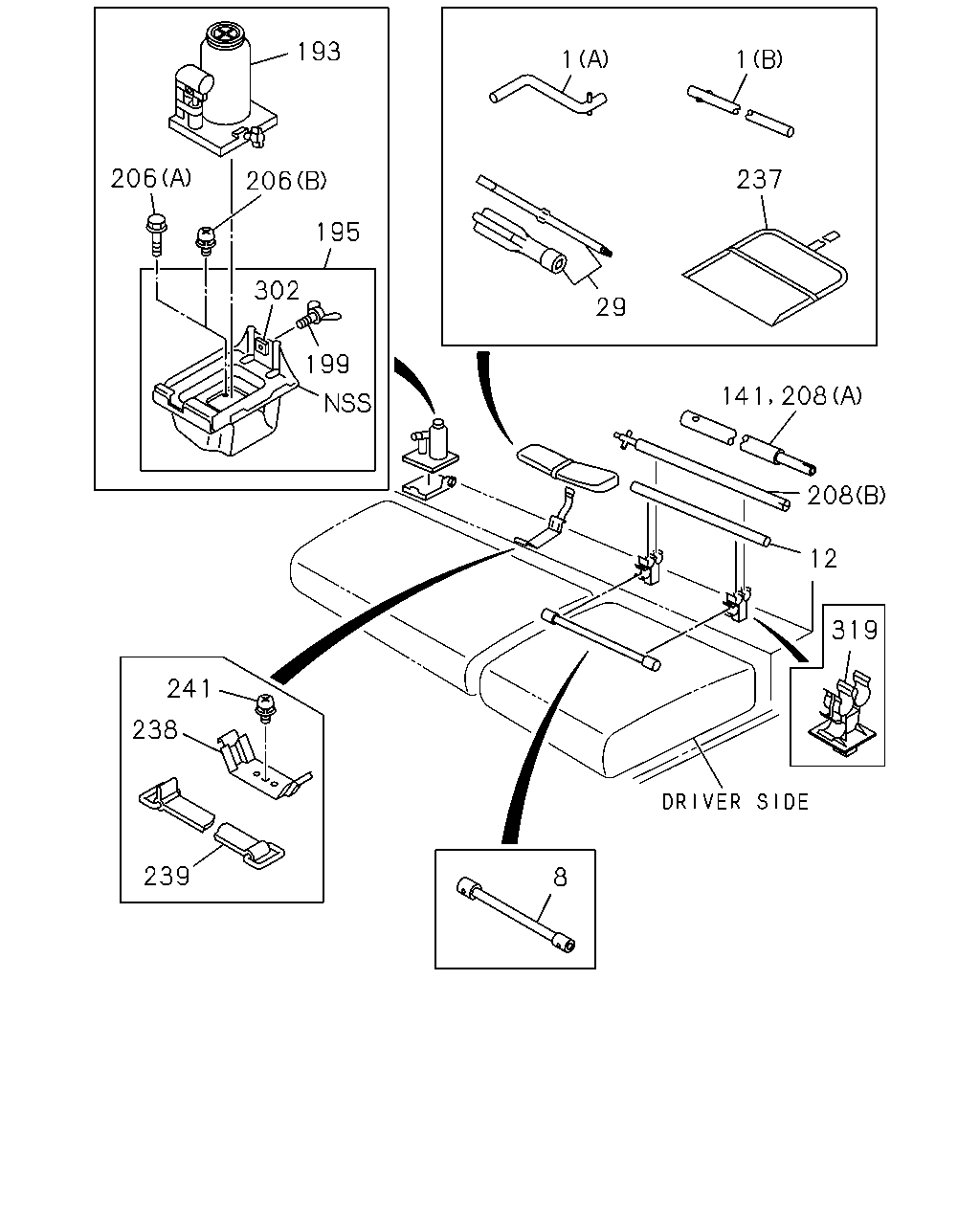

çizim 14547
193 206 206 195 302 199 1 1 237 29 141 208 208 12 319 8 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1112- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1112- ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1112- ●
8 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1112- ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) OD=25 L=480 		1-85116-011-0 01 1 1210-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1112- ● ●
141 HANDLE; WRENCH
L=580 		8-98181-249-0 01 1 1112- ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 1112- ● ●
195 BRACKET; JACK 8-94273-287-7 01 1 1112- ●
195 BRACKET; JACK 8-97589-376-2 01 1 1112- ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1112- ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1112- ●
206 SCREW; OIL JACK BRKT
(B) M6X16 		0-38050-616-0 01 1 1112- ●
206 SCREW; OIL JACK BRKT
(A)BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
208 HANDLE; JACK
WHEEL BASE 4400MM(44W) (B) L=642 		8-98181-477-0 01 1 1210- ●
208 HANDLE; JACK
WHEEL BASE 3800MM(38W) (A) L=580 		8-98181-249-0 01 1 1112- ●
237 BAG; TOOL 8-97130-903-1 01 1 1112- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1112- ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1112- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 1112- ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 1112- ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 1112- ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 1112- ● ●

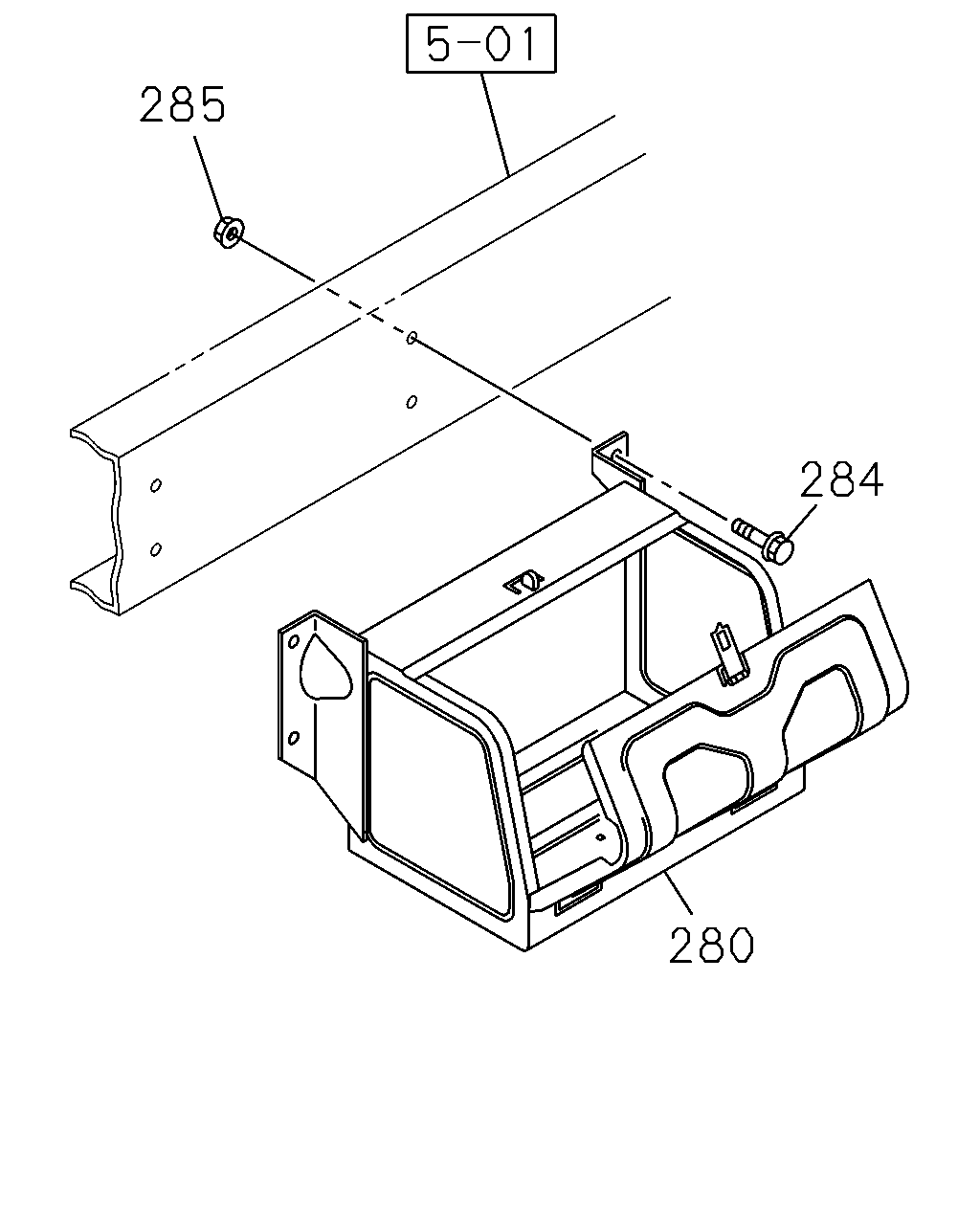

çizim 183581
285 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1112- ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE 		0-28651-030-0 04 1 1112- ● ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE 		0-91180-110-0 04 1 1112- ● ●
