8-75 — CONDENSER (#78623) — 10 parça

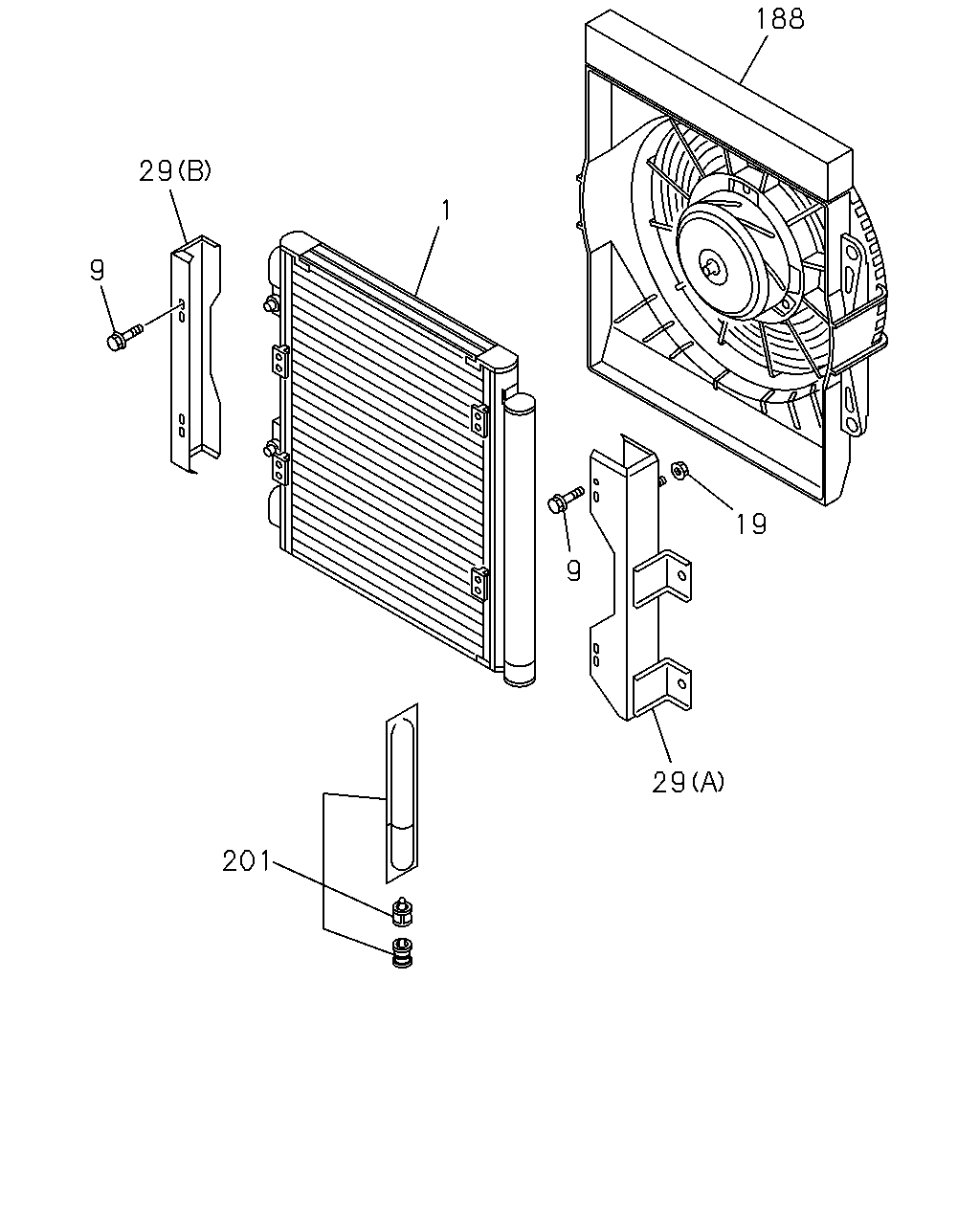

çizim 158408
188 29 1 9 19 9 29 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-682-0 01 1 1112-1409 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98051-817-1 01 1 1410- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 IRA 		1-83539-382-0 08 1 1112- ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1112- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) IRA 		8-98090-685-0 01 1 1112- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98090-686-0 01 1 1112-1409 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) IRA 		8-98051-820-0 01 1 1410- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98090-684-0 01 1 1112- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 1112-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98282-482-0 01 1 1410- ● ●
