Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#7862) — 529 parça

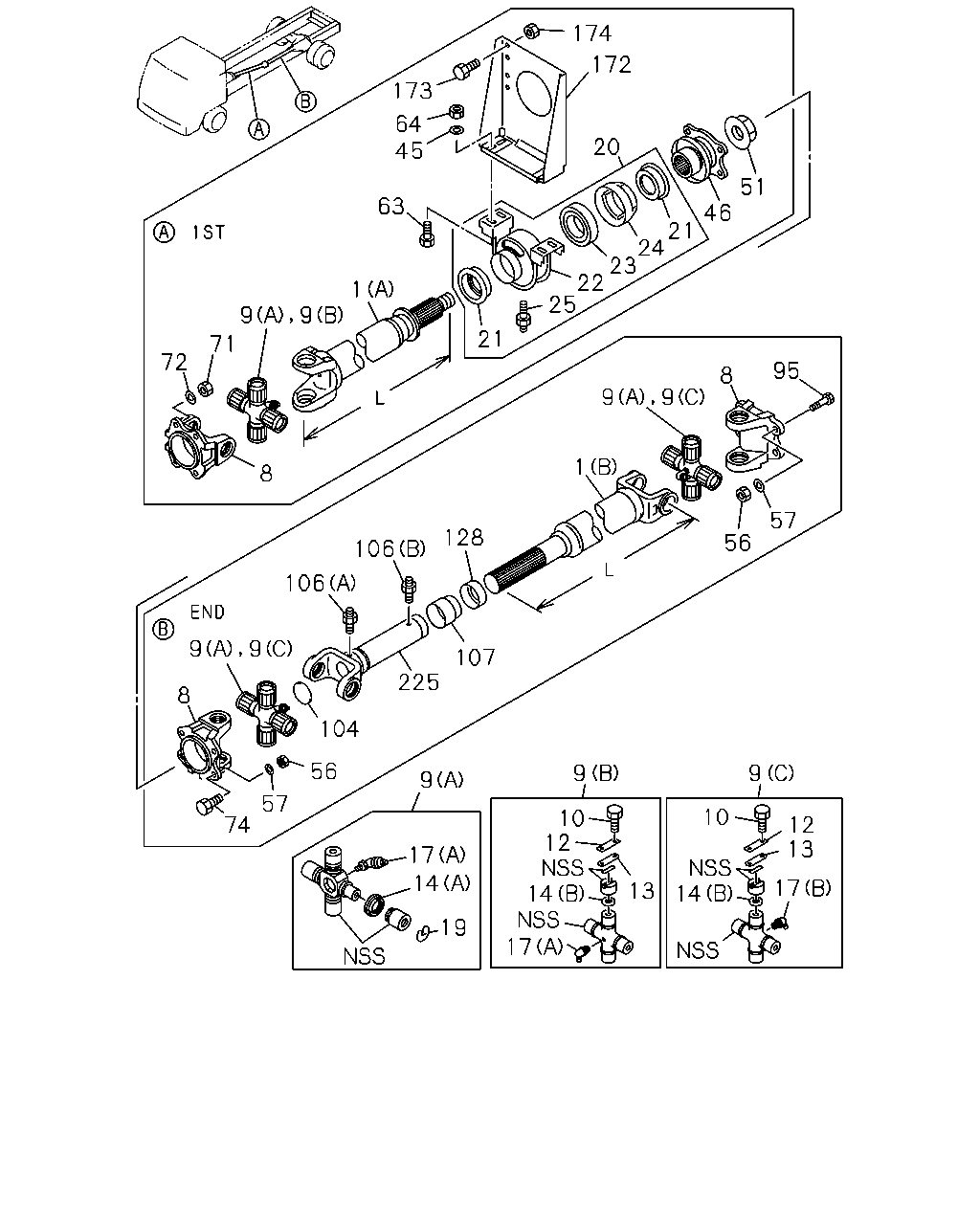

95 8 9 1 128 107 57 56 106 9 9 225 8 104 17 14 56 57 19 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP FTR(FT****) (B) L=1194	1-37124-114-0	01	1	0302-	●
1	SHAFT; PROP FTR(FT****) (A) L=701	1-37152-274-0	01	1	0302-	●
1	SHAFT; PROP (B) L=701	1-37123-763-1	01	1	9905-		●
1	SHAFT; PROP (A) L=766	1-37151-630-1	01	1	9905-9905		●
1	SHAFT; PROP (A) L=776	1-37152-233-1	01	1	9905-		●
1	SHAFT; PROP FSR(FS****) (B) L=951	1-37123-764-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCN ENG(82L) (A) L=951	1-37152-001-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCS ENG(80L) (A) L=991	1-37151-582-1	01	1	9905-	●
1	SHAFT; PROP (A) L=1286	1-37151-583-1	01	1	9905-			●
1	SHAFT; PROP (B) L=1256	1-37123-393-3	01	1	9905-			●	●
1	SHAFT; PROP (C) L=931	1-37151-576-1	01	1	9905-				●
1	SHAFT; PROP (A) L=996	1-37152-006-1	01	1	9905-				●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) END	1-37211-072-1	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) 1ST	1-37211-072-1	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	9905-0301	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0302-		●	●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) END	1-37211-056-3	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9905-9905		●	●	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-9905				●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-0301		●		●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	0302-		●		●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9906-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9906-0301			●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	0302-			●	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (C) END	1-37300-094-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (B) 1ST	1-37300-095-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	9905-0301	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0302-		●	●	●
9	JOURNAL ASM; PROP SHAFT FSR(FS****) (A)	1-37300-102-1	AR	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	08	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	AR	1	9905-0301	●	●	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	08	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-				●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	AR	1	9905-0301	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512				●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-				●
56	NUT; YOKE FTR(FT****) M16 FLANGE	1-09449-065-0	08	1	0302-	●
56	NUT; YOKE M14	9-99110-514-0	08	1	9905-0301	●	●	●	●
56	NUT; YOKE M14	9-99110-514-0	08	1	0302-0512		●	●	●
56	NUT; YOKE FSR(FS****) M14	9-99110-514-0	08	1	0302-0512	●
56	NUT; YOKE M14	0-91110-514-0	08	1	0601-		●	●	●
56	NUT; YOKE FSR(FS****) M14	0-91110-514-0	08	1	0601-	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	9905-0301	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	0302-0603		●	●	●
57	WASHER; LK,YOKE FSR(FS****) ID=14.2	9-09150-614-0	08	1	0302-0603	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0604-		●	●	●
57	WASHER; LK,YOKE FSR(FS****) ID=14.2	0-91510-614-0	08	1	0604-	●
74	BOLT; YOKE,TRANS FTR(FT****) M16X48	1-09000-383-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-		●	●	●
74	BOLT; YOKE,TRANS FSR(FS****) M14X37	1-09000-121-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-				●
95	BOLT; YOKE,FINAL FTR(FT****) M16X48	1-09000-383-0	04	1	0302-	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	9905-0301	●	●	●	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0302-		●	●	●
95	BOLT; YOKE,FINAL FSR(FS****) M14X37	1-09000-121-0	04	1	0302-	●
104	PLUG; SLEEVE YOKE FTR(FT****)	1-09600-067-0	01	1	0302-	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	9905-0301	●	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0302-		●	●	●
104	PLUG; SLEEVE YOKE FSR(FS****)	1-09600-064-0	01	1	0302-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FTR(FT****) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0302-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-0512	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●	●
107	COVER; RET,SLEEVE FTR(FT****)	1-37249-137-1	01	1	0302-	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	9905-0301	●	●	●	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0302-		●	●	●
107	COVER; RET,SLEEVE FSR(FS****)	1-37249-060-1	01	1	0302-	●
128	SEAL; SLEEVE FTR(FT****)	1-37247-021-0	01	1	0302-	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	9905-0301	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0302-		●	●	●
128	SEAL; SLEEVE FSR(FS****)	1-37247-024-0	01	1	0302-	●
225	YOKE; SLEEVE,PROP SHAFT FTR(FT****) L=332	1-37241-109-1	01	1	0302-	●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	9905-0301	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0302-		●	●	●
225	YOKE; SLEEVE,PROP SHAFT FSR(FS****) L=271	1-37241-099-2	01	1	0302-	●

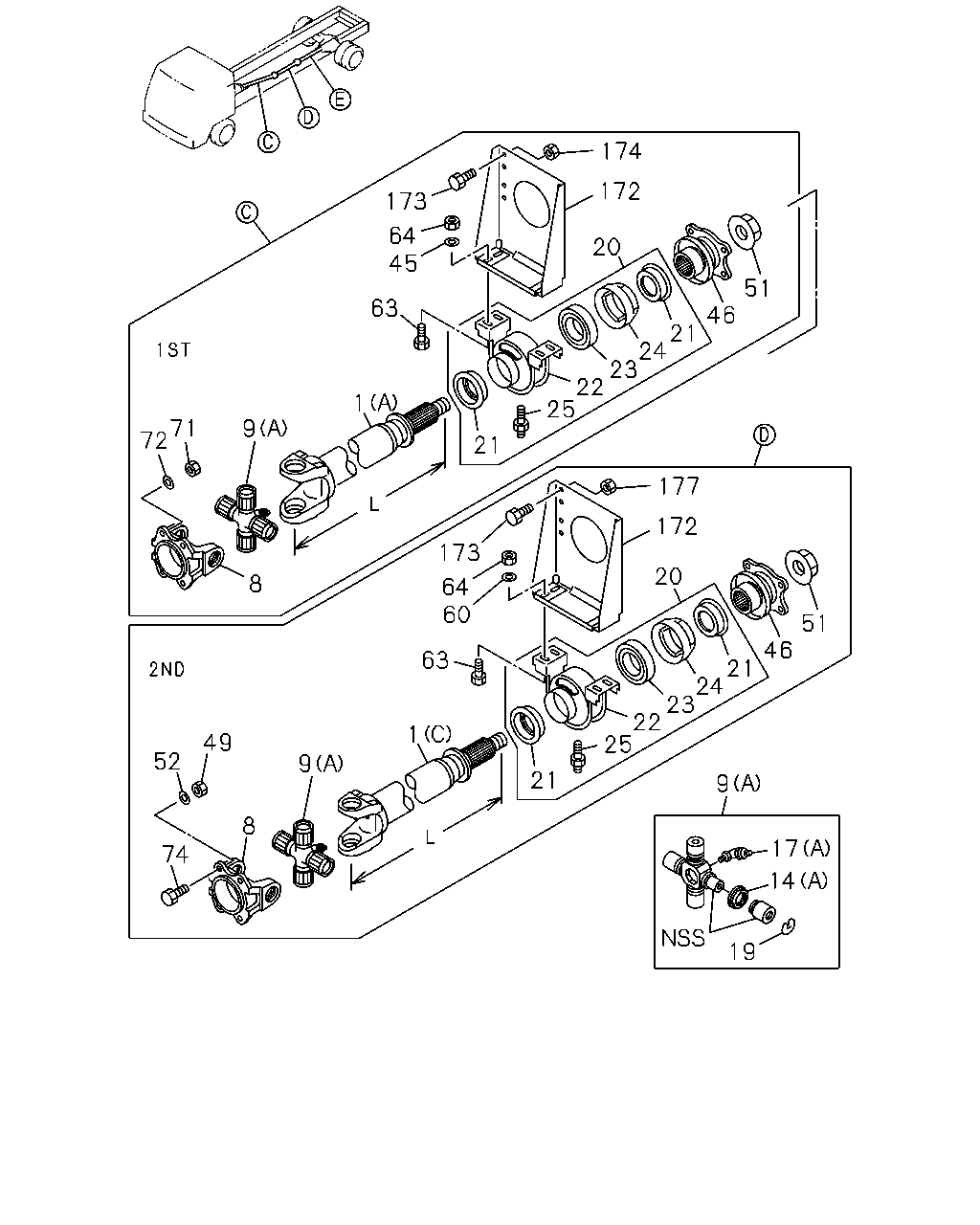

174 172 173 64 45 20 51 46 63 21 24 23 22 25 1 9 9 21 71 72 95 8 9 9 1 8 57 128 56 106 106 9 9 107 225 8 104 56 9 9 9 57 10 10 12 14 17 12 13 74 17 14 14 17 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP FTR(FT****) (B) L=1194	1-37124-114-0	01	1	0302-	●
1	SHAFT; PROP FTR(FT****) (A) L=701	1-37152-274-0	01	1	0302-	●
1	SHAFT; PROP (B) L=701	1-37123-763-1	01	1	9905-		●
1	SHAFT; PROP (A) L=766	1-37151-630-1	01	1	9905-9905		●
1	SHAFT; PROP (A) L=776	1-37152-233-1	01	1	9905-		●
1	SHAFT; PROP FSR(FS****) (B) L=951	1-37123-764-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCN ENG(82L) (A) L=951	1-37152-001-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCS ENG(80L) (A) L=991	1-37151-582-1	01	1	9905-	●
1	SHAFT; PROP (A) L=1286	1-37151-583-1	01	1	9905-			●
1	SHAFT; PROP (B) L=1256	1-37123-393-3	01	1	9905-			●	●
1	SHAFT; PROP (C) L=931	1-37151-576-1	01	1	9905-				●
1	SHAFT; PROP (A) L=996	1-37152-006-1	01	1	9905-				●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) END	1-37211-072-1	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) 1ST	1-37211-072-1	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	9905-0301	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0302-		●	●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) END	1-37211-056-3	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9905-9905		●	●	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-9905				●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-0301		●		●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	0302-		●		●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9906-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9906-0301			●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	0302-			●	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (C) END	1-37300-094-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (B) 1ST	1-37300-095-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	9905-0301	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0302-		●	●	●
9	JOURNAL ASM; PROP SHAFT FSR(FS****) (A)	1-37300-102-1	AR	1	0302-	●
10	BOLT; UJT FTR(FT****) END M10X20	9-02061-020-0	16	1	0302-0512	●
10	BOLT; UJT FTR(FT****) END M10X20	0-20951-020-0	16	1	0601-	●
10	BOLT; UJT FTR(FT****) 1ST M10X20	9-02061-020-0	08	1	0302-0512	●
10	BOLT; UJT FTR(FT****) 1ST M10X20	0-20951-020-0	08	1	0601-	●
12	PLATE; LK,FRT UJT,PROP SHAFT FTR(FT****)	1-37356-010-0	AR	1	0302-	●
13	COVER; FRT UJT,PROP SHAFT FTR(FT****) T=6	1-37355-022-0	AR	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	08	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	AR	1	9905-0301	●	●	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	08	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-				●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	AR	1	9905-0301	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512				●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-				●
20	BEARING ASM; CTR,PROP SHAFT FTR(FT****)	1-37510-099-1	01	1	0302-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	9905-0301	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	9905-0301				●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	0302-		●	●	●
20	BEARING ASM; CTR,PROP SHAFT FSR(FS****)	1-37510-105-0	01	1	0302-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	0302-				●
21	SEAL; OIL,CENTER BRG FTR(FT****) D=120	1-09625-126-0	02	1	0302-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	9905-0301	●	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	9905-0301				●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0302-		●	●	●
21	SEAL; OIL,CENTER BRG FSR(FS****) ID=54	1-09625-161-0	02	1	0302-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0302-				●
22	RUBBER; CUSHION,CENTER BRG,1ST FTR(FT****)	1-37516-053-0	01	1	0302-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	9905-0301	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	9905-0301				●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0302-		●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST FSR(FS****)	1-37516-059-0	01	1	0302-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0302-				●
23	BEARING; CENTER,PROP SHAFT FTR(FT****)	9-00090-292-0	01	1	0302-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	9905-0301	●	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	9905-0301				●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0302-		●	●	●
23	BEARING; CENTER,PROP SHAFT FSR(FS****)	9-00090-071-0	01	1	0302-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0302-				●
24	RETAINER; CENTER BRG,1ST FTR(FT****)	1-37529-039-0	01	1	0302-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	9905-0301	●	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	9905-0301				●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	0302-		●	●	●
24	RETAINER; CENTER BRG,1ST FSR(FS****)	1-37529-068-0	01	1	0302-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	0302-				●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9905-	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9905-				●
45	WASHER; PL,RET TO BRKT FTR(FT****) ID=12.5 OD=26	9-09164-612-0	04	1	0302-	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	9905-0301	●	●	●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	0302-0605		●	●	●
45	WASHER; PL,RET TO BRKT FSR(FS****) ID=10.5 OD=22	9-09164-610-0	04	1	0302-0605	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0606-		●	●	●
45	WASHER; PL,RET TO BRKT FSR(FS****) ID=10.5 OD=22	0-91614-610-0	04	1	0606-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST FTR(FT****)	1-37245-283-1	01	1	0302-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	9905-0301	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	9905-0301				●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	0302-		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST FSR(FS****)	1-37245-071-0	01	1	0302-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	0302-				●
51	NUT; FLANGE,SPLINED FTR(FT****) M33 FLANGE	1-09449-051-0	01	1	0302-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	9905-0301	●	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	9905-0301				●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0302-		●	●	●
51	NUT; FLANGE,SPLINED FSR(FS****) M30	8-97160-857-0	01	1	0302-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0302-				●
56	NUT; YOKE FTR(FT****) M16 FLANGE	1-09449-065-0	08	1	0302-	●
56	NUT; YOKE M14	9-99110-514-0	08	1	9905-0301	●	●	●	●
56	NUT; YOKE M14	9-99110-514-0	08	1	0302-0512		●	●	●
56	NUT; YOKE FSR(FS****) M14	9-99110-514-0	08	1	0302-0512	●
56	NUT; YOKE M14	0-91110-514-0	08	1	0601-		●	●	●
56	NUT; YOKE FSR(FS****) M14	0-91110-514-0	08	1	0601-	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	9905-0301	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	0302-0603		●	●	●
57	WASHER; LK,YOKE FSR(FS****) ID=14.2	9-09150-614-0	08	1	0302-0603	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0604-		●	●	●
57	WASHER; LK,YOKE FSR(FS****) ID=14.2	0-91510-614-0	08	1	0604-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FTR(FT****) M12X30 W/LK WASHER	0-50041-230-0	04	1	0302-0512	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FTR(FT****) M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	9905-0301	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	9905-0301				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	0302-0512		●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FSR(FS****) M10X35 FLANGE	0-28681-035-0	04	1	0302-0512	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	0302-0512				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0601-		●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FSR(FS****) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0601-				●
64	NUT; RET TO BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	04	1	0302-0602	●
64	NUT; RET TO BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	04	1	0603-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0301	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0301				●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●	●
64	NUT; RET TO BRKT FSR(FS****) M10 FLANGE	0-91150-210-0	04	1	0302-0602	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	0302-0602				●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0603-		●	●	●
64	NUT; RET TO BRKT FSR(FS****) M10 FLANGE	0-91180-210-0	04	1	0603-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0603-				●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	9905-9905		●	●	●
71	NUT; YOKE FSR(FS****) MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	9905-0301	●
71	NUT; YOKE MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	9905-0301			●	●
71	NUT; YOKE FSR(FS****) MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	0302-	●
71	NUT; YOKE FTR(FT****) M16 FLANGE	1-09449-065-0	04	1	0302-	●
71	NUT; YOKE MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	0302-			●	●
71	NUT; YOKE M14	9-99110-514-0	04	1	9905-9905	●
71	NUT; YOKE M14	9-99110-514-0	04	1	9905-0512		●
71	NUT; YOKE FSR(FS****) MBJ5T M/T(Y2K) M14	9-99110-514-0	04	1	9905-0512	●
71	NUT; YOKE MBJ5T M/T(Y2K) M14	9-99110-514-0	04	1	9905-0512			●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	0601-		●
71	NUT; YOKE FSR(FS****) MBJ5T M/T(Y2K) M14	0-91110-514-0	04	1	0601-	●
71	NUT; YOKE MBJ5T M/T(Y2K) M14	0-91110-514-0	04	1	0601-			●	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	9905-9905	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	9905-0603		●
72	WASHER; LK,YOKE FSR(FS****) MBJ5T M/T(Y2K) ID=14.2	9-09150-614-0	04	1	9905-0603	●
72	WASHER; LK,YOKE MBJ5T M/T(Y2K) ID=14.2	9-09150-614-0	04	1	9905-0603			●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-		●
72	WASHER; LK,YOKE FSR(FS****) MBJ5T M/T(Y2K) ID=14.2	0-91510-614-0	04	1	0604-	●
72	WASHER; LK,YOKE MBJ5T M/T(Y2K) ID=14.2	0-91510-614-0	04	1	0604-			●	●
74	BOLT; YOKE,TRANS FTR(FT****) M16X48	1-09000-383-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-		●	●	●
74	BOLT; YOKE,TRANS FSR(FS****) M14X37	1-09000-121-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-				●
95	BOLT; YOKE,FINAL FTR(FT****) M16X48	1-09000-383-0	04	1	0302-	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	9905-0301	●	●	●	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0302-		●	●	●
95	BOLT; YOKE,FINAL FSR(FS****) M14X37	1-09000-121-0	04	1	0302-	●
104	PLUG; SLEEVE YOKE FTR(FT****)	1-09600-067-0	01	1	0302-	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	9905-0301	●	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0302-		●	●	●
104	PLUG; SLEEVE YOKE FSR(FS****)	1-09600-064-0	01	1	0302-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FTR(FT****) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0302-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-0512	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●	●
107	COVER; RET,SLEEVE FTR(FT****)	1-37249-137-1	01	1	0302-	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	9905-0301	●	●	●	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0302-		●	●	●
107	COVER; RET,SLEEVE FSR(FS****)	1-37249-060-1	01	1	0302-	●
128	SEAL; SLEEVE FTR(FT****)	1-37247-021-0	01	1	0302-	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	9905-0301	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0302-		●	●	●
128	SEAL; SLEEVE FSR(FS****)	1-37247-024-0	01	1	0302-	●
172	BRACKET; CENTER BRG FTR(FT****) 1ST	1-37515-124-0	01	1	0302-	●
172	BRACKET; CENTER BRG FSR(FS****) 1ST	1-37515-118-0	01	1	9905-	●
172	BRACKET; CENTER BRG 1ST	1-37515-122-0	01	1	9905-			●	●
172	BRACKET; CENTER BRG 2ND	1-37515-121-0	01	1	9905-				●
173	BOLT; BRKT FTR(FT****) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512	●
173	BOLT; BRKT FTR(FT****) M12X30 FLANGE	0-28651-230-0	04	1	0601-	●
173	BOLT; BRKT FSR(FS****) M10X25 FLANGE	0-28681-025-0	04	1	9905-0512	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9905-0512			●	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9905-0512				●
173	BOLT; BRKT FSR(FS****) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-			●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-				●
174	NUT; BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	04	1	0302-0602	●
174	NUT; BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	04	1	0603-	●
174	NUT; BRKT FSR(FS****) M10 FLANGE	0-91150-210-0	04	1	9905-0602	●
174	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0602			●	●
174	NUT; BRKT FSR(FS****) M10 FLANGE	0-91180-210-0	04	1	0603-	●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-			●	●
225	YOKE; SLEEVE,PROP SHAFT FTR(FT****) L=332	1-37241-109-1	01	1	0302-	●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	9905-0301	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0302-		●	●	●
225	YOKE; SLEEVE,PROP SHAFT FSR(FS****) L=271	1-37241-099-2	01	1	0302-	●

174 172 173 64 45 20 51 46 63 21 24 23 22 25 1 71 72 9 21 177 172 173 20 8 64 60 51 46 63 21 24 23 22 25 1 49 52 21 9 8 74 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP FTR(FT****) (B) L=1194	1-37124-114-0	01	1	0302-	●
1	SHAFT; PROP FTR(FT****) (A) L=701	1-37152-274-0	01	1	0302-	●
1	SHAFT; PROP (B) L=701	1-37123-763-1	01	1	9905-		●
1	SHAFT; PROP (A) L=766	1-37151-630-1	01	1	9905-9905		●
1	SHAFT; PROP (A) L=776	1-37152-233-1	01	1	9905-		●
1	SHAFT; PROP FSR(FS****) (B) L=951	1-37123-764-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCN ENG(82L) (A) L=951	1-37152-001-1	01	1	9905-	●
1	SHAFT; PROP FSR(FS****) 6HK1-TCS ENG(80L) (A) L=991	1-37151-582-1	01	1	9905-	●
1	SHAFT; PROP (A) L=1286	1-37151-583-1	01	1	9905-			●
1	SHAFT; PROP (B) L=1256	1-37123-393-3	01	1	9905-			●	●
1	SHAFT; PROP (C) L=931	1-37151-576-1	01	1	9905-				●
1	SHAFT; PROP (A) L=996	1-37152-006-1	01	1	9905-				●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) END	1-37211-072-1	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT FTR(FT****) 1ST	1-37211-072-1	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	9905-0301	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0302-		●	●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) END	1-37211-056-3	02	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9905-9905		●	●	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-9905	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-9905				●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	9905-0301		●		●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	9905-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-056-3	01	1	0302-		●		●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCN ENG(82L) 1ST AND 2ND	1-37211-056-3	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	9906-0301	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	9906-0301			●	●
8	YOKE; FLANGE,PROP SHAFT FSR(FS****) 6HK1-TCS ENG(80L) 1ST	1-37211-054-0	01	1	0302-	●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-0	01	1	0302-			●	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (C) END	1-37300-094-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT FTR(FT****) (B) 1ST	1-37300-095-1	AR	1	0302-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	9905-0301	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0302-		●	●	●
9	JOURNAL ASM; PROP SHAFT FSR(FS****) (A)	1-37300-102-1	AR	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	08	1	0302-	●
14	COVER; DUST,SPIDER FTR(FT****) (B)	9-37352-023-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	AR	1	9905-0301	●	●	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	08	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-		●	●	●
14	COVER; DUST,SPIDER FSR(FS****) (A)	1-37319-012-0	04	1	0302-	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	0302-				●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT FTR(FT****) (B) PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	AR	1	9905-0301	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0512	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-		●	●	●
17	NIPPLE; GREASE,PROP SHAFT FSR(FS****) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0302-0512				●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	AR	1	9905-0301	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST FSR(FS****) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0302-				●
20	BEARING ASM; CTR,PROP SHAFT FTR(FT****)	1-37510-099-1	01	1	0302-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	9905-0301	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	9905-0301				●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	0302-		●	●	●
20	BEARING ASM; CTR,PROP SHAFT FSR(FS****)	1-37510-105-0	01	1	0302-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	0302-				●
21	SEAL; OIL,CENTER BRG FTR(FT****) D=120	1-09625-126-0	02	1	0302-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	9905-0301	●	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	9905-0301				●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0302-		●	●	●
21	SEAL; OIL,CENTER BRG FSR(FS****) ID=54	1-09625-161-0	02	1	0302-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0302-				●
22	RUBBER; CUSHION,CENTER BRG,1ST FTR(FT****)	1-37516-053-0	01	1	0302-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	9905-0301	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	9905-0301				●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0302-		●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST FSR(FS****)	1-37516-059-0	01	1	0302-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0302-				●
23	BEARING; CENTER,PROP SHAFT FTR(FT****)	9-00090-292-0	01	1	0302-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	9905-0301	●	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	9905-0301				●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0302-		●	●	●
23	BEARING; CENTER,PROP SHAFT FSR(FS****)	9-00090-071-0	01	1	0302-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0302-				●
24	RETAINER; CENTER BRG,1ST FTR(FT****)	1-37529-039-0	01	1	0302-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	9905-0301	●	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	9905-0301				●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	0302-		●	●	●
24	RETAINER; CENTER BRG,1ST FSR(FS****)	1-37529-068-0	01	1	0302-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	0302-				●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9905-	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9905-				●
45	WASHER; PL,RET TO BRKT FTR(FT****) ID=12.5 OD=26	9-09164-612-0	04	1	0302-	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	9905-0301	●	●	●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	0302-0605		●	●	●
45	WASHER; PL,RET TO BRKT FSR(FS****) ID=10.5 OD=22	9-09164-610-0	04	1	0302-0605	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0606-		●	●	●
45	WASHER; PL,RET TO BRKT FSR(FS****) ID=10.5 OD=22	0-91614-610-0	04	1	0606-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST FTR(FT****)	1-37245-283-1	01	1	0302-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	9905-0301	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	9905-0301				●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	0302-		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST FSR(FS****)	1-37245-071-0	01	1	0302-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	0302-				●
49	NUT; YOKE M14	9-99110-514-0	04	1	9905-0512				●
49	NUT; YOKE M14	0-91110-514-0	04	1	0601-				●
51	NUT; FLANGE,SPLINED FTR(FT****) M33 FLANGE	1-09449-051-0	01	1	0302-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	9905-0301	●	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	9905-0301				●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0302-		●	●	●
51	NUT; FLANGE,SPLINED FSR(FS****) M30	8-97160-857-0	01	1	0302-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0302-				●
52	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	9905-0603				●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-				●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	9905-0605				●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0606-				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FTR(FT****) M12X30 W/LK WASHER	0-50041-230-0	04	1	0302-0512	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FTR(FT****) M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	9905-0301	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	9905-0301				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	0302-0512		●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FSR(FS****) M10X35 FLANGE	0-28681-035-0	04	1	0302-0512	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	04	1	0302-0512				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0601-		●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST FSR(FS****) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0601-				●
64	NUT; RET TO BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	04	1	0302-0602	●
64	NUT; RET TO BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	04	1	0603-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0301	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0301				●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●	●
64	NUT; RET TO BRKT FSR(FS****) M10 FLANGE	0-91150-210-0	04	1	0302-0602	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	04	1	0302-0602				●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0603-		●	●	●
64	NUT; RET TO BRKT FSR(FS****) M10 FLANGE	0-91180-210-0	04	1	0603-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0603-				●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	9905-9905		●	●	●
71	NUT; YOKE FSR(FS****) MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	9905-0301	●
71	NUT; YOKE MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	9905-0301			●	●
71	NUT; YOKE FSR(FS****) MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	0302-	●
71	NUT; YOKE FTR(FT****) M16 FLANGE	1-09449-065-0	04	1	0302-	●
71	NUT; YOKE MLD6Q M/T(X5J) M16 FLANGE	1-09449-065-0	04	1	0302-			●	●
71	NUT; YOKE M14	9-99110-514-0	04	1	9905-9905	●
71	NUT; YOKE M14	9-99110-514-0	04	1	9905-0512		●
71	NUT; YOKE FSR(FS****) MBJ5T M/T(Y2K) M14	9-99110-514-0	04	1	9905-0512	●
71	NUT; YOKE MBJ5T M/T(Y2K) M14	9-99110-514-0	04	1	9905-0512			●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	0601-		●
71	NUT; YOKE FSR(FS****) MBJ5T M/T(Y2K) M14	0-91110-514-0	04	1	0601-	●
71	NUT; YOKE MBJ5T M/T(Y2K) M14	0-91110-514-0	04	1	0601-			●	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	9905-9905	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	9905-0603		●
72	WASHER; LK,YOKE FSR(FS****) MBJ5T M/T(Y2K) ID=14.2	9-09150-614-0	04	1	9905-0603	●
72	WASHER; LK,YOKE MBJ5T M/T(Y2K) ID=14.2	9-09150-614-0	04	1	9905-0603			●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-		●
72	WASHER; LK,YOKE FSR(FS****) MBJ5T M/T(Y2K) ID=14.2	0-91510-614-0	04	1	0604-	●
72	WASHER; LK,YOKE MBJ5T M/T(Y2K) ID=14.2	0-91510-614-0	04	1	0604-			●	●
74	BOLT; YOKE,TRANS FTR(FT****) M16X48	1-09000-383-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	9905-0301				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-		●	●	●
74	BOLT; YOKE,TRANS FSR(FS****) M14X37	1-09000-121-0	04	1	0302-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0302-				●
172	BRACKET; CENTER BRG FTR(FT****) 1ST	1-37515-124-0	01	1	0302-	●
172	BRACKET; CENTER BRG FSR(FS****) 1ST	1-37515-118-0	01	1	9905-	●
172	BRACKET; CENTER BRG 1ST	1-37515-122-0	01	1	9905-			●	●
172	BRACKET; CENTER BRG 2ND	1-37515-121-0	01	1	9905-				●
173	BOLT; BRKT FTR(FT****) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512	●
173	BOLT; BRKT FTR(FT****) M12X30 FLANGE	0-28651-230-0	04	1	0601-	●
173	BOLT; BRKT FSR(FS****) M10X25 FLANGE	0-28681-025-0	04	1	9905-0512	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9905-0512			●	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9905-0512				●
173	BOLT; BRKT FSR(FS****) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-			●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-				●
174	NUT; BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	04	1	0302-0602	●
174	NUT; BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	04	1	0603-	●
174	NUT; BRKT FSR(FS****) M10 FLANGE	0-91150-210-0	04	1	9905-0602	●
174	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0602			●	●
174	NUT; BRKT FSR(FS****) M10 FLANGE	0-91180-210-0	04	1	0603-	●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-			●	●
177	NUT M10 FLANGE	0-91150-210-0	04	1	9905-0602				●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0603-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
