◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#78618) — 29 parça

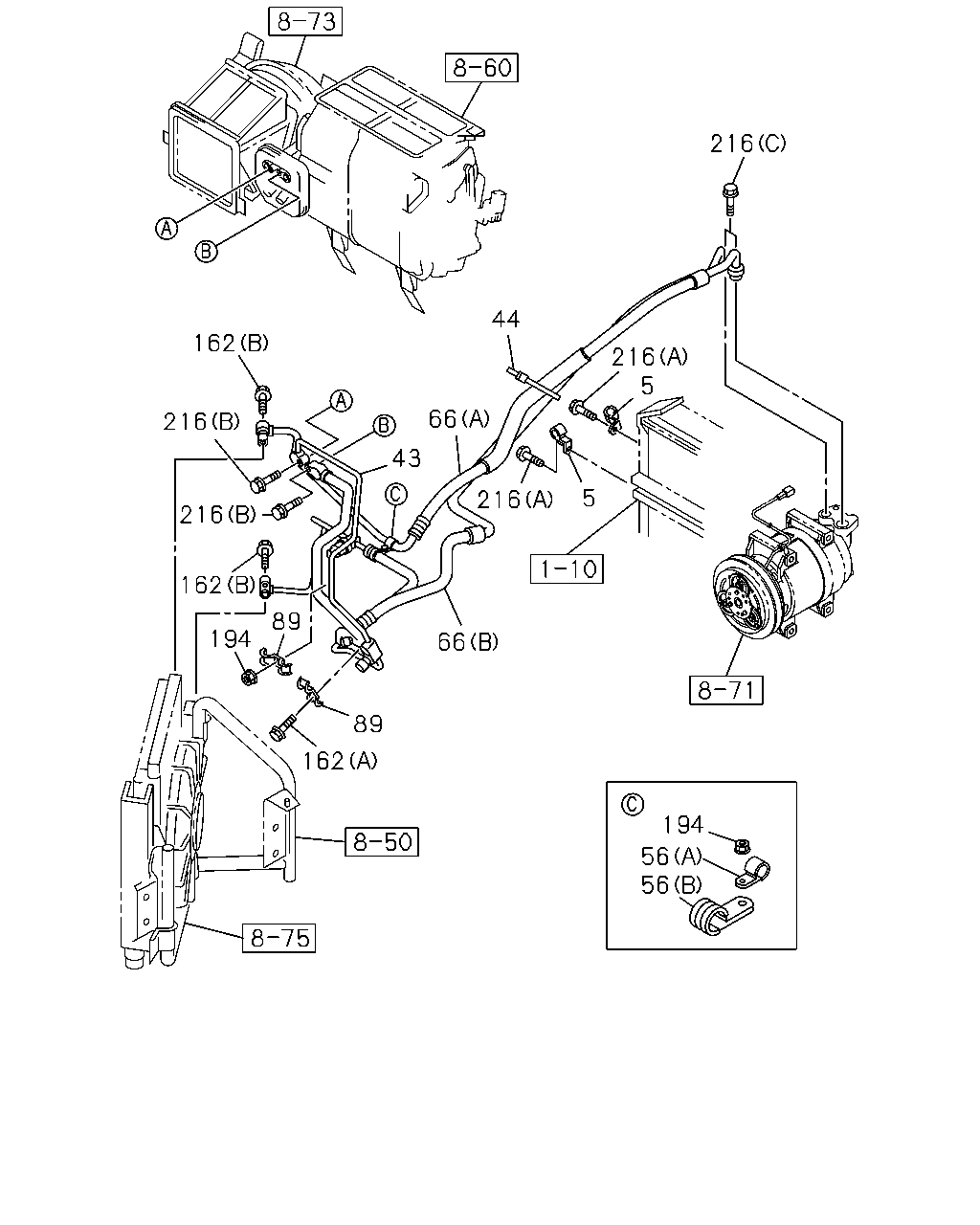

çizim 140884
216 44 162 216 5 66 216 43 5 216 216 162 89 194 66 89 162 194 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=16 H=24 L=20 		0-95207-315-0 02 1 1112-1210 ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE IRA 		8-98179-007-0 01 1 1112- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=250 		5-09707-030-1 01 1 1112- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=350 IRA 		8-94152-256-1 01 1 1112- ● ●
56 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20 IRA 		0-95235-232-0 01 1 1112- ● ●
56 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) IRA 		8-98032-641-0 01 1 1112- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE IRA 		8-98006-103-2 01 1 1112- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE 		8-98159-618-1 01 1 1112-1210 ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE IRA 		8-98222-312-0 01 1 1211- ● ●
89 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98151-264-0 02 1 1112- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE 		0-28650-620-0 01 1 1112- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) M6X25 FLANGE 		0-28650-625-0 02 1 1112- ● ●
194 NUT; HOSE
AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE 		0-91180-106-0 02 1 1112- ● ●
216 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M6X10 FLANGE 		0-28050-610-0 02 1 1112- ● ●
216 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M6X30 FLANGE IRA 		0-28650-630-0 02 1 1112- ● ●
216 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
çizim 140926
50 202 50 147 148 67 43 66 67 67 67 148 147 66
BalonParca AdiParca NoAdetTipApplied Date A B
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE IRA 		8-98179-007-0 01 1 1112- ● ●
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=7.5 IRA 		1-83539-316-0 02 1 1112- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE IRA 		8-98006-103-2 01 1 1112- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE 		8-98159-618-1 01 1 1112-1210 ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE IRA 		8-98222-312-0 01 1 1211- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7 		8-97095-907-0 02 1 1112- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5 		8-97095-908-0 01 1 1112- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6 IRA 		8-98036-895-0 01 1 1112- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L IRA 		1-83539-331-0 01 1 1112- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H IRA 		8-97095-911-0 01 1 1112- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) IRA 		8-97095-909-0 01 1 1112- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) IRA 		8-98031-629-0 01 1 1112- ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60) IRA 		1-83564-392-1 01 1 1112- ● ●
