8-50 — AIR CONDITIONING SYSTEM; FRONT (#78617) — 25 parça

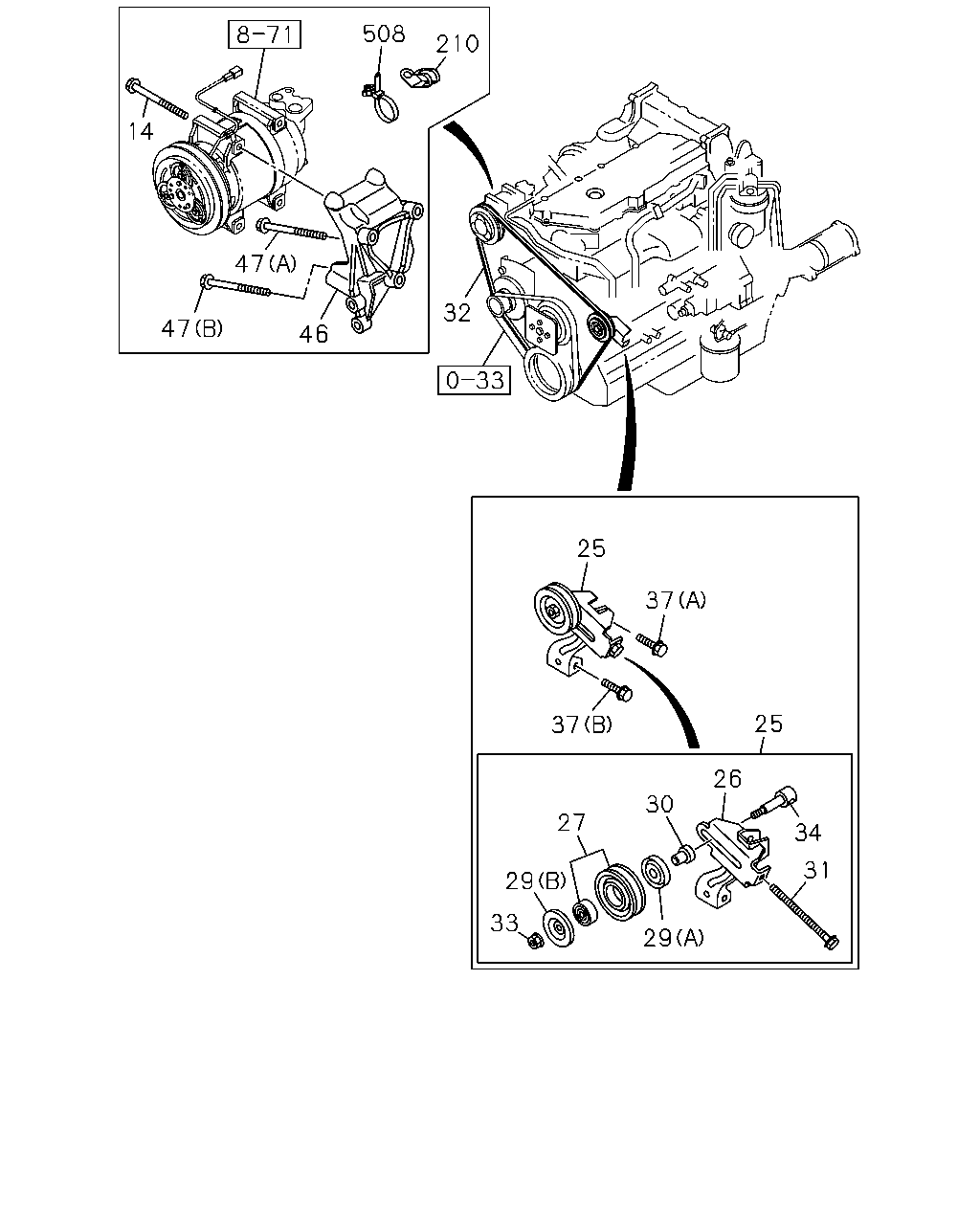

çizim 141232
508 210 14 47 32 47 46 25 37 25 37 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE IRA 		0-28050-890-0 04 1 1112- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE IRA 		8-97161-198-1 01 1 1112- ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97161-031-1 01 1 1112- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97386-869-0 01 1 1112- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) IRA 		8-97384-114-0 01 1 1112- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) IRA 		8-97384-115-0 01 1 1112- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97384-117-0 01 1 1112- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97384-113-0 01 1 1112- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1674 IRA 		8-98010-841-1 01 1 1112- ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97384-118-0 01 1 1112- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-97384-116-0 01 1 1112- ● ●
37 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE IRA 		0-28050-850-0 01 1 1112- ● ●
37 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE IRA 		8-94344-540-1 01 1 1112- ● ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98006-515-3 01 1 1112- ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M10X90 FLANGE IRA 		0-28151-090-0 02 1 1112- ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (B) M10X120 FLANGE IRA 		0-28156-012-0 01 1 1112- ● ●
210 CLIP; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1112- ● ●
508 CLIP; HARNESS
L=170.3 		1-09987-182-0 01 1 1112- ● ●

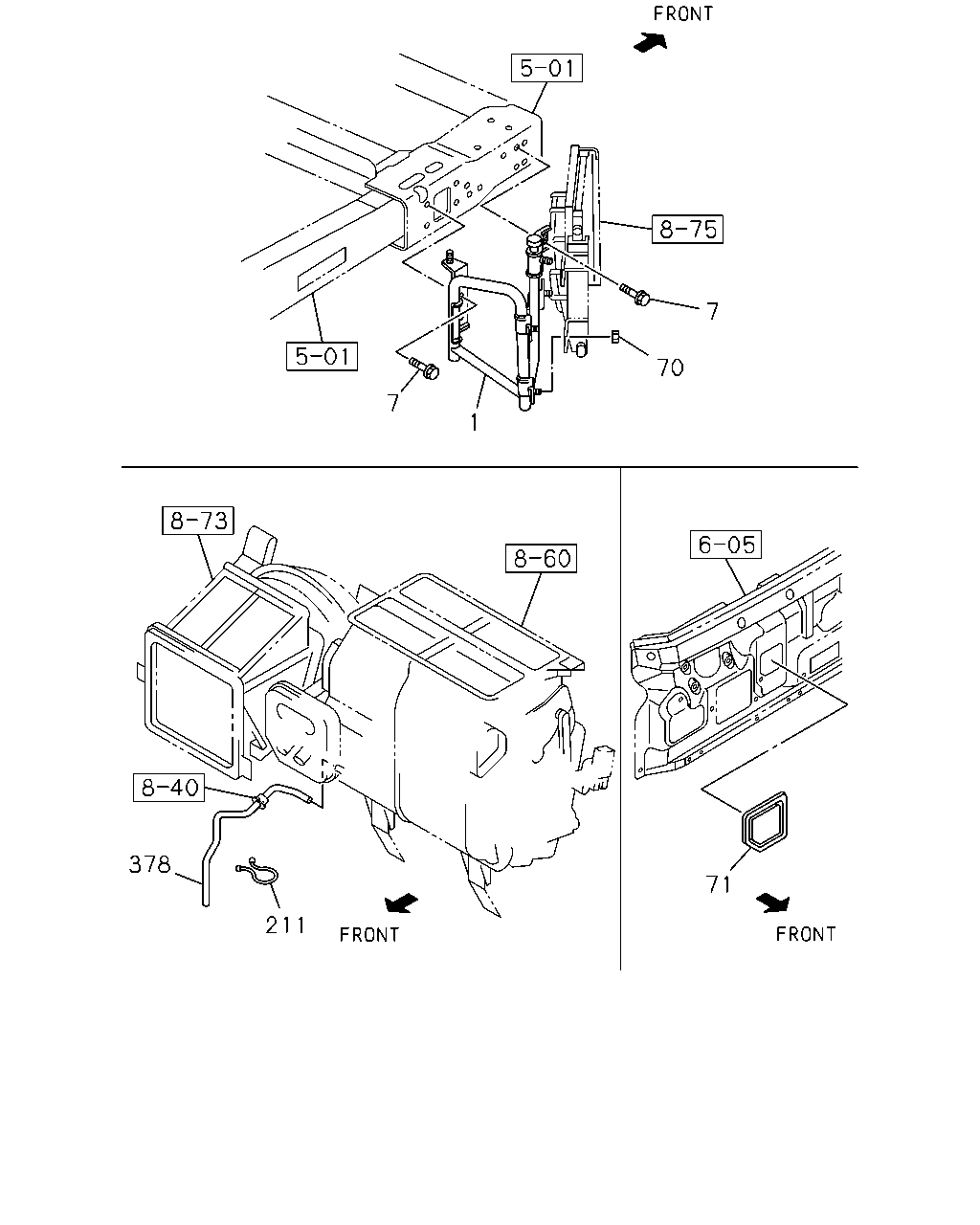

çizim 141304
7 70 7 1 378 71 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 1112-1303 ● ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) IRA 		8-98214-412-0 01 1 1304- ● ●
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M12X30 FLANGE IRA 		0-28651-230-0 04 1 1112- ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 04 1 1112- ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1112- ● ●
211 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44 		8-94463-508-0 01 1 1112- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98006-239-3 01 1 1112- ● ●
