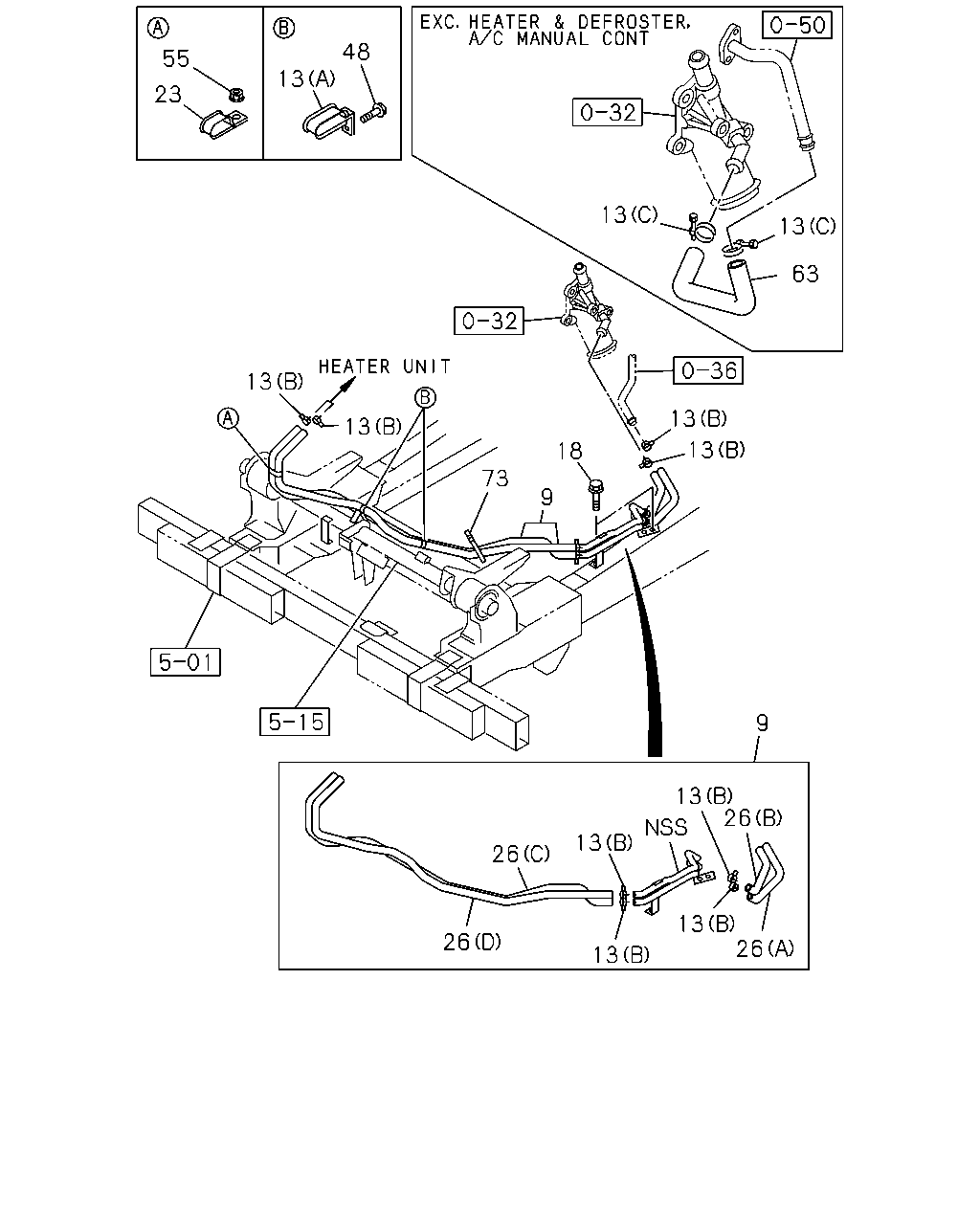

8-45 — HEATER PIPING (#78616) — 16 parça

48 55 13 23 13 13 63 13 13 13 13 18 73 9 9 13 26 13 26 13 26 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98006-433-1	01	1	1112-	●	●
13	CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=25	8-94233-115-0	02	1	1112-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-129-0	02	1	1112-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22 IRA	8-97359-141-0	04	1	1112-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22 IRA	8-97359-141-0	04	1	1112-	●	●
18	BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	1112-	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 IRA	8-97359-144-0	01	1	1112-1205	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 IRA	8-98166-023-0	01	1	1206-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1112-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1112-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1112-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1112-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	02	1	1112-	●	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	01	1	1112-	●	●
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94134-250-1	01	1	1112-	●	●
73	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-1	01	1	1112-	●	●
