◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#78614) — 20 parça

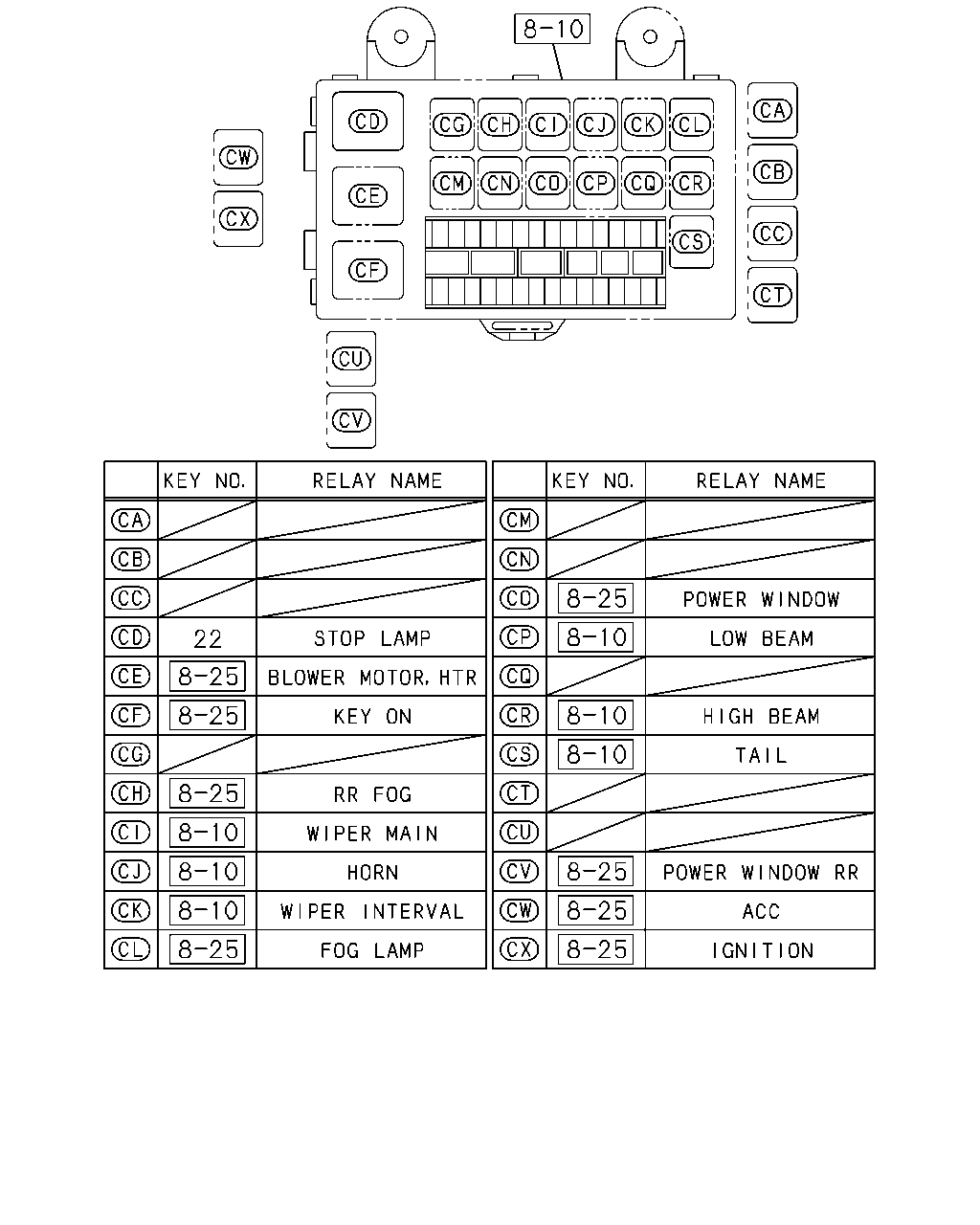

çizim 143669
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ●

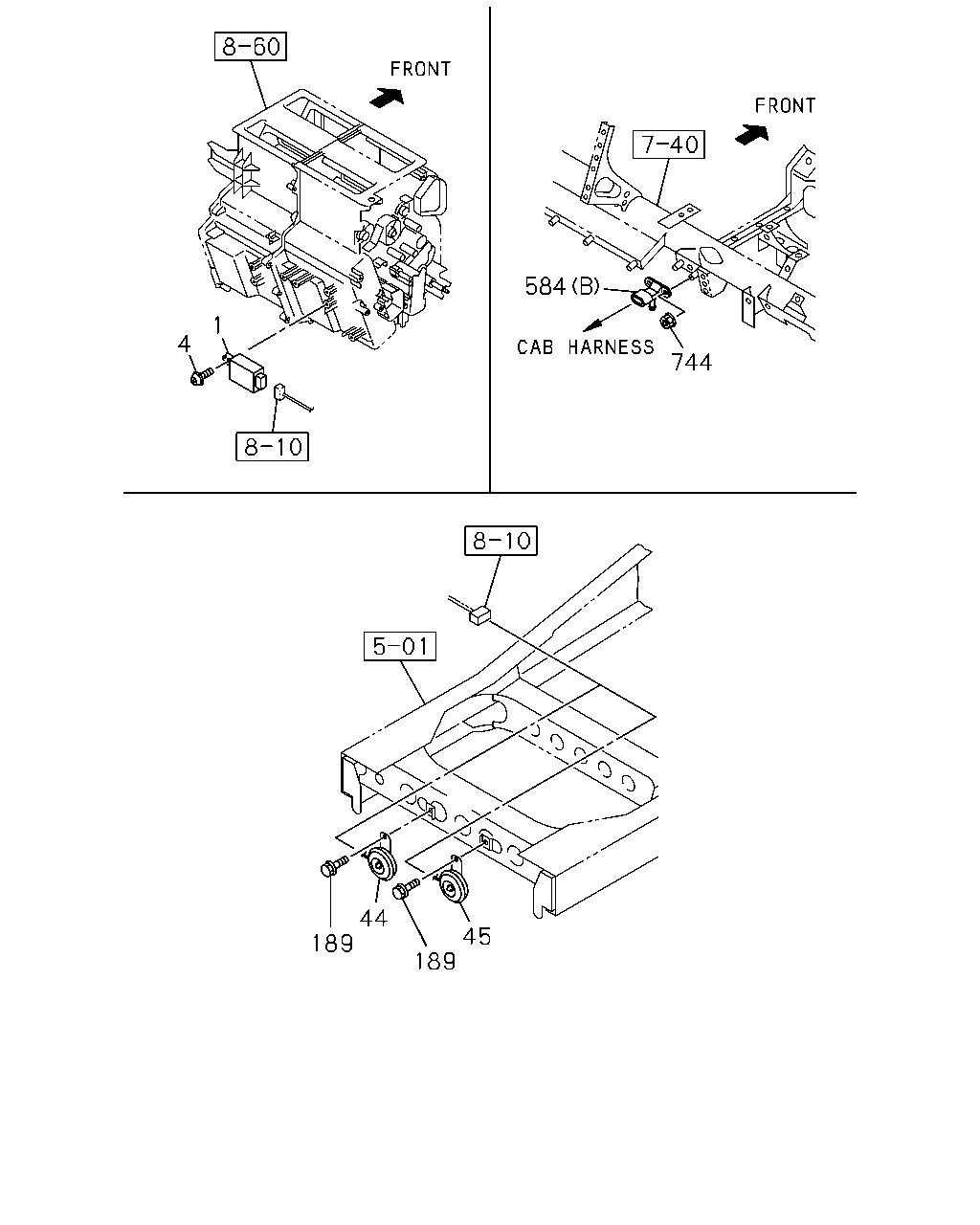

çizim 143820
584 1 4 744 44 189 45 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1112- ● ●
4 SCREW; FLASHER UNIT
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 HORN; HIGH NOTE 8-98070-080-0 01 1 1112- ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 1112- ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1112- ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1112- ● ●
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1112- ● ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1112- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1112- ● ●
çizim 183572
333 531 666
BalonParca AdiParca NoAdetTipApplied Date A B
333 RELAY; MARKER LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1112-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1112- ● ●

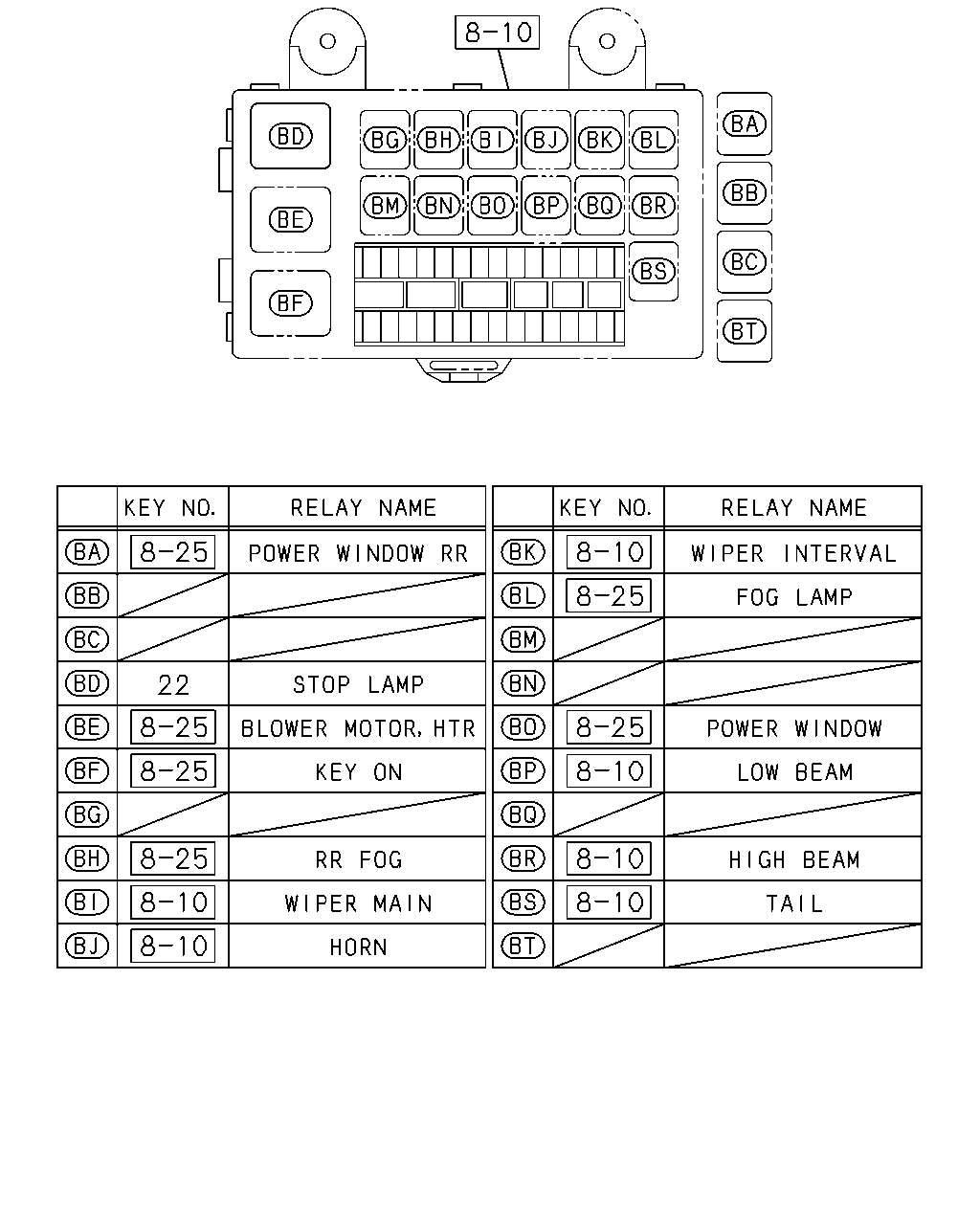

çizim 183576
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ●

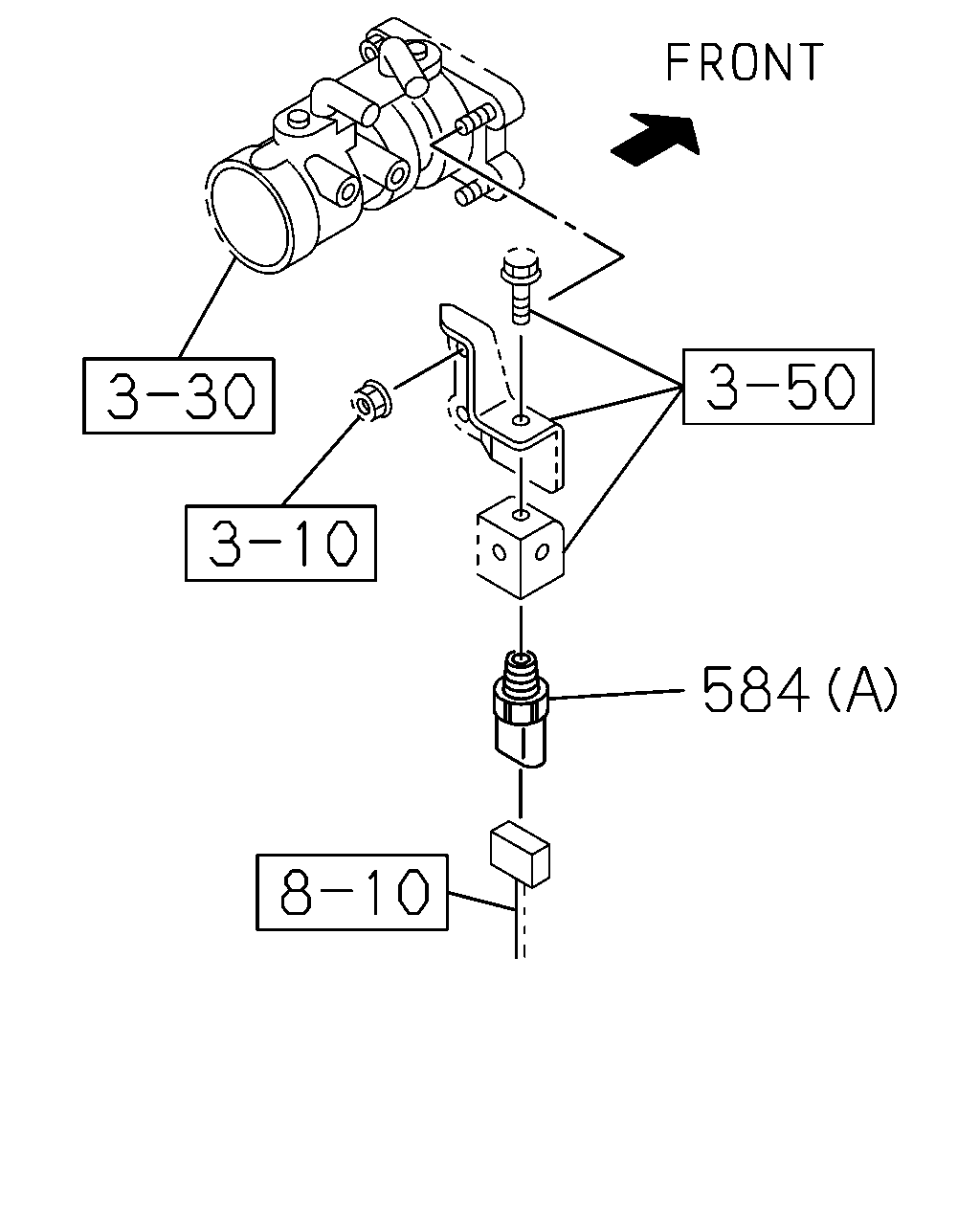

çizim 183577
584
BalonParca AdiParca NoAdetTipApplied Date A B
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1112- ● ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1112- ● ●

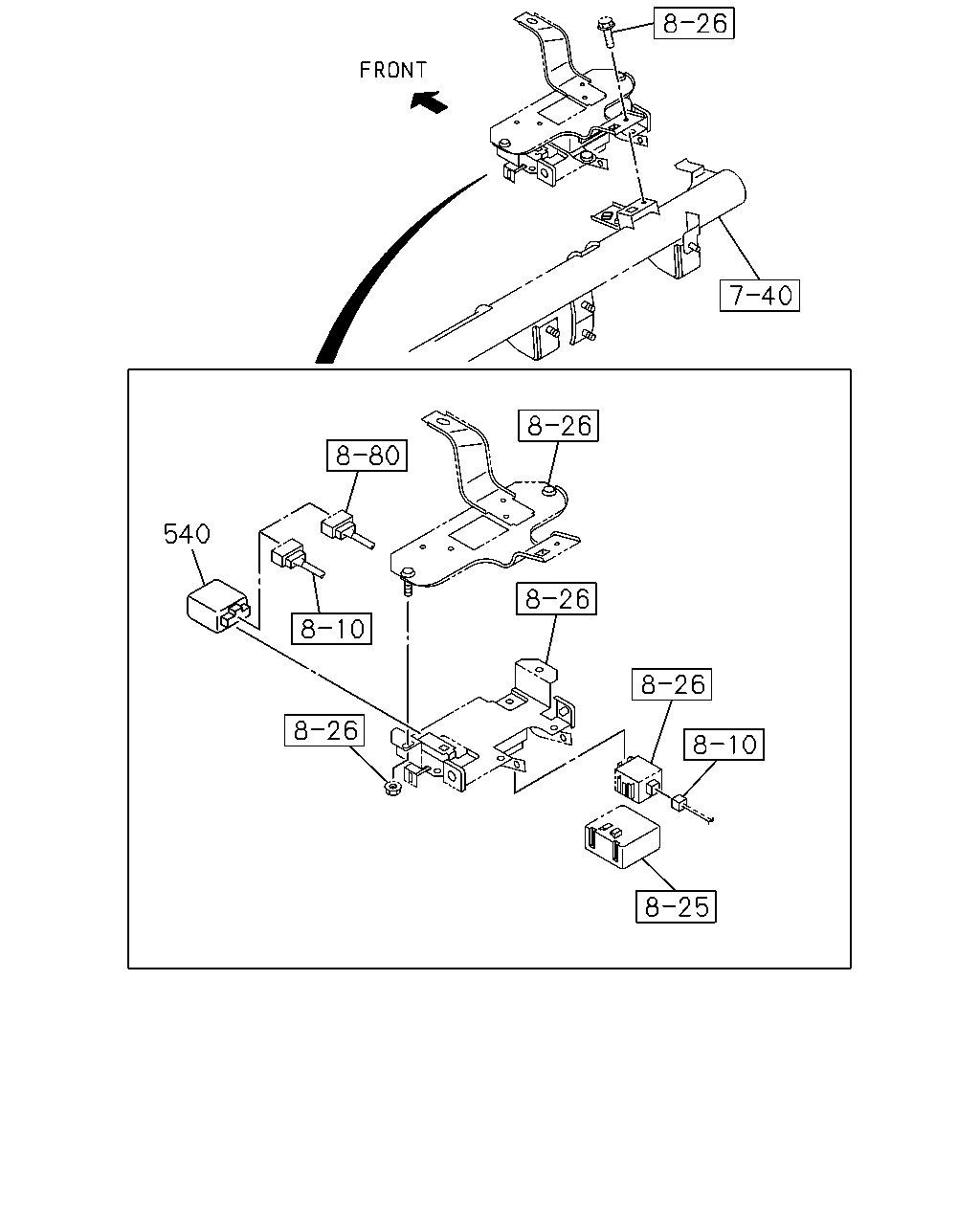

çizim 183582
540
BalonParca AdiParca NoAdetTipApplied Date A B
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1112-1308 ● ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> IRA 		8-98233-976-0 01 1 1309- ● ●
