8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#78613) — 10 parça

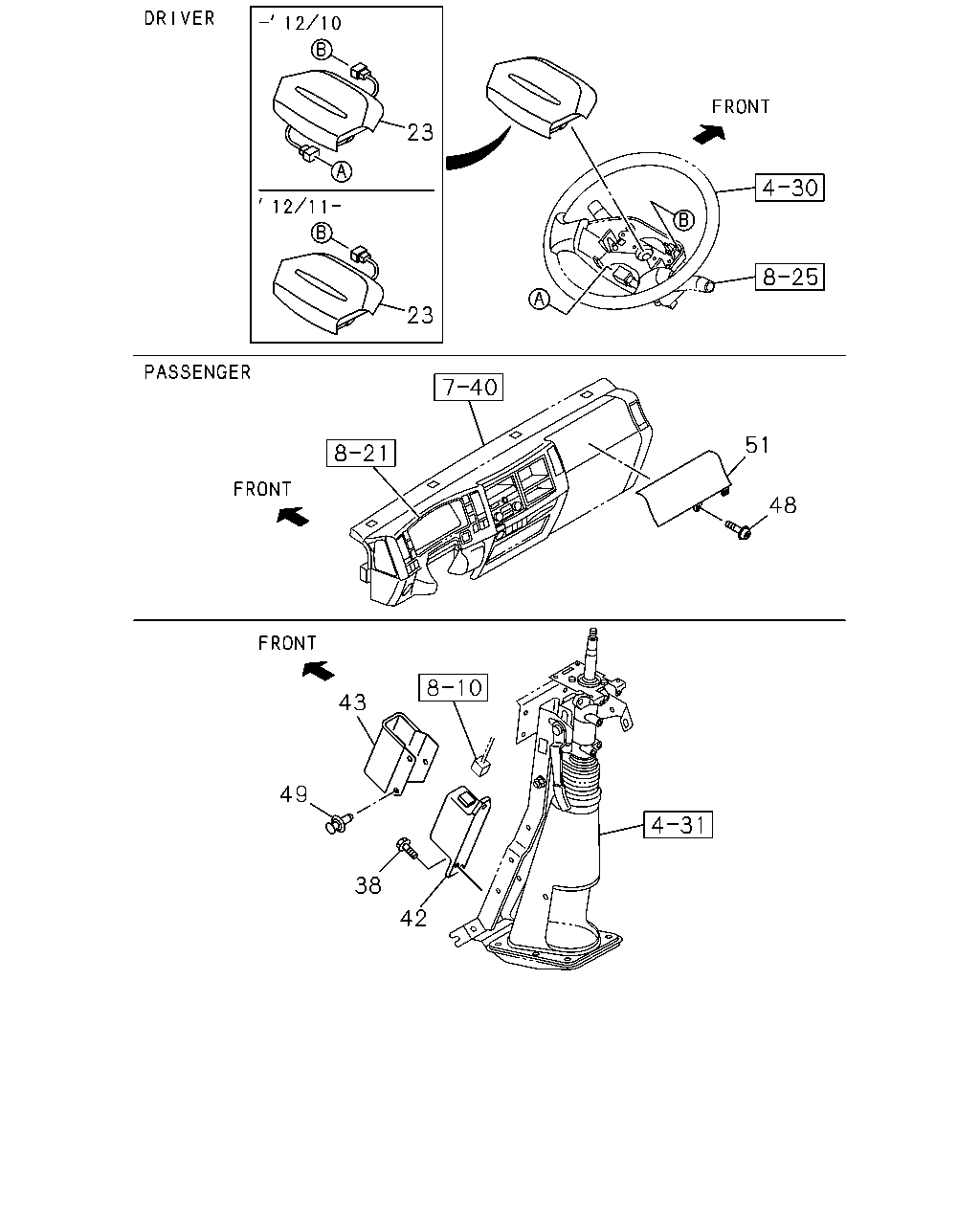

çizim 143764
23 51 48 43 49 38 42 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. ISUZU BRAND<7WL> DARK GRAY 		8-97424-576-1 01 1 1211- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97418-100-0 01 1 1112-1210 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> ISUZU BRAND<7WL> DARK GRAY 		8-97423-999-1 01 1 1211- ● ●
38 BOLT; CONT UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER 		8-97105-796-1 03 1 1112- ● ●
42 CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3> 		8-98120-057-2 01 1 1112- ● ●
42 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98120-059-2 01 1 1112- ● ●
43 PROTECTOR; CONTROL UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98083-536-0 01 1 1112- ● ●
48 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1112- ● ●
49 CLIP; PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> OD=8.3 		8-97997-832-0 03 1 1112- ● ●
51 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-783-2 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
