8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#78612) — 24 parça

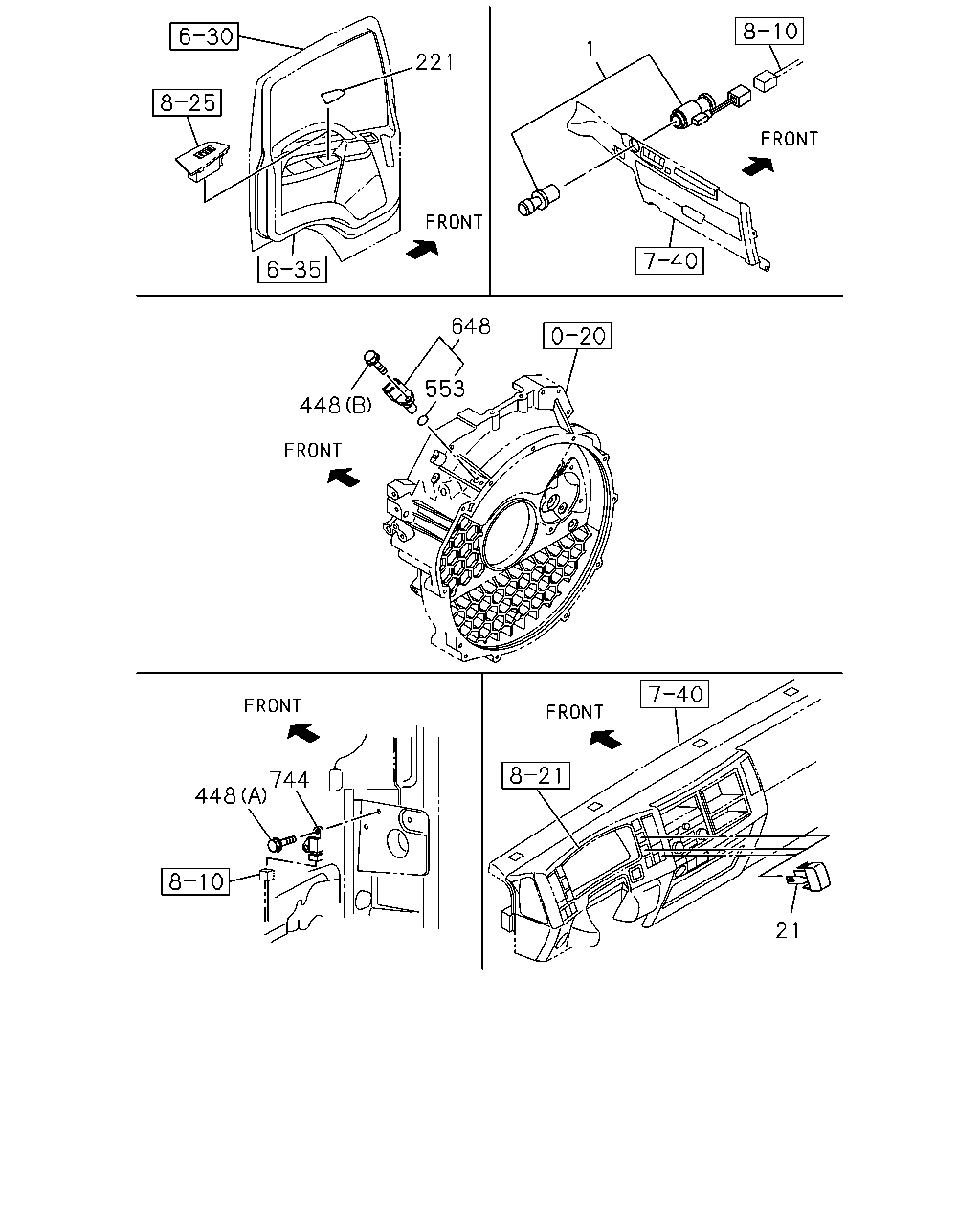

çizim 138119
1 221 648 553 448 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1112- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1112-1511 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 02 1 1112-1511 ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1112- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1112- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1112- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1112- ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1112- ● ●
448 BOLT; SENSOR
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) M6X16 FLANGE 		0-28050-616-0 01 1 1112- ● ●
553 GASKET
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1112- ● ●
648 SENSOR; CRANK ANGLE
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 		8-97606-943-0 01 1 1112- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1112- ● ●

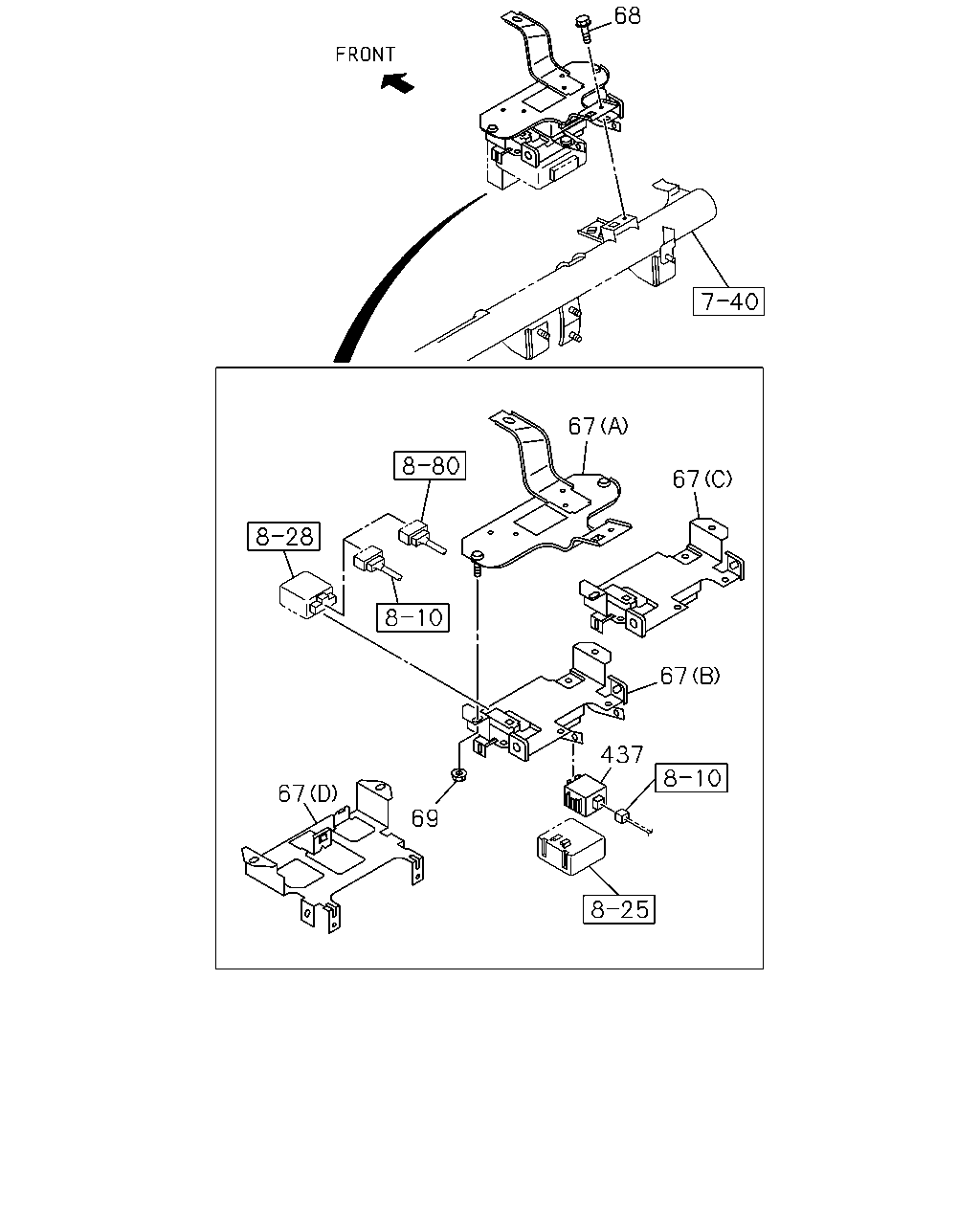

çizim 183570
68 67 67 67 437 69 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1112- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1112-1112 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1112- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1112- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1112- ● ●
