8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#78611) — 77 parça

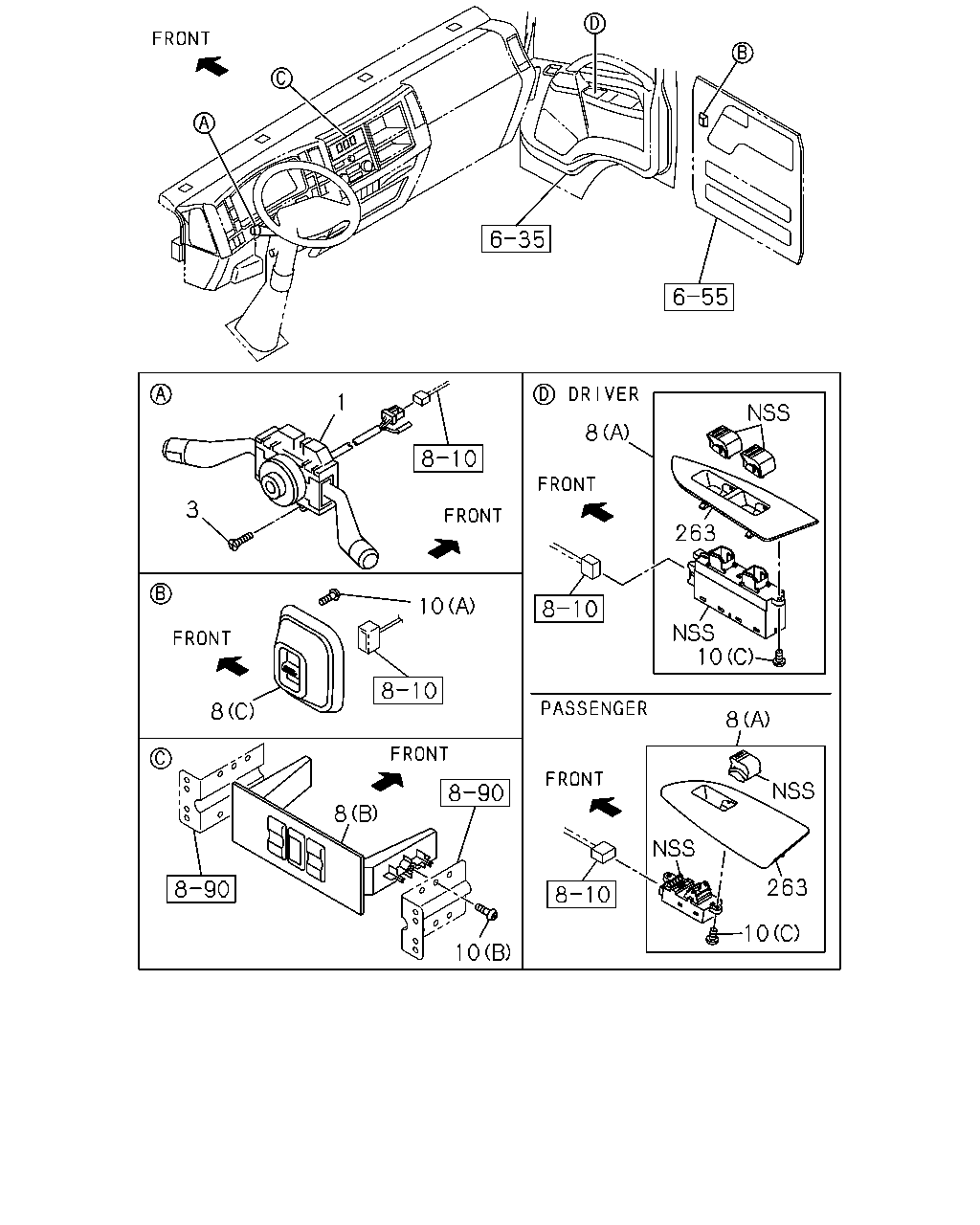

çizim 137917
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1112-1310 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-639-0 01 1 1112-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-812-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1311- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98073-850-1 01 1 1112-1310 ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-757-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1112- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1112- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1112- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1112-1509 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1112-1509 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE IRA 		8-98159-544-0 01 1 1112-1509 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE IRA 		8-98159-544-0 01 1 1112-1509 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE IRA 		8-98298-751-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE IRA 		8-98298-751-0 01 1 1510- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (A) M4X14 TAPPING 		0-74360-414-0 04 1 1112- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) IRA 		8-98153-865-0 03 1 1112- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) IRA 		8-98153-865-0 03 1 1112- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE IRA 		8-98153-838-0 01 1 1112- ●
263 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> DRIVER SIDE IRA 		8-98153-838-0 01 1 1112- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-843-0 01 1 1112- ●
263 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> PASSENGER SIDE 		8-98153-843-0 01 1 1112- ●

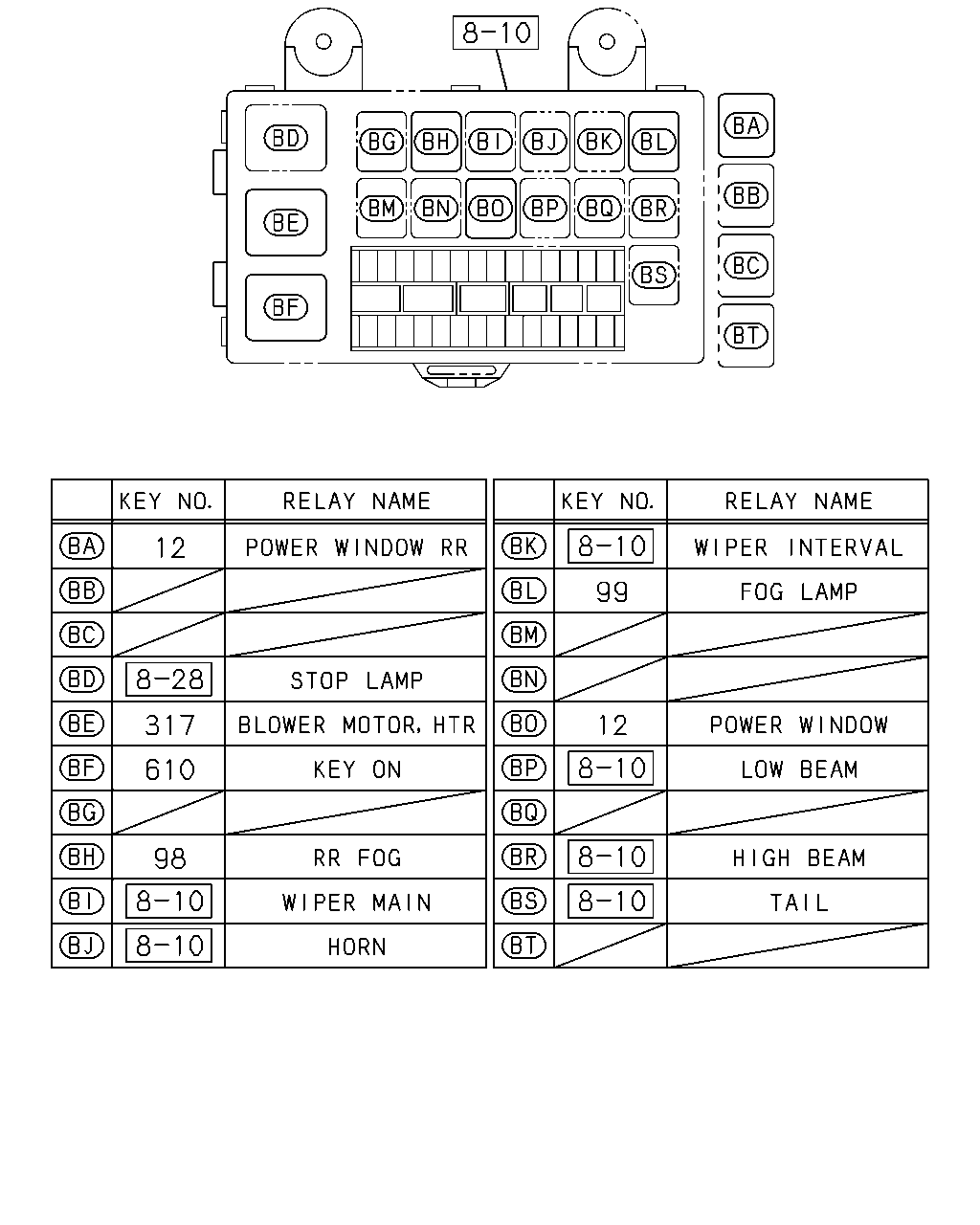

çizim 138214
12 317 610 98 99 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
98 RELAY; RR FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1204 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

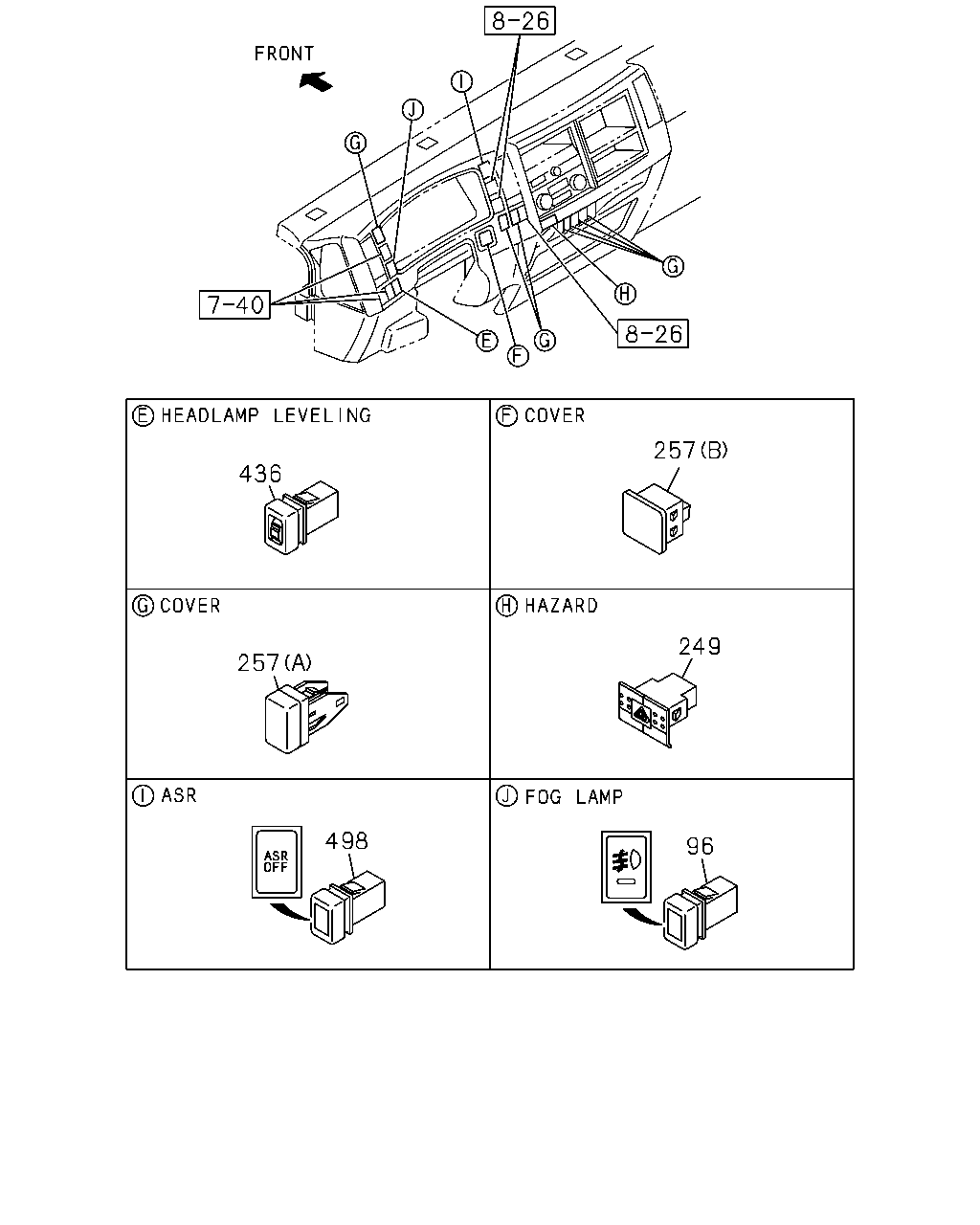

çizim 138248
257 436 249 257 498 96
BalonParca AdiParca NoAdetTipApplied Date A B
96 SWITCH; FOG LAMP 8-97387-031-4 01 1 1112- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1112- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1112- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1112- ● ●
498 SWITCH; ASR 8-97386-920-2 01 1 1112- ● ●

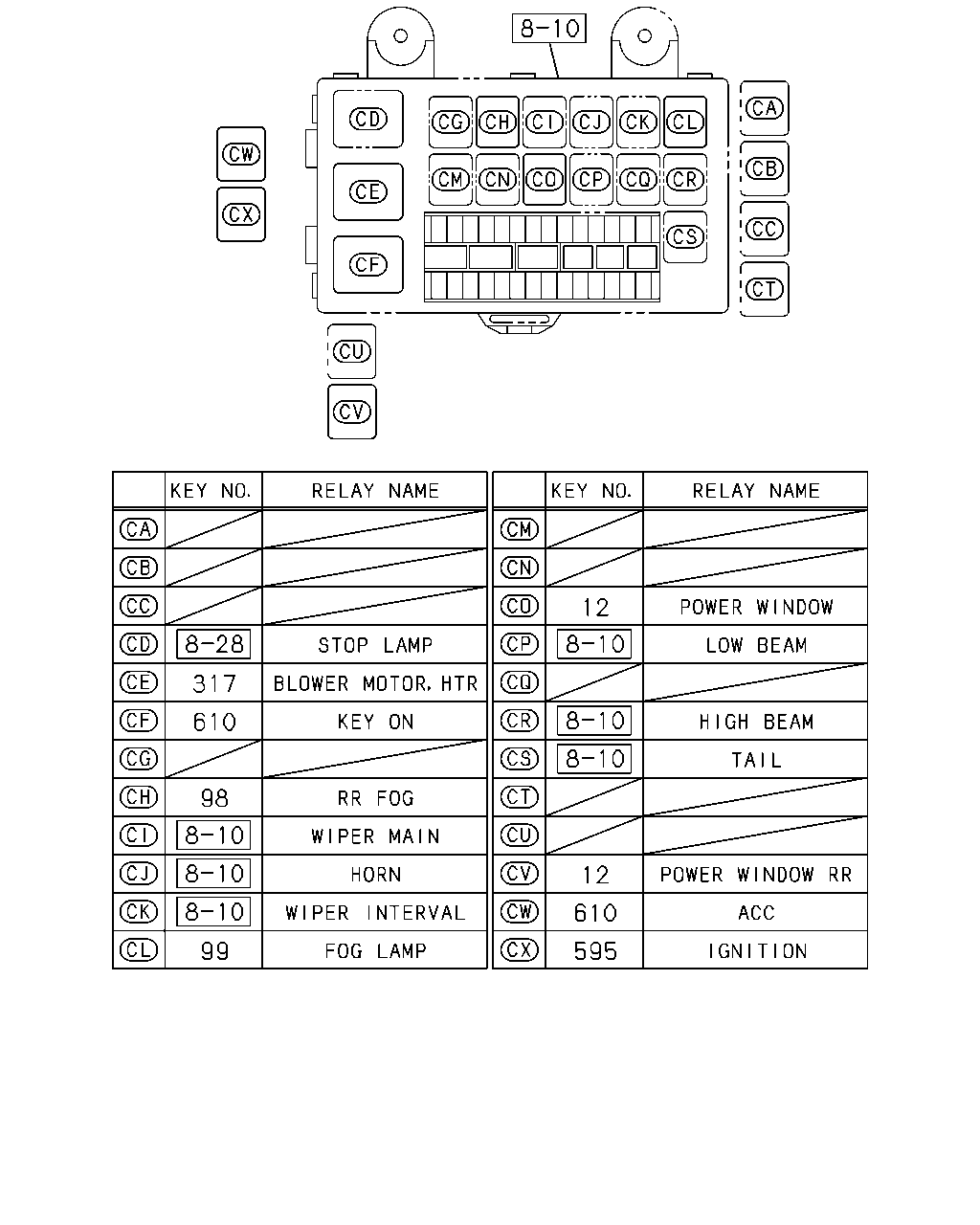

çizim 138339
317 610 98 99 595 610 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
98 RELAY; RR FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ●
595 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1204 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

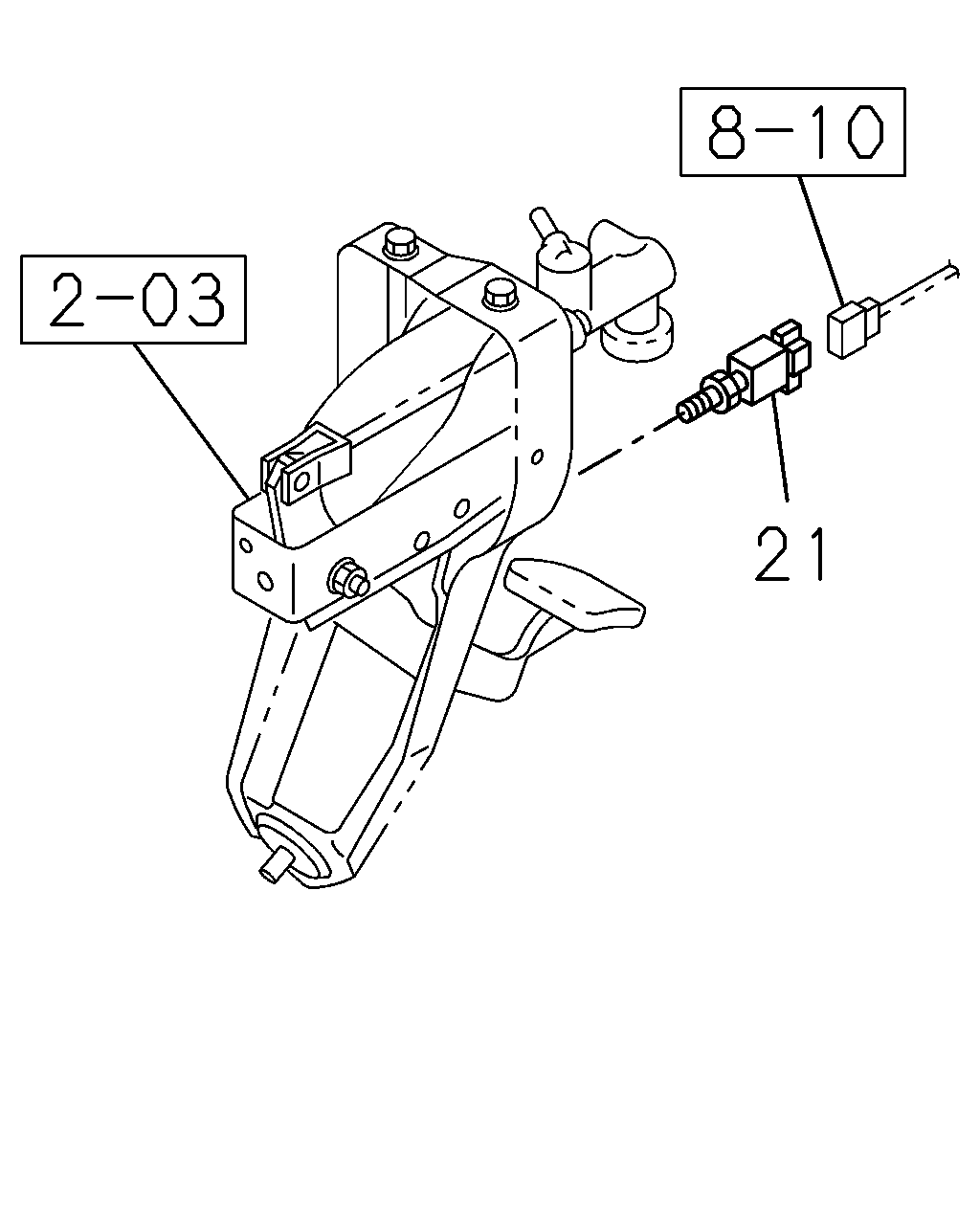

çizim 138395
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU 8-97358-248-0 01 1 1112- ● ●
çizim 138400
154 315 151
BalonParca AdiParca NoAdetTipApplied Date A B
151 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
315 RELAY; EXH BRAKE CONT
24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
çizim 183569
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1112- ● ●

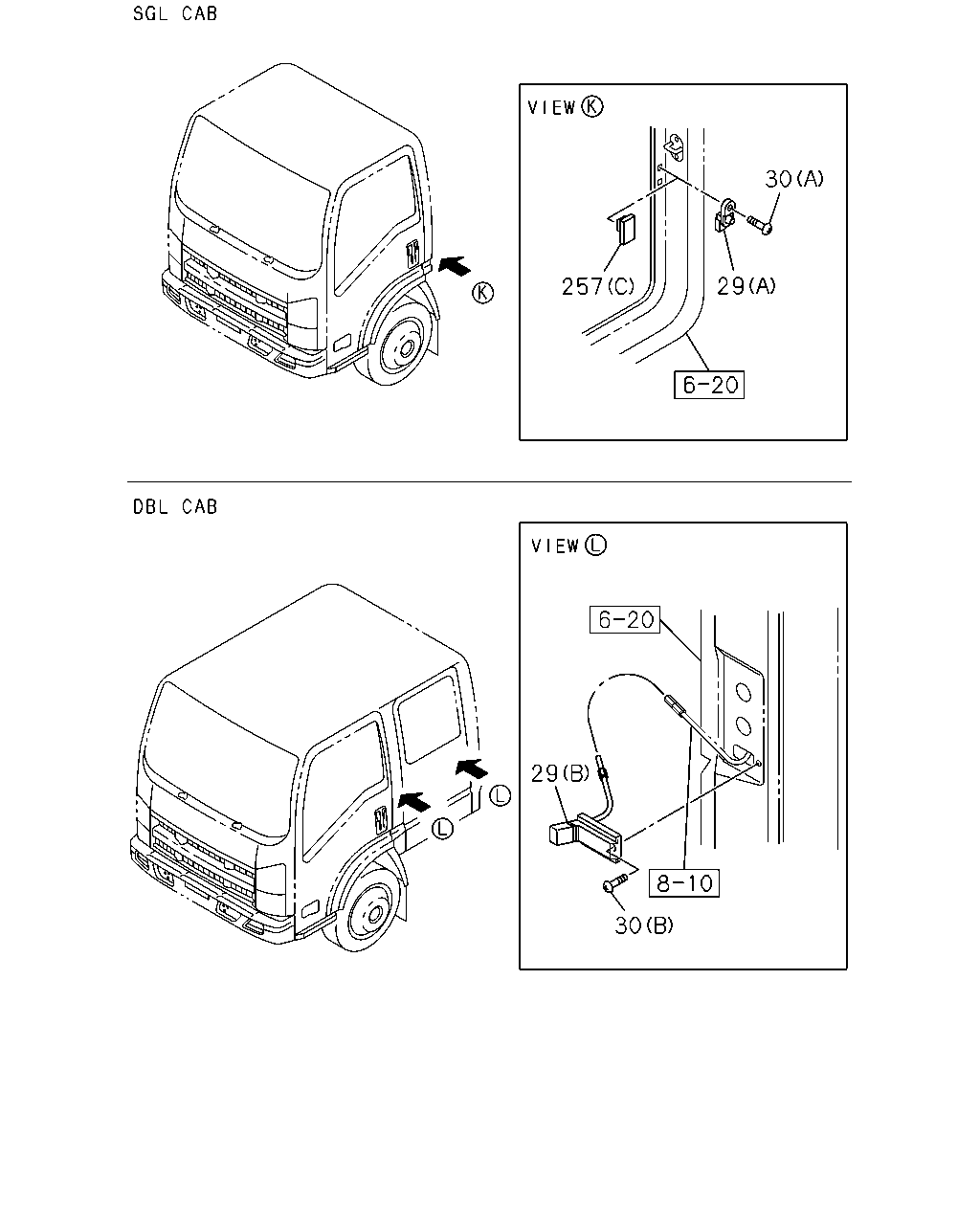

çizim 183573
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1112- ●
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1112- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1112- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1112- ●
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1112- ●
30 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1112- ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 01 1 1112- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1112- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1112- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112- ● ●
