8-15 — FIXING PARTS; WIRING HARNESS (#78609) — 160 parça

139 53 53 139 577 7 7 53 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

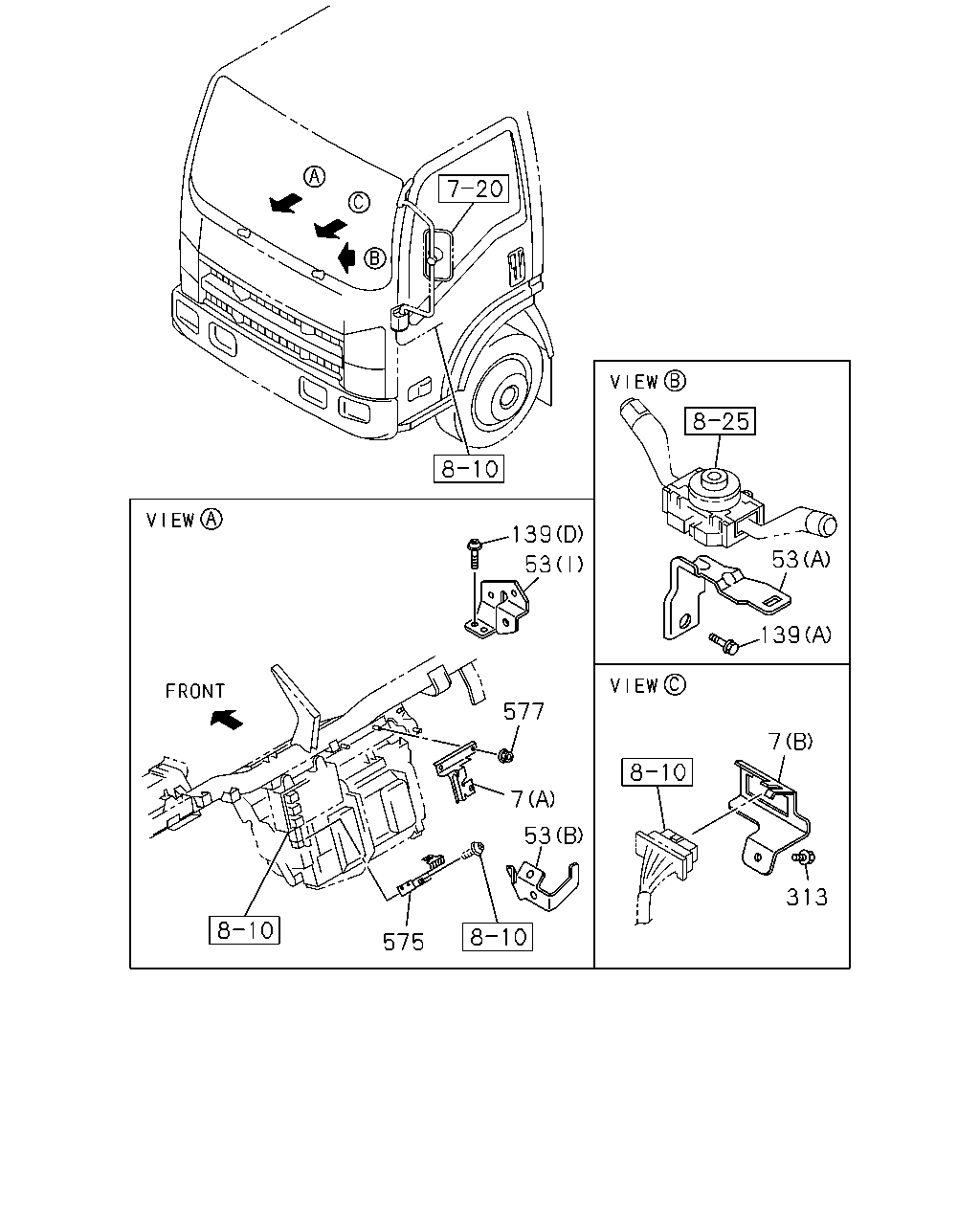

7	BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1112-	●	●
7	BRACKET; CONNECTOR (A)	8-98056-073-3	01	1	1112-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1112-	●	●
53	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (E)	8-98052-804-0	01	1	1112-	●	●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1112-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1112-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1112-	●	●
53	BRACKET; HARNESS (B)	8-98074-502-0	01	1	1112-	●	●
53	BRACKET; HARNESS (F)	8-98077-504-0	01	1	1112-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1112-	●	●
53	BRACKET; HARNESS (H)	8-98094-629-0	01	1	1112-1303	●	●
53	BRACKET; HARNESS (H)	8-98130-669-1	01	1	1304-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1112-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1112-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1112-	●	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1112-	●	●
575	BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1112-	●	●
575	BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1112-	●	●
577	NUT; FUSE BOX M6 FLANGE	0-91180-106-0	04	1	1112-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1112-	●	●
53	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (E)	8-98052-804-0	01	1	1112-	●	●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1112-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1112-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1112-	●	●
53	BRACKET; HARNESS (B)	8-98074-502-0	01	1	1112-	●	●
53	BRACKET; HARNESS (F)	8-98077-504-0	01	1	1112-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1112-	●	●
53	BRACKET; HARNESS (H)	8-98094-629-0	01	1	1112-1303	●	●
53	BRACKET; HARNESS (H)	8-98130-669-1	01	1	1304-	●	●

53 515 139 53 139 53 515 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

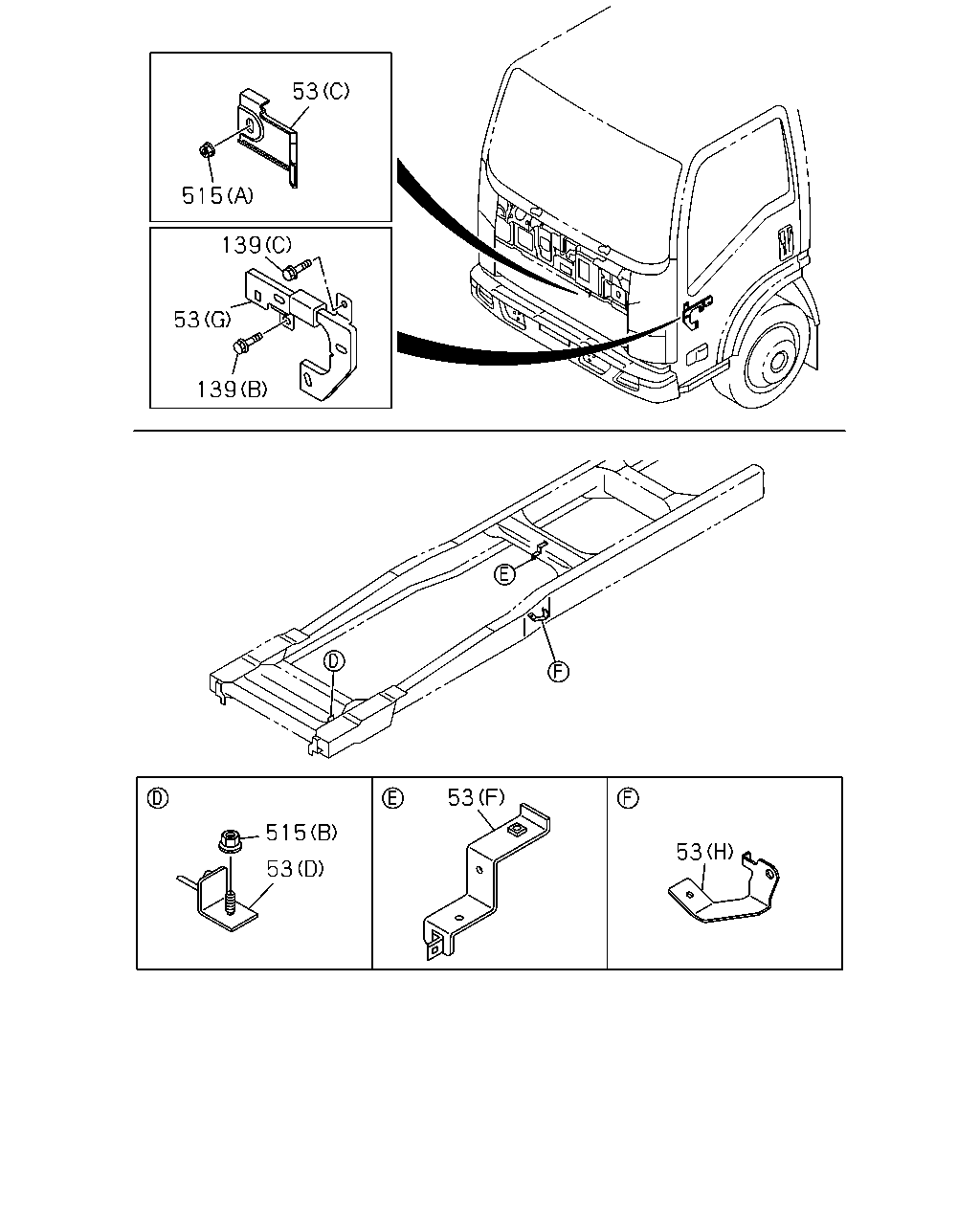

53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1112-	●	●

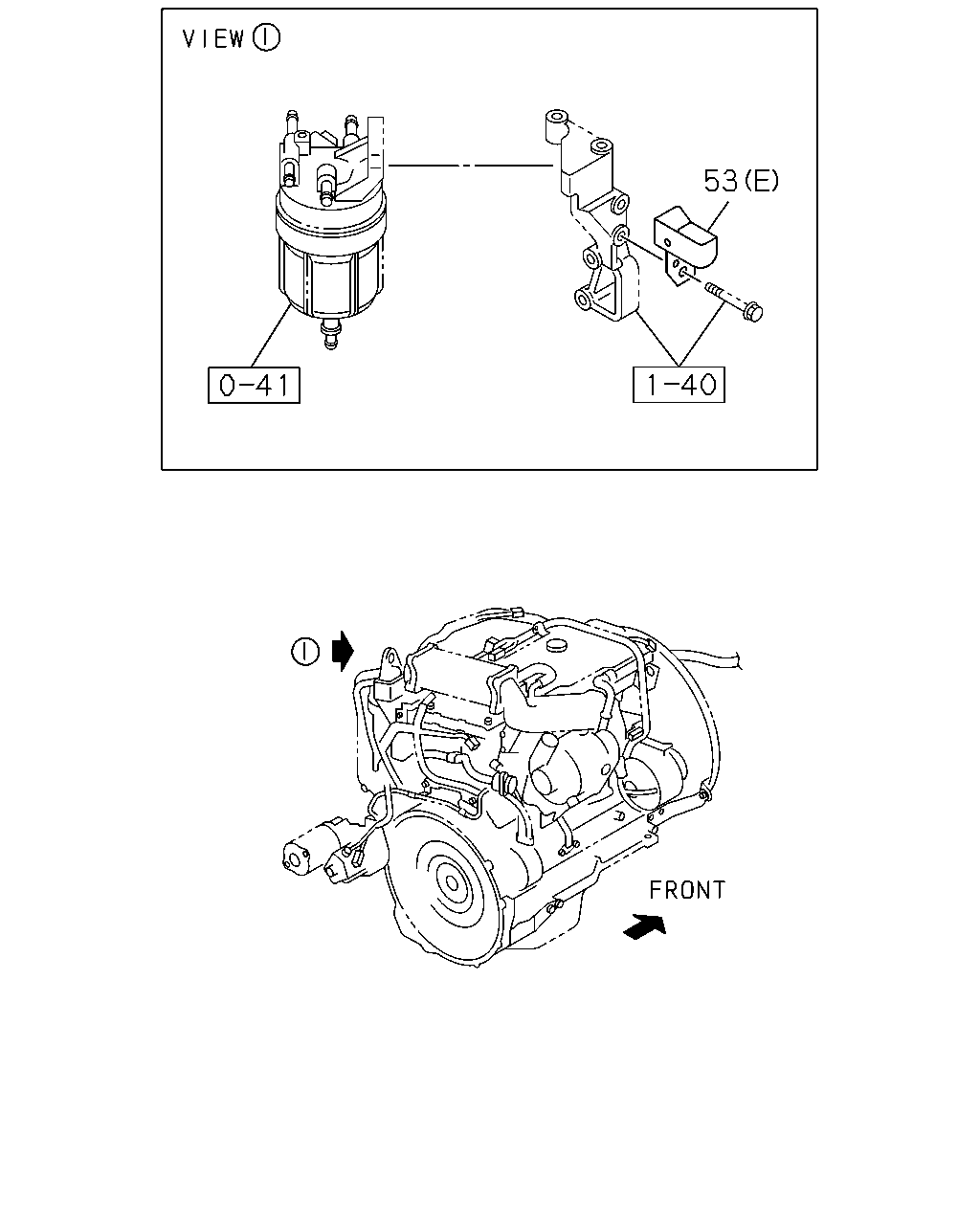

53	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (E)	8-98052-804-0	01	1	1112-	●	●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1112-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1112-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1112-	●	●
53	BRACKET; HARNESS (B)	8-98074-502-0	01	1	1112-	●	●
53	BRACKET; HARNESS (F)	8-98077-504-0	01	1	1112-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1112-	●	●
53	BRACKET; HARNESS (H)	8-98094-629-0	01	1	1112-1303	●	●
53	BRACKET; HARNESS (H)	8-98130-669-1	01	1	1304-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1112-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1112-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1112-	●	●
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	1112-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1112-	●	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●

516 150 139 313 139 139 150 480 480 529 480 377 377 386 386 24 515 577 294 515 552 24 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	01	1	1112-1409	●	●
24	NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
24	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1112-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1112-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1112-	●	●
150	BOLT; CLIP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) M6X10 FLANGE	0-28050-610-0	01	1	1112-	●	●
150	BOLT; CLIP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) M8X16 FLANGE	0-28050-816-0	04	1	1112-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1112-	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1112-	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1112-	●	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1112-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1112-	●	●
480	BOLT; BRKT FRONT WIDE TREAD<7GV> (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
480	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1112-	●	●
480	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1112-	●	●
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	1112-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1112-	●	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET IRA	8-98063-767-0	01	1	1112-	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER IRA	1-09030-094-0	03	1	1112-	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
577	NUT; FUSE BOX M6 FLANGE	0-91180-106-0	04	1	1112-	●	●

48 483 16 48 16 483 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

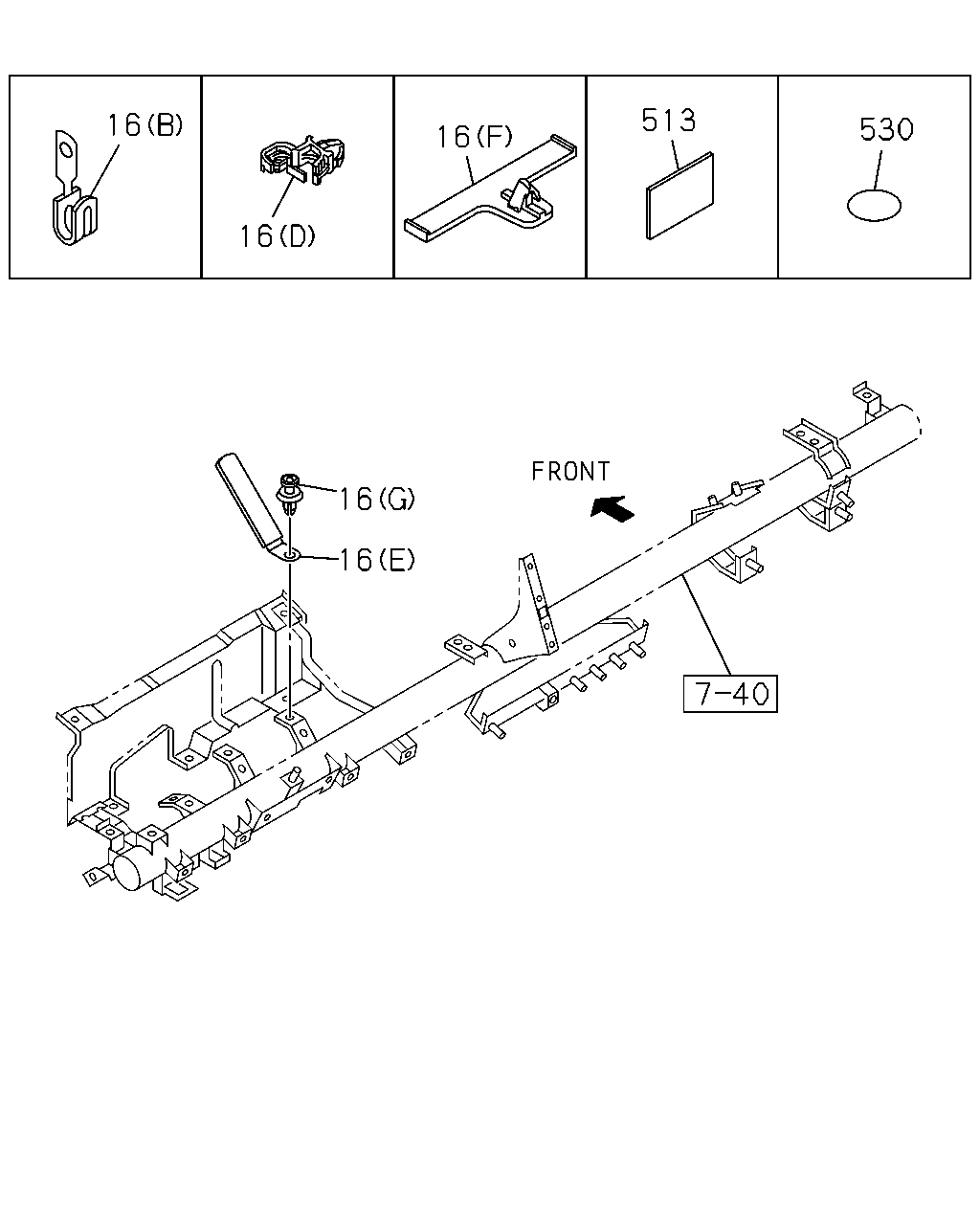

16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-94449-165-0	02	1	1112-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-97063-335-0	02	1	1112-		●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (I) L=112	8-94232-618-0	05	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	14	1	1112-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1112-	●	●
16	CLIP; HARNESS (B)	8-97101-436-0	01	1	1112-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1112-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1112-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1112-		●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1112-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1112-	●	●
16	CLIP; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) ID=10 & 16	8-94413-325-0	01	1	1112-1212	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1301-	●	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (H) L=250	5-09707-030-1	04	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1112-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) (B) ID=14 L=47	5-09700-319-0	03	1	1112-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) (B) ID=14 L=47	5-09700-319-0	04	1	1112-	●
48	CLIP; FRAME HARNESS (C) L=450	1-09707-142-1	01	1	1112-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (B) ID=14 L=47	5-09700-319-0	05	1	1112-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	1112-		●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	1112-	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) ID=19 L=60	0-95235-896-0	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12 L=70	1-09700-097-1	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (C) ID=24 L=24	1-09701-001-1	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (E) L=36	8-94224-891-1	04	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1112-	●	●

513 16 530 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-94449-165-0	02	1	1112-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-97063-335-0	02	1	1112-		●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (I) L=112	8-94232-618-0	05	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	14	1	1112-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1112-	●	●
16	CLIP; HARNESS (B)	8-97101-436-0	01	1	1112-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1112-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1112-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1112-		●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1112-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1112-	●	●
16	CLIP; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) ID=10 & 16	8-94413-325-0	01	1	1112-1212	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1301-	●	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (H) L=250	5-09707-030-1	04	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1112-		●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1112-1204	●	●
513	TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1205-	●	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1205-	●	●
513	TAPE; SOFT,HARNESS AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 100X40	1-72498-022-1	01	1	1112-		●
530	SEAL; HARNESS OD=32 BLACK	8-98031-126-0	01	1	1112-	●	●

483 483 102 16 102 16 22 483 16 48 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) L=150	8-97355-273-0	01	1	1112-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-94449-165-0	02	1	1112-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-97063-335-0	02	1	1112-		●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (I) L=112	8-94232-618-0	05	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	14	1	1112-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1112-	●	●
16	CLIP; HARNESS (B)	8-97101-436-0	01	1	1112-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1112-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1112-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1112-		●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1112-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1112-	●	●
16	CLIP; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) ID=10 & 16	8-94413-325-0	01	1	1112-1212	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1301-	●	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (H) L=250	5-09707-030-1	04	1	1112-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1112-		●
22	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1112-	●	●
22	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1112-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) (B) ID=14 L=47	5-09700-319-0	03	1	1112-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) (B) ID=14 L=47	5-09700-319-0	04	1	1112-	●
48	CLIP; FRAME HARNESS (C) L=450	1-09707-142-1	01	1	1112-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (B) ID=14 L=47	5-09700-319-0	05	1	1112-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	1112-		●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	1112-	●
102	CLIP; BAND GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) L=250	5-09707-030-1	01	1	1112-	●	●
102	CLIP; BAND GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=140	5-09707-031-1	04	1	1112-1202	●	●
102	CLIP; BAND GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=140	5-09707-031-1	02	1	1203-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) ID=19 L=60	0-95235-896-0	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12 L=70	1-09700-097-1	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (C) ID=24 L=24	1-09701-001-1	01	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (E) L=36	8-94224-891-1	04	1	1112-	●	●
483	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1112-	●	●

459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

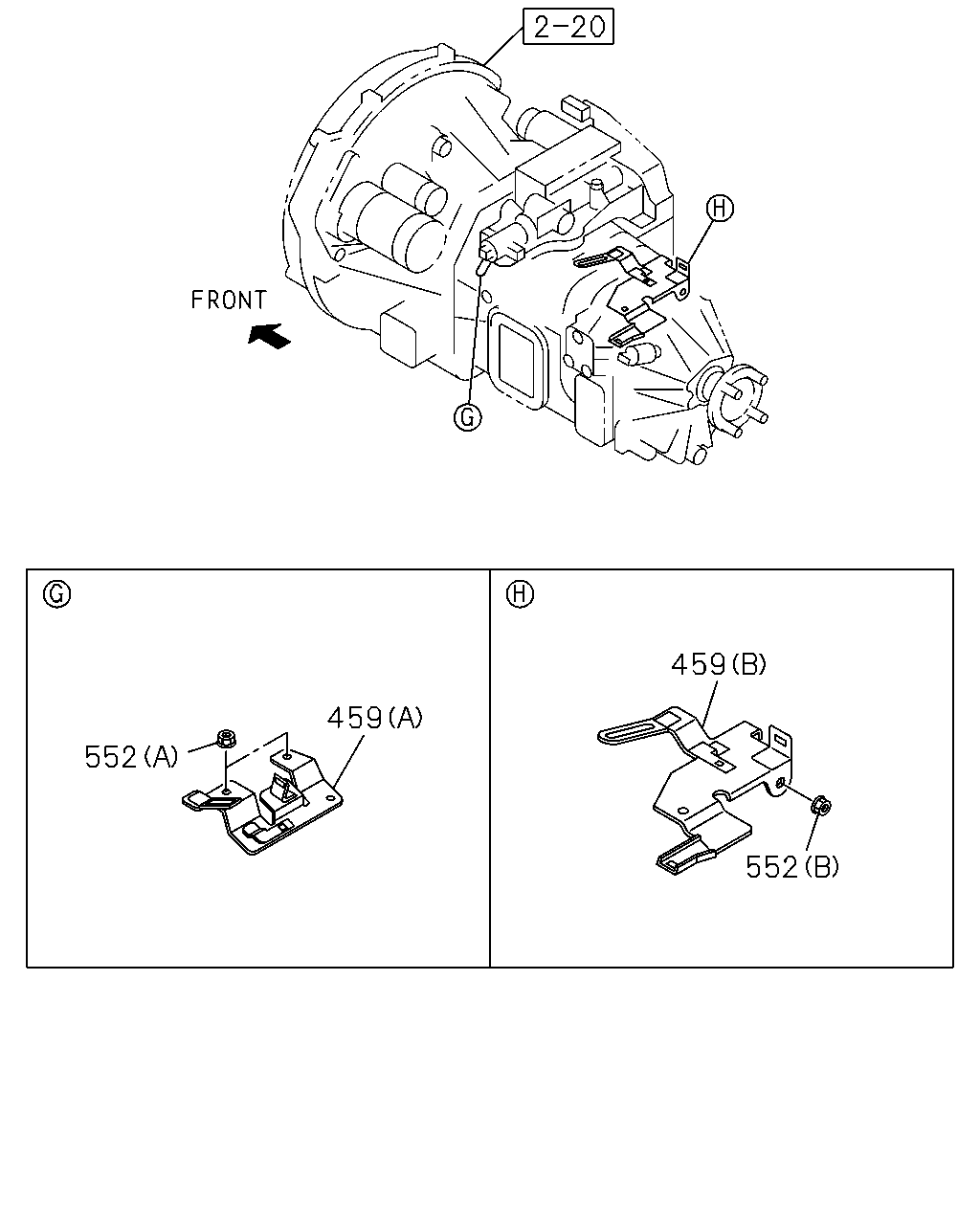

459	BRACKET; SUPPORT,HARNESS (A) IRA	8-98020-227-3	01	1	1112-	●	●
459	BRACKET; SUPPORT,HARNESS (B) IRA	8-98196-974-0	01	1	1112-	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1112-	●	●
