Sayfa 8-10 - Isuzu EPC

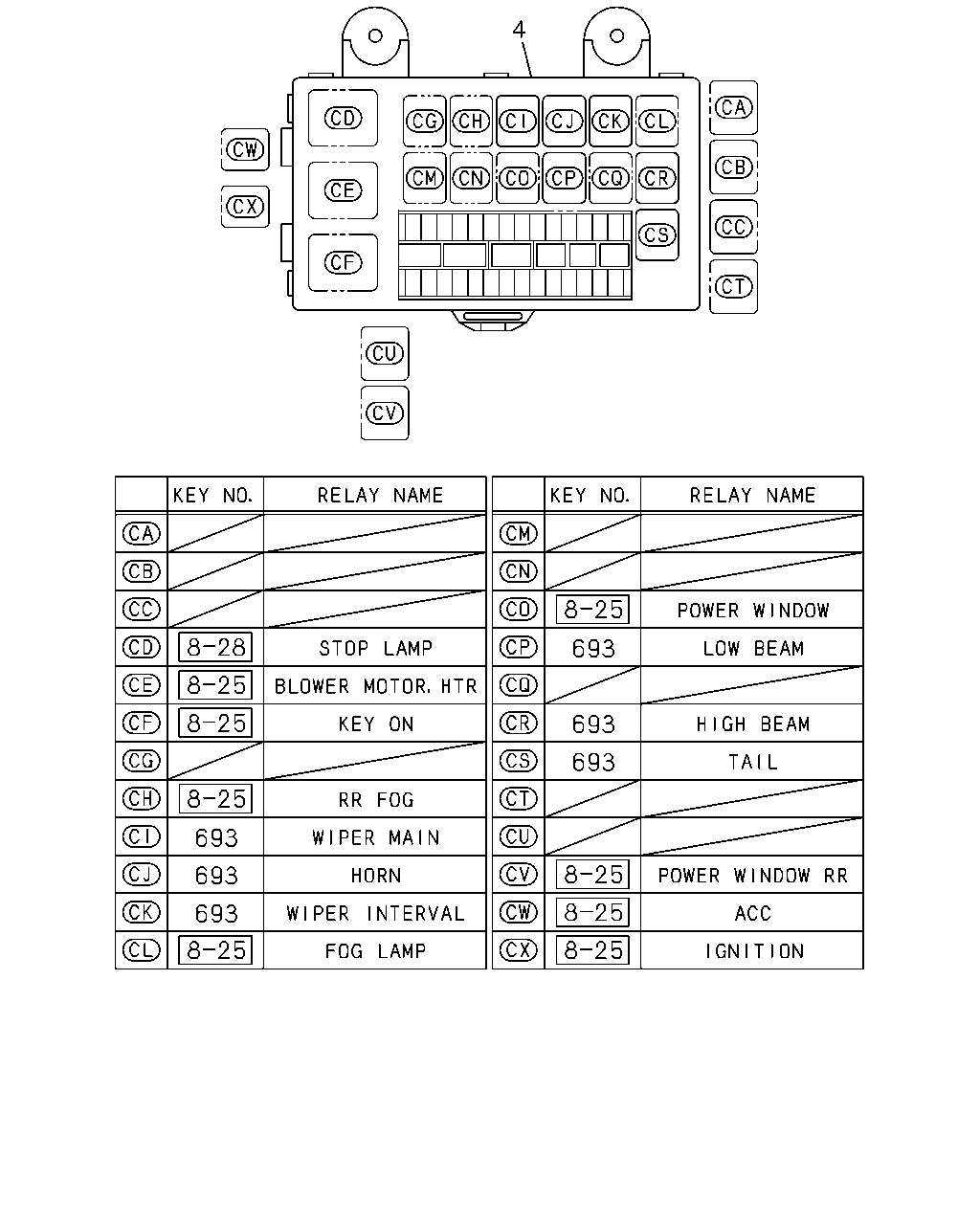

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1112-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1112-	●	●

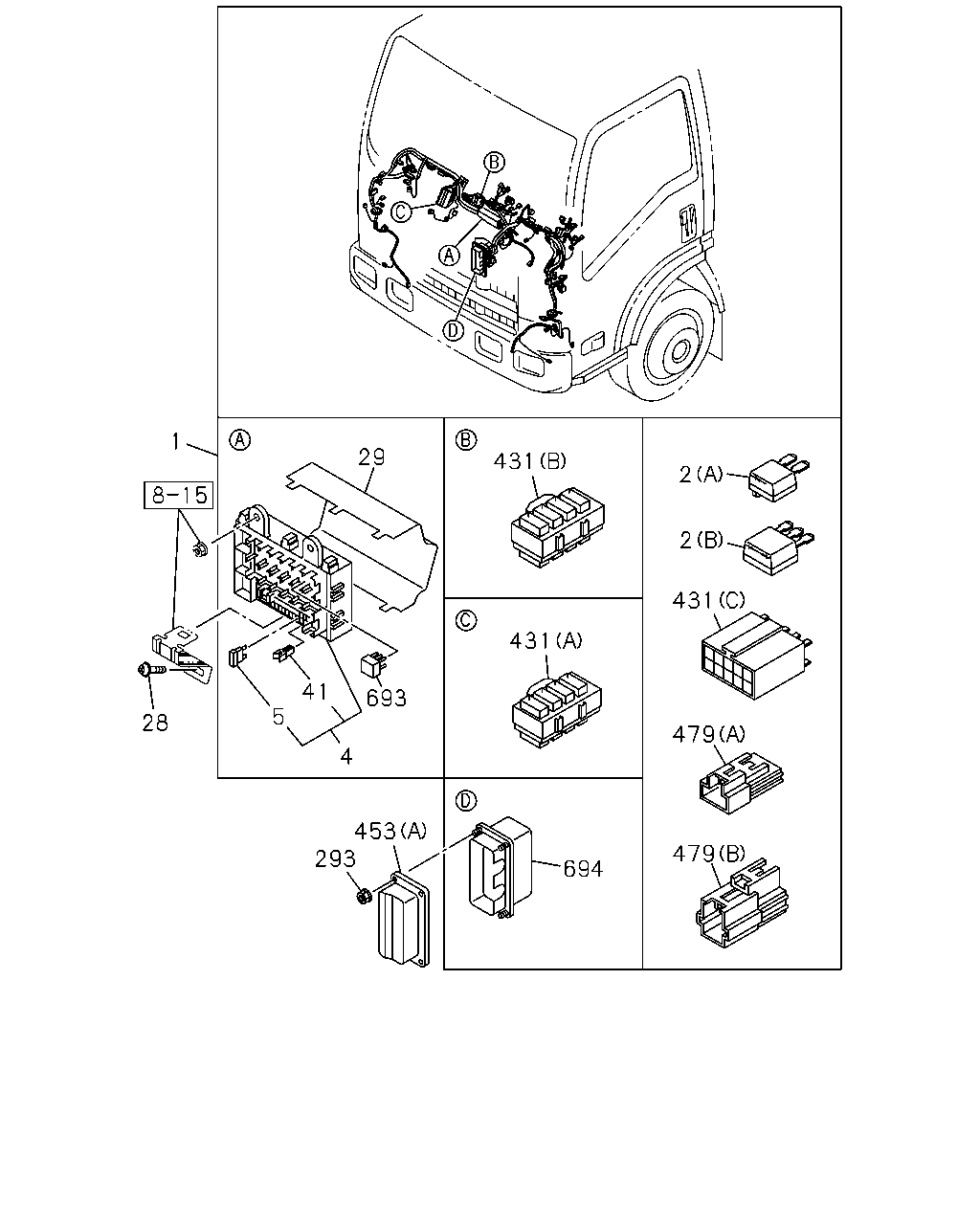

1 29 431 2 2 431 431 41 693 5 28 479 4 453 293 479 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> INTERMITTENT WIPER<C13>	8-98196-694-0	01	1	1112-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> INTERMITTENT WIPER<C13>	8-98212-000-0	01	1	1205-1212		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98212-000-0	01	1	1301-		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98196-693-0	01	1	1112-1204		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98211-999-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98196-692-0	01	1	1112-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98196-692-0	01	1	1112-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98204-669-0	01	1	1205-1212	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1205-1212		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-669-0	01	1	1301-1302	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1301-1302		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ)	8-98204-669-0	01	1	1303-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1303-		●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98196-691-0	01	1	1112-1204	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98196-691-0	01	1	1112-1204		●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-668-0	01	1	1205-1302	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98204-668-0	01	1	1205-1302		●
1	HARNESS; CAB HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-668-0	01	1	1303-	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98204-668-0	01	1	1303-		●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1112-	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1112-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1112-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1112-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1112-	●	●
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1112-1212	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1112-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1112-	●	●
293	NUT M6 FLANGE	0-91180-106-0	04	1	1112-	●	●
431	CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1112-1204	●	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1112-	●	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1112-	●	●
453	PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1112-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1112-	●	●
453	PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1112-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1112-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1112-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1112-	●	●
694	BOX ASM; CONNECTOR	8-98190-772-0	01	1	1112-	●	●

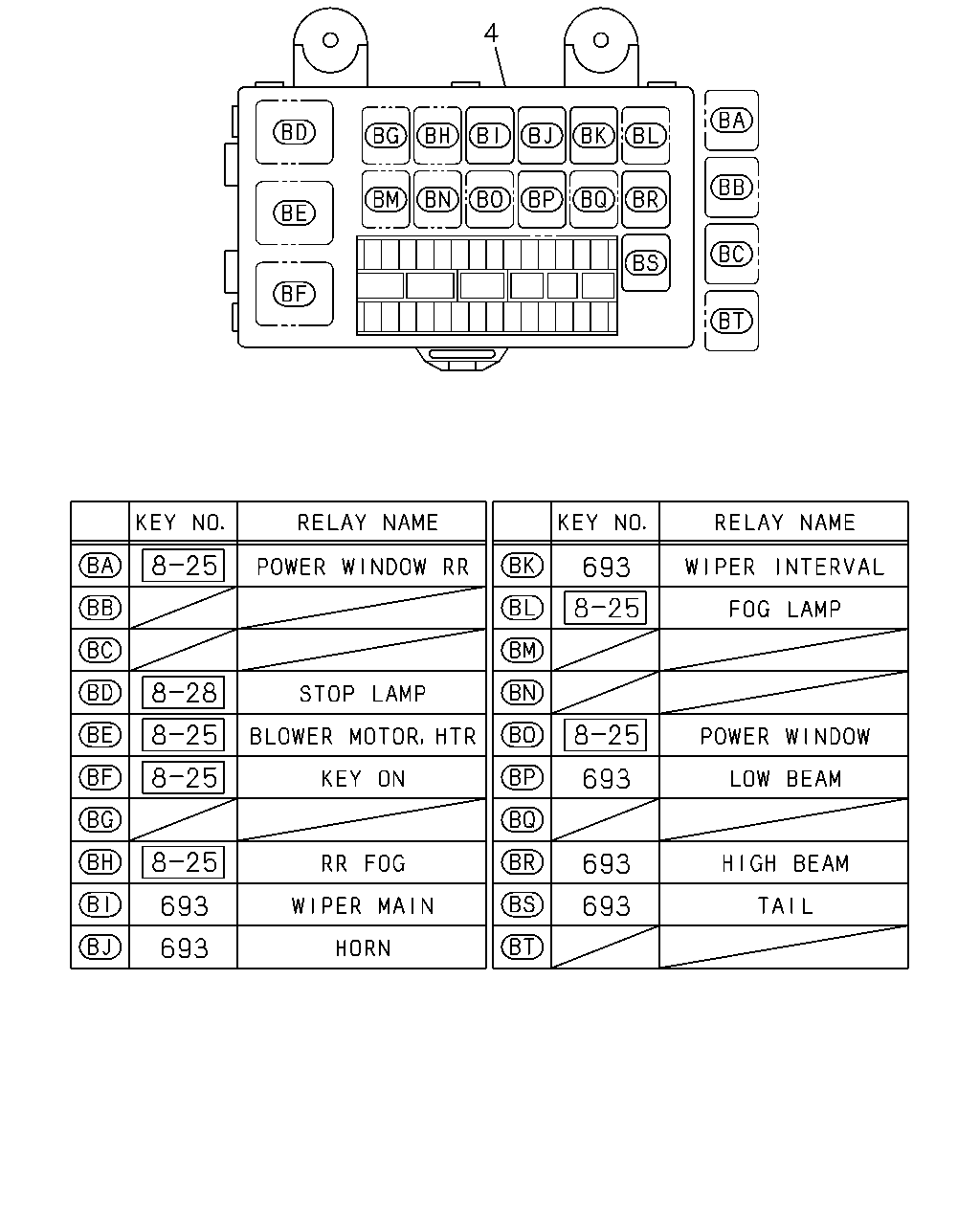

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1112-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1112-	●	●

626 8 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT	8-98117-620-3	01	1	1112-1409		●
8	HARNESS; FRAME,FRT	8-98294-282-0	01	1	1410-		●
8	HARNESS; FRAME,FRT	8-98070-301-8	01	1	1112-1208	●
8	HARNESS; FRAME,FRT	8-98070-304-9	01	1	1209-1301	●
8	HARNESS; FRAME,FRT	8-98225-714-0	01	1	1302-1409	●
8	HARNESS; FRAME,FRT	8-98294-292-0	01	1	1410-	●
189	HARNESS; EXT	8-98095-676-0	01	1	1112-		●
626	HARNESS; FLEX HOSE	8-97253-968-1	01	1	1112-	●	●
626	HARNESS; FLEX HOSE	8-97253-969-1	01	1	1112-	●	●

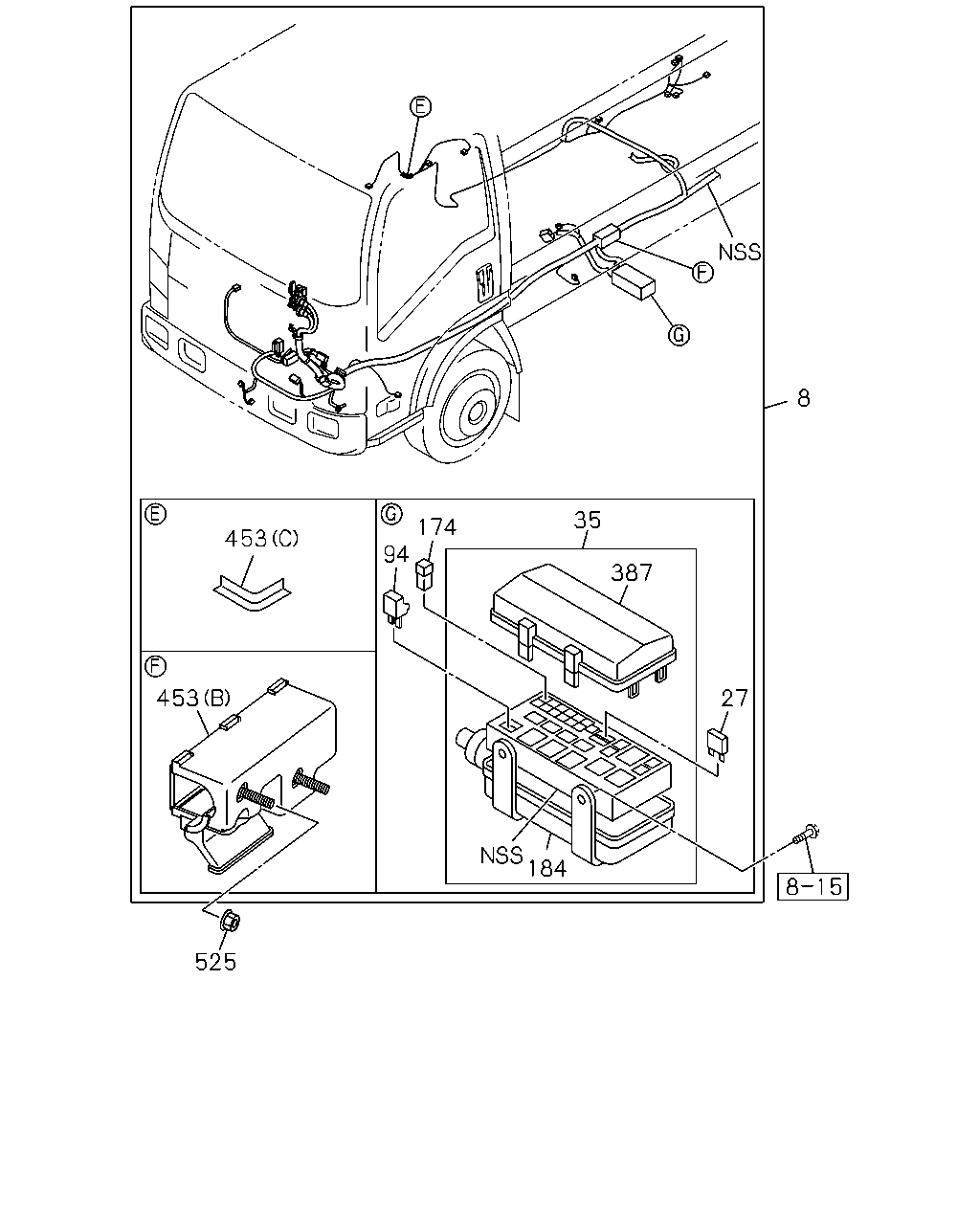

8 35 174 94 453 387 27 453 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT	8-98117-620-3	01	1	1112-1409		●
8	HARNESS; FRAME,FRT	8-98294-282-0	01	1	1410-		●
8	HARNESS; FRAME,FRT	8-98070-301-8	01	1	1112-1208	●
8	HARNESS; FRAME,FRT	8-98070-304-9	01	1	1209-1301	●
8	HARNESS; FRAME,FRT	8-98225-714-0	01	1	1302-1409	●
8	HARNESS; FRAME,FRT	8-98294-292-0	01	1	1410-	●
27	FUSE UNIT 10A RED	8-98054-257-0	AR	1	1112-	●	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	1112-	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1112-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1112-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1112-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1112-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1112-	●	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1112-	●	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	1112-	●	●
453	PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1112-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1112-	●	●
453	PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1112-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1112-	●	●

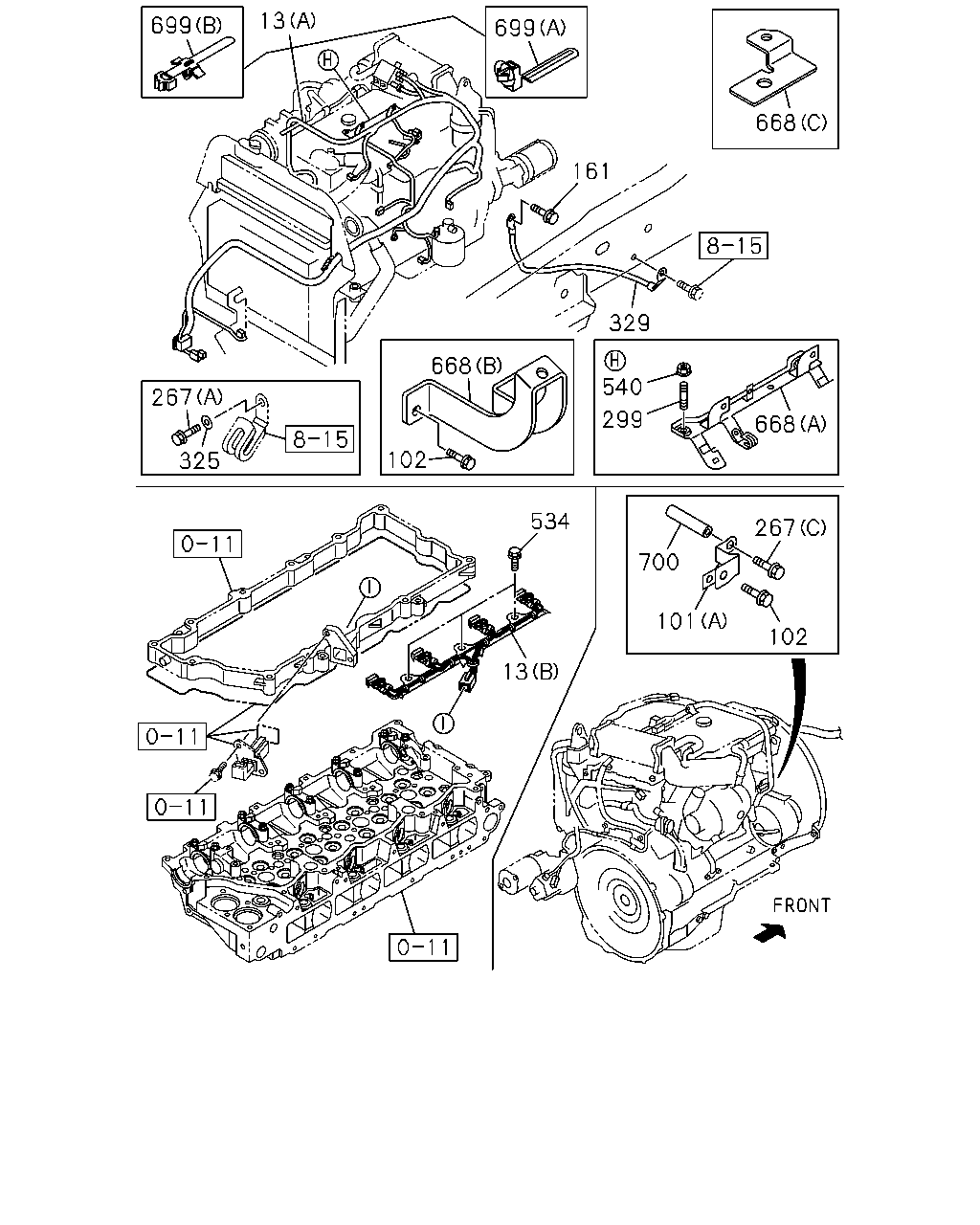

13 699 668 161 329 668 102 267 325 540 299 668 267 102 700 101 534 13 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98178-534-0	01	1	1112-1202	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1203-	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98171-638-0	01	1	1112-	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98178-535-0	01	1	1112-1202	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1203-	●	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1112-	●	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98094-483-1	01	1	1112-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M10X16 FLANGE	0-28151-016-0	02	1	1112-	●	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE	0-28050-816-0	01	1	1112-	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M10X120 FLANGE IRA	0-28156-012-0	01	1	1112-	●	●
267	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	02	1	1112-	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
299	STUD; BRKT GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M6X18 L=27	0-41010-618-0	02	1	1112-1202	●	●
325	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18	0-91610-608-0	01	1	1112-	●	●
329	CABLE; ENG TO FRAME IRA	8-98102-465-0	01	1	1112-	●	●
534	BOLT GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M10X55 FLANGE	8-97365-449-0	03	1	1112-	●	●
540	NUT; BRKT FIX GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M6 FLANGE	0-91180-106-0	02	1	1112-1202	●	●
668	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98011-484-0	01	1	1112-	●	●
668	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)	8-98061-805-2	01	1	1112-1202	●	●
668	BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (C)	8-98205-089-0	01	1	1203-	●	●
699	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) L=213.5	8-98000-506-1	01	1	1112-	●	●
699	CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=146.2	8-98052-677-0	01	1	1112-	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1112-	●	●

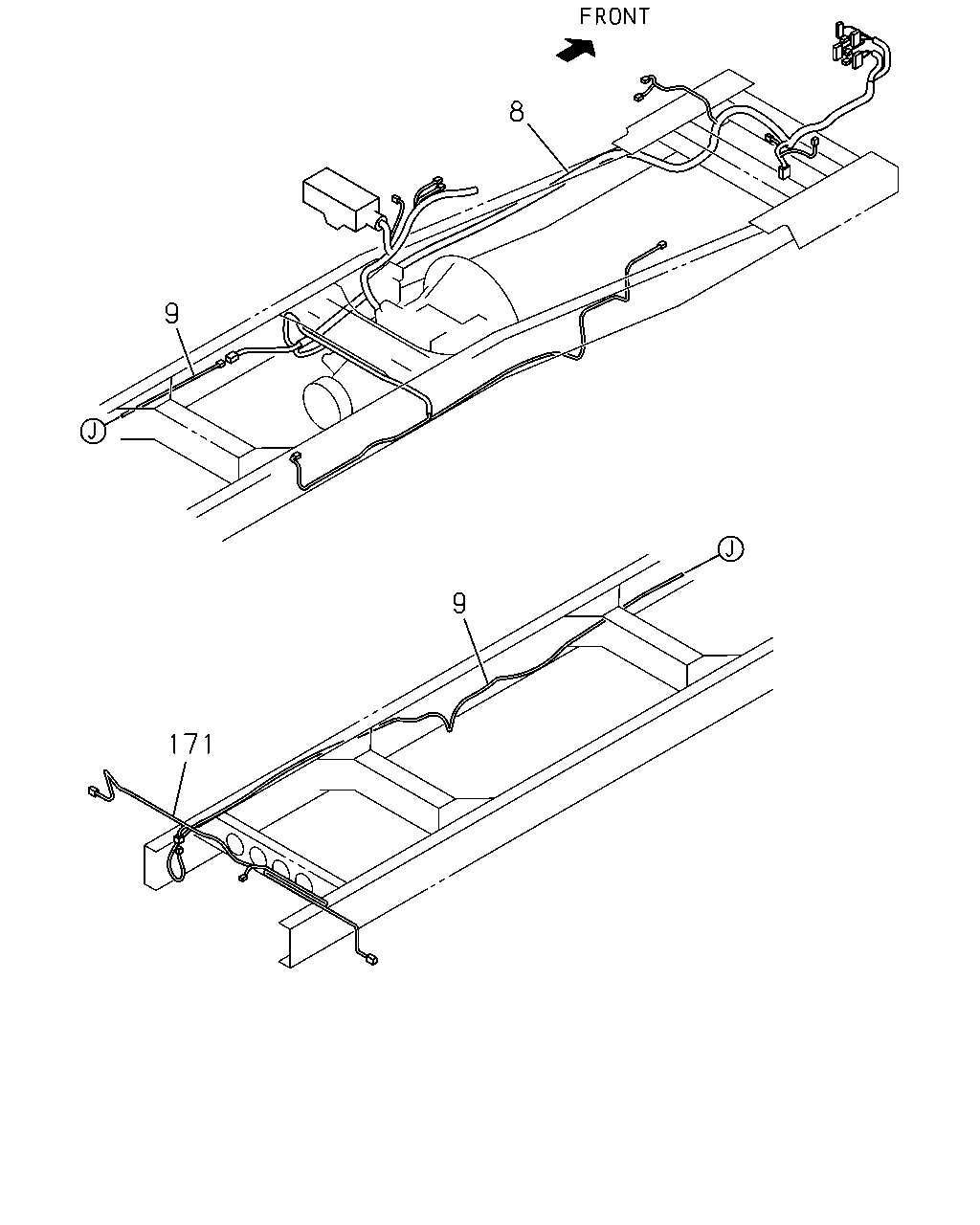

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT	8-98117-620-3	01	1	1112-1409		●
8	HARNESS; FRAME,FRT	8-98294-282-0	01	1	1410-		●
8	HARNESS; FRAME,FRT	8-98070-301-8	01	1	1112-1208	●
8	HARNESS; FRAME,FRT	8-98070-304-9	01	1	1209-1301	●
8	HARNESS; FRAME,FRT	8-98225-714-0	01	1	1302-1409	●
8	HARNESS; FRAME,FRT	8-98294-292-0	01	1	1410-	●
9	HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98117-259-0	01	1	1112-	●
9	HARNESS; FRAME,RR	8-98117-257-0	01	1	1112-		●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-254-0	01	1	1112-	●
171	HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1112-	●	●

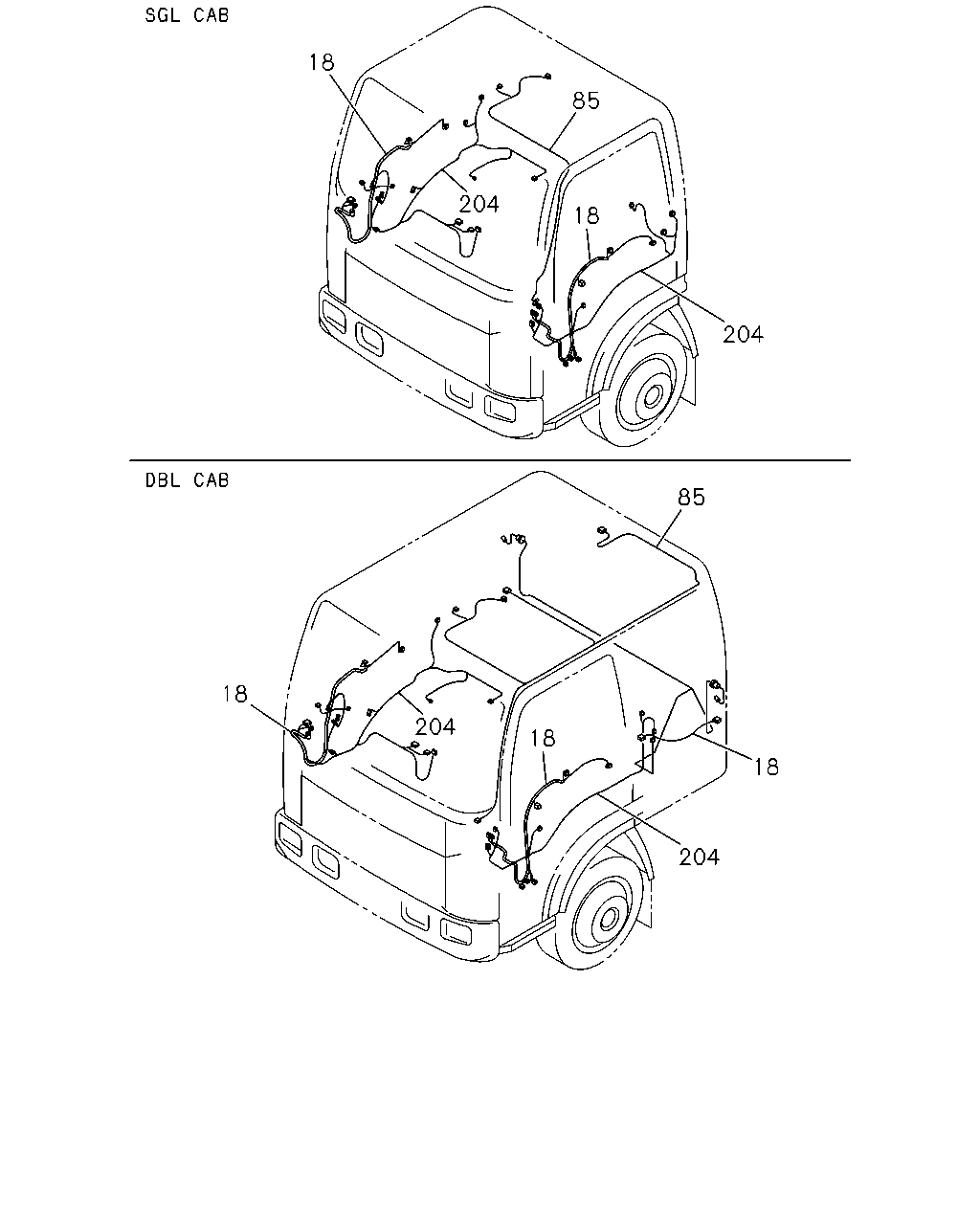

18 85 204 18 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-079-2	01	1	1112-	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-079-2	01	1	1112-		●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-087-2	01	1	1112-	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-087-2	01	1	1112-		●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98056-047-1	02	1	1112-1203		●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1204-		●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-080-3	01	1	1112-	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-080-3	01	1	1112-		●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-088-3	01	1	1112-	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-088-3	01	1	1112-		●
85	HARNESS; ROOM LAMP	8-98071-098-2	01	1	1112-		●
85	HARNESS; ROOM LAMP	8-98071-096-2	01	1	1112-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-805-5	01	1	1112-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98071-074-3	01	1	1112-		●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-804-5	01	1	1112-		●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-073-3	01	1	1112-		●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-803-5	01	1	1112-		●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98071-072-3	01	1	1112-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	1112-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98071-071-3	01	1	1112-	●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-799-5	01	1	1112-	●

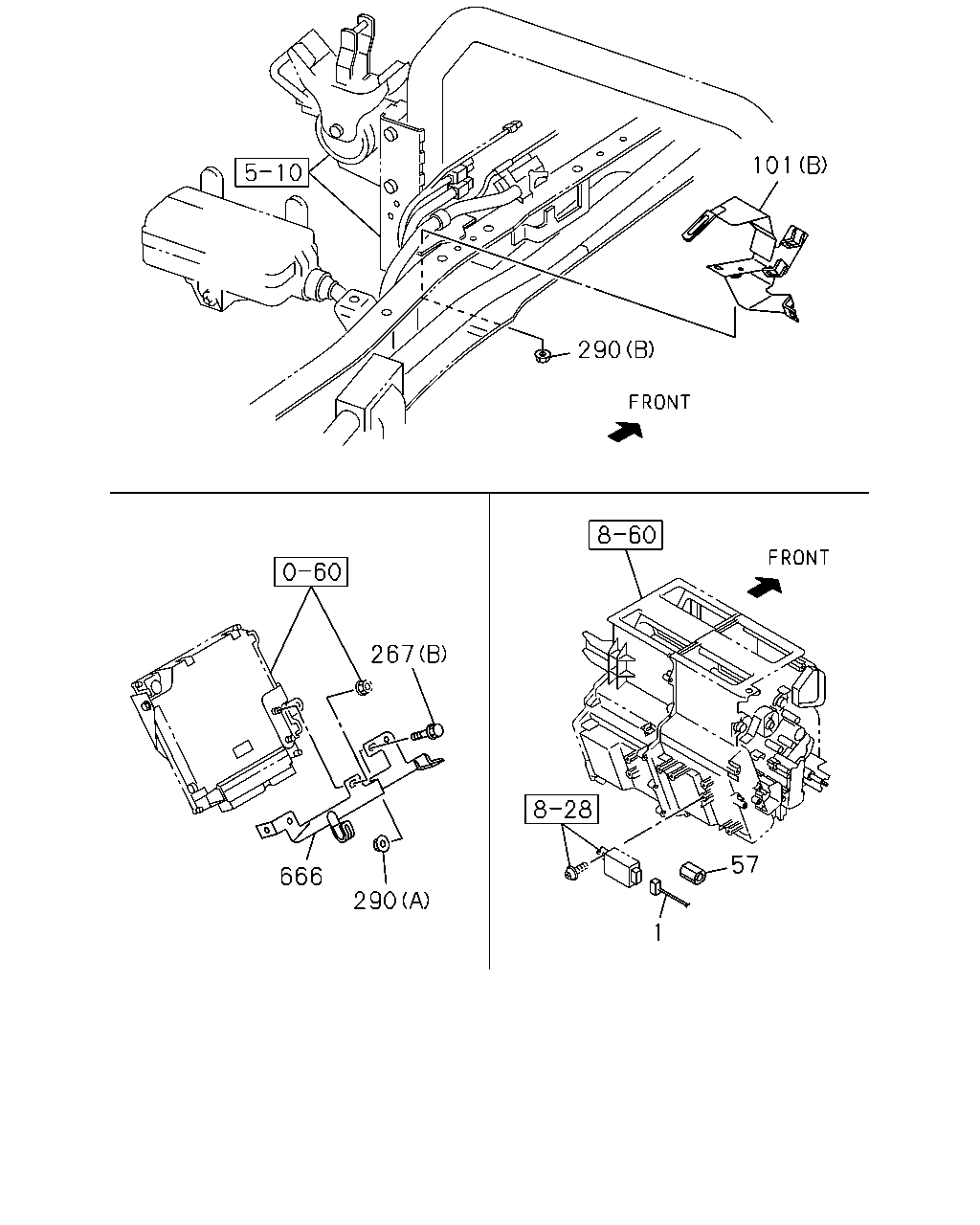

101 290 267 57 666 290 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> INTERMITTENT WIPER<C13>	8-98196-694-0	01	1	1112-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> INTERMITTENT WIPER<C13>	8-98212-000-0	01	1	1205-1212		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98212-000-0	01	1	1301-		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98196-693-0	01	1	1112-1204		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98211-999-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98196-692-0	01	1	1112-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98196-692-0	01	1	1112-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98204-669-0	01	1	1205-1212	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1205-1212		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-669-0	01	1	1301-1302	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1301-1302		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ)	8-98204-669-0	01	1	1303-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98204-669-0	01	1	1303-		●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98196-691-0	01	1	1112-1204	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98196-691-0	01	1	1112-1204		●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-668-0	01	1	1205-1302	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98204-668-0	01	1	1205-1302		●
1	HARNESS; CAB HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-668-0	01	1	1303-	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98204-668-0	01	1	1303-		●
57	FILTER; FUSE BOX	8-98211-338-0	01	1	1205-	●	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1112-	●	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98094-483-1	01	1	1112-	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M10X120 FLANGE IRA	0-28156-012-0	01	1	1112-	●	●
267	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	02	1	1112-	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
290	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
290	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1112-	●	●
666	BRACKET; CLIP	8-98110-213-0	01	1	1112-	●	●

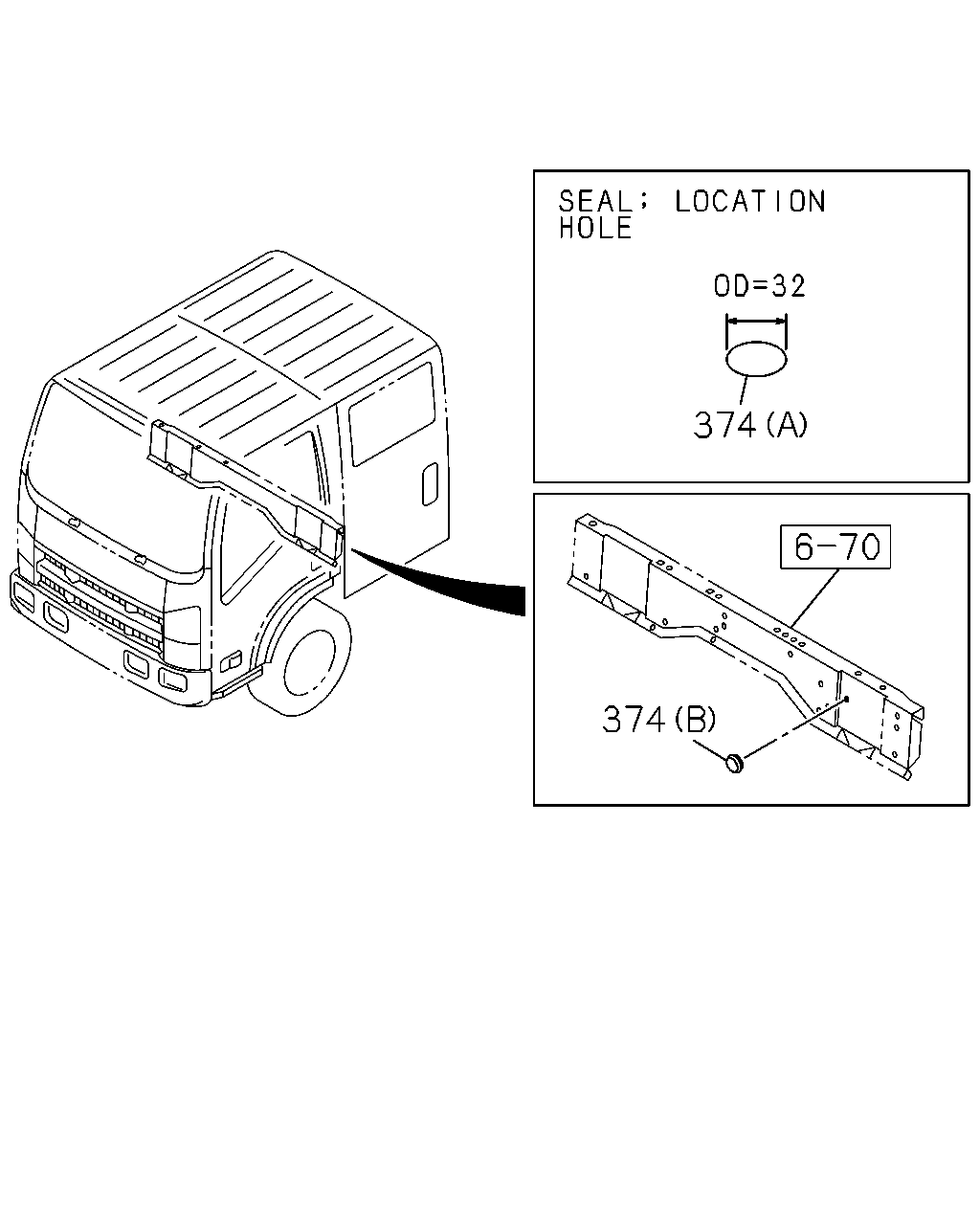

374 374

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1112-		●
	374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) OD=32 BLACK	8-98031-126-0	01	1	1112-	●
