8-03 — LAMP; REAR AND REAR SIDE (#78606) — 43 parça

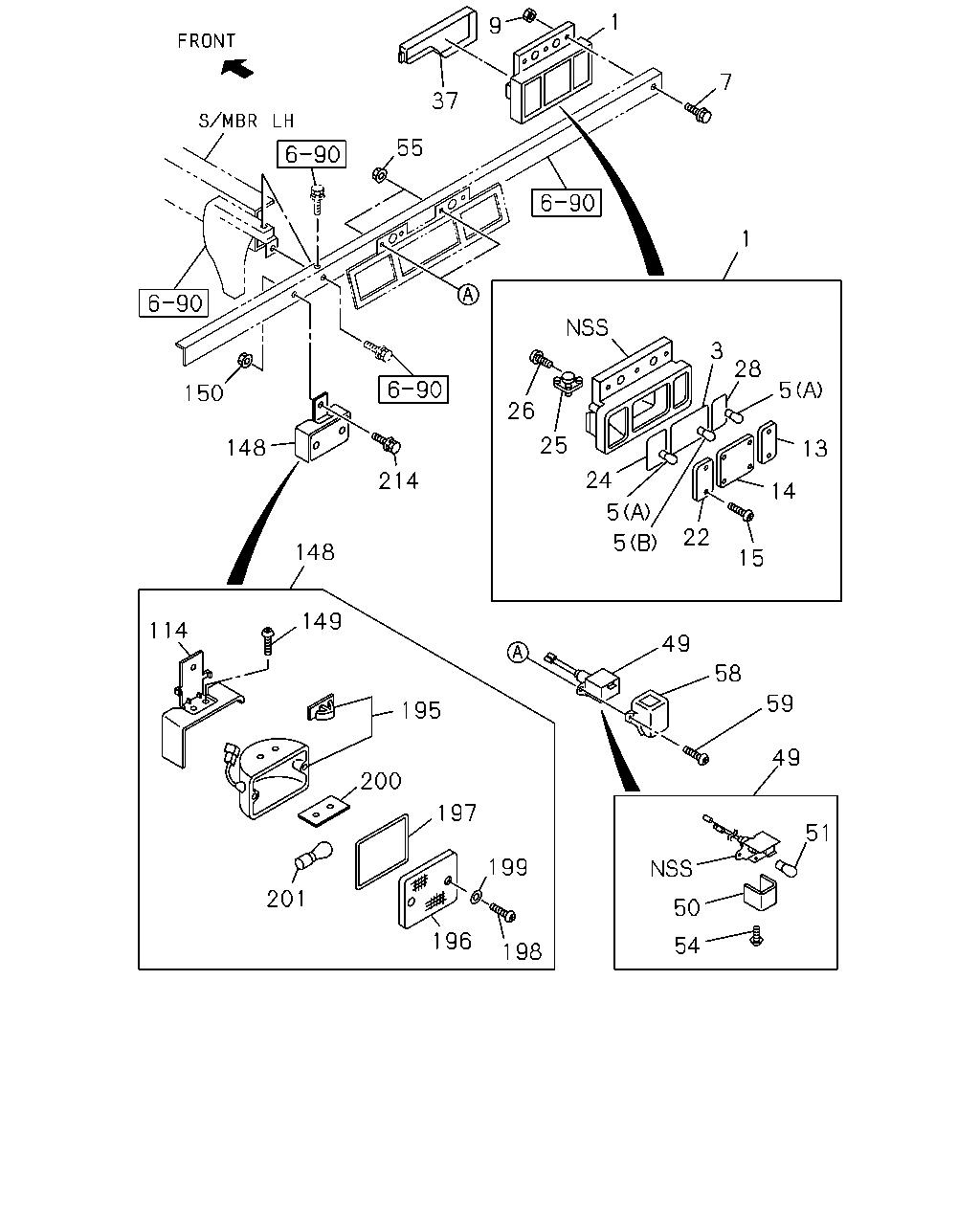

çizim 136003
1 9 7 37 55 1 3 28 5 150 26 25 148 13 24 214 14 5 22 5 148 15 149 114 49 58 59 195 49 200 197 51 199 201 50 196 54 198
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98002-164-0 01 1 1112- ● ●
1 LAMP ASM; RR COMB 8-98002-165-0 01 1 1112- ● ●
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98002-166-0 01 1 1112- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1112- ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 1112- ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 1112- ●
7 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 06 1 1112- ● ●
9 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED<RS6> M6 FLANGE 		5-09440-004-0 06 1 1112- ●
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 06 1 1112- ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1112- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1112- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1112- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1112- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1112- ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1112- ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1112- ●
25 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 1112- ● ●
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1112- ● ●
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1112- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1112- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1112- ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1112- ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1112- ● ●
49 LAMP; LICENSE PLATE
24V 5W IRA 		8-97105-380-0 02 1 1112-1509 ● ●
49 LAMP; LICENSE PLATE
24V 5W IRA 		8-98329-430-0 02 1 1510- ● ●
50 LENS; LICENSE PLATE LAMP
IRA 		8-97108-212-0 02 1 1112- ● ●
51 BULB; LICENSE PLATE LAMP
24V 5W IRA 		1-82194-039-0 02 1 1112- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1112- ● ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 04 1 1112- ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1112- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1112- ● ●
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1112- ● ●
148 LAMP ASM; RR FOG 8-97181-002-0 01 1 1112- ● ●
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1112- ● ●
150 NUT; RR FOG LAMP
M6 FLANGE 		5-09440-004-0 01 1 1112- ● ●
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1112- ● ●
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1112- ● ●
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1112- ● ●
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1112- ● ●
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1112- ● ●
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1112- ● ●
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1112- ● ●
214 BOLT; RR FOG LAMP
M6X20 FLANGE 		0-28650-620-0 01 1 1112- ● ●
