7-50 — FRONT SEAT (#78602) — 113 parça

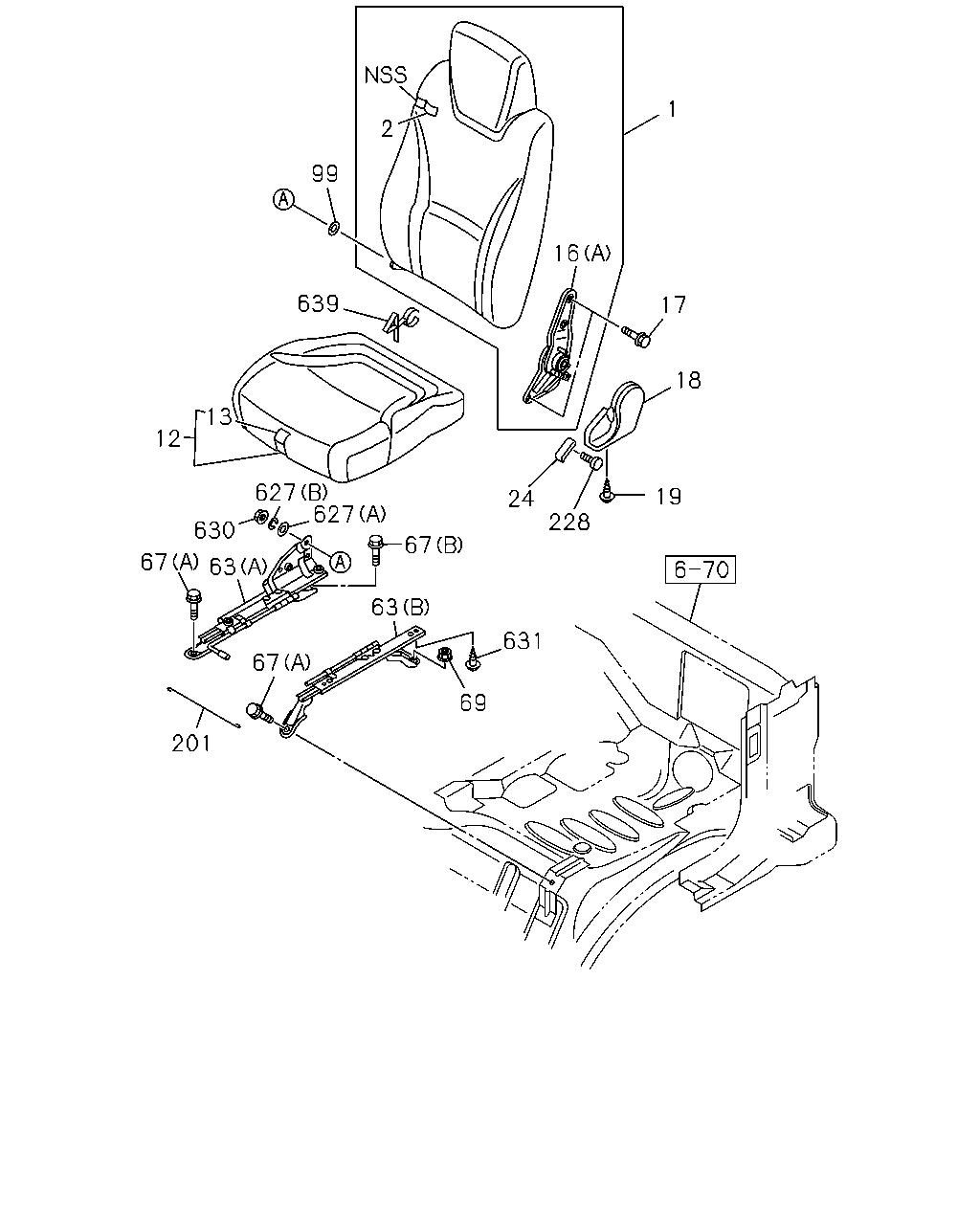

1 2 99 16 639 17 18 13 12 627 627 19 24 228 630 67 67 63 63 631 67 69 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-160-7	01	1	1112-	●	●
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-155-5	01	1	1112-	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-237-1	01	1	1112-	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IRA	8-97421-236-1	01	1	1112-	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-038-2	01	1	1112-	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-152-2	01	1	1112-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-256-0	01	1	1112-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-255-0	01	1	1112-	●	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-165-0	01	1	1112-	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-165-0	01	1	1112-		●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	1112-	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	1112-		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1112-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-250-1	01	1	1112-		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1112-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1112-		●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-3	01	1	1112-	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-3	01	1	1112-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1112-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY IRA	8-97421-242-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-166-0	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-166-0	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-270-1	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY IRA	8-97421-261-1	01	1	1112-	●
16	ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1112-	●	●
16	ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1112-	●	●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1112-	●	●
17	BOLT; RECLINING M10X20	8-98062-661-0	04	1	1112-	●	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1112-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	1112-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1112-	●	●
63	ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1112-	●	●
63	ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1112-	●	●
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1112-	●	●
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1112-	●	●
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1112-	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1112-	●	●
201	CABLE; ADJ	8-98003-086-1	01	1	1112-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1112-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1112-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1112-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	1112-	●	●
631	BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	1112-	●	●
631	BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	1112-	●	●
639	CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1112-	●
639	CLIP; SEAT	8-98097-693-0	01	1	1112-		●

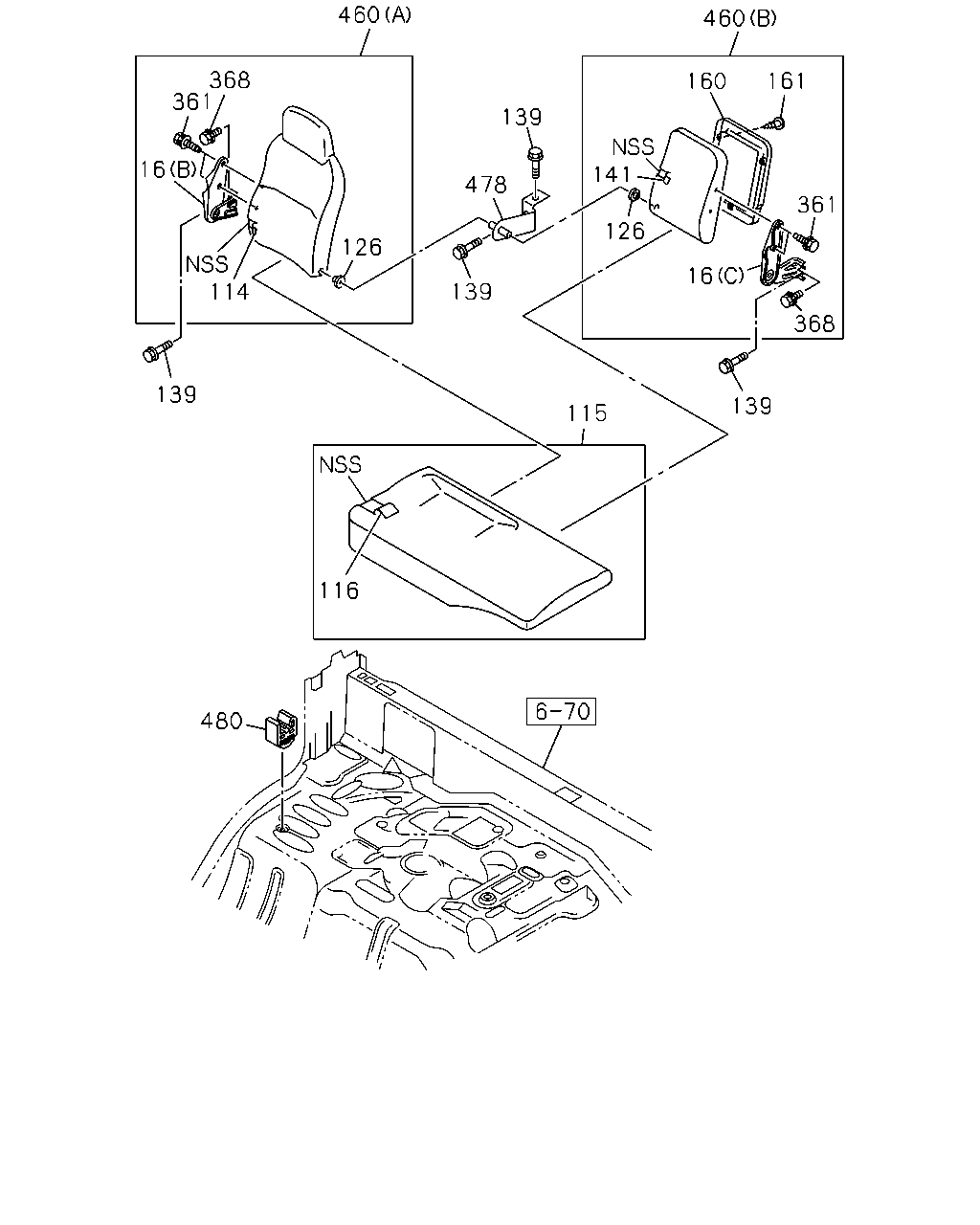

460 460 368 361 161 160 139 141 16 478 361 126 126 114 16 13 368 139 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-166-0	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-166-0	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-270-1	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1112-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1112-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY IRA	8-97421-261-1	01	1	1112-	●
16	ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1112-	●	●
16	ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1112-	●	●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1112-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-169-1	01	1	1112-	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97414-169-1	01	1	1112-		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-295-0	01	1	1112-	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-295-0	01	1	1112-		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-724-0	01	1	1112-	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1112-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-537-5	01	1	1112-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97411-537-5	01	1	1112-		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-327-2	01	1	1112-	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-327-2	01	1	1112-		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-709-2	01	1	1112-	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY IRA	8-97421-326-2	01	1	1112-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-168-3	01	1	1112-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97414-168-3	01	1	1112-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-347-1	01	1	1112-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-347-1	01	1	1112-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-738-1	01	1	1112-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY IRA	8-97421-346-1	01	1	1112-	●
126	BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1112-	●	●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1112-	●	●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-171-2	01	1	1112-	●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97414-171-2	01	1	1112-		●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-307-1	01	1	1112-	●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-307-1	01	1	1112-		●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-728-0	01	1	1112-	●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1112-	●
160	CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1112-	●	●
161	SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1112-	●	●
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1112-	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1112-	●	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97411-538-4	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (A) DARK GRAY	8-97411-538-4	01	1	1112-		●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97411-539-4	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (B) DARK GRAY	8-97411-539-4	01	1	1112-		●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-282-0	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-282-0	01	1	1112-		●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-301-1	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-301-1	01	1	1112-		●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-695-0	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-699-2	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1112-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY IRA	8-97421-302-1	01	1	1112-	●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-98002-092-0	01	1	1112-	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	1112-	●	●
