◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#78600) — 74 parça

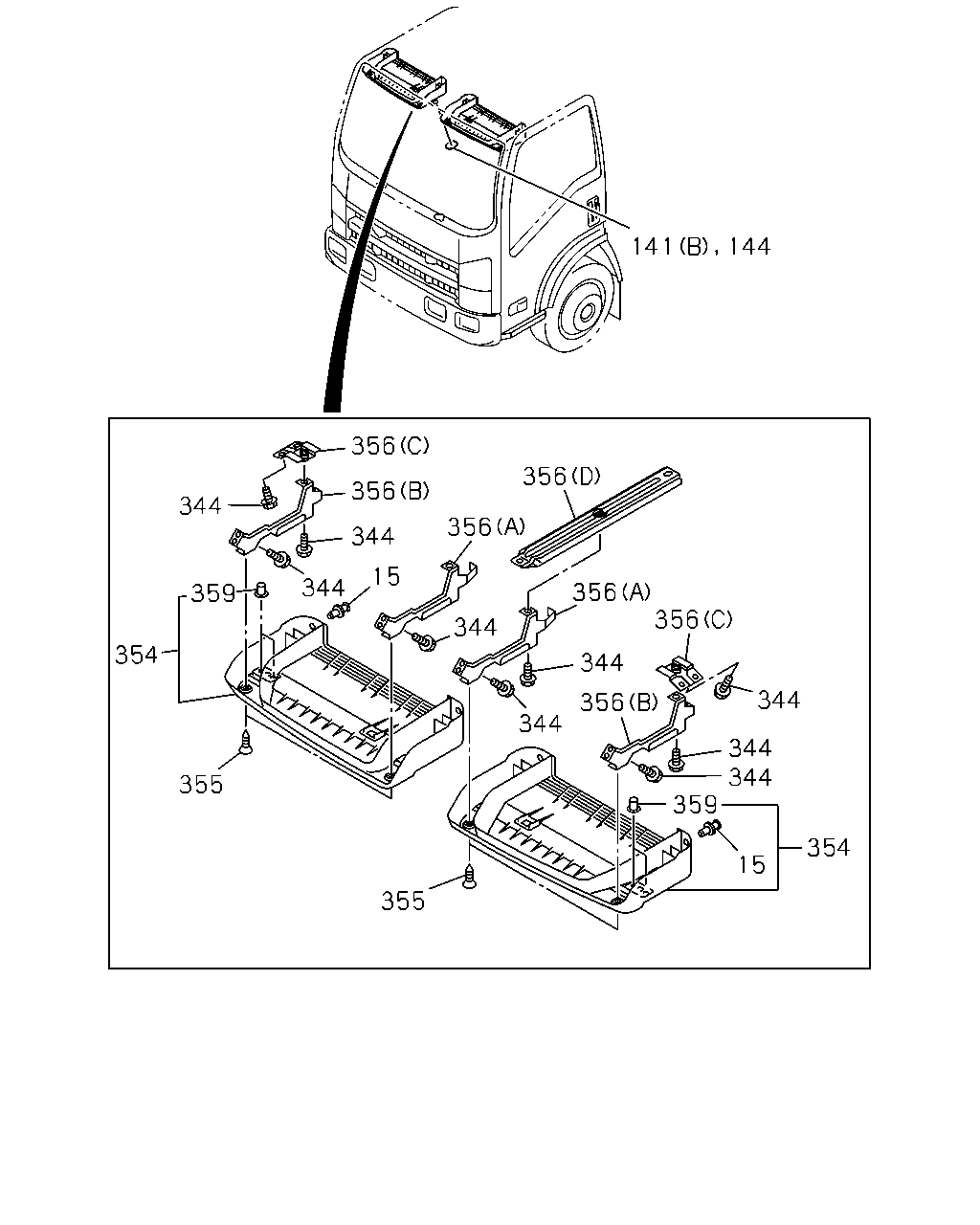

çizim 133250
141 144 356 356 356 344 356 344 15 356 344 356 359 344 354 344 344 356 344 344 344 355 359 354 15 355
BalonParca AdiParca NoAdetTipApplied Date A B
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1112- ● ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1112- ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1112- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1112-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1112- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1112- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 1112- ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 1112- ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1112- ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 1112- ●
354 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 1112- ●
354 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 1112- ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1112- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1112- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1112- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1112- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1112- ● ●

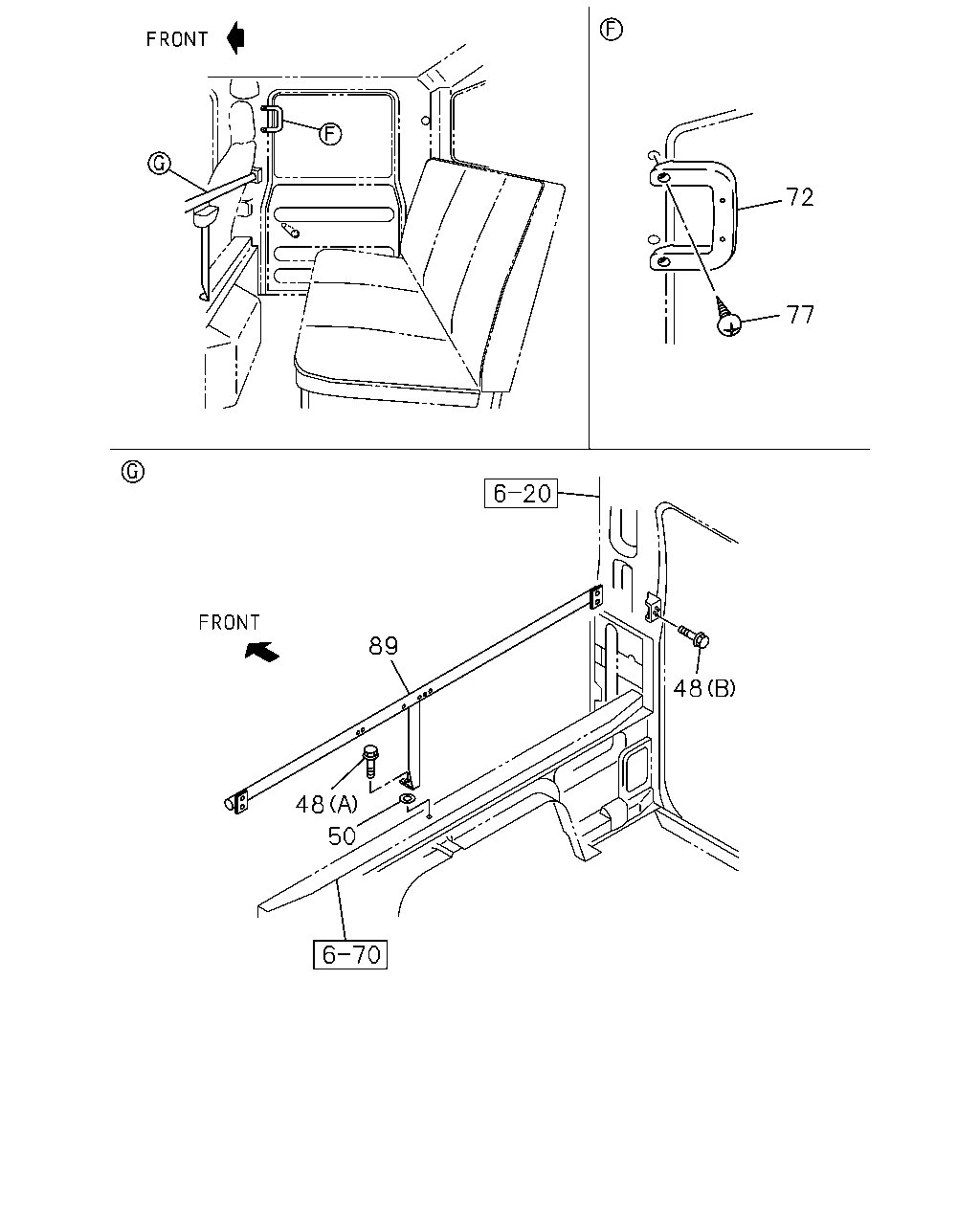

çizim 134018
72 77 89 48 48 50
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE 		0-28050-610-0 04 1 1112- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE 		0-28650-620-0 01 1 1112- ●
50 WASHER; PL,ASSIST GRIP
ID=8.4 OD=16 		0-91610-508-0 01 1 1112- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 1112- ●
77 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 1112- ●
89 HANDLE; ASSIST 8-98046-363-2 01 1 1112- ●

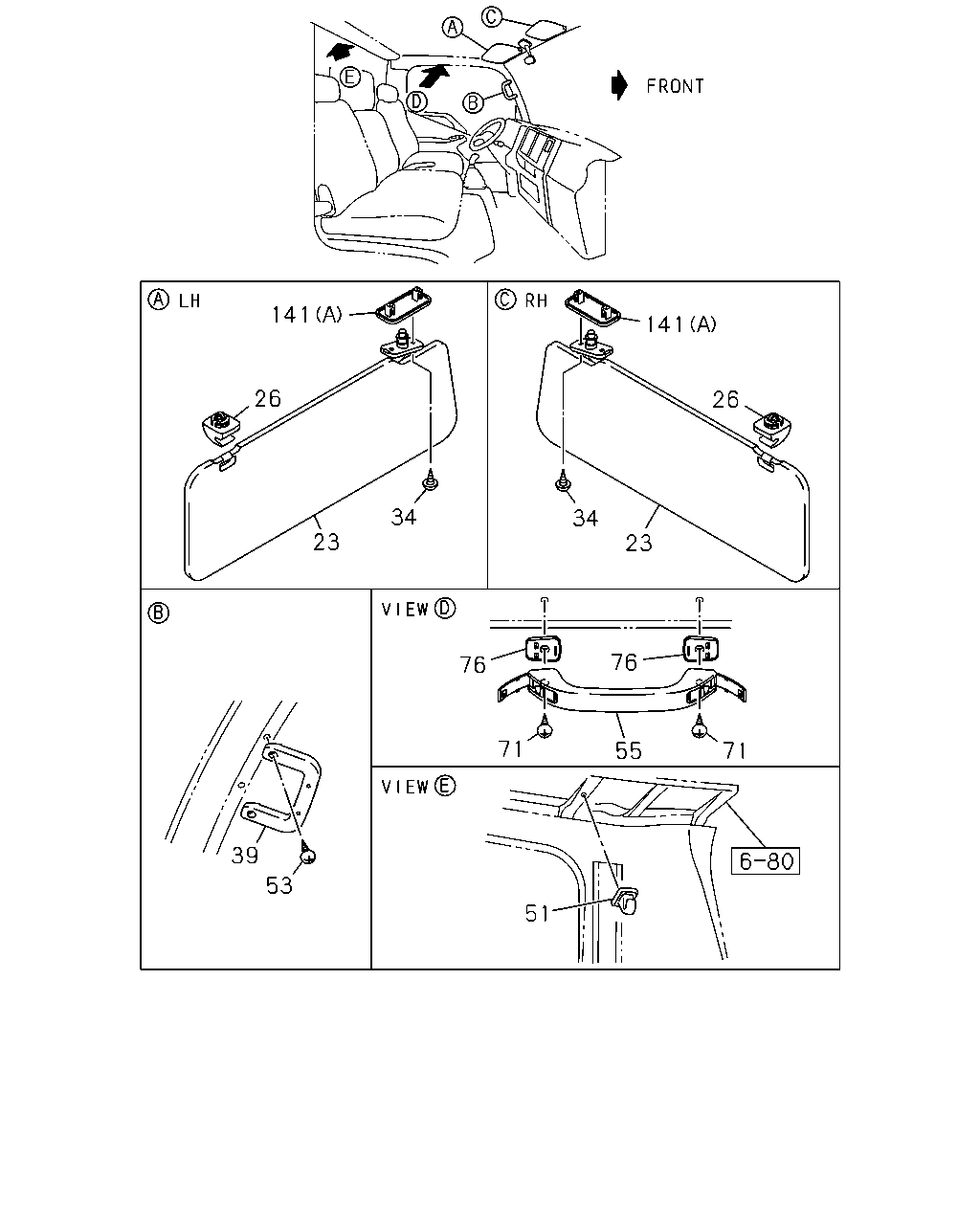

çizim 134256
141 141 26 26 34 34 23 23 76 76 71 71 55 39 53 51
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97407-895-0 01 1 1112- ● ●
23 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1112- ● ●
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 1112- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-059-1 01 1 1112- ● ●
26 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1112- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1112- ● ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1112- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1112- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1112- ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1112- ● ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1112- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1112- ● ●
51 HOOK; COAT HANGER
COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-200-0 01 1 1112- ●
51 HOOK; COAT HANGER
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 1112- ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1112- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1112- ● ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1112- ● ●
76 SPACER; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 1112- ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1112- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1112- ● ●
