◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#78598) — 149 parça

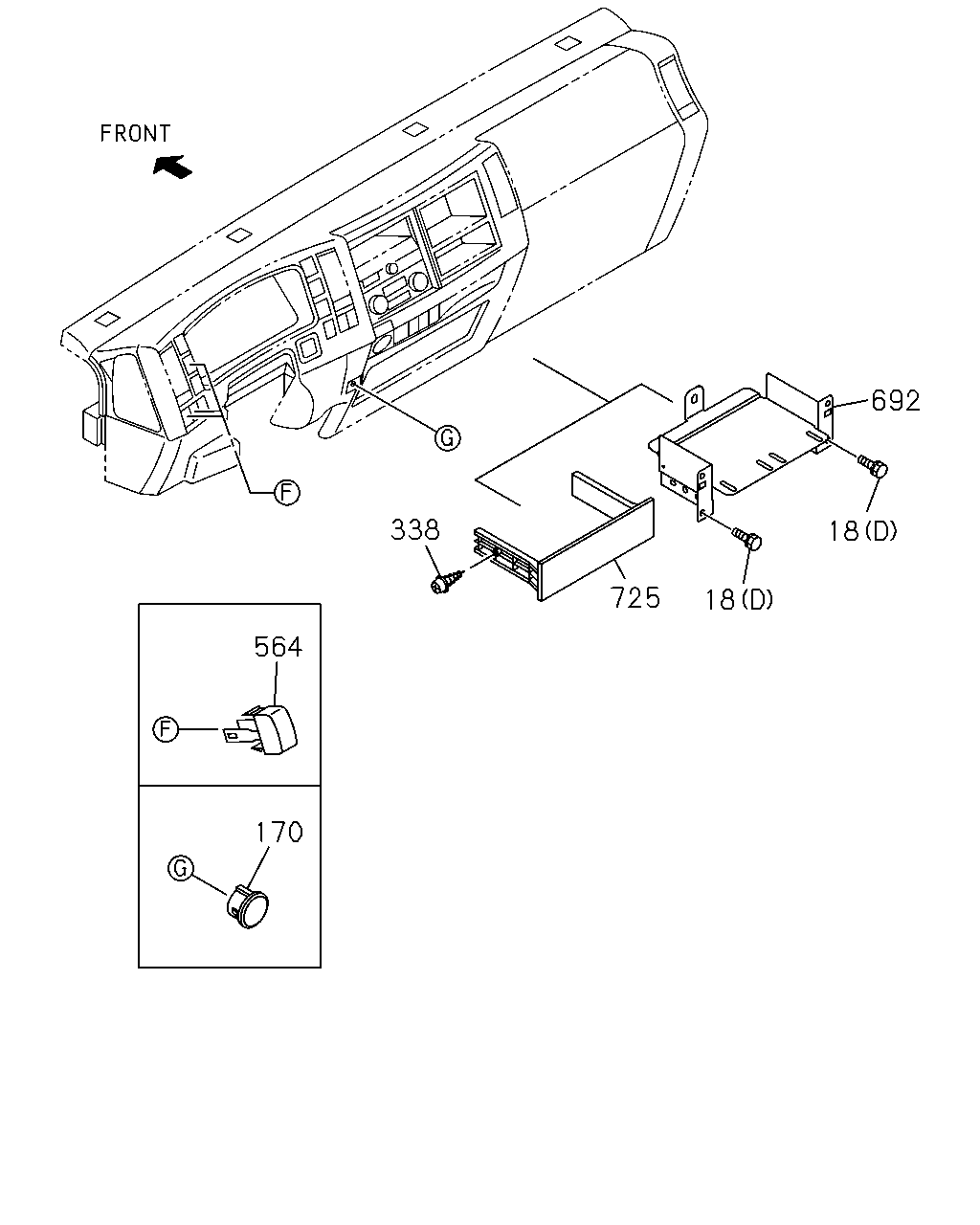

çizim 133227
692 338 18 725 18 564 170
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET IRA 		8-98177-720-0 02 1 1112-1212 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1112- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1112- ● ●
18 BOLT; BRKT
(D) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ●
170 COVER; HOLE 8-98070-401-2 01 1 1112- ● ●
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ●
564 COVER; SW 8-98025-954-1 03 1 1112- ● ●
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 1112- ● ●
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1112- ● ●

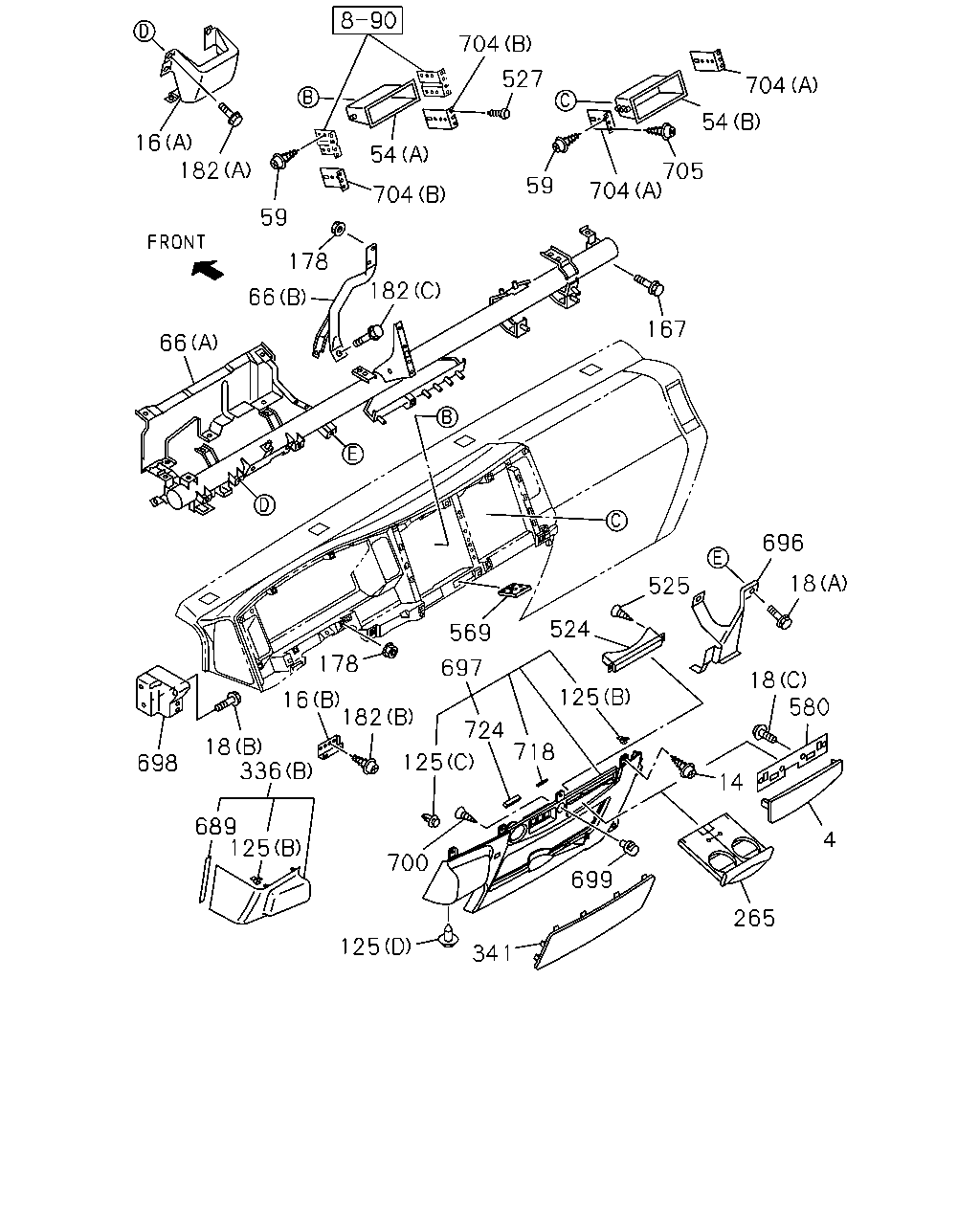

çizim 183562
341 125 700 689 125 336 18 698 16 182 724 718 14 125 699 265 4 580 18 18 696 525 524 125 697 569 178 167 704 705 54 704 59 182 178 66 66 182 16 54 704 527 704 59
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1112- ● ●
14 SCREW; INST PNL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1112-1212 ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1112- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1112- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1112- ● ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1112- ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET IRA 		8-98177-720-0 02 1 1112-1212 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1112- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1112- ● ●
18 BOLT; BRKT
(D) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ●
54 POCKET; CENTER CLUSTER
(A) H=58.4 BLACK 		8-97408-864-3 01 1 1112- ●
54 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) H=58.4 BLACK 		8-97408-864-3 01 1 1112- ●
54 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-945-0 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-945-0 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>,KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-944-0 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-944-0 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98098-028-3 01 1 1112-1309 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-028-3 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1112- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1112-1309 ● ●
66 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1310- ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1112- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1112- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1112- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 1112- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1112- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1112- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1112- ● ●
178 NUT; INST PANEL
M6 FLANGE 		0-91180-106-0 03 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET IRA 		8-98177-720-0 03 1 1112-1212 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1112-1212 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1112- ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1112- ● ●
341 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1112-1205 ● ●
341 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1112- ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1112-1212 ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 1112- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1112- ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1112- ● ●
689 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1112- ● ●
696 BRACKET; KNEE 8-98071-234-0 01 1 1112-1211 ● ●
696 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1112-1205 ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1112- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1112- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1112- ● ●
700 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98107-549-0 02 1 1112- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-616-2 02 1 1112- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1112-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
718 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ●
718 SEAL; COVER
8X80 		8-98200-040-0 01 1 1112- ● ●
718 SEAL; COVER
4X35 		8-98200-041-0 01 1 1112- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1112- ● ●

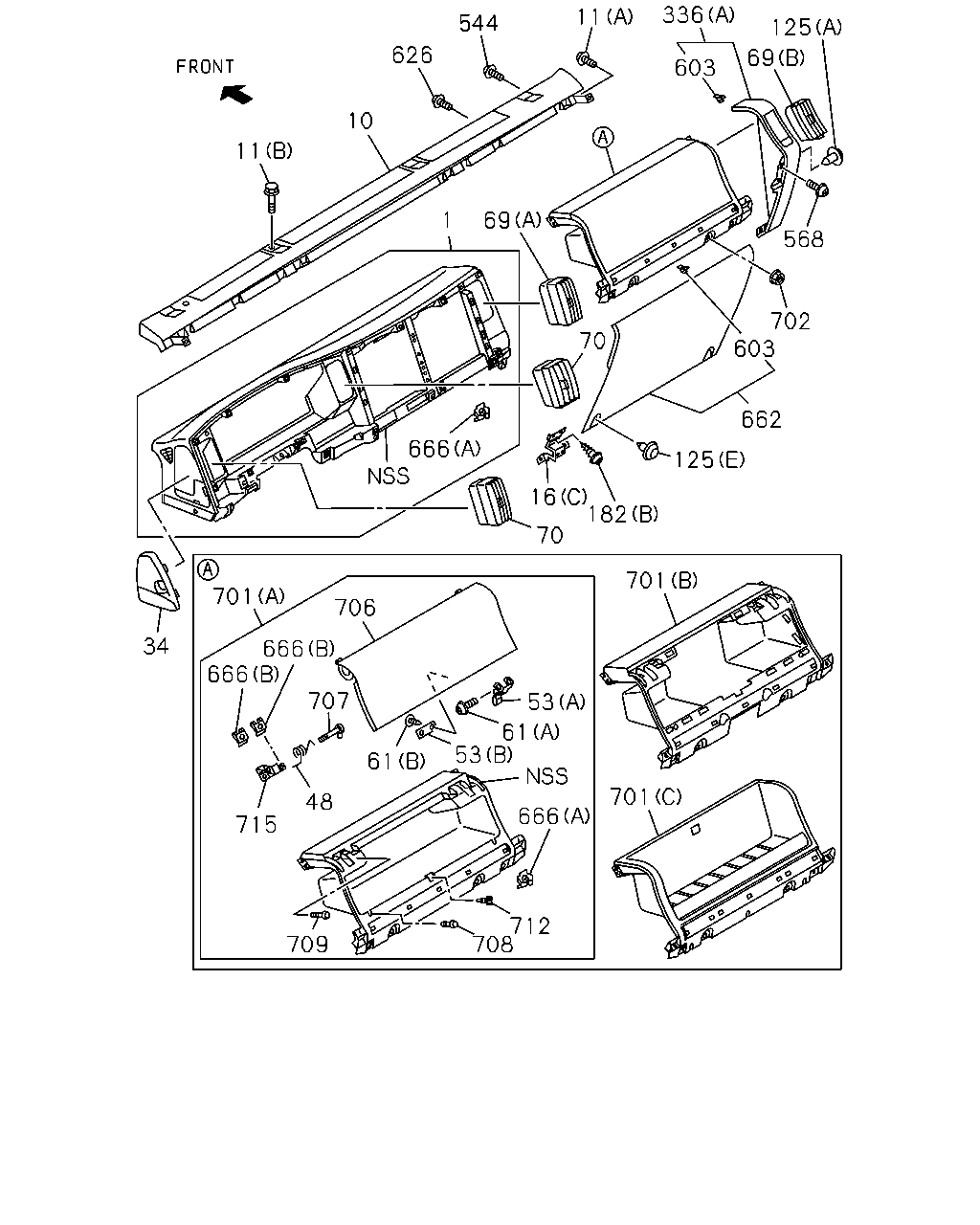

çizim 183563
125 69 336 603 568 702 603 662 11 125 182 16 70 70 69 544 626 10 1 11 666 34 701 706 666 666 707 48 715 709 708 712 666 53 61 53 61 701 701
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97406-004-4 01 1 1112- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1112- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1112- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1112-1212 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1112- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1112- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1112- ● ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1112- ● ●
34 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1112- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1112-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1112-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1112-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1112-1405 ● ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1112- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1112- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1112- ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1112- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1112- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1112- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 1112- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1112- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET IRA 		8-98177-720-0 03 1 1112-1212 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1112-1212 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1112- ● ●
336 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1112- ● ●
544 SCREW; TRAY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1112-1212 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
568 BOLT; COVER
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 CLIP; COVER 8-98021-271-0 01 1 1112- ● ●
603 CLIP; COVER 8-98021-271-0 05 1 1112- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1112- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1112- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1112- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1112-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1112- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>, COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97416-908-2 01 1 1112- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1112-1405 ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97422-091-1 01 1 1112- ● ●
702 NUT; TRAY
M6 FLANGE 		0-91180-106-0 02 1 1112- ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1112-1405 ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1112-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1112- ● ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1112- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1112- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1112-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1112-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
