◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#78597) — 21 parça

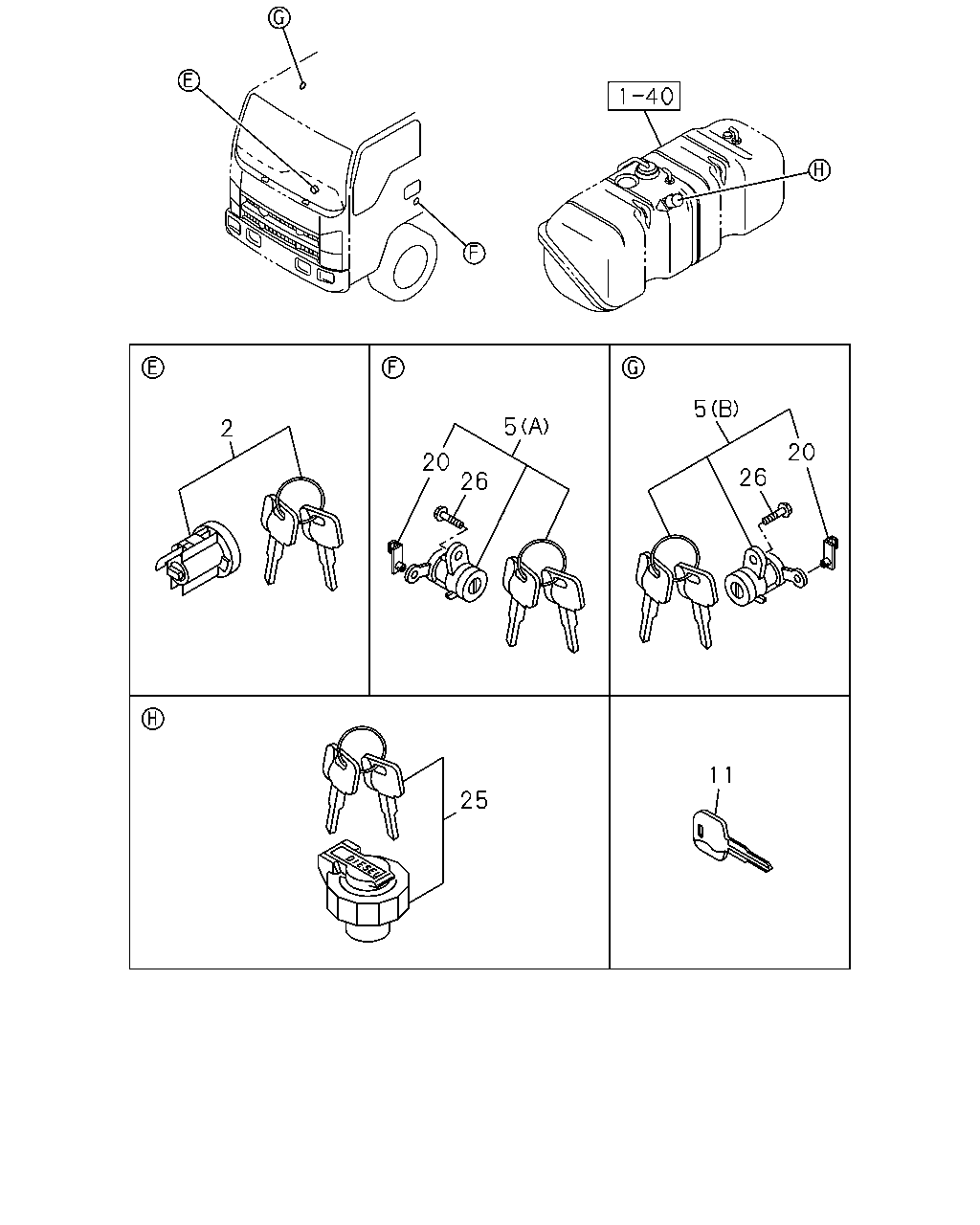

çizim 132638
5 5 2 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK
GM BRAND<X61> 		8-98055-160-0 01 1 1112-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
GM BRAND<X61> 		8-98201-352-0 01 1 1204- ● ●
2 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98055-148-0 01 1 1112-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
GM BRAND<X61> (B) 		8-98055-161-0 01 1 1112- ● ●
5 CYLINDER ASM; DOOR LOCK
GM BRAND<X61> (A) 		8-98055-162-0 01 1 1112- ● ●
5 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1112- ● ●
5 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1112- ● ●
11 KEY; BLANK
GM BRAND<X61> 		8-98055-171-0 AR 1 1112- ● ●
11 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1112- ● ●
20 SNAP; DOOR LOCK CYL
GM BRAND<X61>,ISUZU BRAND<7WL> 		8-98055-181-0 01 1 1112- ● ●
20 SNAP; DOOR LOCK CYL
GM BRAND<X61>,ISUZU BRAND<7WL> 		8-98055-182-0 01 1 1112- ● ●
25 CAP; FUEL TANK,W/KEY
GM BRAND<X61> 		8-98146-014-0 01 1 1112- ● ●
25 CAP; FUEL TANK,W/KEY
ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1112- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1112- ● ●

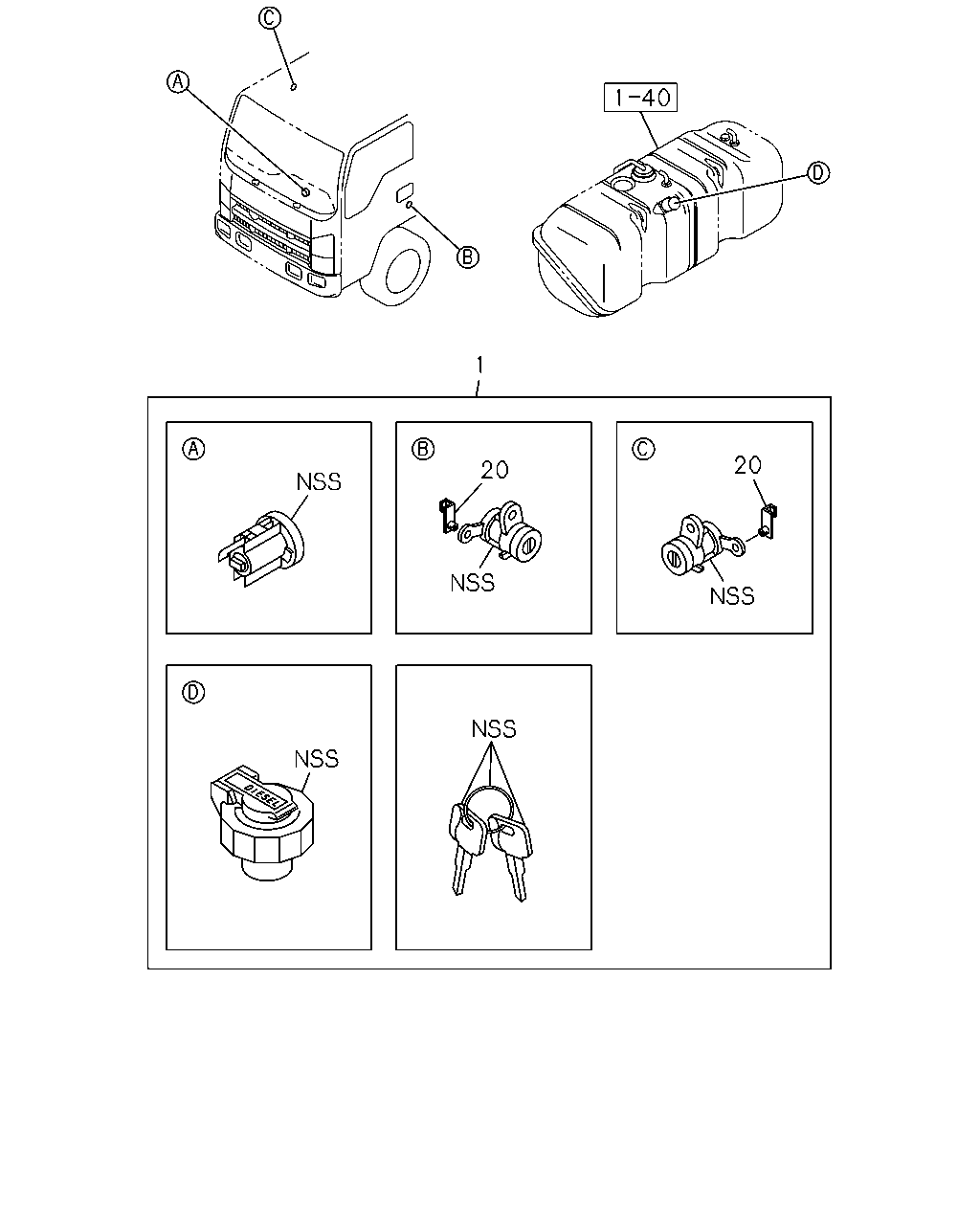

çizim 183557
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
GM BRAND<X61> 		8-98146-009-0 01 1 1112-1203 ● ●
1 CYLINDER SET; CAR LOCK
GM BRAND<X61> 		8-98201-230-0 01 1 1204- ● ●
1 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> 		8-98145-979-0 01 1 1112-1203 ● ●
1 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1204- ● ●
20 SNAP; DOOR LOCK CYL
GM BRAND<X61>,ISUZU BRAND<7WL> 		8-98055-181-0 01 1 1112- ● ●
20 SNAP; DOOR LOCK CYL
GM BRAND<X61>,ISUZU BRAND<7WL> 		8-98055-182-0 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
