◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#78592) — 15 parça

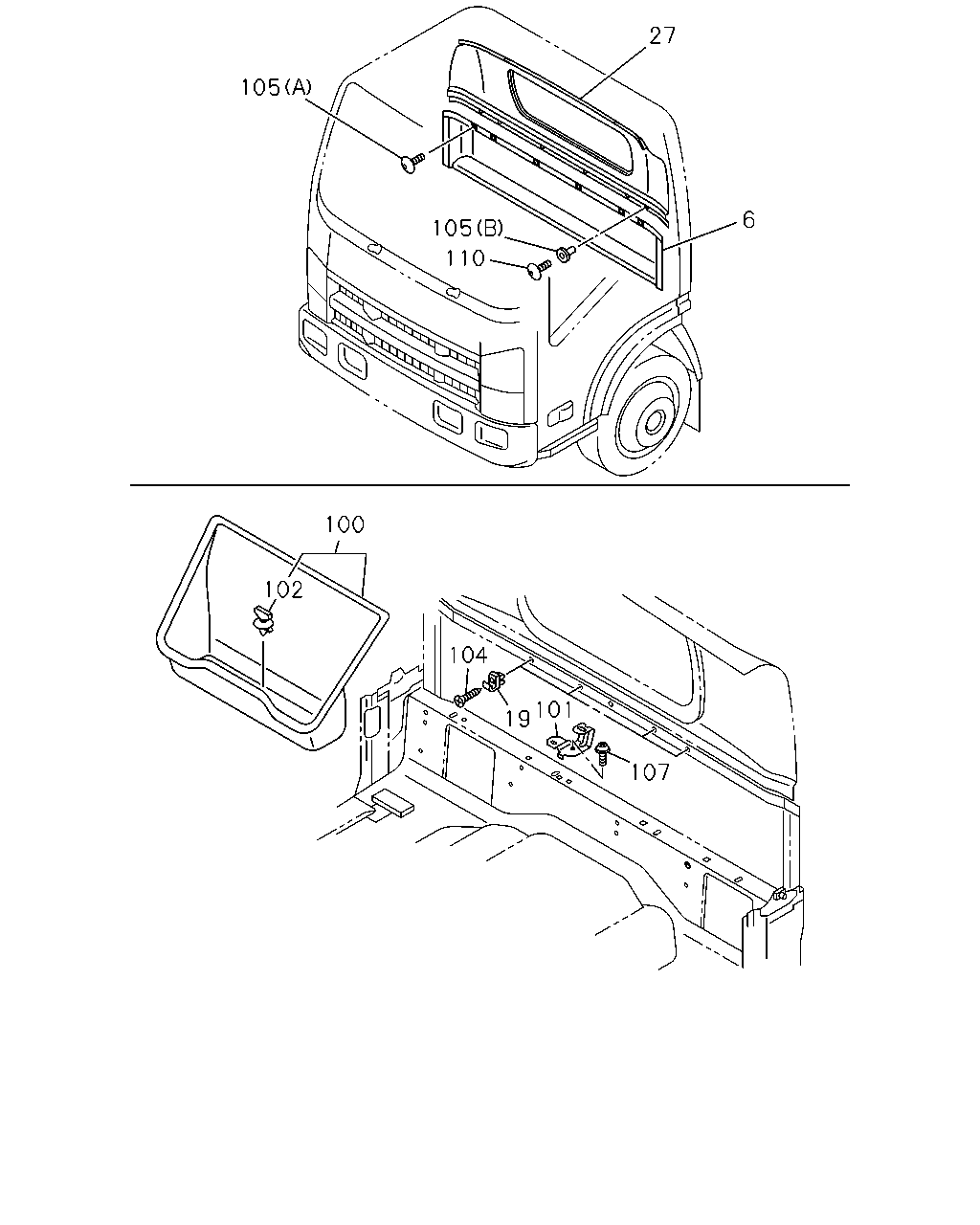

çizim 183560
27 105 6 105 110 100 102 104 101 19 107
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 1112-
6 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1112-
19 HOOK; RET
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY IRA 		8-97406-042-0 04 1 1112-
19 HOOK; RET
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY IRA 		8-97406-042-0 04 1 1112-
27 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> DARK GRAY IRA 		8-97417-129-1 01 1 1112-
27 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. WINDOW RR<8LF> DARK GRAY 		8-97417-130-1 01 1 1112-
100 TRAY; BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY 		8-97405-174-1 01 1 1112-
101 BRACKET; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) 		8-98029-439-1 01 1 1112-
102 CLIP; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY 		8-97406-996-0 01 1 1112-
104 SCREW; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> VEHICLE LOW COST PACKAGE VARIANT 1(6NX) M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1112-
104 SCREW; BACK TRIM
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1112-
105 CLIP; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> (A) GRAY 		8-97405-295-0 02 1 1112-
105 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98033-680-0 02 1 1112-
107 SCREW; BRKT
M6X16 		0-38050-616-0 01 1 1112-
110 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> GRAY 		8-97406-433-0 02 1 1112-
